GV-POE0400

Dostępność: 0
Cena: 337,17 zł 337.17 (77,97 €)
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: GEOVISION
Kod produktu: 84-POE0400-202D

Opis

Przełącznik/switch niezarządzalny, 4xRJ45 100Mb PoE 15.4W lub 2xRJ45 100Mb PoE+ 30W, 1xRJ45 100Mb...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

GV-POE0400 4-Port 802.3at PoE Switch


 5 ‐ port 10/100BaseTX, 4 ‐ port with PSE/Power over Ethernet
 IEEE 802.3at Compliant (4 Ports at Full 15.4 W)
 Max. 65 W/70 W power consumption
 Auto ‐MDI/MDI ‐ X
 Auto ‐Negotiation
 Non ‐Blocking
 5" Metal Case of Palm Size
 Up to 4 GV ‐ IP Cameras support
Introduction
GV ‐POE0400 is a 5 ‐ port 10/100Base TX with 4 PSE / PoE ports Desktop PoE Fast Ethernet Switch. The switch supports IEEE 802.3at
Power over Ethernet standard, up to 30 W per port and maximum 65 W / 70 W power consumption per system, and no special
network cable is required fo r connecting your powered devices (PD), such as IP cameras. The switch is designed for small network
environment to strengthen its network connection and efficiency.

Specifications
Ethernet
Layer Supported L2

Ports

Number of Ports 5 ports (Fast Ethernet 10/100BaseTX, 4 ports with IEEE 802.3at PSE)

Performance

MAC Address 1 K

Buffer Memory 384 K bits

Transmission Method Store and Forward

Transmission Media
10BaseT Cat. 5 UTP/STP
100BaseTX Cat. 5 UTP/STP

Filtering/Forwarding Rates
10 Mbps port ‐ 14,880 pps
100 Mbps port ‐ 148,800 pps

Backplane Capacity 1 Gbps

Mechanical Characteristics

LED Indicators
Per Port: Link/Act
PoE Act/Status
Power

Electrical Characteristics

Input 100 ~ 240 V/AC, 50 ~ 60 Hz

PoE Power
Output
IEEE 802.3at Compliant Voltage, Per Port Max. 30 watts
(4 Ports at Full 15.4 W / 2 Ports at Full 30 W)

PoE Power Supply Type Mid ‐Span

Max. Power Consumption
70 W (ADP with Level V certificated)
65 W (ADP with Level VI certificated)

General

Dimensions (H x W x D) 24 x 130 x 98 mm (0.94" x 5.11" x 3.86")

Weight 0.76 kg (1.68 lb)

Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)

Storage Temperature ‐20°C ~ 90°C ( ‐ 4°F ~ 194°F)

Humidity 10 to 90% RH (non ‐condensing)






GV-POE0400 March 23, 2018
- 1 -


Standards and Regulatory
Standards
IEEE‐ 802.3at PoE+ / PSE
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3x Flow Control

Regulatory CE, FCC Class A, RoHS compliant

Note: Specifications are subject to change without notice.

Dimensions

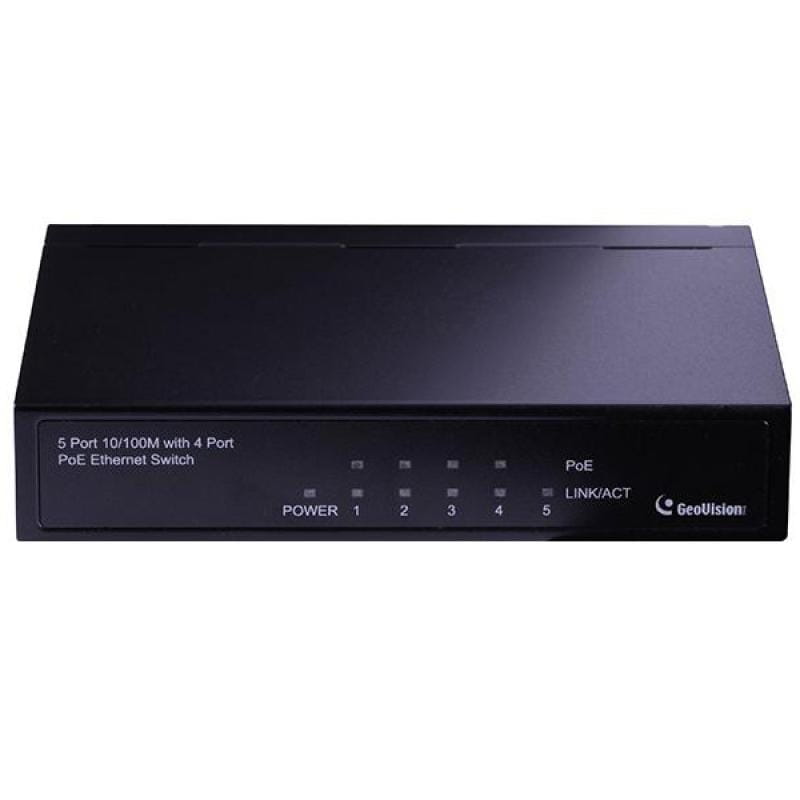

Front View

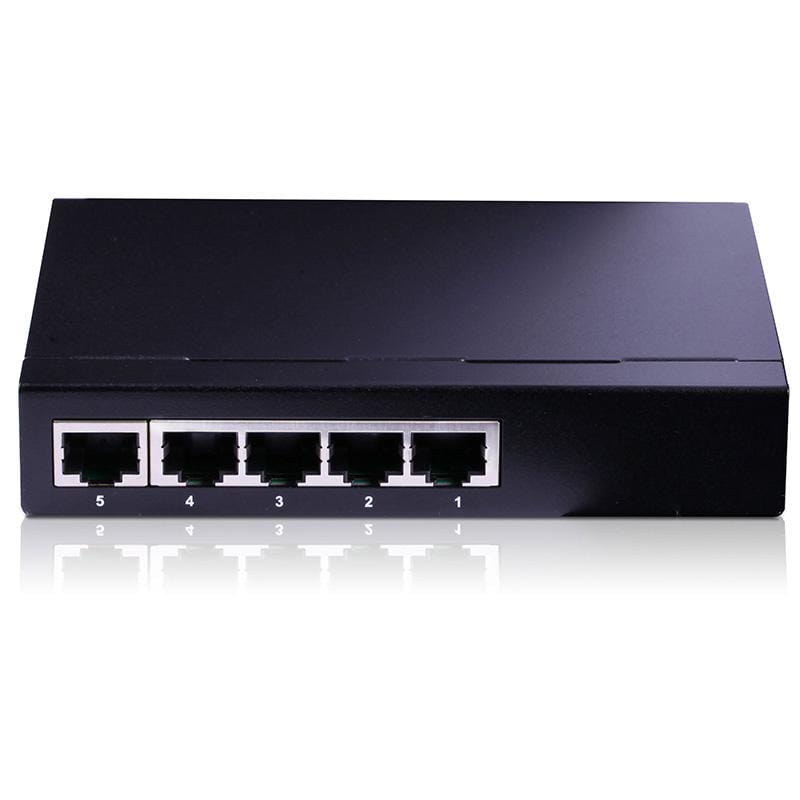

Rear View


GV-POE0400 March 23, 2018
- 2 -

GV-POE0400 March 23, 2018
- 3 -

Packing List
1. GV ‐POE0400
2. AC Power Cord
3. Power Adapter
4. GV ‐POE0400 Quick Start Guide
