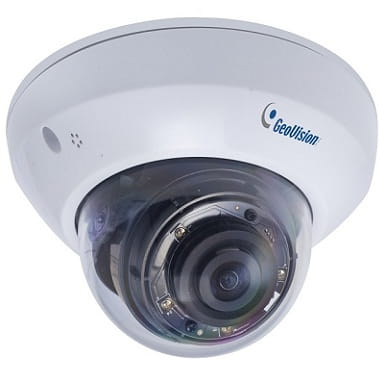

GV-MFD4700-0F

Dostępność: 0
Cena: 1 105,32 zł 1105.32 (255,59 €)
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: GEOVISION
Kod produktu: 84-MFD4700-0F10

Opis

Kamera IP mini-kopułkowa wewnętrzna, oświetlacz 20m, 4.0M-20 kl./s, H.265, WDR PRO, PoE, SDXC, 2.8mm, 3-axis, super-czuła 0.002lx...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

GV-MFD4700 Series March 8, 2018
- 1 -

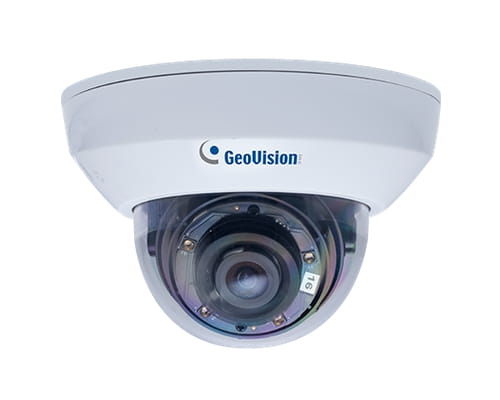

GV ‐MFD4700 Series 4MP H.265 Super Low Lux WDR Pro IR Mini Fixed Dome


* 1/3’’ progressive scan super low lux CMOS
* Min. illumination at 0.002 lux
* Dual streams from H.265, H.264 and MJPEG
* 20 fps at 2592 x 1520, 24 fps at 2560 x 1440, 30 fps at 2048 x 1520
* Two ‐way audio
* Intelligent IR
* 3 ‐ axis me chanism (pan / tilt / rotate)
* One sensor input and alarm output
* Built ‐ in micro SD card slot (SD/SDHC/SDXC/UHS ‐ I) for local storage
* Day and night function (with removable IR ‐cut filter)
* Megapixel lens
* 12V DC / PoE (IEEE 802.3af)
* Wide Dynamic Range Pro (WDR Pro)
* 3D noise reduction
* Smart streaming
* Defog
* Motion detection
* Tampering alarm
* Text overlay
* Privacy mask
* IP address filtering
* Recording assigned by GV ‐Edge Recording Manager (Windows ,
Mac ver sion)
* Supports iPhone, iPad, Android & 3GPP
* 31 languages on Web interface
* ONVIF (Profile S) conformant
* No Memory card slot & local storage function for Argentina.
* Smart streaming requires either GV ‐ DVR / NVR V8.7.0.0 or GV ‐VMS
V16.10.3.0


Introduction
GV ‐MFD4700 Series offers an indoor, fixed, mini ‐sized network camera with 3 ‐axis mechanism for easy and flexible installation.
The camera can support H.265 video codec to achieve better compression ratio while maintaining high picture quality at reduced
network bandwidths. GV ‐MFD4700 can process scenes with contrasting intensity of lights and pr oduce clear image using the built ‐ in
WDR Pro. The camera is equipped with a Super Low Lux CMOS image sensor which allows the camera to provide a color live view in
near darkness.


Models
Models Iris Focal Length (mm)
Maximum Aperture Image Format
GV ‐MFD4700 ‐ 0F 2.8 mm F/2.0
GV ‐MFD4700 ‐ 2F 3.8 mm F/1.8
GV ‐MFD4700 ‐ 6F
Fixed
2.3 mm F/2.2
1/2.7”

Active Tampering Alarm
Tampered Focus Change Camera Shift


Dimensions

GV-MFD4700 Series March 8, 2018
- 2 -

1
6
.
8
6

m
m

(
0
.
6
6
'
'
)

2
9
.
8
6

m
m

(
1
.
1
7
'
'
)

Specifications
Camera GV ‐MFD4700 ‐ 0F GV ‐MFD4700 ‐ 2F
GV ‐MFD4700 ‐ 6F
Image Sensor 1/3” progressive scan super low lux CMOS

Picture Elements 2592 (H) x 1520 (V)

Color 0.003 Lux

B/W 0.002 Lux

Minimum
Illumination
IR ON 0 Lux

Shutter Speed Automatic, Manual (1/5 ~ 1/16000 sec)

White Balance Automatic, Manual (2800 ~ 8500K)

Gain Control Automatic

S/N Ratio 50 dB

WDR Pro Yes

Dynamic Range Up to 120 dB

Lens

Megapixel Yes

Day/Night Yes (with removable IR ‐cut filter)

Lens Type Fixed

Focal Length 2.8 mm 3.8 mm 2.3 mm

Maximum Aperture F/2.0 F/1.8 F/2.2

Mount M12, Pitch 0.5 mm

Image Format 1/2.7”

Horizontal FOV 96° 72° 129°

IR LED Quantity 4 IR LEDs

Max. IR Distance 20 m (65.6 ft)

Focus Fixed

Zoom Fixed

Operation
Iris Fixed

Operation

Video Compression H.265, H.264, MJPEG

Video Streaming
Stream 1 from H.265 or H.264
Stream 2 from H.265, H.264 or MJPEG

Frame Rate
50Hz: 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 25 fps at 2048 x 1520
60Hz: 20 fps at 2592 x 1520, 24 fps at 2560 x 1440, 30 fps at 2048 x 1520
* The frame rate and performance may vary depending on the num ber of connections and data
bit‐ rates (different scenes).

Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker ‐less, Image Orientation,
Shutter Speed, Backlight Compensation, D/N Sensitivity, WDR, Defog, Low Lux Enhancement,
Denoise, Metering

Audio Compression G.711, AAC (Optional)

Audio Support Two ‐way audio

Sensor Input 1 input (dry contact)

Alarm Output 1 digital output (200 mA 5V DC)



GV-MFD4700 Series March 8, 2018
- 3 -
Video Resolution
4:3 2048 x 1520, 1600 x 1200, 1280 x 960, 640 x 480

16:9 2592 x 1520, 2560 x 1440 (Default), 2304 x 1296, 1920 x 1080, 1280 x 720, 640 x 360

Main
Stream
5:4 1280 x 1024, 640 x 512

4:3 1024 x 768, 640 x 480, 320 x 240

16:9 1280 x 720, 640 x 360 (Default), 448 x 256

Sub Stream
5:4 1280 x 1024, 640 x 512, 320 x 256

Network

Interface 10/100 Ethernet

Protocol
DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IPv4, NTP, ONVIF (Profile S), QoS (DSCP), RTSP, RTP,
RTCP, SNMP, SMTP, SSL, TCP/IP, UDP, UPnP, 3GPP/ISMA

Mechanical

Temperature Detector Yes

Pan ‐ 45° ~ 45°

Tilt 0° ~ 70°

Camera
Angle
Adjustment
Rotate 0° ~ 360°

Power 2 ‐pin terminal block (DC 12V, 1.25A), PoE

Ethernet Ethernet (10/100 Base ‐ T), RJ ‐ 45 cable

Audio
1 In (built ‐ in or external microphone)
1 Out (stereo phone jack, 3.5 mm / 0.14’’)

Digital I/O I/O wires

Connectors
Local
Storage
Micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10)
*UHS‐ II card type is not supported.

LED Indicator 2 LEDs: Power, Status

General

Start ‐ up

Environment
Temperature
Operation
0°C ~ 50°C (32°F ~ 122°F)
Humidity 10% to 90% (no condensation)

Power Source 12V DC / PoE (IEEE 802.3af)

Max. Power Consumption 12V DC, 7.5W

Dimensions (without lens) 110 x 72.83 mm (4.33’’ x 2.86’’)

Weight 200 g (0.44 lb)

Regulatory CE, FCC, RCM, LVD, RoHS compliant

Power over Ethernet

PoE Standard PoE (IEEE 802.3af Power over Ethernet / PSE)

PoE Power Supply Type End ‐Span and Mid ‐Span

PoE Power Output Per Port 48V DC, 350 mA, Max. 15.4 watts

Web Interface

Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot,
Audio, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay, Digital PTZ

Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew /
Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese /
Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Sloven ian / Spanish / Swedish / Thai /
Traditional Chinese / Turkish

Applications

Software Supported
GV ‐ DVR / NVR (V8.7.1.0), GV ‐ VMS (V15.11.3.0), GV ‐Edge Recording Manager (V1.2.0.0),
GV ‐Center V2 (V15.10.0.0), GV ‐Recording Server (V1.3.0.0),
GV ‐Redundant / Failover Server (V1.1.0.0)

Smart Device Access GV ‐ Eye for iOS and Android

Live Viewing Browser (IE, Chrome, Firefox, Safari), Mobile app

CMS Server support GV ‐Control Center, GV ‐Center V2, GV ‐ Vital Sign Monitor

Note:
1. It is required to apply patch files to all the supported software.
2. The signal range and data throughput may vary depending on the network conditions and environmental factors.
3. Mind the following when using a memory card for recording:
* Recorded data on the memory card can be dam aged or lost if the data are accessed while the camera is under physical
shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan. No
guarantee is provided for such causes.

GV-MFD4700 Series March 8, 2018
- 4 -

* The stored data can be lost if the memory card is not accessed for a long period of time. Back up your data periodically if you
seldom access the memory card.
* Memory cards are expendable and their durability varies according to the conditions of the installed site and how th ey are
used. Back up your data regularly and replace the memory card annually.
* To avoid power outage, it is highly suggested to apply a battery backup (UPS).
* For better performance, it is highly suggested to use Micro SD card of MLC NAND flash, Class 10.
* Replace the m emory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently
undetected by the camera.
4. Specifications are subject to change without notice.

Packing List
1. H.265 Mini Fixed IP Dome
2. Screw x 2
3. Screw Anchor x 2
4. Focus Adjustment Ring
(only for GV ‐MFD4700 ‐0F/2F)
5. Installation Sticker
6. Audio and I/O extended cable
7. Torx Wrench
8. Download Guide
9. Warranty Card

Accessories
Model No. Name Details
GV ‐Mount910 Power Box Mount
Bracket


Dimensions: 112 x 98 x 7.5 mm
(4.4’’ x 3.9’’ x 0.3’’)
Weight: 105 g (0.23 lb)
GV ‐Mount913 Power Box Mount
Bracket


Dimensions: Ø 146 x 7.5 mm (Ø 5.7’’ x 0.3’’)
Weight: 180 g (0.4 lb)
GV ‐Mount918

Wall Mount Bracket for
MFD/MDR/EFD/EDR


Dimensions: Ø 145 x 117 x 96 mm
(Ø 5.71’’ x 4.60’’ x 3.78")
Weight: 350 g (0.77 lb)
GV ‐ PA 191 PoE Adapter The GV ‐PA191 is a Power over Ethernet (PoE)
adapter designed to provide power to the IP
device through a single Ethernet cable.
GV ‐ Re lay V2

GV ‐ Relay V2 is designed to expand the voltage
load of GV IP devices. It provides 4 relay outputs,
and each can be set as normally open (NO) or
normally closed (NC) independently as per your
requirement.
GV ‐ POE Swit ch GV ‐POE Switch is designed to provide power along with network connection
for IP devices. The GV ‐ POE Switch is available in various models with
different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.
