GV-MDR5300-2F

Dostępność: 0
Cena: 2 502,34 zł 2502.34 (578,64 €)
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: GEOVISION
Kod produktu: 01623

Opis

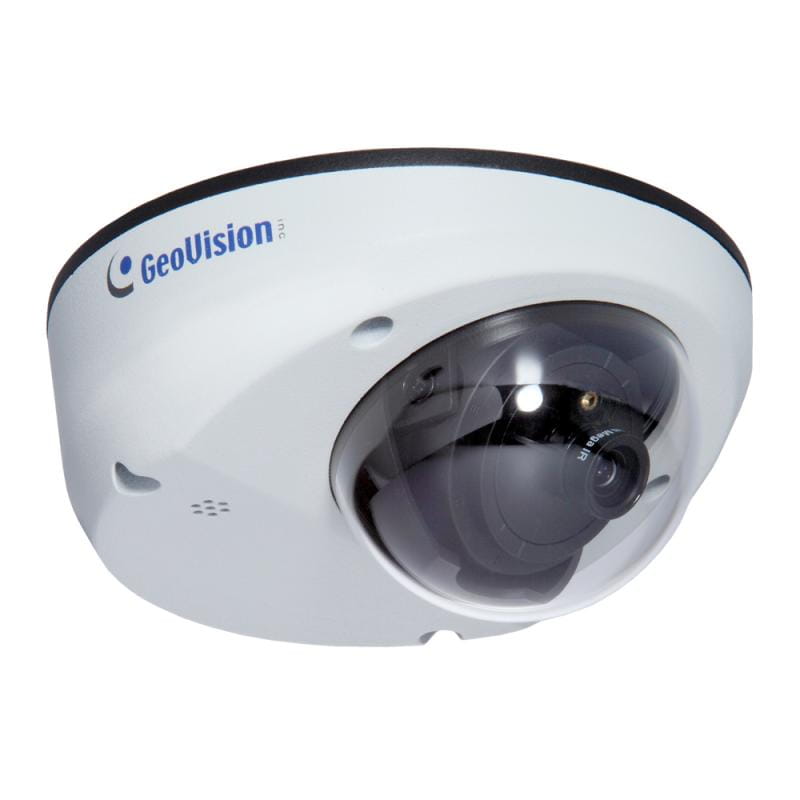

Kamera IP mini-kopułkowa IP67 wandaloodporna IK10, 5.0M-10 kl./s, H.264, WDR, PoE, SDXC, 3.8mm, EN50155, produkt na zlecenie...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

GV-MDR5300 Series 5MP H.264 WDR Mini Fixed Rugged Dome


* 1/2.5" progressive scan CMOS
* Dual streams from H.264 and MJPEG
* Up to 10 fps at 2560 x 1920
* Wide Dynamic Range (WDR)
* Vandal resistance (IK10 for metal casing)
* Ingress protection (IP67)
* EN50155 compliance for rolling stock applications
* Wide temperature tolerance ( ‐ 30 °C ~ 50 °C / ‐ 22 °F ~ 122 °F)
* 3 ‐ axis mechanism:
pan ( ‐ 45° ~ +45°), tilt (0° ~ 90°), rotate (0° ~ 360°)
* PoE (IEEE 802.3af)
* Built ‐ in microphone
* Built ‐ in micro SD card slot (SD/SDHC) for local storage
* Recording assigned by GV ‐Edge Recording Manager (Windows ,
Mac ver sion)
* Day and night function (electronic)
* 2D noise reduction
* Defog
* Motion detection
* Tampering alarm
* Privacy mask
* Text overlay
* IP address filtering
* Supports iPhone, iPad, Android & 3GPP
* 31 languages on Web interface
* ONVIF (Profile S) conformant
* More Storage Option ‐ NAS
* No Memory Card Slot & local storage function for Argentina.

Introduction
The GV ‐MDR5300 Series are outdoor, fixed, mini ‐sized network cameras with different lens options. The cameras can process scenes
with contrasting intensity of lights and produce clear image using the built ‐ in WDR. The cameras adhere to IK10 and IP67 standards.
GV ‐MDR5300 Series are adjustable in 3 axis (pan, tilt and ro tate) and can be connected through PoE.

Models
Model Iris Focal Length (mm) Maximum Aperture Image Format
GV ‐MDR5300 ‐ 1F Fixed 2.8 F/2.0 1/3’’
GV ‐MDR5300 ‐ 2F Fixed 3.8 F/1.8 1/3’’

Active Tampering Alarm
Tampered Focus Change Camera Shift




GV-MDR5300 Series January 4, 2018
- 1 -

Dimensions
* Dimensions



* LAN Connector
1. Waterproof M12 4 ‐ Pin Female Connector (for motor vehicles)

Ø14.7 mm (0.58'')

2. Small Waterproof Connector

42.8 mm (1.69")
ø19.6 (0.77”)


Specifications
Camera GV ‐MDR5300 ‐ 1F
GV ‐MDR5300 ‐ 2F
Image Sensor 1/2.5" progressive scan CMOS
Picture Elements 2560 (H) x 1920 (V)

Color 0.15 Lux

Minimum Illumination
BW 0.10 Lux

Shutter Speed Automatic, Manual (1/5 ~ 1/8000 sec.)

White Balance Automatic, Manual (2800K ~ 8500K)

Gain Control Automatic

S/N Ratio 45 dB

WDR Yes

Lens

Megapixel Yes

Day/Night Yes (electronic)

Iris Fixed

Focal Length 2.8 mm 3.8 mm
Maximum Aperture F/2.0 F/1.8
Mount M12, Pitch 0.5 mm
Image Format 1/3”

Horizontal FOV 104° 76°
GV-MDR5300 Series January 4, 2018
- 2 -

GV-MDR5300 Series January 4, 2018
- 3 -

Lens
Focus Fixed
Zoom Fixed
Operation
Iris Fixed
Operation
Video Compression H.264, MJPEG
Video Streaming Dual streams from H.264 and MJPEG
Frame Rate
10 fps at 2560 x 1920 (60/50 Hz)
* The frame rate and the performance may vary depending on the number of
connections and data bitrates (different scenes).
Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker ‐less
50/60 Hz, Image Orientation, Shutter Speed, Backlight Compensation, D/N
sensitivity, WDR, Defog, Noise Reduction, Metering
Audio Compression G.711, AAC (optional)
Audio Support One ‐ Way Audio
Video Resolution
4:3 2560 x 1920 (Default), 2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240
16:9 1920 x 1080, 1280 x 720, 640 x 360, 448 x 252
Main Stream
5:4 1280 x 1024, 640 x 512, 320 x 256
4:3 640 x 480, 320 x 240 (Default)
16:9 640 x 360, 448 x 252
Sub Stream
5:4 640 x 512, 320 x 256
Network
Interface 10/100 Ethernet
Ethernet Protocol
HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP,
SNMP, QoS (DSCP), ONVIF (Profile S)
Mechanical
Temperature Detector Yes
Pan ‐ 45° ~ 45°
Tilt 0° ~ 90°
Camera Angle
Adjustment
Rotate 0° ~ 360°
Power PoE (IEEE 802.3af)
Ethernet Ethernet (10/100 Base ‐ T), RJ ‐ 45
Audio Built ‐ in microphone
Connectors
Local Storage
Micro SD card slot (SD/SDHC, SD version 2.0 only, Class 10)
* SDXC and UHS ‐ I card types are not supported.
LED Indicator 3 LEDs: Link, Power, Status
General
Environment Temperature ‐30 °C ~ 50 °C ( ‐ 22 °F ~ 122 °F)
Humidity 10% to 90% (no condensation)
Power Source PoE (IEEE 802.3af)
Max. Power Consumption 3.81 W
Camera Body ø 115 x 59.2 mm
Cable Length 1.054 m (41.5”)
Cable Diameter ø 6.2mm
Dimensions
Maximum
Connector
Diameter
ø 27 mm
Weight 568 g (1.3 lb)
Ingress Protection IP67
Vandal Resistance IK10 for metal casing
Regulatory CE, FCC, RCM, RoHS compliant
Power over Ethernet
PoE Standard
PoE (IEEE 802.3af Power over Ethernet / PD)
PoE Power Supply Type
End ‐Span
PoE Power Output
Per Port 48V DC, 350mA. Max. 15.4 watts


GV-MDR5300 Series January 4, 2018
- 4 -

Web Interface
Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control,
Image Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Text
Overlay, Digital PTZ

Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German /
Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian /
Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian /
Simplified Chinese / Slovakian / Sloven ian / Spanish / Swedish / Thai / Traditional
Chinese / Turkish

Applications

Network Storage GV ‐DVR/NVR, GV ‐Backup Center, GV ‐Recording Server, GV ‐ VMS

Smart Device Access GV ‐ Eye for iOS and Android

Live Viewing IE, Mobile App

CMS Server support GV ‐Control Center, GV ‐Center V2, GV ‐ Vital Sign Monitor

Note:
1. Mind the following when using an inserted memory card for recording:
* Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical
shock, power interruption, memory card detachment or when the memory card reaches the end of its l ifespan. No
guarantee is provided for such causes.
* The stored data can be lost if the memory card is not accessed for a long period of time. Back up your data periodically if
you seldom access the memory card.
* Memory cards are expendable and their durability varies according to the conditions of the installed site and how they are
used. Back up your data regularly and replace the memory card annually.
* To avoid power outage, it is highly suggested to apply a battery backup (UPS).
* For better performance, it is highly suggested to use Micro SD card of MLC NAND flash, Class 10.
* Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently
undetected by the camera.
2. Specifications are subject to change without notice.


Packing List
1. Mini Fixed Rugged Dome with 2 options for its LAN
connector (connector for motor vehicles or for general
use)
2. Torx Wrench
3. Self Tapping Screw x 2
4. Screw Anchor x 2
5. Cable stopper
6. Cable Connector
7. Installation sticker
8. Silica gel bag x 2
9. Ferrite cor e for vehicle installation
10. Adhesive tape x 2
11. Download Guide
12. Warranty Card


Accessories

Model No./Name
Details
GV ‐Mount909 Wall Mount Bracket


Dimensions: 170 x 150 x 110 mm (6.7’’ x 5.9” x 4.3’’)
Weight: 610 g (1.34 lb)

GV ‐Mount910 Power Box Mount Bracket


Dimensions: 112 x 98 x 7.5 mm (4.4’’ x 3.9’’ x 0.3’’)
Weight: 105 g (0.23 lb)

GV ‐Mount913 Power Box Mount Bracket


Dimensions: Ø 146 x 7.5 mm (Ø 5.7’’ x 0.3’’)
Weight: 180 g (0.4 lb)

GV ‐Mount918 Wall Mount Bracket for
MFD/MDR/EFD/EDR


Dimensions: Ø 145 x 117 x 96 mm (Ø 5.71” x 4.60” x 3.78")
Weight: 350 g (0.77 lb)

GV ‐PA191 PoE Adapter
Dimensions (H x W x D): 43 x 69 x 40 mm (1.69” x 2.72” x 1.57”)
Weight: 130 g (0.29 lb)

GV ‐ PoE Switch
GV ‐ PoE Switch is designed to provide power along with network connection for IP
devices. GV ‐ PoE Switch is available in various models with different numbers and types of
ports.


GV-MDR5300 Series January 4, 2018
- 5 -
