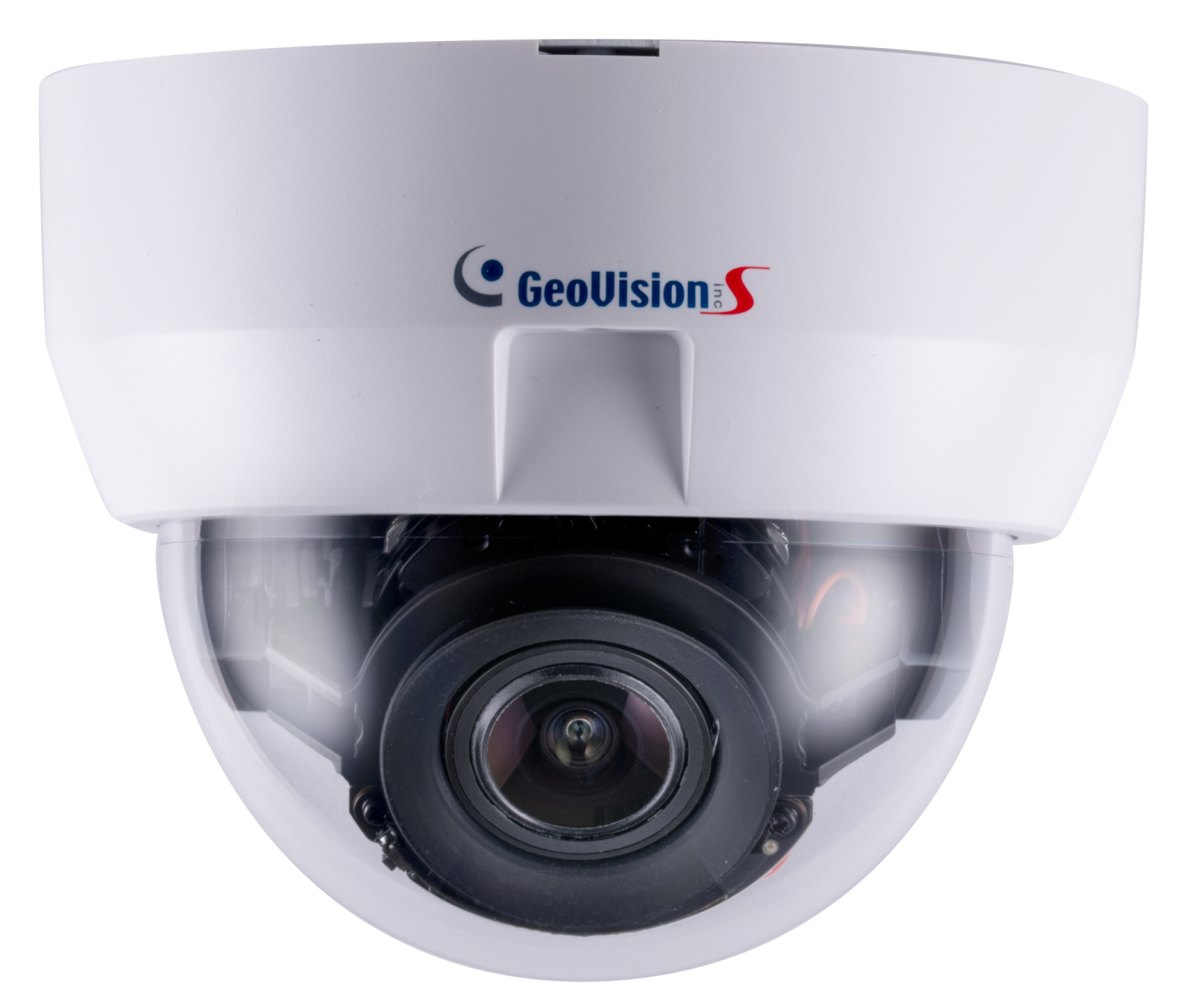

GV-MD8710-FD

Dostępność: 11-50
Cena: 2 917,95 zł 2917.95 (674,75 €)
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: GEOVISION
Kod produktu: 84-MD87100-0D010

Opis

Kamera IP kopułkowa wewnętrzna, oświetlacz 30m, 8.0M-30 kl./s, H.265, WDR PRO, PoE, SDXC, 4~8mm P-iris, 3-axis, czuła 0.03lx, moto-zoom 2x, wykrywanie twarzy...

Gwarancja: 24 mies.

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

GV-MD8710-FD 8MP H.265 Low Lux WDR Pro Face Detection IR Motorized IP
Dome




* 1/2” progressive scan low lux CMOS
* Min. illumination at 0.03 lux
* Triple streams from H.265, H.264 and MJPEG
* Up to 30 fps at 3840 x 2160
* P ‐ iris lens for auto iris control
* Intelligent IR
* IR distance up to 30 m (98.43 ft)
* Day and Night function (with removable IR ‐cut filter)
* Wide Dynamic Range Pro (WDR Pro)
* 3 ‐axis mechanism (pan / tilt / rotate)
* DC 12V / PoE (IEEE 802.3af)
* Two ‐way audio
* Built ‐ in Micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10)
* Face Detection
* 3D noi se reduction
* Smart streaming
* Defog
* Privacy mask
* IP address filtering
* Recording assigned by GV ‐Edge Recording Manager (Windows
& Mac )
* Supports iPhone, iPad, Android & 3GPP
* 31 languages on Web interface
* ONVIF (Profile S) conformant
* TAICS IoT Cyber Security certified

* No Memory card slot & local storage function for Argentina.
* Smart streaming requires GV ‐DVR / NVR V8.7.0, GV ‐VMS V16.10.3
or later software versions.
* Face detection requires GV ‐ VMS 18.1 or later.

Introduction
GV ‐MD8710 ‐ FD is specifically designed for face detection. The camera is equipped with a WDR Pro, an automatic IR ‐cut filter and IR
LEDs for day and night surveillance. With its motorized varifocal lens, the user can zoom and focus the camera from the Web
interface. The camera can support H.265 vi deo codec to achieve better compression ratio while maintaining high quality pictures at
reduced network bandwidths. For night operations, the camera allows up to 30 m (98.4 ft) IR effective distance. Adjustable in 3 axis
(pan, tilt and rotate), it offers smart surveillance solutions with all the essential features and excellent image quality.

Active Tampering Alarm
Tampered Focus Change Camera Shift



GV-MD8710-FD May 16, 2019
- 1 -

Dimensions
Hard‐Ceiling Mount


In ‐Ceiling Mount



Specifications
Camera

Image Sensor 1/2” progressive scan low lux CMOS

Picture Elements 3840 (H) x 2160 (V)

Color 0.04 Lux

B/W 0.03 Lux

Minimum
Illumination
IR ON 0 Lux

Shutter Speed Automatic, Manual (1/30 ~ 1/16000 sec.)

White Balance Automatic, Manual (2800K ~ 8500K)

Gain Control Automatic

S/N Ratio 52 dB

WDR Pro Yes

Dynamic Range Up to 120 dB

Lens

Megapixel Yes

Day/Night Yes (with removable IR ‐cut filter)

Focal Length 4 ~ 8 mm

Lens Type Motorized varifocal lens

Maximum Aperture F/1.44

Mount Ø14 mm

Horizontal FOV 112° ~ 61°

GV-MD8710-FD May 16, 2019
- 2 -

Image Format 1/2.5”

Focus Auto

Zoom 2X optical zoom

Operation
Iris P ‐ iris

IR LED Quantity 4 IR LEDs

Max. IR Distance 30 m (98.43 ft)

Operation

Video Compression H.265, H.264, MJPEG

Video Streaming
Stream 1 from H.265 or H.264
Stream 2 from H.265, H.264 or MJPEG
Stream 3 from H.265, H.264 or MJPEG

Frame Rate
50Hz: 30 fps at 3840 x 2160, 25 fps at 2592 x 1944, 25 fps at 2592 x 1520
60Hz: 30 fps at 3840 x 2160 (default), 30 fps at 2592 x 1944, 30 fps at 2592 x 1520
* The frame rate and the performance may vary depending on the num ber of
connections and data bitrates (different scenes).

Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker ‐less,
Image Orientation, Shutter Speed, Backlight Compensation, D/N Sensitivity, WDR,
Defog, Low Lux Enhancement, Denoise, Metering

Audio Compression G.711

Audio Support Two ‐way Audio (external microphone and speaker required)

Sensor Input 1 input (dry contact)

Alarm Output 1 output (200 mA 5V DC)

Face Detection

Environment 600 lux

Tilt (Up/Down) ± 30°
Detectable face
angle
Swing (Left/Right) ± 60°

Max. number of faces Up to 32

Min. face photo pixel requirement 100 x 100

Video Resolution

4:3 2592 x 1944, 2048 x 1536, 1600 x 1200, 1280 x 960

16:9 3840 x 2160 (Default), 2592 x 1520, 1920 x 1080, 1280 x 720

Main Stream
5:4 1280 x 1024

4:3 1024 x 768, 640 x 480, 320 x 240

16:9 1280 x 720, 640 x 360 (Default), 448 x 256

Sub Stream
5:4 1280 x 1024, 640 x 512, 320 x 256

4:3 640 x 480, 320 x 240

16:9 640 x 360 (Default), 448 x 256

Third Stream
5:4 640 x 512, 320 x 256

Network

Interface 10/100 Ethernet

Ethernet Protocol
DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, Multicast, NTP, ONVIF
(Profile S), QoS (DSCP), RTCP, RTSP, SNMP, SMTP, SSL, TCP/IP, UDP, UPnP,
3GPP/ISMA

Mechanical

Temperature Detector Yes

Pan 0° ~ 350°

Tilt 0° ~ 75°

Camera Angle
Adjustment
Rotate 0° ~ 340°

Power 2 ‐pin terminal block (DC 12V, 1.25A), PoE

Ethernet Ethernet (10/100 Base ‐ T), RJ ‐ 45 cable

Audio
1 In (microphone jack, 3.5 mm / 0.14”)
1 Out (stereo phone jack, 3.5 mm / 0.14”)

Digital I/O I/O wires

Connectors
Local Storage
Micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10)
*UHS‐ II card type is not supported.

LED Indicator 2 LEDs: Power, Status




GV-MD8710-FD May 16, 2019
- 3 -



General
Start ‐ up Environment
Temperature
Operation
0°C ~ 50°C (32°F ~ 122°F)
Humidity 10% to 90% (no condensation)

Power Source 12V DC / PoE (IEEE 802.3af)

Max. Power Consumption 9.5 W

Dimension ø 125 x 99.5 mm (4.92” x 3.92”)

Weight 500 g (1.10 lb)

Regulatory CE, FCC, LVD, RoHS, TAICS (IoT Cyber Security) compliant

Power over Ethernet

PoE Standard PoE (IEEE 802.3af Power over Ethernet / PD)

PoE Power Supply Type End ‐Span and Mid ‐Span

PoE Power Output Per Port 48V DC, 350 mA. Max. 15.4 watts

Web Interface

Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control,
Image Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Text
Overlay, Digital PTZ

Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German /
Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian /
Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian /
Simplified Chinese / Slovakian / Sloven ian / Spanish / Swedish / Thai / Traditional
Chinese / Turkish

Applications

Software Supported
GV ‐ DVR / NVR (V8.7.6 + Patch V8.7.6.2), GV ‐ VMS (V17.1.0.100 + Patch V17.1.0.17),
GV ‐Edge Recording Manager Win Version (V1.4.0.0), GV ‐Control Center (V3.5.1),
GV ‐Recording Server (V1.4.2), GV ‐Redundant / Failover Server (V1.1.0.0 + Patch
V1.1.0.006)

Smart Device Access GV ‐ Eye for iOS and Android

Live Viewing Browser (IE, Chrome, Firefox, Safari), Mobile app

Note:
1. It is required to apply patch files to some of the supported software.
2. Specifications are subject to change without prior notice.

Packing List
1. H.265 IR IP Dome
2. Screw x 3
3. Screw Anchor x 3
4. Torx Wrench
5. Shielding Ground Wire
6. I/O Wire
7. Installation Sticker
8. Download Guide
9. Warranty Card
Note: Power adapters can be purchased upon request.


Accessories
Model No. Name Details

GV ‐Mount100 Straight Tube and
Junction Box Kit


Dimensions: 200 x 170 x 257.5 mm
(7.9” x 6.7” x 10.1”)
Weight: 3.17 kg (6.99 lb)


GV-MD8710-FD May 16, 2019
- 4 -


Model No. Name Details

GV ‐Mount101 Straight Tube Kit


Dimensions: 219 x 125 x 332 mm
(8.6” x 4.9” x 13.1”)
Weight: 1.8 kg (3.97 lb)

GV ‐Mount200 Wall Pendant Tube


Dimensions: 225 x 140 x 250 mm
(8.9” x 5.5” x 9.8”)
Weight: 900 g (1.98 lb)

GV ‐Mount203 Wall Pendant Tube
and Junction Box Kit


Dimensions: 315 x 195.5 x 225 mm
(12.4” x 7.7” x 8.9”)
Weight: 2.95 kg (6.5 lb)

GV ‐Mount300 ‐ 1 Convex Corner Adapter
Kit


Dimensions: 238.6 x 395.2 x 210 mm
(9.4’’ x 15.5” x 8.2”)
Weight: 4.27 kg (9.41 lb)

GV ‐Mount310 ‐ 1 Concave Corner
Adapter Kit


Dimensions: 111.2 x 369.9 x 210 mm
(4.37’’ x 14.5” x 8.2”)
Weight: 2.96 kg (6.53 lb)

GV ‐Mount400 ‐ 1 Pole Mount Bracket
Kit (Ø 4” ~ 6”)


Dimensions:
Bracket: 68.4 x 240 x 163 mm
(2.69” x 9.44’’ x 6.41”)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4" ~ 6"

GV ‐Mount410 ‐ 1 Pole Mount Bracket Kit
(Ø 6” ~ 7.5”)


Dimensions:
Bracket: 68.4 x 240 x 163 mm
(2.69” x 9.44’’ x 6.41”)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6" ~ 7.5"


GV-MD8710-FD May 16, 2019
- 5 -



Model No. Name Details

GV ‐Mount909 Wall Mount Bracket


Dimensions: 170 x 150 x 110 mm (6.7’’ x 5.9” x
4.3’’)
Weight: 610 g (1.34 lb)

GV ‐Mount910 Power Box Mount
Bracket


Dimensions: 112 x 98 x 7.5 mm (4.4’’ x 3.9’’ x
0.3’’)
Weight: 105 g (0.23 lb)

GV ‐Mount702 Extension Tube


Four options are available.
Dimensions:
Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1” x 3.9” or 7.9” or 11.8” or 19.7”)
Weight:
180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)

GV ‐Mount913 Power Box Mount
Bracket


Dimensions: Ø 146 x 7.5 mm (Ø 5.7’’ x 0.3’’)
Weight: 180 g (0.4 lb)

GV ‐Mount915 In ‐Ceiling Mounting Kit
for GV ‐EFD2101 / 3101 /
5101



Dimensions: Ø 172.5 x 63.8 mm (Ø 7.04” x 2.5”)
Weight: 424 g (0.93 lb)

GV ‐Mount917 GV ‐EFD2101 / 3101 /
5101 Dome Housing



Dimensions: Ø 186 x 97.5 mm (Ø 7.3” x 3.8”)
Weight: 948 g (2.09 lb)

GV ‐PA191 PoE Adapter


Dimensions (H x W x D): 43 x 69 x 40 mm (1.69” x
2.72” x 1.57”)
Weight: 130 g (0.29 lb)

GV ‐ POE Switch
The GV ‐ POE Switch is designed to provide power along with network connection

for IP devices. The GV ‐ POE Switch is available in various models with different

numbers and types of ports.

Power Adapter Contact our sales representatives for the countries and areas supported.


GV-MD8710-FD May 16, 2019
- 6 -

Dane techniczne

Wejścia alarmowe 1
Wyjścia alarmowe 1
Rozmiar przetwornika 1/2
Zasilanie PoE PoE 802.3af 15.4W
Zasilanie DC 12VDC
Rozdzielczość wizyjna 8MPIX
Typ kamery Dome, Kopułkowa
Oświetlacz podczerwieni ± 30 m
Zakres dynamiki (WDR) WDR 120dB
Typ obiektywu Zmiennoogniskowy motozoom
Zmienna ogniskowa (od) ± 3.8 mm
Zmienna ogniskowa (do) ± 8 mm
Slot na karty Tak
