GV-LPR2811-DL

Dostępność: 11-50
Cena: 5 739,69 zł 5739.69 (1 226,80 €)
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: GEOVISION
Kod produktu: 86-LPR00LR2811-DLND0

Opis

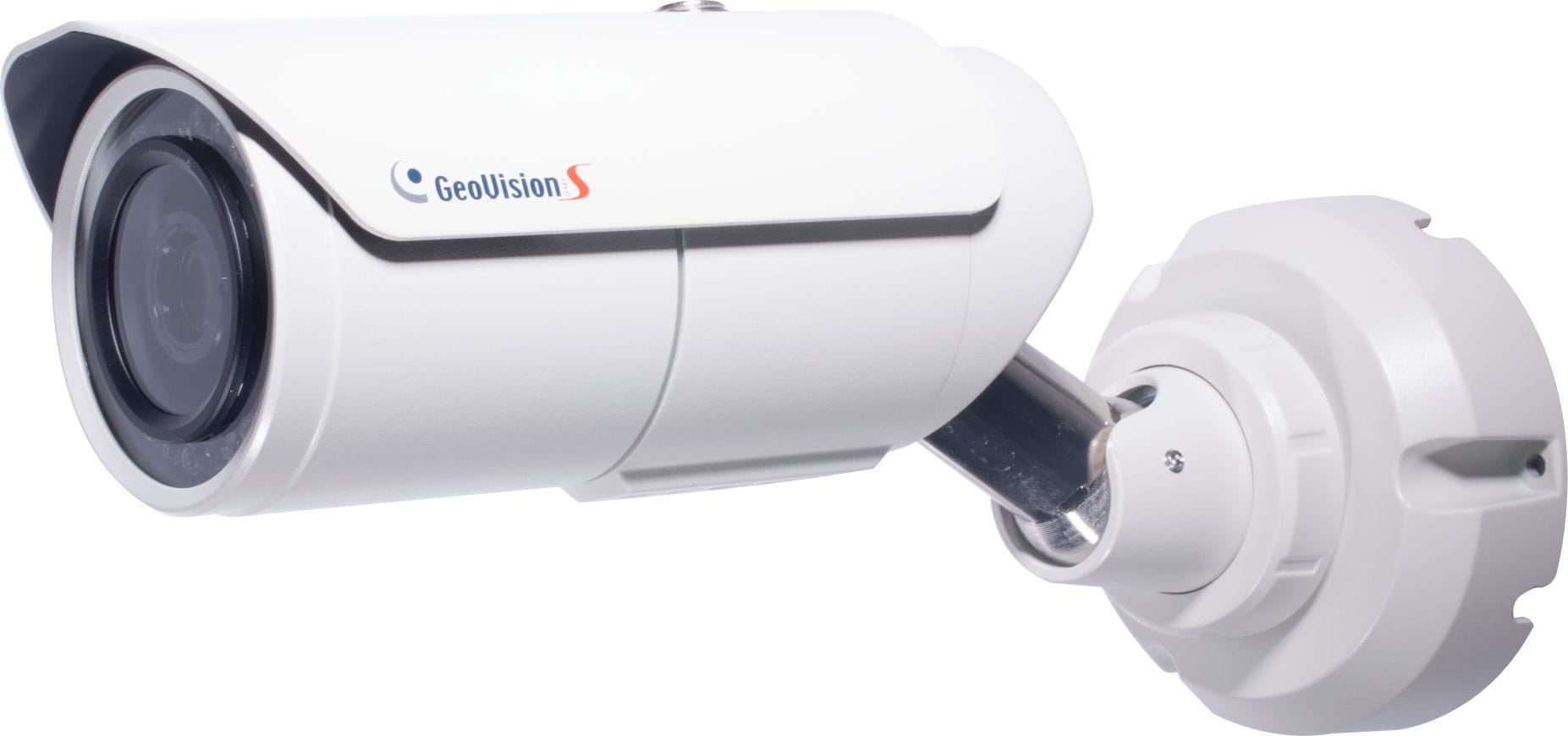

Kamera IP w obudowie IP67 wandaloodpornej IK10 z wbudowanym modułem Deep-Learning do automatycznej identyfikacji tablic z odległości od 10 do 20 m, przy prędkości max 100 km/h, 2.0M-60 kl./s, PoE, SDXC, 9~22mm, moto-zoom 2.5x, RS-485...

Gwarancja: 24 mies.

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

GV-LPR2811-DL September 13, 2021
- 1 -
GV-LPR2811-DL 2 MP H.265 2.5x Zoom Super Low Lux WDR Pro LPR Bullet
IP Camera





* Built ‐ in deep learning LPR processor for license plate recognition
* Dual ‐lane recognition
* 1/2.8” progressive scan super low lux CMOS
* Min. illumination at 0.04 lux
* Triple streams from H.265, H.264 and MJPEG
* Up to 60 fps at 1920 x 1080
* Motorized varifocal lens for remote zoo m / focus adjustment
* Intelligent IR
* IR distance up to 22 m (70 ft)
* Day and Night function (with removal IR ‐cut filter)
* Wide Dynamic Range Pro (WDR Pro)
* DC 12 V / PoE (IEEE 802.3af)
* Ingress protection (IP67)
* Vandal resistance (IK10 for me tal casing)
* Two ‐way audio
* Built ‐ in micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10)
for local storage
* Digital I/O (2 in / 2 out)
* Recognize vehicles with speeds up to 100 km/h (62 mph)
* Standalone database
* Recognized plate numbers export
* Defog
* Motion de tection
* Privacy mask
* Text overlay
* IP address filtering
* Supports iPhone, iPad, Android & 3GPP
* 31 languages on Web interface
* CE, FCC, LVD, RoHS compliant

Deep Learning LPR Camera
GV ‐LPR2811 ‐ DL is capable of recognizing license plate numbers with its built ‐ in deep learning LPR processor. GV ‐LPR2811 ‐ DL can
compare captured license plates either with its on ‐the ‐edge standalone database, or the database stored at GV ‐ASManager, an access
control system. When there is a match, GV ‐ LPR 2811‐ DL can grant access for the vehicle by opening a gate or barrier.

GV ‐LPR2811 ‐ DL is a 2 MP, 2.5x zoom color network camera designed for recognition of non ‐reflective and reflective license plates on
vehicles traveling at up to 100 km/h (62 mph). With its motorized lens, and in telligent IR, the camera’s zoom and focus can be
adjusted remotely and can also automatically adjust its shutter speed to the scene to capture clear license plate images for single ‐ or
dual ‐lane scenarios under low ‐light conditions. It adheres to IP67 and IK10 standards and is able to operate wit hin a temperature
range of ‐30°C ( ‐22°F) to 50°C (122°F).


GV-LPR2811-DL September 13, 2021
- 2 -



Dimensions





GV-LPR2811-DL September 13, 2021
- 3 -
Specifications
Camera
Image Sensor 1/2.8" progressive scan super low lux CMOS

Color 0.05 lux
Minimum
Illumination
B/W 0.04 lux

Picture Elements 1920 (H) x 1080 (V)

Shutter Speed
Automatic: 1/500 ~ 1/16,000 sec
Manual: 1/120 ~ 1/16,000 sec

White Balance Automatic, Manual (2800 K ~ 8500 K)

S/N Ratio 56 dB

WDR Pro Yes

Dynamic Range 130 dB

Max. Speed 100 km/h (62 mph)

Lens

Megapixel 2 MP

Day/Night Yes (with removable IR ‐cut filter)

Lens Type Motorized Varifocal

Focal Length 9 ~ 22 mm

Horizontal FOV 38° ~ 16°

Maximum Aperture F/2.0

Mount Ø14 mm

Image Format 1/2.7"

Focus Auto

Zoom 2.5 x Optical Zoom

Operation
Iris P ‐ Iris

IR LED Quantity 24 IR LEDs

IR Distance 22 m (70 ft)

Operation

Video Compression H.265, H.264, MJPEG

Video Stream Triple streams from H.265, H.264 and MJPEG

Frame Rate
60/50 fps at 1920 x 1080 (60/50 Hz)
* The frame rate and the performance may vary depending on the number of
connections and data bitrates (different scenes)

Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker ‐less, Image
Orientation, Shutter Speed, Backlight Compensation, D/N Sensitivity, Defog, Denoise,
Metering

Audio Compression G.711

Audio Support Two ‐way audio (external microphone and speaker required)

Digital I/O 2 In / 2 Out

Video Resolution

4:3 1280 x 960

Main Stream
16:9 1920 x 1080 (Default), 1280 x 720

4:3 1024 x 768, 640 x 480, 320 x 240

Sub Stream
16:9 1280 x 720, 640 x 360 (Default), 448 x 256

4:3 640 x 480, 320 x 240

Third Stream
16:9 640 x 360, 448 x 256

Network

Interface 10/100/1000 Base ‐ T Ethernet, RJ ‐ 45 connector

Protocol
DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, Multicast, NTP, QoS (DSCP),
RTCP, RTSP, SNMP, SMTP, SSL, TCP/IP, UDP, UPnP, 3GPP/ISMA

Security Feature
‐ No default ID and Password
‐ 802.1x authentication
‐ HTTPS with SSL certificate stored within the camera
‐ 256 ‐bit AES encryption (requires working with GV ‐VMS V18.1 or later)


GV-LPR2811-DL September 13, 2021
- 4 -
Mechanical
Temperature Detector Yes

Pan 0° ~ 360°
Camera
Adjustment
Tilt 90° ~ 180°

Power 2 ‐pin terminal block

Ethernet Ethernet (10/100/1000 Base ‐ T), RJ ‐ 45 cable

Audio
1 In (microphone jack, 3.5 mm / 0.14”)
1 Out (stereo phone jack, 3.5 mm / 0.14”)

Digital I/O I/O Wires (2 In / 2 Out)

RS‐485 RS‐485+ / RS ‐485 ‐ (for recognition data output)

Connectors
Local Storage
Micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10)
* UHS ‐ II card types not supported.

LED Indicator N/A

General

Startup ‐ 20 °C ~ 50 °C ( ‐ 4 °F ~ 122 °F)
Operating
Temperature
Operation ‐ 30 °C ~ 50 °C ( ‐ 22 °F ~ 122 °F)

Humidity 10% ~ 90% (non ‐condensing)

Power Source DC 12 V, 3 A / PoE (IEEE 802.3af)

Max. Power Consumption 12 W

Dimensions 168.3 x 77.72 x 102.75 mm (6.6" x 3.1" x 4.0")

Weight 0.81 kg (1.79 lb)

Ingress Protection IP67

Vandal Resistance IK10 fo r metal casing

Regulatory CE, FCC, RCM, RoHS compliant

Region of License Plate Europe, France, Hungary, Myanmar, Slovakia, Taiwan, Ukraine

Power over Ethernet

PoE Standard PoE (IEEE 802.3af)

PoE Power Supply Type End ‐span and Mid ‐span

PoE Power Output Per Port 48 V DC, 320 mA, Max. 15.4 W

Web Interface

Installation & Management Web ‐based configuration

Firmware Upgrade Firmware upgrade through Web Browser or Utility

Access from Web Browser
Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot,
Audio, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay, Digital PTZ

Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek
/ Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian /
Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese /
Slovakian / Slo venian / Spanish / Swedish / Thai /Traditional Chinese / Turkish

Applications

LPR Management GV ‐ASManager V5.3.1 or later

Software Supported
GV ‐ DVR / NVR (V8.8.0), GV ‐VMS (V17.4.0 / V18.2.0), GV ‐Control Center (V3.8.0),
GV ‐Center V2 / Vital Sign Monitor (V18.2.0), GV ‐Edge Recording Manager for Windows
(V1.4.0), GV ‐Recording Server / Video Gateway (V2.0.0), GV ‐Redundant / Failover
Server (V1.1.0.0)

Smart Device Access GV ‐ Eye for Android and iOS

Live Viewing Browser (IE, Chrome, Firefox, Safari), Mobile app

Note: Specifications are subject to change without notice.

GV-LPR2811-DL September 13, 2021
- 5 -
Accessory
Model No. Name Details

GV ‐Mount300 ‐ 1 Convex Corner Mount


Dimensions: 238.6 x 395.2 x 210 mm (9.4 x 15.5 x
8.2")
Weight: 4.27 kg (9.41 lb)

GV ‐Mount310 ‐ 1 Concave Corner Mount


Dimensions: 111.2 x 369.9 x 210 mm (4.37 x
14.5 x 8.2")
Weight: 2.96 kg (6.53 lb)

GV ‐Mount400 ‐ 1 Pole Mount Bracket
(Ø 4 ~ 6")


Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x
6.41")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 101 ~ 152 mm (4 ~ 6")

GV ‐Mount410 ‐ 1 Pole Mount Bracket
(Ø 6 ~ 7.5")


Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x
6.41")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 152 ~ 191 mm (6 ~ 7.5")

GV ‐PA191 PoE Power Adapter


GV ‐PA191 is an IEEE802.3af/at PoE adapter, with
a maximum power output of 19 W, that can be
used to power GV ‐ IP devices while providing
Internet connection via an Ethernet cable.

GV ‐Relay V2


GV ‐Relay V2 is designed to expand the voltage
load of GV ‐ IP devices. It provides 4 relay outputs,
and each can be set as normally open (NO) or
normally closed (NC) independently as desired.

Power Adapter

Contact our sales representatives for the
countries and areas supported.


Packing List
* GV ‐LPR2811 ‐ DL Camera
* Sun Shield Cover
* Sun Shield Cover Short Screw x 2
* Supporting Rack Screw x 3
* Mounting Kit Screw x 3
* Mounting Kit Nut x 3
* Screw Anchor x 3
* Washer x 2
* Hex Wrench
* Silica Gel Bag x 2
* micro SD card (already inserted and formatted)
* Download Guide
* Warranty Card

Dane techniczne

Wejścia alarmowe 2
Wyjścia alarmowe 2
Wyjście audio 1
Wejście audio 1
Rozmiar przetwornika 1/2.8
Zasilanie PoE PoE 802.3af 15.4W
Zasilanie DC 12VDC
Szczelność IP67
Odporność mechaniczna IK10
Rozdzielczość wizyjna 2MPIX
Typ kamery Bullet, Tulejowa, Tubowa
Oświetlacz podczerwieni ± 20 m
Zakres dynamiki (WDR) WDR 130dB
Typ obiektywu Zmiennoogniskowy motozoom
Zmienna ogniskowa (od) ± 8 mm
Zmienna ogniskowa (do) ± 25 mm
Slot na karty Tak
