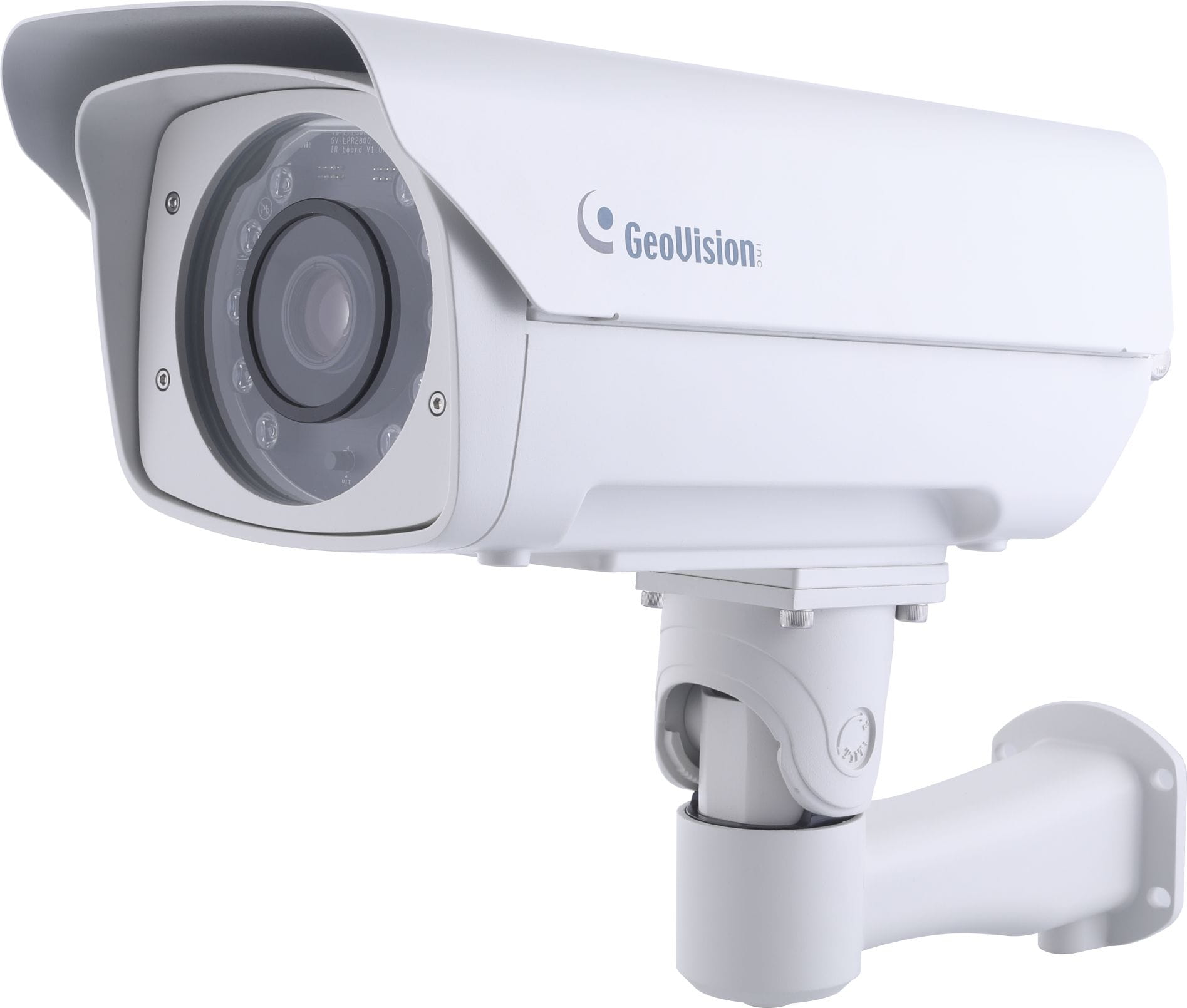

GV-LPR2800-DL

Kamera IP w obudowie IP68 wandaloodpornej IK10 z wbudowanym modułem Deep-Learning do automatycznej identyfikacji tablic z odległości od 10 do 20 m, przy prędkości max 100 km/h, 2.0M-60 kl./s, PoE++, SDXC, 5~50mm, moto-zoom 10x, RS-485...

Gwarancja: 24 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

GV-LPR2800-DL September 13, 2021
- 1 -
GV-LPR2800-DL 2 MP H.265 Super Low Lux WDR Pro LPR Box IP Camera



* Built ‐ in deep learning LPR processor for license plate recognition
* Double ‐lane recognition
* 1/2.8” progressive scan super low lux CMOS
* Min. illumination at 0.04 lux
* Triple streams from H.265, H.264 and MJPEG
* Up to 60 fps at 1920 x 1080
* Intelligent IR
* IR di stance up to 30 m (100 ft)
* Day and Night function (with removal IR ‐cut filter)
* Wide Dynamic Range Pro (WDR Pro)
* DC 12 V / PoE (IEEE 802.3bt)
* Ingress protection (IP68)
* Vandal resistance (IK10 for metal casing)
* Two ‐way audio
* Built ‐ in micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10)
for local storage
* Digital I/O (2 in / 2 out)
* Built ‐ in heater and fan
* Recognize vehicles with speeds up to 100 km/h (62 mph)
* Standalone database
* Recognized plate numbers export
* Defog
* Motion detection
* Privacy ma sk
* Text overlay
* IP address filtering
* Supports iPhone, iPad, Android & 3GPP
* 31 languages on Web interface
* CE, FCC, LVD, RoHS compliant
*Optional GV ‐ P A902BT Gigabit PoE Adapter is required for applying the PoE function.

Deep ‐Learning LPR Camera
GV ‐LPR2800 ‐ DL is capable of recognizing license plate numbers with its built ‐ in deep learning LPR processor. GV ‐LPR2800 ‐ DL can
compare captured license plates either with its on ‐the ‐edge standalone database, or the database stored at GV ‐ASManager, an access
control system. When there is a match, GV ‐ LPR 2800‐ DL can grant access for the vehicle by opening a gate or barrier.

GV ‐LPR2800 ‐ DL is a 2 MP color network camera designed for recognition of non ‐reflective and reflective license plates on vehicles
traveling at up to 100 km/h (62 mph). With its multiple high ‐power LEDs and in telligent IR, the camera is able to automatically adjust
its shutter speed to the scene and capture clear license plate images for single ‐ or dual ‐lane scenarios under low ‐light conditions. It
adheres to IP68 and IK10 standards and is able to operate within a temperature range of ‐40°C ( ‐ 40° F) to 50°C (122°F).


GV-LPR2800-DL September 13, 2021
- 2 -



Dimensions








GV-LPR2800-DL September 13, 2021
- 3 -
Specifications
Camera
Image Sensor 1/2.8" progressive scan super low lux CMOS

Color 0.05 lux
Minimum
Illumination
B/W 0.04 lux

Picture Elements 1920 (H) x 1080 (V)

Shutter Speed
Automatic: 1/500 ~ 1/16,000 sec
Manual: 1/120 ~ 1/16,000 sec

S/N Ratio 56 dB

WDR Pro Yes

Dynamic Range 130 dB

Max. Speed 100 km/h (62 mph)

Lens

Megapixel 2 MP

Day/Night Yes (with removable IR ‐cut filter)

Lens Type Varifocal

Focal Length 5 ~ 50 mm

Horizontal FOV 50.9° ~ 7.6°

Maximum Aperture F/1.6

Mount CS Mount

Image Format 1/2.7"

Focus Manual (w/lock)

Zoom Manual (w/lock)

Operation
Iris DC ‐Iris

IR LED Quantity 10 high power IR LEDs

IR Distance 30 m (100 ft)

Operation

Video Compression H.265, H.264, MJPEG

Video Stream Triple streams from H.265, H.264 and MJPEG

Frame Rate
60/50 fps at 1920 x 1080 (60/50 Hz)
* The frame rate and the performance may vary depending on the number of
connections and data bitrates (different scenes)

Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker ‐less, Image
Orientation, Shutter Speed, Backlight Compensation, D/N Sensitivity, Defog, Denoise,
Metering

Audio Compression G.711

Audio Support Two ‐way audio (external microphone and speaker required)

Digital I/O 2 In / 2 Out

Video Resolution

4:3 1280 x 960

Main Stream
16:9 1920 x 1080 (Default), 1280 x 720

4:3 1024 x 768, 640 x 480, 320 x 240

Sub Stream
16:9 1280 x 720, 640 x 360 (Default), 448 x 256

4:3 640 x 480, 320 x 240

Third Stream
16:9 640 x 360, 448 x 256

Network

Interface 10/100/1000 Base ‐ T Ethernet, RJ ‐ 45 connector

Protocol
DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, Multicast, NTP, QoS (DSCP),
RTCP, RTSP, SNMP, SMTP, SSL, TCP/IP, UDP, UPnP, 3GPP/ISMA

Security Feature
‐ No default ID and Password
‐ 802.1x authentication
‐ HTTPS with SSL certificate stored within the camera
‐ 256 ‐bit AES encryption (requires working with GV ‐VMS V18.1 or later)


GV-LPR2800-DL September 13, 2021
- 4 -
Mechanical
Temperature Detector Yes

Pan 0° ~ 330°
Camera
Adjustment
Tilt 0° ~ 90°

Power 2 ‐pin terminal block

Ethernet Ethernet (10/100/1000 Base ‐ T), RJ ‐ 45 cable

Audio
1 In (microphone jack, 3.5 mm / 0.14”)
1 Out (stereo phone jack, 3.5 mm / 0.14”)

Digital I/O 2 In / 2 Out

RS‐485 RS‐485+ / RS ‐485 ‐ (for recognition data output)

Connectors
Local Storage
Micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10)
* UHS ‐ II card types not supported.

LED Indicator N/A

General

Operating Temperature ‐ 40 °C ~ 50 °C ( ‐ 40 °F ~ 122 °F)

Humidity 10% ~ 90% (non ‐condensing)

Power Source DC 12 V, 5A / PoE (IEEE 802.3bt)

Max. Power Consumption 45 W

Dimensions 360 x 157 x 137.5 mm (14.17" x 6.18" x 5.41")

Weight 4.34 kg (9.57 lb)

Cable Length 1 m (3.28 ft)

Ingress Protection IP68

Vandal Resistance IK10 fo r metal casing

Heater On ‐40°C ~ 5°C ( ‐ 40°F ~ 41°F)

Fan Constantly on

Regulatory CE, FCC, RCM, RoHS compliant

Region of License Plate California, Europe, France, Hungary, Myanmar, Slovakia, Taiwan, Ukraine

Power over Ethernet

PoE Standard PoE (IEEE 802.3bt / PD)

PoE Power Supply Type End ‐span and Mid ‐span

PoE Power Output Per Port 54 V DC, 1.2 A, Max. 60 W

Web Interface

Installation & Management Web ‐based configuration

Firmware Upgrade Firmware upgrade through Web Browser or Utility

Access from Web Browser
Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot,
Audio, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay, Digital PTZ

Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek
/ Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian /
Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese /
Slovakian / Slo venian / Spanish / Swedish / Thai /Traditional Chinese / Turkish

Applications

LPR Management GV ‐ASManager V5.3.0 or later

Software Supported
GV ‐ DVR / NVR (V8.8.0), GV ‐VMS (V17.4.0 / V18.2.0), GV ‐Control Center (V3.8.0),
GV ‐Center V2 / Vital Sign Monitor (V18.2.0), GV ‐Edge Recording Manager for Windows
(V1.4.0), GV ‐Recording Server / Video Gateway (V2.0.0), GV ‐Redundant / Failover
Server (V1.1.0.0)

Smart Device Access GV ‐ Eye for Android and iOS

Live Viewing Browser (IE, Chrome, Firefox, Safari), Mobile app

Note: Specifications are subject to change without notice.

GV-LPR2800-DL September 13, 2021
- 5 -
Accessory
Model No. Name Details

GV ‐Mount300 ‐ 1 Convex Corner Mount


Dimensions: 238.6 x 395.2 x 210 mm (9.4 x 15.5 x
8.2")
Weight: 4.27 kg (9.41 lb)

GV ‐Mount310 ‐ 1 Concave Corner Mount


Dimensions: 111.2 x 369.9 x 210 mm (4.37 x 14.5
x 8.2")
Weight: 2.96 kg (6.53 lb)

GV ‐Mount400 ‐ 1 Pole Mount Bracket
(Ø 4 ~ 6")


Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x
6.41")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 101 ~ 152 mm (4 ~ 6")

GV ‐Mount410 ‐ 1 Pole Mount Bracket
(Ø 6 ~ 7.5")


Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x
6.41")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 152 ~ 191 mm (6 ~ 7.5")

GV ‐PA902BT PoE Power Adapter


GV ‐PA902BT is an IEEE802.3af/at/bt PoE adapter,
with a maximum power output of 95 W, that can
be used to power GV ‐ IP devices while providing
Internet connection via an Ethernet cable.

GV ‐Relay V2


GV ‐Relay V2 is designed to expand the voltage
load of GV ‐ IP devices. It provides 4 relay outputs,
and each can be set as normally open (NO) or
normally closed (NC) independently as desired.

Power Adapter

Contact our sales representatives for the
countries and areas supported.


Packing List
* GV ‐LPR2800 ‐ DL Camera
* Sun Shield Cover
* Sun Shield Cover Short Screw x 2
* Screw Anchor x 4
* 1/4" ‐ 10 Screw (32 mm) x 4
* M4 Screw (5 mm) x 2
* Washer x 4
* Hex Wrench
* Silica Gel Bag
* Adhesive Tape fo r Silica Gel Bag
* micro SD card (already inserted and formatted)
* Installation Guide
* Download Guide
* Warranty Card
