GV-LPC2210

Dostępność: 1-5
Cena: 4 774,77 zł 4774.77 (1 104,12 €)
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: GEOVISION
Kod produktu: 84-LPC2210-P01D

Opis

Kamera IP w obudowie IP67 wandaloodpornej IK10 do identyfikacji tablic z odległości od 10 do 20 m, 2.0M, BNC, I/O, 9~22mm, HPoE++, moto-zoom 2.5x, -40°C (GV-LPR CAM)...

Gwarancja: 36 mies.

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

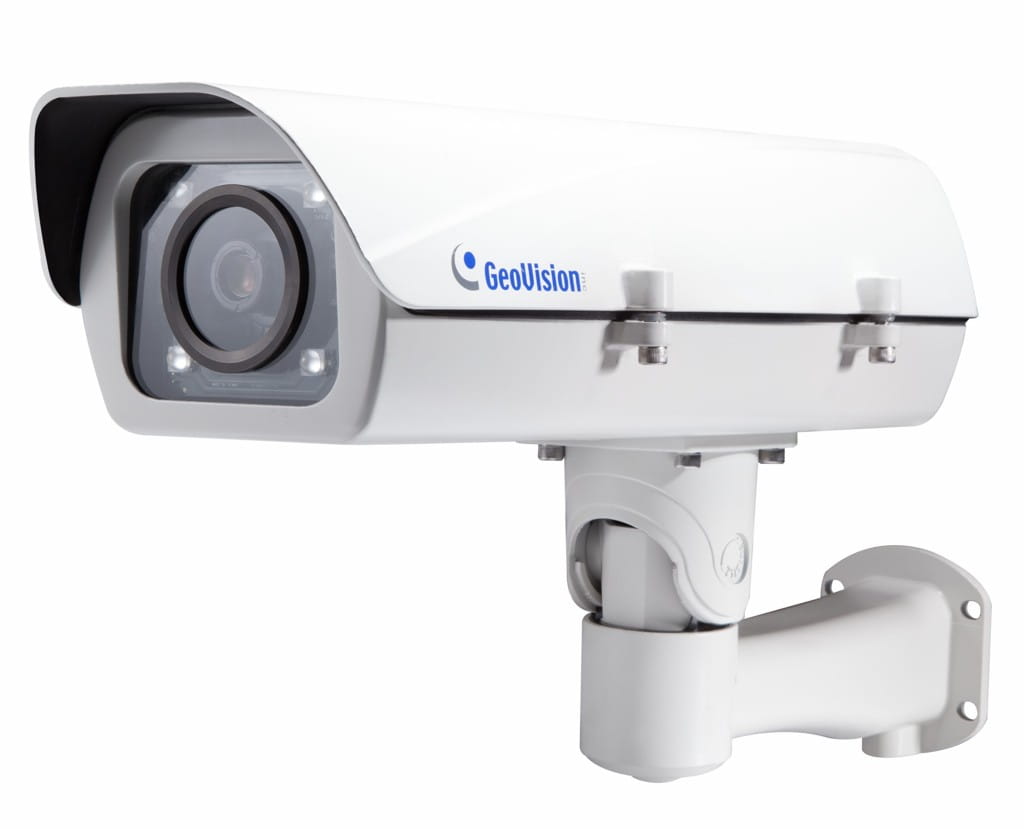

GV-LPC2210 2MP 2.5x Zoom Super Low Lux Color Network Camera


* 1/2.8” progressive scan super low lux CMOS
* Motorized varifocal lens for remote focus / zoom adjustment
* Dual streams from MJPEG or H.264
* Up to 30 fps at 1920 x 1080
* Maximum speed 120 km/h (75 mph)
* Recognition for reflective License Plate only
* Vandal resistance (IK10 fo r metal casing)
* Ingress protection ( IP67 )
* Maximum IR distance 20 m (65.6 ft)
* DC 48V / PoE ++ (120 W)
* Built ‐ in heater and fan
* Support for TV ‐ out
* Two ‐way audio
* Support for I/O (1 in / 1 out)
* Defog
* Motion detection
* Privacy Mask
* Text ov erlay
* IP address filtering
* Supports iPhone, iPad, Android & 3GPP
* ONVIF (Profile S) conformant
* 31 languages on Web interface

* Optional GV ­PA482 PoE Adapter is required for applying PoE function.

Introduction
GV ‐LPC2210 is a 2 MP color network camera designed for recognition of reflective license plates on vehicles traveling up at 120 km/h
(75 mph) or less with extreme temperature resistance ( ‐40°C ~ 50°C / ‐40°F ~ 122°F). It is weather proof (IP67). Equipped with a Super
Low Lux CMOS im age sensor, the camera is capable of displaying a color live view at near darkness. Its multiple high ‐power LEDs and
build‐ in intelligent IR provide clear license plate for two lanes under low ‐light conditions at a maximum IR distance of 20 m (65.6 ft.).
The motorized varifocal lens take the advantage of its motorized focus / zoom in that the user can remotely adjust the focus and zoom
through the Web interface.

Dimensions


GV-LPC2210 August 15, 2017
- 1 -


Specifications
Camera
Image Sensor 1/2.8” progressive scan super low lox CMOS

Picture Elements 1920 (H) x 1080 (V)

Camera Type Color, B/W

Shutter Speed Auto / Manual (1/120 ~ 1/2000 sec)

White Balance Auto / Manual (2800K ~ 8500K)

S/N Ratio 52 dB

Max. Speed 120 km/h (75 mph)

Lens

Megapixel 2 MP

Lens Type Motorized varifocal lens

Focal Length 9 ~ 22 mm

Maximum Aperture F/1.2

Lens Mount ø14 mm

Image Format 1/2.7"

Horizontal FOV 38° ~ 18°

Focus Auto

Zoom 2.5x optical zoom

Operation
Iris P ‐ Iris

IR LED Quantity 4 high power IR LEDs

IR Distance 10 ~ 20 m (32.8 ~ 65.6 ft)

Operation

Video Compression H.264, MJPEG

Video Stream Dual streams from H.264 or MJPEG

Frame Rate
30 fps at 1920 x 1080 (60/50 Hz)
* The frame rate and the performance may vary depending on the number of
connections and data bitrates (different scenes)

Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, Auto Exposure, White Balance,
Flicker less, Image Orientation, Shutter Speed, Maximum Video Gain, D/N Sensitivity,
Denoise, Defog, Metering

Audio Compression G.711, AAC (Optional)

Audio Support Two ‐way audio

Video Resolution

4:3 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240

16:9 1920 x 1080 (Default), 1280 x 720, 640 x 360, 448 x 252

Main Stream
5:4 1280 x 1024, 640 x 512, 320 x 256

4:3 640 x 480, 320 x 240

16:9 640 x 360, 448 x 252 (Default)

Sub Stream
5:4 640 x 512, 320 x 256

TV ‐ Out NTSC, PAL (640 x 480 resolution)

Network

Interface 10/100 Base ‐ T Ethernet, RJ ‐ 45 connector

GV-LPC2210 August 15, 2017
- 2 -


Protocol
HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA,
SNMP, QoS (DSCP), ONVIF (Profile S)

Mechanical

Temperature Detector Yes

Pan 0° ~270°

Camera Adjustment
Tilt 0° ~ 70°

Power DC 48V, High PoE (PoE++, 120 W)

Ethernet RJ ‐ 45

Audio
1 In (microphone jack, 3.5 mm / 0.14”)
1 Out (stereo phone jack, 3.5 mm / 0.14”)

Digital I/O 1 In / 1 Out

Connectors
TV ‐ Out BNC connector (640 x 480 resolution)

LED Indicator N/A

General

Operating Temperature ‐40°C ~ 50°C ( ‐40°F ~ 122°F)

Humidity 10% ~ 90% (non ‐condensing)

Power Source DC 48V, 2.5A, High PoE (PoE++, 120 W)

Max. Power Consumption 50 W

Dimensions
Without support
rack
406 x 145 x 109 mm (16" x 5.7" x 4.3")

Cable Length 1 m (3.28 ft)

With support rack 3.32 kg (7.32 lb)

Weight
Without support
rack
2.62 kg (5.78 lb)

Ingress Protection IP67

Vandal Resistance IK10 fo r metal casing

Heater On ‐40°C ~ 8°C ( ‐ 40°F ~ 46.4°F)

Fan Constantly On

Regulatory CE, FCC, RCM, RoHS compliant

Power over Ethernet

PoE standard High Power Over Ethernet (PoE ++) / PD

PoE Power Supply Type Mid ‐Span

PoE Power Output DC 48V, 2.5A (120 W Max.)

Web Interface

Installation & Management Web ‐based configuration

Firmware Upgrade
Remote upgrade through Web Browser
GV ‐ IP Device Utility included in the Software DVD

Access from Web Browser
Live View, Video Recording, Video Quality, Bandwidth Control, Image Snapshot, Audio,
Picture in Picture, Picture and Picture, Privacy Mask, Tampering Alarm, Text Overlay

Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek
/ Hebrew / Hungarian / Indonesian / Italian / Japanese / Lithuanian / Norwegian /
Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese /
Slovakian / Slo venian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

Applications

Network Storage GV ‐System (GV ‐DVR/NVR), GV ‐VMS, GV ‐Recording Server

Smart Device Access
GV ‐ Eye for Android and iOS
Embedded 3GPP/ISMA browser

Live Viewing IE, Chrome, Firefox, Edge, Safari

CMS Server support GV ‐Control Center, GV ‐Center V2, GV ‐ Vital Sign Monitor

LPR Management GV ‐ASManager

Note:
1. Optionally purchasing GV ­PA482 PoE Adapter is required for applying PoE function.
2. Try to avoid placing the camera where it can be subjected to direct LED light. The LED lighting from vehicles, streetlights, etc. may
cause flickering images.
GV-LPC2210 August 15, 2017
- 3 -

3. Specifications are subject to change without notice.

Packing List
* The GV ‐LPC2210 camera
* Screw Anchor x 4
* Screw x 4
* Washer x 4
* Torx Wrench
* Power Adapter (DC 48V, 2.5A, 120 W)
* AC Power Cord
* Silica Gel Bag
* Adhesive tape for Silica Gel Bag
* GV ‐ IP LPR Camera Software CD
* GV ‐ NVR Software DVD
* GV ‐ASManager Software DVD
* GV ‐LPR Camera Installation Guide
* Warranty Card

Accessory
Model No Name
Details
GV ‐Mount300 Convex Corner Adapter
Kit


Dimensions: 238.6 x 409.5 mm (9.4 x 16.1")
Weight: 4.27 kg (9.41 lbs)
GV ‐Mount310 Concave Corner
Adapter Kit


Dimensions: 123.3 x 393.1 mm (4.9 x 15.5")
Weight: 2.96 kg (6.53 lbs)
GV ‐Mount400 Pole Mount Bracket Kit
(Ø 4" ~ 6")


Bracket: 241 x 161 mm (9.5 x 6.3")
Weight: 1.70 kg (3.75 lbs)
Steel Strap Diameter: Ø 4" ~ 6"
GV ‐Mount410 Pole Mount Bracket Kit
(Ø 6" ~ 7.5")


Bracket: 241 x 161 mm (9.5 x 6.3")
Weight: 1.70 kg (3.75 lbs)
Steel Strap Diameter: Ø 6" ~ 7.5"
GV ‐Relay V2 GV ‐Relay V2


The GV ‐Relay V2 is designed to expand the
voltage load of GV IP devices. It provides 4
relay outputs, and each can be set as
normally open (NO) or normally closed (NC)
independently as per your requirement.


GV ‐ POE Switch The GV ‐ POE Switch can be used for data transmission only. It does not provide
GV-LPC2210 August 15, 2017
- 4 -

GV-LPC2210 August 15, 2017
- 5 -
power to GV ‐ IP LPR cameras.
GV ‐ P A482 PoE Adapter The GV ‐PA482 PoE adapter is designed to provide power and network connection
to GV ‐LPC2210 over a single Ethernet cable.

Dane techniczne

Rozmiar przetwornika 1/2.8
Zasilanie PoE Hi-PoE
Zasilanie DC 48VDC
Szczelność IP67
Odporność mechaniczna IK10
Rozdzielczość wizyjna 2MPIX
Typ obiektywu Zmiennoogniskowy motozoom
Zmienna ogniskowa (od) ± 2.8 mm
Zmienna ogniskowa (do) ± 25 mm
