GV-LPC1200

Dostępność: 6-10
Cena: 6 941,14 zł 6941.14 (1 605,07 €)
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: GEOVISION
Kod produktu: 84-LPC1200-001D

Opis

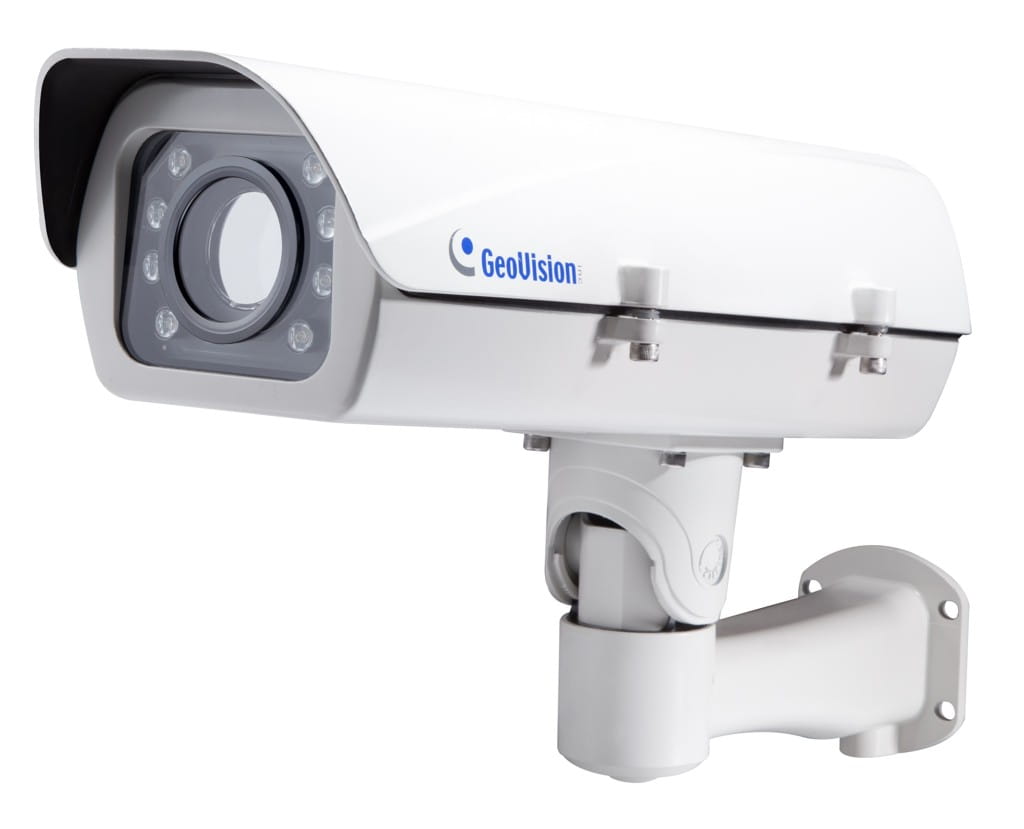

Kamera IP w obudowie IP67 wandaloodpornej IK10 do identyfikacji tablic z odległości od 10 do 20 m, 1M CCD, 4.7~47mm, moto-zoom 10x (GV-LPR CAM)...

Gwarancja: 36 mies.

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

GV-LPC1200 1 MP 10x Zoom B/W Network Camera

• Megapixel B/W progressive scan CCD
• Motorized varifocal lens for remote focus / zoom adjustment
• Dual streams from MJPEG or H.264
• Up to 30 fps at 1280 x 720
• Maximum speed 200 km/h (124.27 mph)
• Recognition for reflective License Plate only
• Vandal resistance (IK10 for metal casing)
• Ingress protection ( IP67 )
• Maximum IR distance 20 m (65.6 ft)
• Built ‐ in heater and fan
• Support for TV ‐ out
• 10x optical zoom
• Two ‐way audio
• Support for I/O (2 in / 2 out)
• Defog
• Motion detection
• Text overlay
• IP address filtering
• Supports iPhone, iPad, Android & 3GPP
• ONVIF (Profile S) conformant
• 30 languages on Web interface

Introduction
GV ‐LPC1200 is a 1 MP B/W network camera designed for recognition of reflective license plates on vehicles traveling at 200 km/h
(124.27 mph) or less. With its multiple high power LEDs and intelligent IR, the camera is able to automatically adjust its shutter speed
to the scene and produce clear license plate capture for one lane under low ‐light conditions. The motorized varifocal lens take the
advantage of its motorized focus / zoom in that the user can remotely adjust the focus and zoom through the Web interface. It is
weather proof (IP67) and also able to work in environments with temperatures ranging from ‐40°C ( ‐40°F) to 50°C (122°F).

Dimensions




GV-LPC1200 July 29, 2016
- 1 -

Comparison with other Outdoor GV ‐ IP Cameras
Headlight Turned On
High Beam Turned On
GV ‐LPC1200
GV ‐LPR1200
GV ‐LPC1100
GV ‐ IP LPR Cam 5R




GV ‐BL1500 Super Low Lux
Bullet IP Cam



GV ‐BL2400 WDR Pro
Bullet IP Cam



Note: The test results are based on the night scene. All cameras are installed at the distance of 10 m (32.81 ft) from the vehicle, with
the resolution set as 1 MP or 1.3 MP and the shutter speed set as 1/2000 sec.

GV-LPC1200 July 29, 2016
- 2 -

Specifications
Camera
Image Sensor Megapixel B/W progressive scan CCD

Picture Elements 1280 (H) x 720 (V)

Shutter Speed
Automatic: 1/1000 ~ 1/10000 sec
Manual: 1/250 ~ 1/2000 sec

S/N Ratio 52 dB

Max. Speed 200 km/h (124.27 mph)

Lens

Megapixel 1 MP

Lens Type Motorized varifocal lens

Focal Length 4.7 mm ~ 47 mm

Maximum Aperture F/3.5

Image Format 1.3"

Horizontal FOV 59.9° ~ 6.4°

Focus Auto

Zoom 10x optical zoom

Operation
Iris Auto

IR LED Quantity 8 high power IR LEDs

IR Distance 10 ~ 20 m (32.8 ~ 65.6 ft)

Operation

Video Compression H.264, MJPEG

Video Stream Dual streams from H.264 and MJPEG

Frame Rate
30 fps at 1280 x 720 (60/50 Hz)
* The frame rate and the performance may vary depending on the number of
connections and data bitrates (different scenes)

Image Setting
Brightness, Contrast, Sharpness, Gamma, Image Orientation, Shutter Speed, Defog,
Maximum Video Gain

Audio Compression G.711, AAC (Optional)

Audio Support Two ‐way audio

Video Resolution

Main Stream 1280 x 720 (16:9)

Sub Stream 640 x 360 (16:9)

TV ‐ Out BNC connector (640 x 480 resolution)

Network

Interface 10/100/1000 Base ‐ T Ethernet, RJ ‐ 45 connector

Protocol
DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF (Profile S), PSIA, QoS (DSCP), RTSP,
SMTP, SNMP, TCP, UDP, UPnP, 3GPP/ISMA

Mechanical

Temperature Detector Yes

Pan 0° ~330°

Camera Adjustment
Tilt 0° ~ 90°

Power DC 12V

Ethernet RJ ‐ 45

Audio
1 In (microphone jack, 3.5 mm / 0.14”)
1 Out (stereo phone jack, 3.5 mm / 0.14”)

Digital I/O 2 In / 2 Out

TV ‐ Out BNC connector (640 x 480 resolution)

Connectors
Mini USB Mini USB port on the circuit board (for UMTS)

LED Indicator N/A

Max. Power Consumption 54 W

Dimensions
Without support
rack
406 x 145 x 109 mm (16" x 5.7" x 4.3")

Cable Length 1 m (3.28 ft)

GV-LPC1200 July 29, 2016
- 3 -


General
Operating Temperature ‐40°C ~ 50°C ( ‐40°F ~ 122°F)

Humidity 10% ~ 90% (non ‐condensing)

Power Source DC 12V, 5A

Max. Power Consumption 54 W

Dimensions
Without support
rack
406 x 145 x 109 mm (16" x 5.7" x 4.3")

Cable Length 1 m (3.28 ft)

With support rack 3.32 kg (7.32 lb)

Weight
Without support
rack
2.62 kg (5.78 lb)

Ingress Protection IP67

Vandal Resistance IK10 for metal casing

Heater On ‐40°C ~ 5°C ( ‐ 40°F ~ 41°F)

Fan Constantly On

Regulatory CE, FCC, RCM, RoHS compliant

Web Interface

Installation & Management Web ‐based configuration

Firmware Upgrade
Remote upgrade through Web Browser
GV ‐ IP Device Utility included in the Software DVD

Access from Web Browser
Live View, Video Quality, Bandwidth Control, Image Snapshot, Audio, Picture in Picture,
Picture and Picture, Text Overlay

Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / French / German / Greek /
Hebrew / Hungarian / Indonesian / Italian / Japanese / Lithuanian / Norwegian / Persian
/ Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian /
Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

Applications

Network Storage GV ‐System (GV ‐DVR/NVR), GV ‐VMS, GV ‐Recording Server

Smart Device Access
GV ‐ Eye for Android and iOS
Embedded 3GPP/ISMA browser

Live Viewing IE, GV ‐Edge Recording Manager

CMS Server support GV ‐Control Center, GV ‐Center V2, GV ‐ Vital Sign Monitor

LPR Management GV ‐ASManager

Note: Specifications are subject to change without notice.

GV-LPC1200 July 29, 2016
- 4 -

Accessory
Model No Name
Details
GV ‐Mount300 Convex Corner Adapter
Kit


Dimensions: 238.6 x 409.5 mm (9.4 x 16.1")
Weight: 4.27 kg (9.41 lbs)

GV ‐Mount310 Concave Corner
Adapter Kit

Dimensions: 123.3 x 393.1 mm (4.9 x 15.5")
Weight: 2.96 kg (6.53 lbs)

GV ‐Mount400 Pole Mount Bracket Kit
(Ø 4" ~ 6")


Bracket: 241 x 161 mm (9.5 x 6.3")
Weight: 1.70 kg (3.75 lbs)
Steel Strap Diameter: Ø 4" ~ 6"

GV ‐Mount410 Pole Mount Bracket Kit
(Ø 6" ~ 7.5")


Bracket: 241 x 161 mm (9.5 x 6.3")
Weight: 1.70 kg (3.75 lbs)
Steel Strap Diameter: Ø 6" ~ 7.5"

GV ‐ POE Switch The GV ‐ POE Switch can be used for data transmission only. It does not provide
power to GV ‐ IP LPR cameras.


Packing List
• The GV ‐LPC1200 camera
• Screw Anchor x 4
• Screw x 4
• Washer x 4
• Torx Wrench x 1
• Power Adapter (DC 12V, 5A)
• AC Power Cord
• Silica Gel Bag x 1
• Adhesive tape for Silica Gel Bag x 1
• GV ‐ IP LPR Camera Software CD
• GV ‐NVR Software DVD
• GV ‐ASManager Software DVD
• GV ‐LPR Camera Installation Guide
• Warranty Card
GV-LPC1200 July 29, 2016
- 5 -

Dane techniczne

Zasilanie DC 12VDC
Szczelność IP67
Odporność mechaniczna IK10
Rozdzielczość wizyjna 1MPIX
Typ obiektywu Zmiennoogniskowy motozoom
Zmienna ogniskowa (od) ± 3.8 mm
Zmienna ogniskowa (do) ± 50 mm
