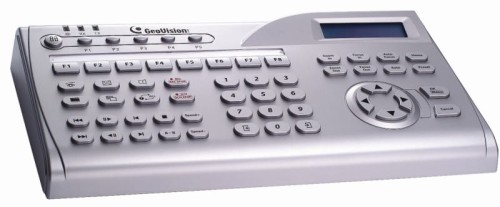

GV-Keyboard (CMS)

Klawiatura wspomagająca sterowanie stacjami monitorowania...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

The GV ‐Keyboard V3 is designed to program and operate GV ‐ Control Center, and it can also be connected with PTZ cameras directly
for PTZ control.

Key Features
* Up to 36 GV ‐ Control Centers supported
* Up to 8 monitors for Matrix View and ViewLog workable with multiple Keyboards
* PTZ camera control
* OSD panel supported
* Video Wall for Zoom and Scan Window control

Specifications
OS Supported 64‐ bit Windows 7 / 8 / 8.1 / Server 2008 R2 / Server 2012
System Supported
GV ‐ Control Center V8.5 or later
USB USB 2.0
DVR/RS ‐ 485+
DVR/RS ‐ 485‐
Connects to GV ‐ NET card, GV ‐ NET/IO card, GV ‐ Hub V2 or GV ‐ COM V2
PTZ/RS ‐ 485+
PTZ/RS ‐ 485‐
Output
PTZ/RS ‐ 422+
PTZ/RS ‐ 422‐
Connects to PTZ cameras
RS ‐ 485 9,600 bps (between the keyboard and GV ‐Control Center)
Communication
RS ‐ 485 / 422 2,400 ~ 115,200 bps (between the keyboard and PTZ cameras)
Power DC In DC 12V 1A
Operating Temperature 0~50°C / 32 ~122°F
Environmental
Conditions
Humidity 5%~95% (non ‐condensing)
Dimensions (L x W x H) 161 x 300 x 45 mm / 6.34 x 11.81 x 1.77 in
Quick Start Guide GV ‐ Keyboard V3

Note:
1. Currently, GV ‐ Keyboard V3 does not support embedded operating systems.
2. Control of GV ‐ Video Wall using GV ‐ Keyboard V3 is supported by GV ‐ Control Center V3.1.2 or later.
3. Specifications are subject to change without notice.


GV-Keyboard V3 for GV-Control Center May 3, 2016
