GV-IPSH30

Tuba IP z głośnikiem aktywnym i wbudowanym wzmacniaczem o mocy 30W, odporna na warunki atmosferyczne IP66, PoE/24VDC, SIP, ONVIF, RTSP...

Gwarancja: 12 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

GV-IPSH30 September 21, 2023

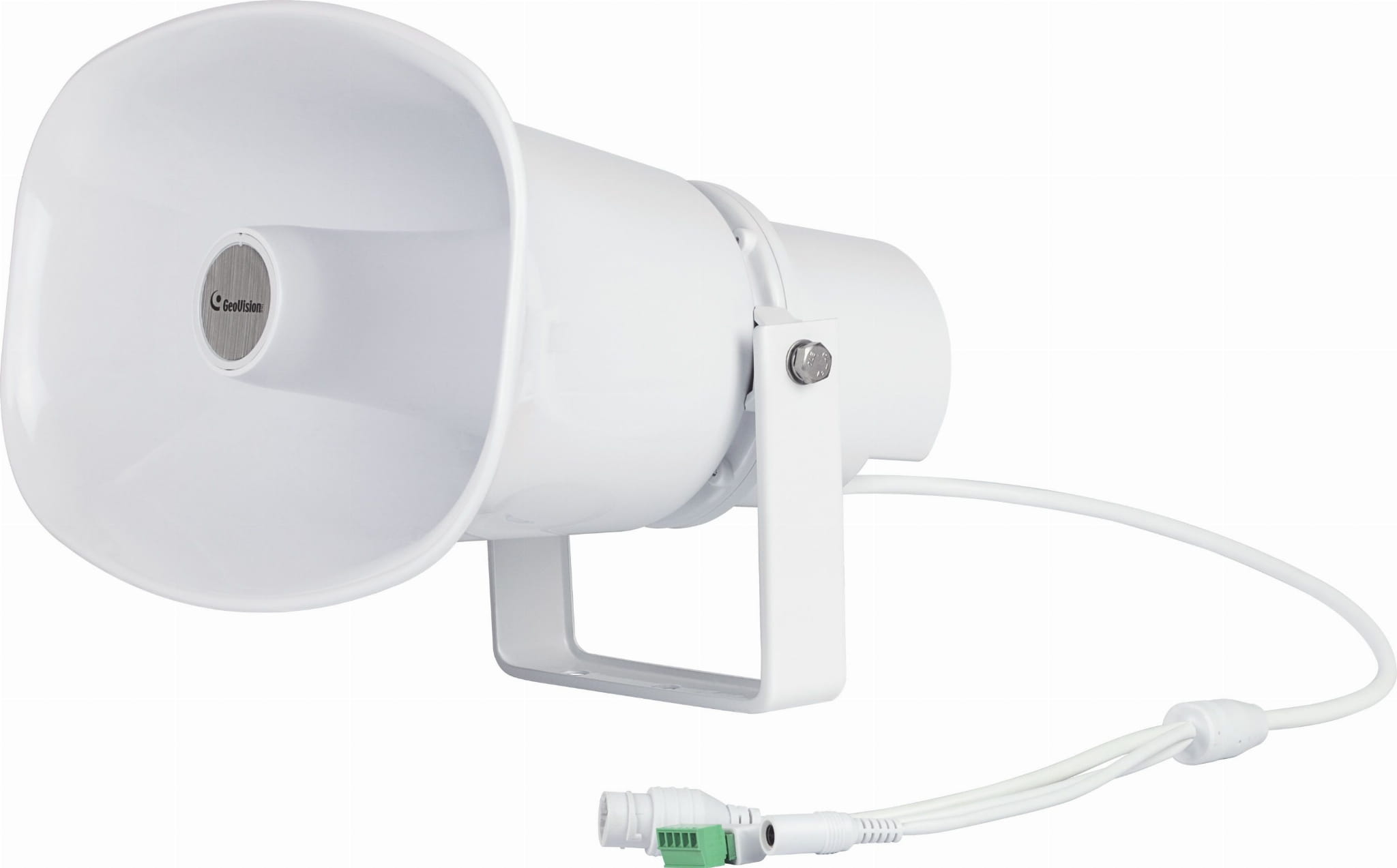

GV-IPSH30 Network Horn Speaker



Introduction
The GV-IPSH30 network horn speaker plays audio data received from the network. When integrated with GV-Control Center or
GV-VMS, its live speak can be used to deter unwanted visitors, prevent potential crimes, and provide directions. It can also play
prerecorded messages for business or security purposes, such as important announcements, safety instructions, and emergency
alerts.

The GV-IPSH30 network horn speaker, with IP66 ingress protection, can withstand years of outdoor installation. It is ideal for
campus, traffic intersections, prisons, factories, parking lots, shopping malls, and other locations requiring loudspeakers and local
amplification.

Key Features
• Integration with GV-Control Center and GV-VMS
• Live speak for deterrence and instruction
• Prerecorded message playback
• Compatible with SIP and ONVIF (RTSP) protocols
• DC 24V / PoE (PoE splitter required)
• IP66 Ingress protection
• CE, FCC compliant

Specifications
Network
Network Interface RJ-45 connector, 10/100 Ethernet
Protocal TCP/IP, UDP, IGMP, ICMP, ARP, SIP, ONVIF
Audio
Audio Format PCM (uncompressed format)
Restart Time after Power and Network
Disconnetion
<1 s
Network Delay File playback: less than 50 ms; real-time speech: less than 150 ms
Transmission Rate 10/100 Mbps


GV-IPSH30 September 21, 2023
Audio Mode Network data packet
Amplifier Frequency Response 20 Hz ~ 20 KHz
Harmonic Distortion ≤0.3%
SNR >90 dB
Rated Output Built-in 30 W digital amplifier
Speaker Unit 1.5'' tweeter
Reated power of speaker unit 30 W
Speaker Sensititivy (1 W / 1 m) 108 dB
Max SPL (Rated / 1 m) 123 dB
Speaker Frequncy Range (-10 dB) 300 Hz ~ 8 kHz
General
Usage Outdoor
Operating Temperature -25°C ~ 55°C (-13°F ~ 131°F)
Operating Humidity ≤95%
Power Consumptpion ≤ 40 W
Dimensions (W x H x D) 285 x 205 x 285 mm (11.22” x 0.87” x 11.22”)
Net weight 2.0 kg (4.41 Ib)
Input power External power supply DC 24V; 24V PoE power supply (PoE splitter required)
Mounting U-shapped mounting bracket
Material Housing: high strength ABS
Housing Color White
Ingress Protection IP66
Certification CE, FCC compliant
Note:
1. The data cable of a 5-pin terminal block does not function.
2. A PoE splitter is needed to connect the GV-IP Speaker to a GeoVision PoE switch.
3. Specifications are subject to change without notice.

Dimensions





GV-IPSH30 September 21, 2023
Packing List
1. IP Speaker
2. Waterproof terminal for network cable
3. 5-Pin Terminal Block
4. Power Adapter
5. Operation Manual

Compatible GeoVision Software
• GV-Control Center V4.2.0 or later
• GV-VMS V17.4.7 / V18.3.2, patch files required

Accessory
Model No. Name Details
PD2402G Gigabit PoE Splitter


The PoE splitter receives a PoE signal via a PoE Switch and
splits the Ethernet and power into two separate cables.
The PoE splitter allows you to power the IP speaker
without installing power outlets and electrical cabling.
Input: DC 38~56V; Output: DC 24V, 1.0A, 1000 Mbps
