GV-Housing103

Obudowa zewnętrzna IP67 wandaloodporna IK10 do kamery typu box, 12VDC/24VAC, oświetlacz 60m...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

GV-Housing103 Housing Box August 12, 2018
- 1 -

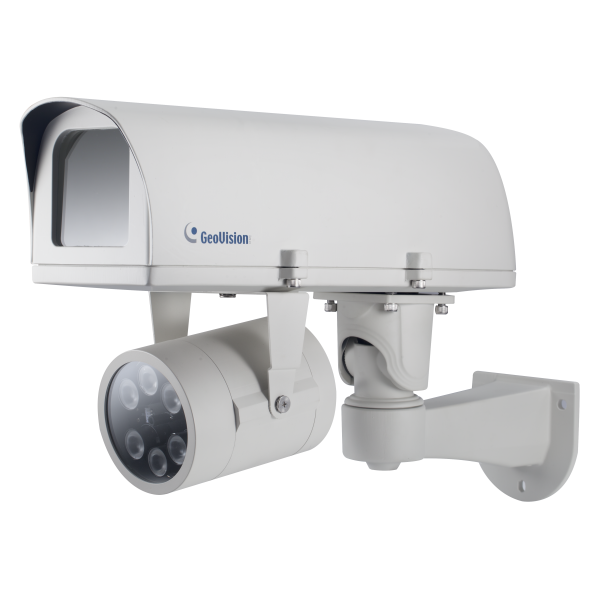

GV-Housing103 Housing Box


Introduction
The GV ‐Housing103 is a housing box designed to support the outdoor installation for the following Box Camera models with external
protection. It conforms to IP67 and IK10 standards, and is equipped with 6 IR LEDs for night operations, allowing up to 60 m (196.85 ft)
IR effective distance. The GV ‐ Hou sing103 also supports optional GV ‐ Mount accessories, allowing the Box Camera to be installed on the
pole, convex and concave surfaces. Adopting the housing box enables flexible installation of the Box Camera to meet your needs for IP
surveillance in various environmental conditions.

Applied to
* GV ‐ BX12 201
* GV ‐ BX27 00‐ 3V
* GV ‐ BX47 00‐ 3V
* GV ‐ BX57 00‐ 3V

Specifications
Power 2 pin terminal block (DC 12V 1.25A)

Start ‐ up ­ 20°C ~ 50°C ( ­4°F ~ 122°F)

Temperature
Operation ­ 30°C ~ 50°C ( ­22°F ~ 122°F)

IR LED Quantity 6 IR LEDs

Max. IR Distance 60 m (196.85 ft)

Dimensions (L x W x H) 404 x 128 x 257 mm (15.91 x 5.04 x 10.12’’)

Weight 7 kg (15.43 lb)

Ingress Protection IP67

Vandal Resistance IK10 (for metal casing)

Note: Specifications are subject to change without notice.



GV-Housing103 Housing Box August 12, 2018
- 2 -
Dimensions



Accessories
Model No Name
Details
GV ‐Mount300 ‐ 1 Convex Corner Adapter Kit


Dimensions: 238.6 x 395.2 x 210 mm
(9.4’’ x 15.5” x 8.2”)
Weight: 4.27 kg (9.41 lb)

GV ‐Mount310 ‐ 1 Concave Corner Adapter Kit


Dimensions: 111.2 x 369.9 x 210 mm
(4.37’’ x 14.5” x 8.2”)
Weight: 2.96 kg (6.53 lb)

GV ‐Mount400 ‐ 1 Pole Mount Bracket Kit
(Ø 4 ~ 6”)


Dimensions:
Bracket: 68.4 x 240 x 163 mm
(2.69” x 9.44’’ x 6.41”)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4" ~ 6"

GV ‐Mount410 ‐ 1 Pole Mount Bracket Kit
(Ø 6 ~ 7.5”)


Dimensions:
Bracket: 68.4 x 240 x 163 mm
(2.69” x 9.44’’ x 6.41”)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6" ~ 7.5"




GV-Housing103 Housing Box August 12, 2018
- 3 -
Packing List
* Screw x 3
* Plastic screw anchor x 3
* 1/4‘’ screw
* Washer x 3
* Tooth lock washer
* Hex key
* Silica gel bag
* Power adapter
