GV-GVS2100

Wideoserwer dla 1 kamery analogowej TVI / AHD / CVI / CVBS, 5.0M-20 kl./s, 2.0M-30 kl./s, H.265, PoE, SDXC, RTSP, ONVIF S...

Gwarancja: 24 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

GV-GVS2100 April 15, 2024
-1-

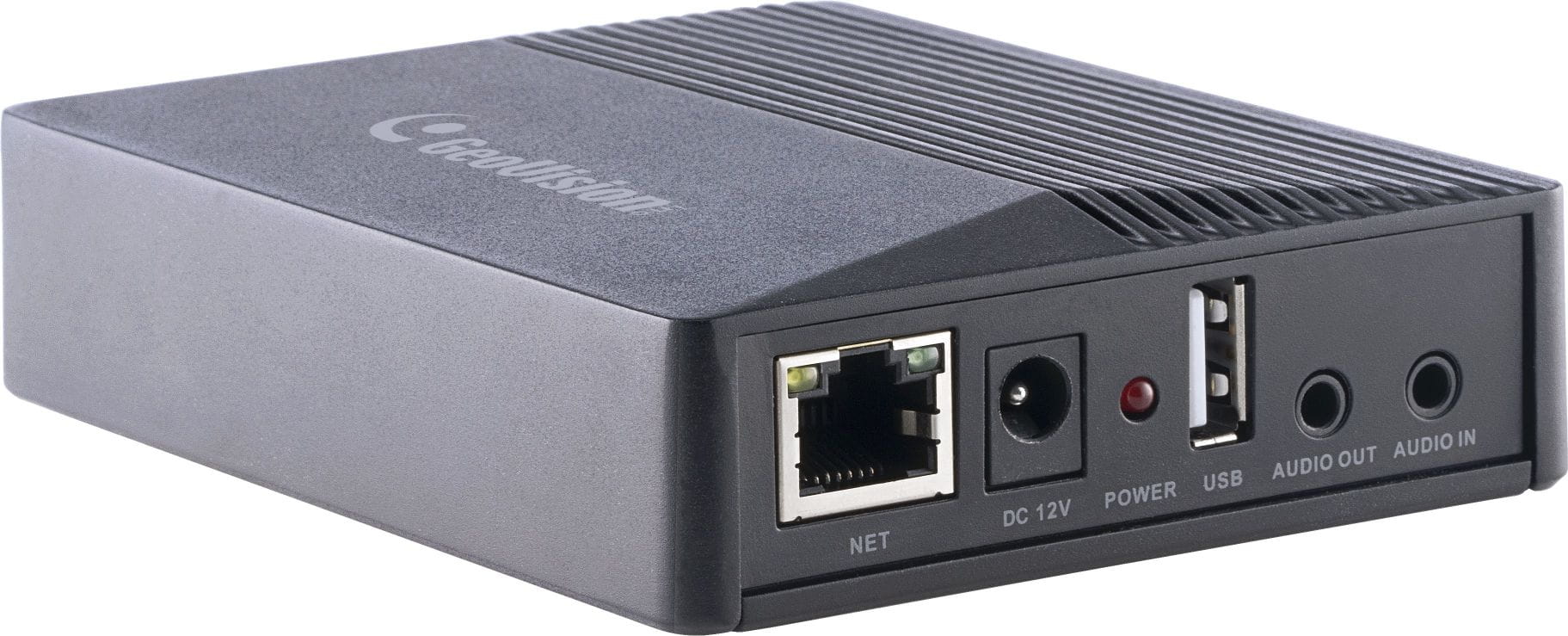

GV-GVS2100 1CH H.265 Combo 5MP Video Server





• AI deep learning: AI Perimeter Protection &
Classification (Human & Vehicle)
• Triple streams from H.265, H.264 and MJPEG
• Up to 20 fps at 2592 x 1944
• Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I,
Class 10) for local storage
• Two-way audio capable
• 8 sensor inputs and 4 alarm outputs
• DC 12V / PoE (IEEE 802.3af)
• TVI / AHD / CVI / CVBS
• Motion detection
• AI analytics (Object Abandoned/Missing, Line Crossing,
Region Entrance, Region Exiting, Region Intrusion,
Target Counting, Face Detection, Heat Map)
• Privacy mask
• Text overlay
• IP address filtering
• Tampering Alarm
• Support UTC (Up-The-Coax) control
• 12 languages supported
• ONVIF (Profile G, S, T) conformant

Introduction
GV-GVS2100 is a powerful H.265 Video Server with compact size and supports TVI / AHD / CVI / CVBS analog real-time video. It
converts analog signals into high-resolution digitalized images of up to 5 megapixels. It can record videos to the inserted micro SD
card, performing as a compact video recorder.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated
with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.

Deep Learning Function

Face Detection


AI Perimeter Protection People Counting
(Intrusion, Crossing Line
Entering Area, Leaving Area)





GV-GVS2100 April 15, 2024
-2-
Dimensions



Specifications
Video
Video Standard NTSC, PAL
Video Input 1 channel
Compression H.265, H.265+, H.264, H.264+, MJPEG
Video Streaming Triple streams
Signal Type
- TVI / AHD / CVI: 5 MP at 20 fps; 4 MP / 1080p / 720p at 30 fps
- CVBS: 960H at 30 fps (NTSC), 25 fps (PAL)
Video Resolution
Main Stream 2592 x 1944 (Default), 2560 x1440, 1920 x 1080, 1280 x 720, 704 x 480
Sub Stream 1280 x 720 (Default), 704 x 480, 352 x 240
Third Stream 704 x 480 (Default), 480 x 240, 352 x 240
Frame Rate
- 20 fps at 2592 x 1944, 20 fps at 2560 x1440, 20 fps at 1920 x 1080, 20 fps
at 1280 x 720, 20 fps at 704 x 480, 20 fps at 352 x 240, 20 fps at 480 x 240
- 30 fps at 1920 x 1080, 30 fps at 1280 x 720, 30 fps at 704 x 480, 30 fps at
352 x 240, 30 fps at 480 x 240 (60 Hz)
- 25 fps at 1920 x 1080, 25 fps at 1280 x 720, 25 fps at 704 x 480, 25 fps at
352 x 240, 25 fps at 480 x 240 (50 Hz)
*The frame rate and the performance may vary depending on the number of
connections and data bitrates (different scenes).
Video Analytics
Motion Detection, Video Exception Detection (Scene Change, Video Blur and
Abnormal Color Detection), Object Abandoned/Missing Detection
Smart Alarm
Motion Detection, Sensor Alarm, SD Card Error, SD Card Full, IP Address
Conflict, Cable Disconnection
Heat Map On / Off
Image Setting
Brightness, Contrast, Saturation, Hue, Sharpness, WDR, Noise Reduction,
Defog, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270° - including Corridor
format)
Audio
Audio Input 1 port, 1 channel
Compression G.711
Audio Support Two-way audio capable (external microphone and speaker required)
Management
Firmware Upgrade Remote upgrade by HTTP, Firmware upgrade utility
Local Storage
Micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10), max. 256 GB
*UHS-II card type is not supported.
Security IP address filtering
Language
Czech, English, French, German, Hungarian, Italian, Japanese, Polish,
Portuguese, Russian, Spanish, Traditional Chinese
Max Number of Live Streams 10
Max Number of RTSP Streams 10


GV-GVS2100 April 15, 2024
-3-
Network
Interface 100 Mbps Ethernet
Protocol
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTMP, PPPoE, DDNS, SMTP, FTP, SNMP,
802.1x, UPnP, HTTPS, HTTP POST, QoS, ONVIF
Deep Learning Function
AI Perimeter Protection
-Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Target
Counting, Heat Map: Human & Vehicle classification
-Face Detection
External Interface
Video Input 1 BNC port
Audio Input 1 In (stereo phone jack, 3.5 mm / 0.14’’)
Audio Output 1 Out (stereo phone jack, 3.5 mm / 0.14’’)
Sensor Input
Input 8 inputs, dry contact, NO / NC
Output 4 relay outputs (24 V DC / 1 A 125 V AC)
Ethernet RJ-45, 100 Mbps
USB 1 port (USB 2.0, not functional)
Power
Input DC 12 V, 1.2 A / PoE (IEEE 802.3af)
Output DC 12 V, 0.5 A (Max. 5.5 W)
Environment
Operation Temperature -30 °C ~60 °C (23 °F ~ 122 °F)
Humidity 0% to 95% (no condensation)
Weather Resistance Indoor use
Physical
Dimensions (L x W x H) 108.5 x 87.8 x 28 mm (4.27" x 3.46" x 1.10")
Weight 271.4 g (0.60 lb)
Certification CE, FCC, RoHS compliant
Software Applications
Software Supported
GV-VMS (V17.4.7 or later, V18.3.2 or later), GV-Edge Recording Manager
(Windows Version) V2.2.7 or later, GV-Edge Recording Manager (Mac Version)
V1.3.0 or later, GV-Control Center V4.1.1 or later, GV-Recording Server V2.1.0 or
later
Smart Device Access GV-Eye for iOS / Android (V3.1.0 or later)
Live Viewing Browser (IE, Edge, Chrome, Firefox, Safari)
Note:
1. The product requires a BNC cable, which is not included in the packaging. Please prepare one for use.
2. Specifications are subject to change without notice.


Packing List
1. GV-GVS2100
2. Mount
3. Screw Kit
4. Drill Template Paster
5. Download Guide



GV-GVS2100 April 15, 2024
-4-

Accessories
Model No. Details
GV-PA191

GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to
the IP device through a single Ethernet cable.

GV-PA301

GV-PA301 is a Gigabit Power over Ethernet (PoE) adapter.
GV-PoE Switch The GV-PoE Switch is designed to provide power along with network connection
for IP devices. The GV-PoE Switch is available in various models with different
numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.
