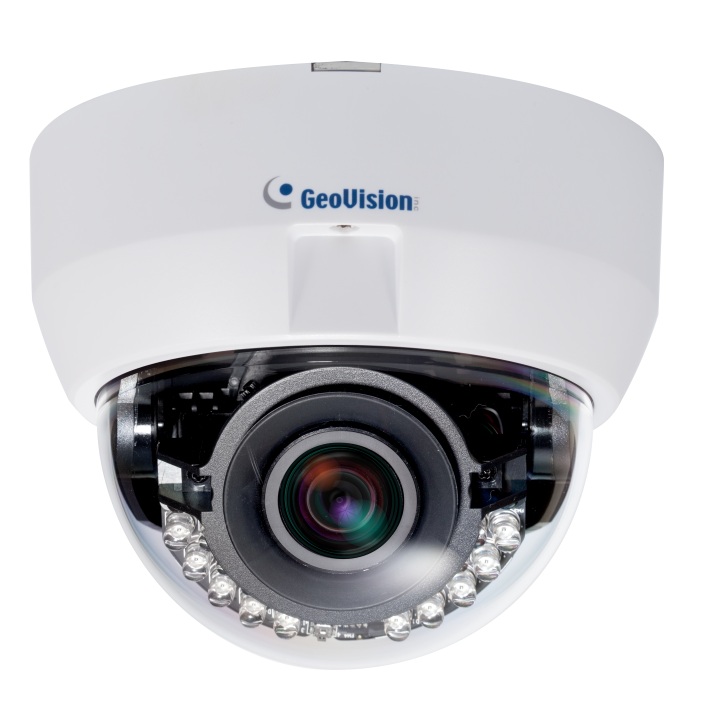

GV-FD8700-FR

Kamera IP kopułkowa wewnętrzna, oświetlacz 40m, 8.0M-30 kl./s, H.265, WDR, PoE, SDXC, 3.3~12mm P-iris, 3-axis, automatyczna identyfikacja twarzy...

Gwarancja: 24 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

GV-FD8700-FR April 28, 2020
- 1 -
GV-FD8700-FR 8MP H.265 Low Lux WDR IR Fixed IP Dome


* 1/2.5” progressive scan low lux CMOS
* Min. illumination at 0.04 lux
* Triple streams from H.265 and H.264
* Up to 30 fps at 3840 x 2160
* Megapixel varifocal lens
* P ‐ Iris lens for auto Iris control
* Day and Night function (with removable IR ‐cut filter)
* Intelligent IR
* Wide Dynamic Range (WDR)
* IR distance of up to 40 m (130 ft)
* 3 ‐axis mechanism (pan / tilt / rotate)
* One sensor input and digital output
* Built ‐ in micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10) for
local storage
* DC 12V / PoE ( IEEE 802.3af)
* One ‐way audio
* Defog
* Motion detection
* Tampering alarm
* Face recognition
* Text overlay
* Privacy mask
* IP address filtering
* Recording assigned by GV ‐Edge Recording Manager (Windows
& Mac )
* Supports iPhone, iPad, Android & 3GPP
* 4 languages on Web interface
* ONVIF (Profile S) conformant
* No memory card slot & local storage function for Argentina

Introduction
GV ‐FD8700 ‐ FR Fixed IP Dome camera features cutting ‐edge face recognition technology that allows users to identify important
personnel from its database, on the fly. Up to 10,000 face profiles can be defined in the camera’s database, and also categorized to
meet various corporate needs, such as facilitating customer service or se curity management and more. The camera’s face recognition
mechanism is effective for a distance of up to 4 m (14 ft) while able to identify up to 10 persons simultaneously. With a recognition
time of within 2 seconds, it can quickly identify VIP guests and/or potential intruders. When integrated with GV ‐ VMS, the camera’s
face recognition can be used to trigger alerts according to the predefined rules, thereby providing an improved, reliable security
management.

As an indoor camera, GV ‐FD8700 ‐ FR can support H.265 video codec to achieve better compression ratio while maintaining
high‐quality pictures at reduced network bandwidths. For night operations, the camera is equipped with an IR effective distance of up
to 40 m (130 ft). Its WDR and Backlight Compensation allow the camera to detect faces in environments with drastic light contrast.


GV-FD8700-FR April 28, 2020
- 2 -
Real ‐time Face Recognition on Live View


Retrievable Face Events




GV-FD8700-FR April 28, 2020
- 3 -
Active Tampering Alarm
Tampered Focus Change Camera Shift



Dimensions
Hard‐Ceiling Mount


In ‐Ceiling Mount




Specifications
Camera
Image Sensor 1/2.5” progressive scan low lux CMOS
Picture Elements 3840 (H) x 2160 (V)
Color 0.05 Lux
B/W 0.04 Lux
Minimum
Illumination
IR ON 0 Lux
Shutter Speed Automatic, Manual (1/30 ~ 1/8000 sec)
White Balance Automatic, Manual (2800K ~ 8500K)
Gain Control Automatic
S/N Ratio 56 dB
WDR Yes
Dynamic Range Up to 96 dB


GV-FD8700-FR April 28, 2020
- 4 -
Lens
Megapixel Yes
Day/Night Yes (with removable IR ‐cut filter)
Focal Length 3.3 ~ 12 mm
Lens Type Varifocal
Maximum Aperture F/1.4
Mount Ø14 mm
Horizontal FOV 106° ~ 42°
Image Format 1/2.5”
Focus Manual (with lock)
Zoom Manual (with lock)
Operation
Iris P ‐ Iris
Max. Torque (Focus / Zoom Screws) 0.049 N.m
IR LED Quantity 20 IR LEDs
Max. IR Distance 40 m (130 ft)
Face Recognition
Environment 600 lux
Tilt (Up/Down) ± 15〫 Recognition
face angle
Swing (Left/Right) ± 15〫
Max. No of Faces Up to 10
Min. face image pixel requirement 120 x 120
Operation
Video Compression H.265, H.264
Video Streaming
Stream 1 from H.265 or H.264
Stream 2 from H.264
Stream 3 from H.264
Frame Rate
30 fps at 3840 x 2160 (60/50 Hz)
* The frame rate and the performance may vary depending on the number of connections
and data bitrates (different scenes).
Image Setting
Brightness, Contrast, Saturation, Sharpness, White Balance, Flicker ‐less, Image Orientation,
Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR, Defog
Audio Compression G.711
Audio Support One ‐way Audio (external microphone required)
Sensor Input 1 input (dry contact)
Alarm Output 1 digital output (200mA 5V DC)
Intelligent Video
Video Analytics
Motion Detection, Tampering Alarm, Face Detection, Face Recognition
Video Resolution

4:3 2560 x 1920, 2048 x 1536, 1600 x 1200, 1280 x 960
Main Stream
16:9 3840 x 2160 (Default), 2560 x 1440, 1920 x 1080, 1280 x 720
4:3 1024 x 768, 640 x 480, 320 x 240
Sub Stream
16:9 1280 x 720, 640 x 360 (Default)
4:3 640 x 480, 320 x 240
Third Stream
16:9 640 x 360 (Default)
Network
Interface 10/100 Ethernet
Ethernet Protocol DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF (Profile S), RTSP, SMTP, TCP, UDP
Mechanical
Temperature Detector
Yes
Pan 0° ~ 350°

Tilt 0° ~ 75°
Camera Angle
Adjustment
Rotate 0° ~ 340°
Power 2 ‐pin terminal block (DC 12V, 1.25A), PoE
Ethernet Ethernet (10/100 Base ‐ T), RJ ‐ 45
Audio
1 In (3.5 mm phone jack for external microphone with power supply)
1 Out (3.5 mm phone jack for speaker) (Currently not functional)
Connectors
Digital I/O I/O wires

GV-FD8700-FR April 28, 2020
- 5 -
Local Storage
Micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10)
*UHS‐ II card type is not supported.
LED Indicator 2 LEDs: Power, Status
General
Start ‐ up ‐20°C ~ 50°C ( ‐ 4°F ~ 122°F)
Environment
Temperature
Operation ‐30°C ~ 50°C ( ‐22°F ~ 122°F)

Humidity 10% to 90% (no condensation)

Power Source 12V DC / PoE (IEEE 802.3af)

Max. Power Consumption 11.04 W

Dimension Ø 125 x 99.5 mm (4.92” x 3.92”)

Weight 470 g (1.04 lb)

Regulatory CE, FCC, RCM, LVD, RoHS compliant

Power over Ethernet

PoE Standard PoE (IEEE 802.3af Power over Ethernet / PD)

PoE Power Supply Type End ‐Span and Mid ‐Span

PoE Power Output Per Port 48V DC, 350mA, Max. 15.4 watts

Web Interface

Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Audio, Picture in Picture, Privacy Mask, Text Overlay

Language English / Japanese / Simplified Chinese / Traditional Chinese

Applications

Software Supported
GV ‐ DVR / NVR (V8.8.0), GV ‐VMS (V17.1.0.100), GV ‐Control Center (V3.5.1), GV ‐Edge
Recording Manager (V1.4.0), GV ‐Recording Server / Video Gateway (V1.4.2), GV ‐Redundant /
Failover Server (V1.1.0.0), GV ‐Mobile Server (V1.5.0.0)
*Face recognition and detection is only supported by GV ‐VMS.

Smart Device Access GV ‐ Eye for iOS and Android

Live Viewing Web browser, Mobile app

Note:
1. It is required to apply patch files to some of the supported software.
2. Specifications are subject to change without prior notice.

Packing List
1. H.265 Fixed Dome
2. Screw x 3
3. Screw Anchor x 3
4. Torx Wrench
5. I/O Wires
6. Audio Wire x 2
7. Installation Sticker
8. 8 GB Micro SD Card (MLC, SDHC, Class 10)
(The Micro SD Card is preinstalled and formatted in the camera)
9. Download Guide
10. Warranty Card
Note: Power adapters can be purchased upon request.

Accessories
Model No. Name Details

GV ‐Mount100 Straight Tube and
Junction Box Kit


Dimensions: 200 x 170 x 257.5 mm
(7.9” x 6.7” x 10.1”)
Weight: 3.17 kg (6.99 lb)


GV-FD8700-FR April 28, 2020
- 6 -

Model No. Name Details

GV ‐Mount101 Straight Tube Kit


Dimensions: 219 x 125 x 332 mm
(8.6” x 4.9” x 13.1”)
Weight: 1.8 kg (3.97 lb)

GV ‐Mount200 Wall Pendant Mount


Dimensions: 225 x 140 x 250 mm
(8.9” x 5.5” x 9.8”)
Weight: 900 g (1.98 lb)

GV ‐Mount203 Wall Mount and Junction
Box


Dimensions: 315 x 195.5 x 225 mm
(12.4” x 7.7” x 8.9”)
Weight: 2.95 kg (6.5 lb)

GV ‐Mount300 ‐ 1 Convex Corner Adapter
Kit


Dimensions: 238.6 x 395.2 x 210 mm
(9.4’’ x 15.5” x 8.2”)
Weight: 4.27 kg (9.41 lb)

GV ‐Mount310 ‐ 1 Concave Corner Adapter
Kit


Dimensions: 111.2 x 369.9 x 210 mm
(4.37’’ x 14.5” x 8.2”)
Weight: 2.96 kg (6.53 lb)

GV ‐Mount400 ‐ 1 Pole Mount Bracket Kit
(Ø 4” ~ 6”)


Bracket Dimensions: 68.4 x 240 x 163 mm
(2.69” x 9.44’’ x 6.41”)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4" ~ 6"

GV ‐Mount410 ‐ 1 Pole Mount Bracket Kit
(Ø 6” ~ 7.5”)


Bracket Dimensions: 68.4 x 240 x 163 mm
(2.69” x 9.44’’ x 6.41”)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6" ~ 7.5"


GV-FD8700-FR April 28, 2020
- 7 -

Model No. Name Details

GV ‐Mount702 Extension Tube


Four options are available.
Dimensions:
Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1” x 3.9” or 7.9” or 11.8” or 19.7”)
Weight:
180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)

GV ‐Mount909 Wall Box Mount


Dimensions: 170 x 150 x 110 mm
(6.7” x 5.9” x 4.3’’)
Weight: 610 g (1.34 lb)

GV ‐Mount910 Power Box Mount
Bracket


Dimensions: 112 x 98 x 7.5 mm
(4.4” x 3.9” x 0.3”)
Weight: 105 g (0.23 lb)

GV ‐Mount913 Power Box Mount
Bracket


Dimensions: Ø 146 x 7.5 mm (Ø 7.04” x 2.5”)
Weight: 180 g (0.4 lb)

GV ‐Mount915 In ‐Ceiling Mounting Kit



Dimensions: Ø 172.5 x 63.8 mm
(Ø 7.04” x 2.5”)
Weight: 424 g (0.93 lb)

GV ‐Mount917 Dome Housing



Dimensions: Ø 186 x 97.5 mm
(Ø 7.3” x 3.8”)
Weight: 948 g (2.09 lb)

GV ‐PA191


PoE Adapter


The GV ‐PA191 is a Power over Ethernet (PoE)
adapter designed to provide power to the IP
device through a single Ethernet cable.


GV-FD8700-FR April 28, 2020
- 8 -

GV ‐PoE Switch
The GV ‐POE Switch is designed to provide power along with network connection

for IP devices. The GV ‐POE Switch is available in various models with different

numbers and types of ports.

GV ‐ FWC GV ‐ FWC can integrate GV ‐Face Recognition Cameras and GV ‐ AI FR into access

control systems by sending access card data, paired to Face IDs, to controllers

either through TCP/IP or Wiegand connection.

GV ‐Relay V2

The GV ‐Relay V2 is designed to expand the voltage load of GV IP devices. It

provides 4 relay outputs, and each can be set as normally open (NO) or normally

closed (NC) independently as per your requirement.

Power Adapter
Contact our sales representatives for the countries and areas supported.
