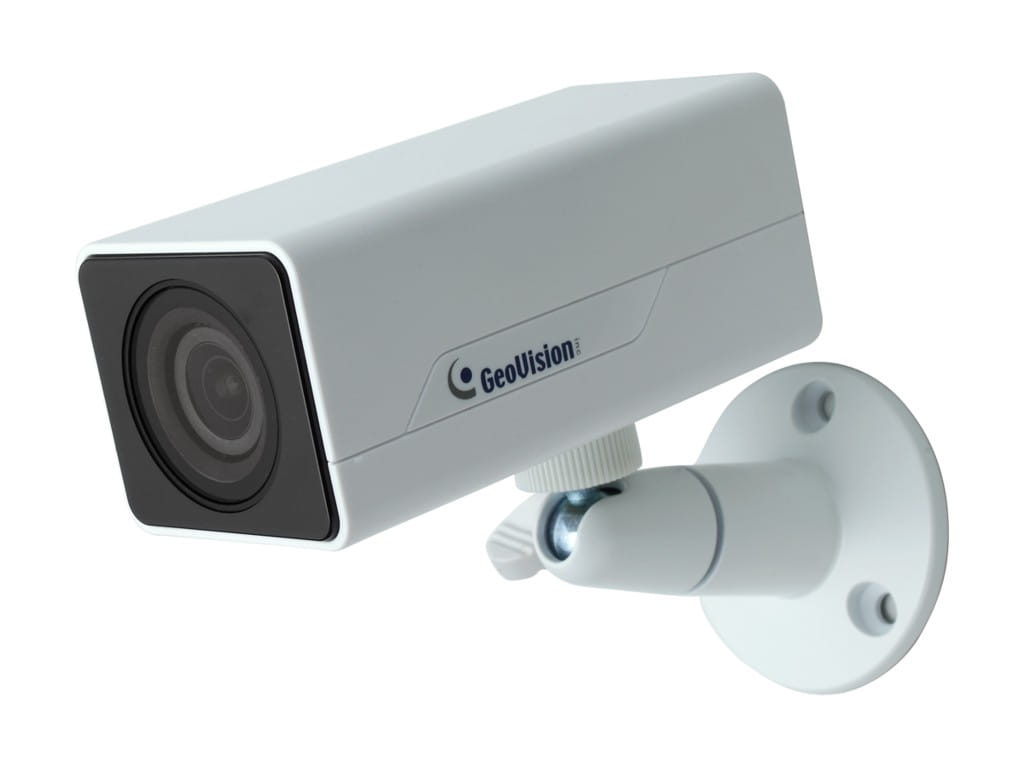

GV-EBX2100-2F

Dostępność: 0
Cena: 742,76 zł 742.76 (171,76 €)
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: GEOVISION
Kod produktu: 84-EBX2100-2010

Opis

Kamera IP typu mini-box wewnętrzna, oświetlacz 15m, 2.0M-30 kl./s, H.264, WDR, PoE, 3.8mm, czuła 0.07lx...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

GV-EBX2100 Series 2MP H.264 Low Lux WDR IR Box IP Camera



* 1/2.8” progressive scan low lux CMOS
* Dual streams from H.264 and MJPEG
* Up to 25 fps at 1920 x 1080
* Intelligent IR
* Day and Night function (with removable IR ‐cut filter)
* Built ‐ in microphone
* Wide Dynamic Range (WDR)
* Defog
* Motion detection
* Tampering alarm
* Text overlay
* Privacy mask
* IP address filtering
* DC 12V / PoE (IEEE 802.3af)
* Megapixel lens
* Recording assigned by GV ‐Edge Recording Manager (Windows &
Mac )
* Supports iPhone, iPad, Android & 3GPP
* 31 languages on Web interface
* ONVIF (Profile S) conformant
* More storage option ‐ NAS

Introduction
The Target Box Camera is a series of light ­weighted cameras designed for indoor usage. Equipped with IR ­cut filter and built ­ in IR LEDs,
the camera is an entry ‐level surveillance solution with all the essential features and excellent image quality. The camera supports PoE
and can be installed intuitively.

Models
Model Iris Focal Length (mm)
Maximum Aperture Image Format
GV ‐EBX2100 ‐ 0F 2.8 F/2.0
GV ‐EBX2100 ‐ 2F
Fixed
3.8 F/1.8
1/2.7’’


Active Tampering Alarm
Tampered Focus Change Camera Shift




GV-EBX2100 Series February 22, 2018
- 1 -

Overview
Panel









Dimensions









Specifications
Camera GV ‐EBX2100 ‐ 0F GV ‐EBX2100 ‐ 2F

Image Sensor 1/2.8” progressive scan low lux CMOS

Picture Elements 1920 (H) x 1080 (V)

Color 0.07 Lux

B/W 0.04 Lux

Minimum
Illumination
IR ON 0 Lux

Shutter Speed Automatic, Manual (1/5 ~ 1/8000 sec)

White Balance Automatic, Manual (2800K ~ 8500K)

Gain Control Automatic

S/N Ratio 48 dB

WDR Yes

Dynamic Range Up to 72 dB

Lens

Megapixel Yes

Day/Night Yes (with removable IR ‐cut filter)

Lens Type Fixed

Focal Length 2.8 mm 3.8 mm

Maximum Aperture F/2.0 F/1.8

Mount M12, Pitch 0.5 mm

Horizontal FOV 99° 72°

Image Format 1/2.7”

Focus Fixed

Zoom Fixed

Operation
Iris Fixed

IR LED Quantity 8 IR LEDs

Max. IR Distance 15 m (50 ft)

Operation

Video Compression H.264, MJPEG

Video Stream Dual streams from H.264 and MJPEG

Frame Rate
25 fps at 1920 x 1080 (60/50 Hz)
*The frame rate and the performance may vary depending on the number of connections
and data bitrates (different scenes).

Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker ‐less, Image
Orientation, Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR, Defog

GV-EBX2100 Series February 22, 2018
- 2 -

GV-EBX2100 Series February 22, 2018
- 3 -
Audio Compression G.711, AAC (Optional)
Audio Support One ‐way audio

Video Resolution

4 : 3 1280 x 960, 640 x 480, 320 x 240

16 : 9 1920 x 1080 (Default), 1280 x 720, 640 x 360, 448 x 252

Main Stream
5 : 4 1280 x 1024, 640 x 512, 320 x 256

4 : 3 640 x 480, 320 x 240

16 : 9 640 x 360, 448 x 252 (Default)

Sub Stream
5 : 4 640 x 512, 320 x 256

Network

Interface 10/100 Ethernet

Protocol
DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF (Profile S), QoS (DSCP), RTSP, SNMP, SMTP,
TCP, UDP, UPnP, 3GPP/ISMA, IPv4, IPv6

Mechanical

Power 2 ‐pin terminal block (DC 12V, 1.25A), PoE

Ethernet Ethernet (10/100 Base ‐ T), RJ ‐ 45 cable

Connectors
Audio 1 In (built ‐ in microphone)

LED Indicator 2 LEDs: Power, Status

General

Environment Temperature 0°C ~ 50°C (32°F ~ 122°F)

Humidity 10% to 90% (no condensation)

Power Source 12V DC / PoE (IEEE 802.3af)

Max. Power Consumption 5.36 W

Dimensions 95 x 45 x 40 mm (3.7” x 1.8” x 1.6”)

Weight 120 g (0.26 lb)

Regulatory CE, FCC, RCM, RoHS compliant

Power over Ethernet

PoE Standard PoE (IEEE 802.3af Power over Ethernet / PD)

PoE Power Supply Type End ‐Span

PoE Power Output Per Port 48V DC, 350mA. Max. 15.4 watts

Web Interface

Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Tampering Alarm,
Text Overlay, Digital PTZ

Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek /
Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian /
Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian /
Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

Application

Network Storage GV ‐DVR/NVR, GV ‐Recording Server, GV ‐VMS

Smart Device Access GV ‐ Eye for iOS and Android

Live Viewing IE, Mobile App

CMS Server support GV ‐Control Center, GV ‐Center V2, GV ‐ Vital Sign Monitor

Note:
1. The signal range and data throughput may vary depending on the network conditions and environmental factors.
2. Specifications are subject to change without notice.

Packing List
1. Target Box Camera
2. Supporting Rack
3. Screw x 3
4. Screw anchor x 3
5. Download Guide
6. Warranty Card
Note: Power adapters can be purchased upon request.


Accessories
Model No. Name Details
GV ‐PA191 PoE Adapter


Dimensions (H x W x D): 43 x 69 x 40 mm (1.69” x 2.72” x 1.57”)
Weight: 130 g (0.29 lb)

GV ‐PoE Switch
The GV ‐PoE Switch is designed to provide power along with network connection for IP

devices. The GV ‐PoE Switch is available in various models with different numbers and types

of ports.

Power Adapter Contact our sales representatives for the countries and areas supported.


GV-EBX2100 Series February 22, 2018
- 4 -
