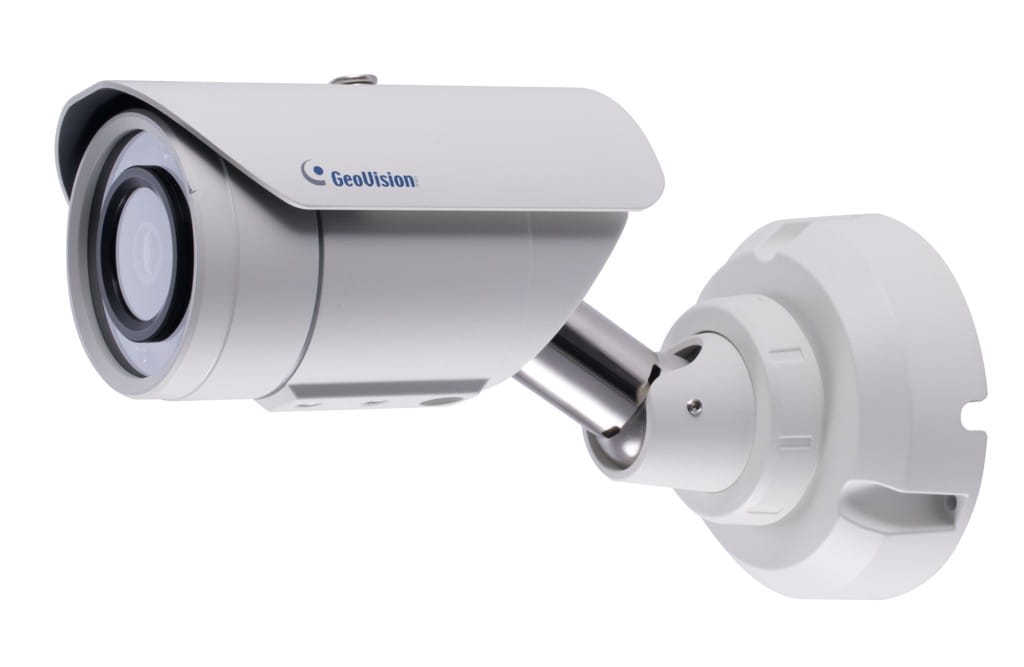

GV-EBL4711
towar niedostępny
dodaj do przechowalniOpis
Kamera IP typu mini-bullet, IP67 wandaloodporna IK10, oświetlacz 30m, 4.0M-20 kl./s, H.265, WDR PRO, PoE, SDXC, 2.7~12mm P-iris, super-czuła 0.02lx, moto-zoom 4x...
Gwarancja: 36 mies.
Uwaga! Produkt wycofany z produkcji!
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
GV-EBL4711 August 11, 2018
- 1 -
GV-EBL4711 4MP H.265 4.4x Zoom Super Low Lux WDR Pro IR Bullet IP Camera
* 1/3” progressive scan super low lux CMOS
* Min. illumination at 0.02 lux
* Triple streams from H.265, H.264, and MJPEG
* Up to 20 fps at 2592 x 1520, 25 fps at 2560 x 1440,
30 fps at 2048 x 1520
* Vandal resistance (IK10 for metal casing)
* Ingres s protection (IP67)
* Motorized varifocal lens for remote focus/zoom adjustment
* Intelligent IR
* IR distance up to 30 m (98.42 ft)
* Day/Night function (with removable IR ‐cut filter)
* Built ‐ in micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10) for local
storage
* DC 12V / PoE (IEEE 802.3af)
* Wide Dynamic Range Pro (WDR Pro)
* Smart streaming
* Defog
* Text overlay
* Tampering alarm
* 3D noise reduction
* IP address filtering
* Recording assigned by GV ‐Edge Recording Manager (Windows &
Mac )
* Supports iPhone, iPad, Android & 3GPP
* 31 languages on Web interface
* ONVIF (Profile S) conformant
* No Memory Card Slot & local storage function for Argentina.
* Smart streaming requires either GV ‐DVR / NVR V8.7.0 or GV ‐ VMS
V16.10.3.
Introduction
The Target Bullet Camera is a lightweight camera designed for outdoor environments. It adheres to the IP67 standard and has full
protection against dust and jets of water. The camera can support H.265 video codec to achieve better compression ratio while
maintaining high quality pictures at reduced network bandwidths. The camera is ca pable of providing a color live view not only in near
darkness but also under contrasting light intensities with its super low lux CMOS image sensor and WDR pro.
Active Tampering Alarm
Tampered Focus Change Camera Shift
GV-EBL4711 August 11, 2018
- 2 -
Overview
Dimensions
Specifications
Camera
Image Sensor 1/3” progressive scan super low lux CMOS
Picture Elements 2592 (H) x 1520 (V)
Color 0.03 Lux
B/W 0.02 Lux
Minimum
Illumination
IR ON 0 Lux
Shutter Speed Automatic, manual (1/5 ~ 1/16000 sec)
White Balance Automatic, manual (2800K ~ 8500K)
Gain Control Automatic
S/N Ratio 50 dB
WDR Pro Yes
Dynamic Range Up to 120 dB
Lens
Megapixel Yes
Day/Night Yes (with removable IR ‐cut filter)
Lens Type Motorized varifocal lens
Focal Length 2.7 ~ 12 mm
Maximum Aperture F/1.6
Mount Ø14 mm
Horizontal FOV 103° ~ 37°
Image Format 1/2.7”
Focus Auto
Zoom 4.4x optical zoom
Operation
Iris P ‐ Iris
IR LED Quantity 6 IR LEDs
Max. IR Distance 30 m (98.42 ft)
Operation
Video Compression H.265, H.264, MJPEG
Video Streaming
Stream 1 from H.265 or H.264
Stream 2 from H.265, H.264 or MJPEG
Stream 3 from H.265, H.264 or MJPEG
Frame Rate
50 Hz: 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 25 fps at 2048 x 1520
60 Hz: 20 fps at 2592 x 1520, 24 fps at 2560 x 1440, 30 fps at 2048 x 1520
*The frame rate and the performance may vary depending on the num ber of connections
and data bitrates (different scenes).
GV-EBL4711 August 11, 2018
- 3 -
Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker ‐less, Image
Orientation, Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR Pro, Defog, Low
Lux Enhancement, Denoise, Metering
Video Resolution
4 : 3 2048 x 1520, 1600 x 1200, 1280 x 960, 640 x 480
16 : 9 2592 x 1520, 2560 x 1440 (Default), 2304 x 1296, 1920 x 1080, 1280 x 720, 640 x 360
Main Stream
5 : 4 1280 x 1024, 640 x 512
4 : 3 1024 x 768, 640 x 480, 320 x 240
16 : 9 1280 x 720, 640 x 360 (Default), 448 x 256
Sub Stream
5 : 4 1280 x 1024, 640 x 512, 320 x 256
4 : 3 640 x 480, 320 x 240
16 : 9 640 x 360, 448 x 256
Third Stream
(Closed by
Default)
5 : 4 640 x 512, 320 x 256
Network
Interface 10/100 Ethernet
Protocol
DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, Multicast, NTP, ONVIF (Profile S),
QoS (DSCP), RTP, RTCP, RTSP, SNMP, SMTP, SSL, TCP/IP, UDP, UPnP, 3GPP/ISMA
Mechanical
Temperature Detector Yes
Pan 0° ~ 360°
Camera Angle
Adjustment
Tilt 90° ~ 180°
Power 2 ‐pin terminal block, PoE
Ethernet Ethernet (10/100 Base ‐ T), RJ ‐ 45 cable
Connectors
Local Storage
Micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10)
*UHS‐ II card type is not supported.
LED Indicator 2 LEDs: Power, Status
General
Start ‐ up
Environment
Temperature
Operation
‐20°C ~ 50°C ( ‐ 4°F ~ 122°F)
Humidity 10% to 90% (no condensation)
Power Source 12V DC / PoE (IEEE 802.3af)
Max. Power Consumption 13.12 W
Dimensions 144.14 x 77.72 x 102.75 mm (5.67” x 3.06” x 4.05”)
Weight 880 g (1.94 lb)
Ingress Protection IP67
Vandal Resistance IK10 for metal casing
Regulatory CE, FCC, RCM, LVD, RoHS compliant
Power over Ethernet
PoE Standard PoE (IEEE 802.3af Power over Ethernet / PD)
PoE Power Supply Type End ‐span, Mid ‐span
PoE Power Output Per Port 48V DC, 350mA, Max. 15.4 watts
Web Interface
Installation Management Web ‐based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Picture in Picture, Picture and Picture, Privacy Mask, Tampering Alarm, Text
Overlay, Digital PTZ
Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek /
Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian /
Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian /
Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish
Application
Software Supported
GV ‐ DVR / NVR (V8.7.4.0), GV ‐ VMS (V16.11.0.0), GV ‐Control Center (V3.4.0.0), GV ‐Edge
Recording Manager (V1.3.0.0), GV ‐Center V2 (V16.11.0.0), GV ‐Recording Server (V1.3.0.0),
GV ‐Redundant / Failover Server (V1.1.0.0)
Smart Device Access GV ‐ Eye for iOS and Android
Remote Live Viewing Browser (IE, Chrome, Firefox, Safari), Mobile App
CMS Server support GV ‐Control Center, GV ‐Center V2, GV ‐ Vital Sign Monitor
Note:
1. It’s required to apply patch files to all the supported software mentioned above.
2. The signal range and data throughput may vary depending on the network conditions and environmental factors.
3. Specifications are subject to change without notice.
GV-EBL4711 August 11, 2018
- 4 -
Packing List
1. H.265 Bullet Camera
2. Sun ‐Shield Cover
3. Screw for Sun ‐Shield Cover x 2
4. Screw for Supporting Rack x 3
5. Screw Anchor x 3
6. Silica Gel Bag x 2
7. Washer x 2
8. Terminal Block
9. Screw for Mounting Kit x 3
10. Nut for Mounti ng Kit x 3
11. Hex Wrench
12. Download Guide
13. Warranty Card
Note: The power adapter can be purchased upon request.
Accessories
Model No. Name Details
GV ‐Mount300 ‐ 1 Convex Corner Adapter
Kit
Dimensions: 238.6 x 395.2 x 210 mm
(9.4’’ x 15.5” x 8.2”)
Weight: 4.27 kg (9.41 lb)
GV ‐Mount310 ‐ 1 Concave Corner Adapter
Kit
Dimensions: 111.2 x 369.9 x 210 mm
(4.37’’ x 14.5” x 8.2”)
Weight: 2.96 kg (6.53 lb)
GV ‐Mount400 ‐ 1 Pole Mount Bracket
Kit (Ø 4 ~ 6")
Dimensions:
Bracket: 68.4 x 240 x 163 mm
(2.69” x 9.44’’ x 6.41”)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4" ~ 6"
GV ‐Mount410 ‐ 1 Pole Mount Bracket Kit
(Ø 6 ~ 7.5")
Dimensions:
Bracket: 68.4 x 240 x 163 mm
(2.69” x 9.44’’ x 6.41”)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6" ~ 7.5"
GV ‐PA191 PoE Adapter
Dimensions (H x W x D): 43 x 69 x 40 mm
(1.69” x 2.72” x 1.57”)
Weight: 130 g (0.29 lb)
GV ‐ POE Switch The GV ‐ POE Switch is designed to provide power along with network
connection for IP devices. The GV ‐ POE Switch is available in various models
with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.
