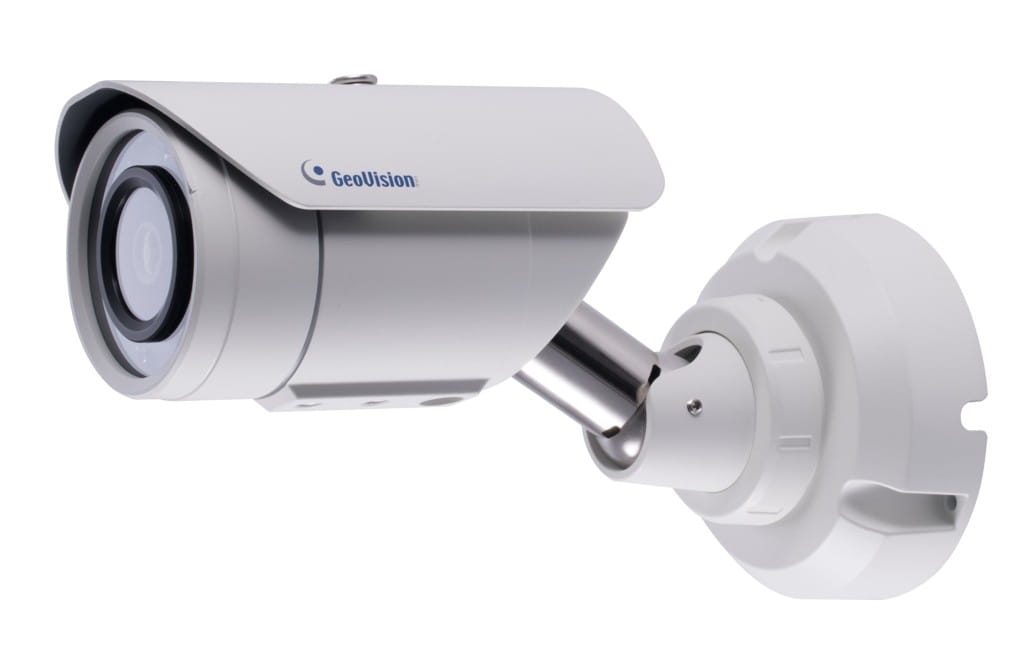

GV-EBL4702-3F

Kamera IP typu mini-bullet, IP67 wandaloodporna IK10, oświetlacz 30m, 4.0M-20 kl./s, H.265, WDR PRO, PoE, SDXC, 2.8mm, super-czuła 0.03lx...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

GV-EBL4702 Series August 11, 2018
- 1 -
GV-EBL4702 Series 4MP H.265 Super Low Lux WDR Pro IR Bullet IP Camera


* 1/3” progressive scan super low lux CMOS
* Min. illumination at 0.02 lux
* Triple streams from H.265, H.264, and MJPEG
* Up to 20 fps at 2592 x 1520, 25 fps at 2560 x 1440,
30 fps at 2048 x 1520
* Vandal resistance (IK10 for metal casing)
* Ingres s protection (IP67)
* Day/Night function (with removable IR ‐cut filter)
* Intelligent IR
* IR distance up to 30 m (98.4 ft)
* Built ‐ in micro SD card slot (SD/SDHC/SDXC/UHS ‐ I) for local
storage
* DC 12V / PoE (IEEE 802.3af)
* Wide Dynamic Range Pro (WDR Pro)
* Smart st reaming
* Defog
* Text overlay
* Tampering alarm
* 3D noise reduction
* IP address filtering
* Recording assigned by GV ‐Edge Recording Manager
(Windows & Mac )
* Supports iPhone, iPad, Android & 3GPP
* 31 languages on Web interface
* ONVIF (Profile S) conformant
* No Memory Card Slot & local storage function for Argentina.
* Smart streaming requires either GV ‐ DVR / NVR V8.7.0 or GV ‐VMS
V16.10.3.

Introduction
The Target Bullet Camera is a lightweight camera designed for outdoor environments. It adheres to the IP67 standard and has full
protection against dust and jets of water. The camera can support H.265 video codec to achieve better compression ratio while
maintaining high quality pictures at reduced network bandwidths. The camera is ca pable of providing a color live view not only in near
darkness but also under contrasting light intensities with its super low lux CMOS image sensor and WDR pro.

Models
Model Iris Focal Length (mm)
Maximum Aperture Image Format
GV ‐EBL4702 ‐ 1F 6 F/2.0
GV ‐EBL4702 ‐ 2F 3.8 F/1.8
GV ‐EBL4702 ‐ 3F
Fixed
2.8 F/2.0
1/2.7’’

Active Tampering Alarm
Tampered Focus Change Camera Shift




GV-EBL4702 Series August 11, 2018
- 2 -
Overview
Dimensions



Specifications
Camera GV ‐EBL4702 ‐ 1F GV ‐EBL4702 ‐ 2F GV ‐EBL4702 ‐ 3F

Image Sensor 1/3” progressive scan super low lux CMOS

Picture Elements 2592 (H) x 1520 (V)

Color 0.03 Lux

B/W 0.02 Lux

Minimum
Illumination
IR ON 0 Lux

Shutter Speed Automatic, manual (1/5 ~ 1/16000 sec)

White Balance Automatic, manual (2800K ~ 8500K)

Gain Control Automatic

S/N Ratio 50 dB

WDR WDR Pro

Dynamic Range Up to 120 dB

Lens

Megapixel Yes

Day/Night Yes (with removable IR ‐cut filter)

Lens Type Fixed

Focal Length 6 mm 3.8 mm 2.8 mm

Maximum Aperture F/2.0 F/1.8 F/2.0

Mount Ø12 mm

Horizontal FOV 51° 72° 96°

Image Format 1/2.7”

Focus Fixed

Zoom Fixed

Operation
Iris Fixed

IR LED Quantity 6 IR LEDs

Max. IR Distance 30 m (98.4 ft)

Operation

Video Compression H.265, H.264, MJPEG

Video Stream
Stream 1 from H.265 or H.264
Stream 2 from H.265, H.264 or MJPEG
Stream 3 from H.265, H.264 or MJPEG

Frame Rate
50 Hz: 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 25 fps at 2048 x 1520
60 Hz: 20 fps at 2592 x 1520, 24 fps at 2560 x 1440, 30 fps at 2048 x 1520
*The frame rate and the performance may vary depending on the num ber of connections
and data bitrates (different scenes).

Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker ‐less, Image
Orientation, Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR, Defog, Low
Lux Enhancement, Denoise and Metering

Audio Support N/A



GV-EBL4702 Series August 11, 2018
- 3 -
Video Resolution
4 : 3 2048 x 1520, 1600 x 1200, 1280 x 960, 640 x 480

16 : 9 2592 x 1520, 2560 x 1440 (Default), 2304 x 1296, 1920 x 1080, 1280 x 720, 640 x 360

Main Stream
5 : 4 1280 x 1024, 640 x 512

4 : 3 1024 x 768, 640 x 480, 320 x 240

16 : 9 1280 x 720, 640 x 360 (Default), 448 x 256

Sub Stream
5 : 4 1280 x 1024, 640 x 512, 320 x 256

4 : 3 640 x 480, 320 x 240

16 : 9 640 x 360, 448 x 256

Third Stream
(Closed by
Default)
5 : 4 640 x 512, 320 x 256

Network

Interface 10/100 Ethernet

Protocol
DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, Multicast, NTP, ONVIF
(Profile S), QoS (DSCP), RTP, RTCP, RTSP, SNMP, SMTP, SSL, TCP/IP, UDP, UPnP,
3GPP/ISMA

Mechanical

Temperature Detector Yes

Pan 0° ~ 360°
Camera Angle
Adjustment
Tilt 90° ~ 180°

Power 2 ‐pin terminal block (DC 12V, 1.25A), PoE

Ethernet Ethernet (10/100 Base ‐ T), RJ ‐ 45 cable

Connectors
Local Storage
Micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10)
*UHS‐ II card type is not supported.

General

Start ‐ up ‐20°C ~ 50°C ( ‐ 4°F ~ 122°F)
Environment
Temperature
Operation ‐30°C ~ 50°C ( ‐22°F ~ 122°F)

Humidity 10% to 90% (no condensation)

Power Source 12V DC / PoE (IEEE 802.3af)

Max. Power Consumption 9.12 W

Dimensions 129.54 x 80 x 102.75 mm (5.1” x 3.15” x 4.05”)

Weight 825 g (1.81 lb)

Ingress Protection IP67

Vandal Resistance IK10 for metal casing

Regulatory CE, FCC, RCM, LVD, RoHS compliant

Power over Ethernet

PoE Standard PoE (IEEE 802.3af Power over Ethernet / PSE)

PoE Power Supply Type End ‐span, Mid ‐span

PoE Power Output Per Port 48V DC, 350mA, Max. 15.4 watts

Web Interface

Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Picture in Picture, Picture and Picture, Privacy Mask, Tampering Alarm, Text
Overlay, Digital PTZ

Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek /
Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian /
Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian /
Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

Application

Software Supported
GV ‐ DVR / NVR (V8.7.3.0), GV ‐ VMS (V16.10.3.0), GV ‐Edge Recording Manager (V1.2.0.0),
GV ‐Center V2 (V16.10), GV ‐Recording Server (V1.3.0.0), GV ‐Redundant / Failover Server
(V1.1.0.0)

Smart Device Access GV ‐ Eye for iOS and Android

Remote Live Viewing Browser (IE, Chrome, Firefox, Safari), Mobile App

CMS Server support GV ‐Control Center, GV ‐Center V2, GV ‐ Vital Sign Monitor

Note:
1. It’s required to apply patch files to all the supported software mentioned above.
2. The signal range and data throughput may vary depending on the network conditions and environmental factors.
3. Specifications are subject to change without notice.


GV-EBL4702 Series August 11, 2018
- 4 -
Packing List
1. H.265 Bullet Camera
2. Sun ‐Shield Cover
3. Screw for Sun ‐Shield Cover x 2
4. Screw for Supporting Rack x 3
5. Screw Anchor x 3
6. Silica Gel bag x 2
7. Washer x 2
8. Terminal Block
9. Screw for Mounting Kit x 3
10. Nut for Mounti ng Kit x 3
11. Hex Wrench
12. Download Guide
13. Warranty Card
Note: The power adapter can be purchased upon request.

Accessories
Model No. Name
Details

GV ‐Mount300 ‐ 1 Convex Corner Adapter
Kit



Dimensions: 238.6 x 395.2 x 210 mm

(9.4’’ x 15.5” x 8.2”)

Weight: 4.27 kg (9.41 lb)

GV ‐Mount310 ‐ 1 Concave Corner Adapter
Kit



Dimensions: 111.2 x 369.9 x 210 mm

(4.37’’ x 14.5” x 8.2”)

Weight: 2.96 kg (6.53 lb)

GV ‐Mount400 ‐ 1 Pole Mount Bracket Kit
(Ø 4” ~ 6”)



Dimensions:

Bracket: 68.4 x 240 x 163 mm

(2.69” x 9.44’’ x 6.41”)

Weight: 1.70 kg (3.75 lb)

Steel Strap Diameter: Ø 4" ~ 6"

GV ‐Mount410 ‐ 1 Pole Mount Bracket Kit
(Ø 6” ~ 7.5”)



Dimensions:

Bracket: 68.4 x 240 x 163 mm

(2.69” x 9.44’’ x 6.41”)

Weight: 1.70 kg (3.75 lb)

Steel Strap Diameter: Ø 6" ~ 7.5"

GV ‐PA191 PoE Adapter



Dimensions (H x W x D): 43 x 69 x 40 mm

(1.69” x 2.72” x 1.57”)

Weight: 130 g (0.29 lb)

GV ‐ POE Switch The GV ‐ POE Switch is designed to provide power along with network
connection for IP devices. The GV ‐ POE Switch is available in various
models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.
