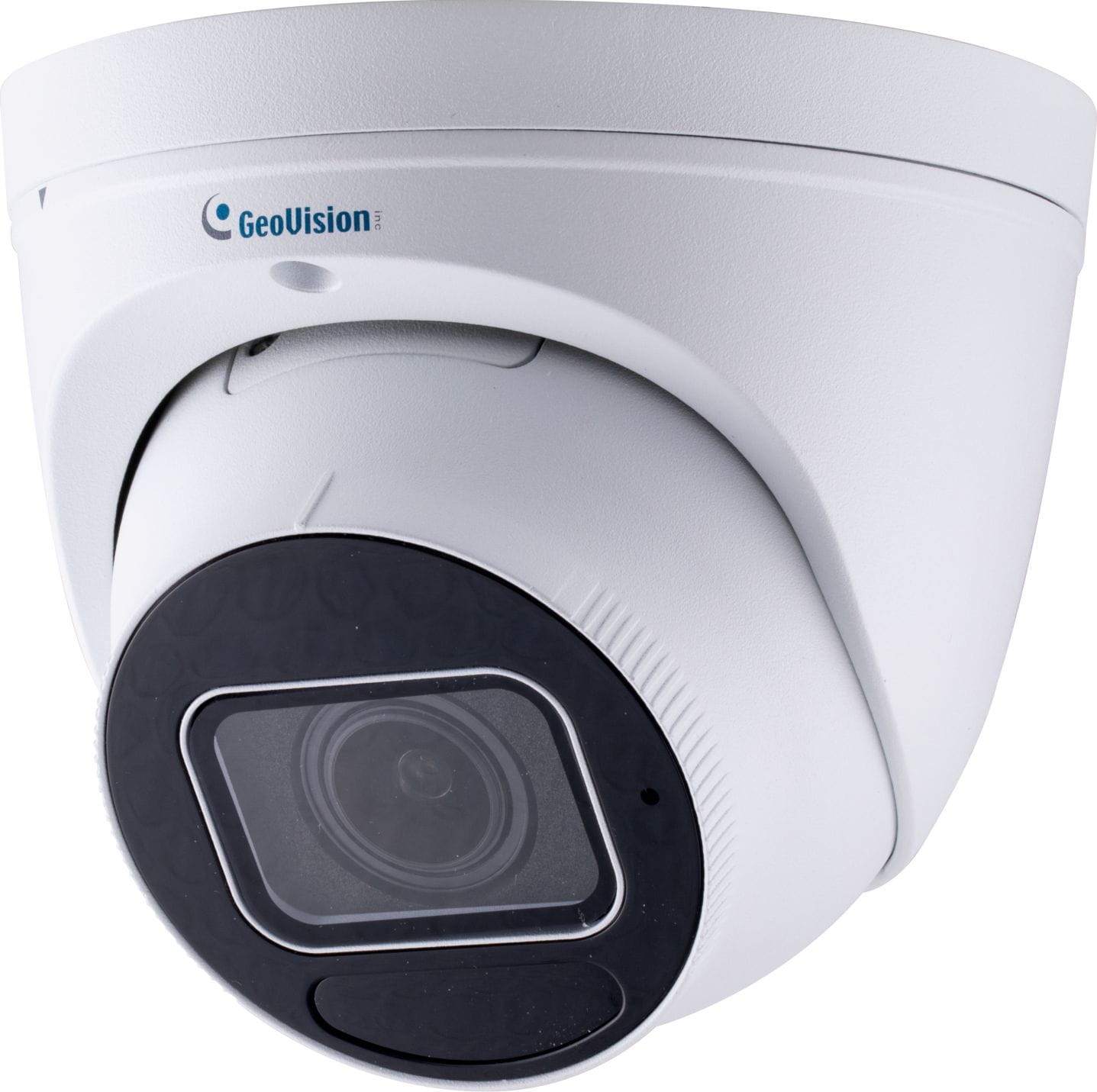

GV-EBD4813

Kamera IP kopułkowa IP67 typu eyeball wandaloodporna IK10, oświetlacz 40m, 4.0M-30 kl./s, H.265, WDR PRO, PoE, SDXC, 2.7~13.5mm, 3-axis, super-czuła 0.002lx, moto-zoom 5x, AI...

Gwarancja: 24 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

GV-EBD4813
- 1 -

GV-EBD4813 AI 4MP H.265 5x Zoom Super Low Lux WDR Pro IR Eyeball Dome IP
Camera





• AI deep learning: AI Perimeter Protection & Classification (Human,
Vehicle)
• 1/3" progressive scan super low lux CMOS sensor
• Triple streams from H.265, H.264 or MJPEG
• Wide Dynamic Range Pro (WDR Pro)
• Min. illumination at 0.002 lux
• Up to 30 fps at 2688 x 1520
• Intelligent IR
• Day and night function (with removable IR-cut filter)
• Motorized lens for remote focus/zoom adjustment
• IR distance up to 40 m (130 ft)
• Built-in microphone
• Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I) for local storage
• 3-axis mechanism (pan / tilt / rotate)
• Ingress protection (IP67)
• Vandal resistance (IK10 for metal casing)
• DC 12V / PoE (IEEE 802.3af)
• ONVIF (Profile G, S, T) conformant

Introduction
GV-EBD4813 is an outdoor, network camera equipped with an automatic IR‐cut filter and IR LEDs for day and night surveillance. The
camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network
bandwidths. The camera adheres to IK10 and IP67 standards, and can be powered through PoE.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated
with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.

Deep Learning Function

Face Detection


AI Perimeter Protection AI Event Search
(Intrusion, Crossing Line (VMS V18.3 or later)
Entering Area, Leaving Area)








Note: The integration of AI events of the camera to GV-VMS is coming soon.







GV-EBD4813
- 2 -
Dimensions


Specifications
Camera
Image Sensor 1/3" progressive scan super low lux CMOS
Picture Elements 2688 (H) x 1520 (V)
Minimum
Illumination
Color 0.002 Lux (F1.2, AGC ON)
IR ON 0 Lux
Shutter Speed Automatic / Manual (1 ~ 1/100000 sec)
White Balance Automatic, Manual
Gain Control Automatic, Manual
S/N Ratio 56 dB
WDR WDR Pro
Dynamic Range 120 dB
Lens
Megapixel 4 MP
Day / Night Yes (with removable IR-cut filter)
Lens Type Motorized varifocal lens
Focal Length 2.7 ~ 13.5 mm
Maximum Aperture F/1.2
Mount Ø 12 mm
Horizontal FOV 98°~31°
Operation
Focus Auto / Manual
Zoom 5x Optical Zoom
Iris Fixed
IR LED Quantity 2 IR LEDs
Max. IR Distance 40 m (130 ft)
Operation
Video Compression H.265, H.264, MJPEG
Video Streaming Triple streams from H.265, H.264 or MJPEG
Frame Rate
30 fps at 2688 x 1520, 30 fps at 2560 x 1440, 30 fps at 2304 x 1296 (60 / 50 Hz)
*The frame rate and performance may vary depending on the number of connections and
data bitrates (different scenes).
Video Analytics
Motion Detection, Tampering Alarm, Audio Detection.
*Tampering alarm and Audio detection are only accessible through the camera’s Web
interface, which can be used to trigger alerts such as e-mail and FTP
Image Setting
Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction, Image
Orientation (Flip, Mirror, 0°, 90°, 180°, 270°‐including Corridor format)
Audio Compression G.711
Audio Support One-way Audio
Face Detection
Environment 100 lux
Detectable face
angle
Tilt (Up/Down) ≤ 10°
Swing (Left/Right ≤ 30°


GV-EBD4813
- 3 -
Max. number of faces Up to 40
Min. face image pixel requirement 80 pixels
Deep Learning Function
AI Analytics
Intrusion, Crossing Line, Entering Area, Face Detection, Leaving Area (Human & Vehicle
classification), People Flow Counting, Crowd Density Monitoring
Video Resolution
Main Stream 2688 x 1520 (Default), 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720
Sub Stream 1280 x 720, 720 x 576, 704 x 288, 640 x 360 (Default), 640 x 480, 352 x 288
Third Stream (Closed by Default) 720 x 576, 704 x 288, 640 x 360, 352 x 288
Network
Interface 10/100 Ethernet
Protocol
802.1x, ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP,
PPPoE, Qos, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T)
Mechanical
Camera Angle
Adjustment
Pan 0° ~ 360°
Tilt 0° ~ 75°
Rotate 0° ~ 360°
Connectors
Power DC Jack (DC 12V, 1.25A), PoE
Ethernet RJ-45
Audio 1 In (built-in microphone)
Local Storage
Micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10)
*UHS-II card type is not supported.
General
Environment
Temperature
Start-up
-30°C ~ 60°C (-22°F ~ 140°F)
Operation
Humidity 0% ~ 95% (no condensation)
Power Source 12V DC / PoE (IEEE802.3af)
Max. Power Consumption 7.0W
Dimensions Ø 129 x 110 mm (Ø 5.1” x 4.3”)
Weight 0.69 kg (1.52 lb)
Ingress Protection IP67
Vandal Resistance IK10 for metal casing
Regulatory CE, FCC, RoHS
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or GV-IP Device Utility
Access from Web Browser
Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot,
Defog, Digital Zoom, Text Overlay, Image Masking
Language
Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian,
Spanish, Traditional Chinese
Applications
Software Supported
GV‐VMS (V17.4.2 / V18.2.1), GV‐DVR / NVR (V8.9.1), GV‐Control Center (V3.8.0),
GV‐Recording Server / Video Gateway (V2.0.0), GV‐Edge Recording Manager Win version
(V2.0.0), GV‐Redundant / Failover Server (V1.2.0), GV-Mobile Server (V1.5.1)
Smart Device Access GV-Eye for iOS and Android
Live Viewing Browser (IE, Edge, Chrome, Firefox, Safari), Mobile App
Note:
1. Patch files are required for some supported software.
2. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
3. Specifications are subject to change without notice.

Packing List
1. GV-EBD4813 Eyeball Dome
2. Waterproof Rubber Set
3. Screw kit
4. Drill Template Paster
5. Download Guide



GV-EBD4813
- 4 -
Accessories
Model No. Name Details
GV-Mount107(must be used
with GV-Mount212P)
Pendant Bracket


Dimensions: Ø 120 x 334 mm
(Ø 4.72” x 13.15”)
Weight: 0.74 kg (1.63 lb)
GV-Mount211P Wall Mount and
Junction Box


Dimensions: Ø 233 x 126 x 126 mm
(Ø 9.2” x 5” x 5”)
Weight: 1 kg (2.2 lb)
GV-Mount212P Wall Box Mount


Dimensions: Ø 126 x 36 mm (Ø 5.0” x 1.4”)
Weight: 0.22 kg (0.48 lb)
GV-Mount300-2 Convex Corner
Mount


Dimensions: 137 x 233 x 160 mm
(5.4” x 9.17” x 6.3”)
Weight: 1.65 kg (3.64 lb)
GV-Mount310-2 Concave Corner
Mount


Dimensions: 111.2 x 369.9 x 210 mm
(2.6” x 11.4” x 6.6”)
Weight: 1.65 kg (3.64 lb)
GV-Mount420
(must be used with
GV-Mount211P)
Pole Mount Bracket



Dimensions: Ø 120 x 120 x 53.4 mm
(Ø 4.7” x 4.7” x 2.1”)
Weight: 0.45 kg (0.99 lb)
Steel Strap Diameter: Ø 67 ~ 127 mm
(Ø 2.6” ~ 5”)
GV-Mount704 (must be used
with GV-Mount107)
Extension Tube


Dimensions: Ø 3.5 x 10 or 20 or 30 or 50 cm
(Ø 1.38” x 3.9” or 7.9” or 11.8” or 19.7”)
Weight: 225 g or 360 g or 500 g or 780 g
(0.5 lb or 0.79 lb or 1.1 lb or 1.72 lb)
GV-PA191 Power over Ethernet
(PoE) Adapter


The GV-PA191 is a Power over Ethernet (PoE)
adapter designed to provide power to the IP
device through a single Ethernet cable.
GV-POE Switch The GV-POE Switch is designed to provide power along with network
connection for IP devices. The GV-POE Switch is available in various models
with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.
