GV-EBD4700

Dostępność: 0
Cena: 638,85 zł 638.85 (147,22 €)
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: GEOVISION
Kod produktu: 84-EBD470W-0010

Opis

Kamera IP kopułkowa IP66 typu eyeball, oświetlacz 30m, 4.0M-20 kl./s, H.265, WDR PRO, PoE, 2.8mm, 3-axis, czuła 0.05lx...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: GV-EBD4701

Kod produktu zamiennego: 84-EBD470W-1010

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

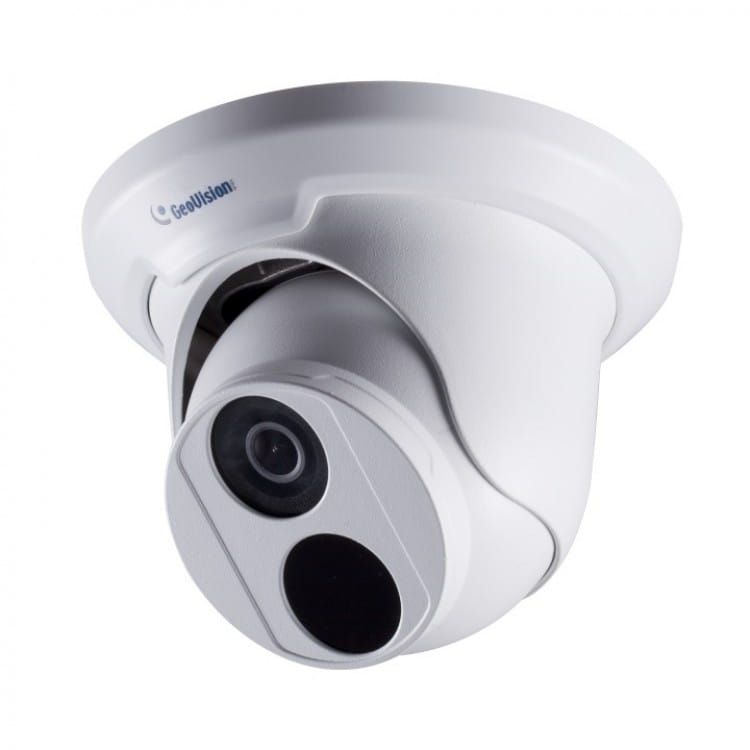

GV-EBD4700 4MP H.265 Low Lux WDR Pro IR Eyeball IP Dome

* 1/3" progressive scan low lux CMOS sensor
* Min. illumination at 0.03 lux (B/W) and 0.05 lux (color)
* Triple streams from H.265, H.264 or MJPEG
* Up to 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 30 fps at 2048 x
1520
* Intelligent IR
* IR distance up to 30 m (98.4 ft)
* Day and night function (with removable IR ‐cut filter)
* Ingress protection (IP66)
* DC 12V / PoE (IEEE 802.3af)
* Wide Dynamic Range Pro (WDR Pro)
* Defog
* 3D noise reduction
* Motion detection
* Tampering alarm
* Text ov erlay
* Privacy mask
* ONVIF (Profile S) conformant


Introduction

The H.265 Target Eyeball Dome is an outdoor, network camera equipped with an automatic IR ‐cut filter and an IR LED for day and
night surveillance. The camera adheres to IP66 standards. The camera supports H.265 video codec to achieve better compression
ratio while maintaining high quality pictures at reduced network bandwidths. With its WDR Pro, it can process scenes with
contrasting intensity of lights and produce clear image.

Dimensions







GV-EBD4700 March 13, 2018
- 1 -


Specifications
Camera
Image Sensor 1/3" progressive scan low lux CMOS

Picture Elements 2592 (H) x 1520 (V)

Color 0.05 Lux

B/W 0.03 Lux

Minimum
Illumination
IR ON 0 Lux

Shutter Speed Auto / Manual (1/6 ~ 1/8000 sec)

White Balance Auto / Manual

Gain Control Auto / Manual

S/N Ratio 55 dB

WDR WDR Pro

Dynamic Range 100 dB

Optical Lens

Megapixel Yes

Day / Night Yes (with removable IR ‐cut filter)

Lens Type Fixed

Focal Length 2.8 mm

Maximum Aperture F/1.8

Mount M12

Horizontal FOV 100°

Focus Fixed

Zoom Fixed

Operation
Iris Fixed

IR LED Quantity 1 IR LED

Max. IR Distance 30 m (98.4 ft)

Operation

Video Compression H.265, H.264, MJPEG

Video Streaming Triple streams from H.265, H.264 or MJPEG

Frame Rate
20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 30 fps at 2048 x 1520 (60 / 50 Hz)
* The frame rate and performance may vary depending on the number of
connections and data bitrates (different scenes).

Audio Compression G.711

Audio Support One ‐way Audio

Video Resolution

Main Stream 2592 x 1520, 2560 x 1440 (Default), 2048 x 1520, 1920 x 1080

Sub Stream 1280 x 720, 720 x 576 (Default), 704 x 288, 352 x 288

Third Stream (Closed by Default) 720 x 576, 704 x 288, 352 x 288

Network

Interface 10/100 Ethernet

Protocol
DHCP, FTP, HTTP, HTTPS, IPv4, IPv6, ICMP, L2TP, NTP, RTP, RTSP, SMTP, SIP, TCP, UDP,
ONVIF (Profile S)

Mechanical

Pan 0° ~ 360°

Tilt 0° ~ 77°

Camera Angle
Adjustment
Rotate 0° ~ 360°

Power DC Jack (DC 12V, 1.25A)

Connectors
Ethernet RJ ‐ 45

General

Start ‐ up
Environment
Temperature
Operation
‐35°C ~ 60°C ( ‐31°F ~ 140°F)
Humidity 0% ~ 95% (no condensation)

Power Source 12V DC / PoE (IEEE 802.3af)

Max. Power Consumption 5.5 W

Dimensions 126 x 94 mm (Ø5.0” x 3.7”)

GV-EBD4700 March 13, 2018
- 2 -

Weight 0.45 kg (0.99 lb)

Ingress Protection IP66

Regulatory CE, FCC, RoHS compliant

Web Interface

Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Defog, Text Overlay, Image Masking

Language English
Applications
Software Supported
GV ‐ DVR / NVR (V8.7.1.0), GV ‐ VMS (V15.11.1.0), GV ‐Control Center (V3.4.0.0),
GV ‐Recording Server (V1.3.0.0), GV ‐Redundant / Failover Server (V1.1.0.0)

Live Viewing Browser (IE, Firefox, Safari)

Note:
1. It is required to apply patch files to all the supported software.
2. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
3. Specifications are subject to change without notice.

Packing List
1. H.265 Target Eyeball Dome
2. Waterproof Rubber Set
3. Screw x 3
4. Screw Anchor x 3

5. Drill Template Paster
6. Download Guide
7. Warranty Card
Accessories
Model No. Name Details
GV ‐Mount211 Wall Mount Bracket



Dimensions: 233 x 126 x 126 mm
(9.2” x 5” x 5”)
Weight: 0.92 kg (2.0 lb)

GV ‐Mount212 Wall Box Mount



Dimensions: Ø 126 x 36 mm (5.0”
x 1.4”)
Weight: 0.18 kg (0.4 lb)
GV ‐PA191 Power over Ethernet
(PoE) Adapter


GV ‐PA191 is a Power over Ethernet
(PoE) adapter designed to provide
power to the IP device through a
single Ethernet cable.
GV ‐PoE Switch
GV ‐ PoE Switch is designed to provide power along with network connection
for IP devices. GV ‐ PoE Switch is available in various models with different
numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.

GV-EBD4700 March 13, 2018
- 3 -
