GV-Control Center

Klucz licencyjny z oprogramowaniem umożliwiającym monitorowanie matryc wizyjnych i zarządzanie siecią rejestratorów...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

GV-Control Center December 7, 2017
- 1 -


Introduction
The GV ‐Control Center is integrated security management software that provides a handy tool to maintain central
monitoring station. GV ‐Control Center is a comprehensive solution for central operators to efficiently control
GV ‐DVR/NVR/VMS, GV ‐Recording Server and I/O devices. With GV ‐Control Center, multiple GeoVision surveillance and
video management systems can be ma naged and maintained efficiently to enhance their monitoring performance and
ensure smooth operation.





GV-Control Center December 7, 2017
- 2 -
Key Features
z Remote DVR: Full control of local DVR/NVR settings
The Remote DVR facilitates the administrator to remotely configure local GV ‐DVR/NVR settings from one single
workstation. The feature reduces the trips to each DVR/NVR individually.
z Remote Desktop: Remote access to local DVR/NVR/VMS desktop

When the Remote Desktop is enabled, th e Control Center will receive the same desktop view of local DVR/NVR/VMS.
The administrator can remotely control the operation of local GV ‐DVR/NVR/VMS and even configure its Windows
operation system at low bandwidth.

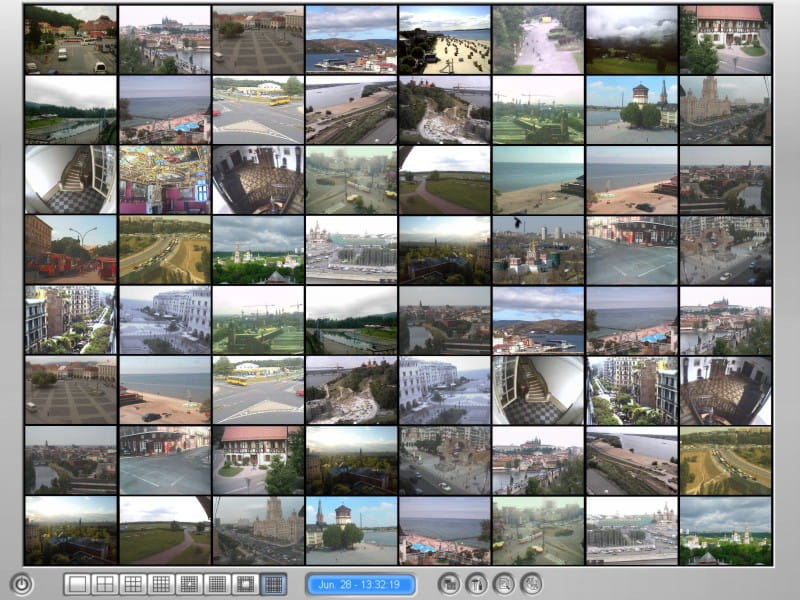

z Matrix View: Remotely monitor, record and playback from 1000 hosts
The Matrix View is a single display in which videos from a group of maximum 96 cameras will be displayed, e.g. groups
of cameras at office areas, exits or on the streets. Depending on surveillance needs, the center operator can open up
to 8 Matrix Views with 768 cameras on 8 monitors simultaneously. Each Matrix View suppo rts live monitoring,
recording and video playback.
z I/O Central Panel: Group, manage and remotely configure I/O devices
The Control Center provides a useful I/O Central Panel for the administrator to remotely manage all I/O devices
connected with GV ‐DVR/NVR/VMS. The administrators can group function ‐related I/O devices together fo r ease of
control, e.g. groups of IR sensors, alarms, or fire exits. In case of building fire, for example, the Control Center can
trigger all alarms on the networked GV ‐DVR/NVR/VMS and force opening all the fire exits or water spray systems at
the same time.
z Remote Playback
The Re mote ViewLog service enables playback of video archives from GV ‐DVR/NVR/VMS. The administrator can utilize
this service to save video clips for event retrieval or for video evidence.
z Authentication Center
Authentication Center is an account and access rights management system providing centralized control over multiple
Control Centers. The host s in the Authentication Center can be grouped by different locations and purposes. The
administrator can configure the user accounts to have specific access rights for every host group. When a Control
Center is connected through the Authentication Center, the users will only be able to see the hosts they have b een
granted access to.
z Video Wal l (optional)
A video wall or TV wall is an establishment of multiple monitors on a server. The administrator can create a layoutwith
a variety of displays including desired camera channels, zoom windows, scanwindows, web pages, playback videos and
live view popped up from E ‐Map. A megapixel camera channel can even be placed across monitors.



GV-Control Center December 7, 2017
- 3 -
Specifications
Features
Control Center
GV ‐VMS / DVR / NVR Host
IP Camera Host
GV ‐ Video Server Host
GV ‐Compact DVR Host
GV ‐Recording Server / GV ‐ Video
Gateway Host
GV ‐ SNVR System Host
GV ‐ASManager Host
Unlimited *
I/O Hosts (only for GV ‐ IP Devices)
Unlimited *
‐ One host supports up to 9 sets of 16 ‐ in and 16 ‐out I/O modules.
Remote DVR Unlimited *
Remote Desktop Unlimited *
Remote ViewLog 8
Video Wall (optional) 1 to 200 licenses
Remote E ‐ Map Host / Map 500 / Unlimited
Live View
Single View: 1 Window
Multiple View: 36 Divisions each Widnow
Matrix View / Group / Channel
8 Matrix Views / Unlimited / 768 Channels in total
(For 1920 x 1200, 1920 x 1080 resolution)
VMD Groups / Channels
(Only for GV ‐ IP Devices)
1 Group / 1200 CH
‐ DVR: 1000 Channels
‐ GV ‐ Video Server + GV ‐Compact DVR + GV ‐ IP Camera: 200 Channels
Panorama Views / Channels 4 Panorama Views / 32 Channels per view
1024 x 768 / 64 Channels (Total: 512 Channels on 8 Matrix)
1280 x 1024 / 64 Channels (Total: 512 Channels on 8 Matrix)

1680 x 1050 / 80 Channels (Total: 640 Channels on 8 Matrix)

1600 x 1200 / 64 Channels (Total: 512 Channels on 8 Matrix)

1920 x 1200 / 96 Channels (Total: 768 Channels on 8 Matrix)

1920 x 1080 / 96 Channels (Total: 768 Channels on 8 Matrix)

1280 x 800 / 48 Channels (Total: 384 Channels on 8 Matrix)

Matrix Resolutions / Channels
1440 x 900 / 48 Channels (Total: 384 Channels on 8 Matrix)

Language
Arabic, Bulgarian, Czech, Danish, Dutch, English, Finnish, French, German, Greek,
Hebrew, Hungarian, Indonesian, Italian, Japanese, Lithuanian, Norwegian,
Persian, Polish, Portuguese, Romanian, Russian, Serbian, Simplified Chinese,
Slovakian, Slovenian, Spanish, Swedish, Thai, Traditional Chinese, Turkish
Note: The maximum number of hosts allowed depends on the performance of Control Center server.





GV-Control Center December 7, 2017
- 4 -
Minimum System Requirements

OS 64‐ bit
Windows 7 / 8 / 8.1 / 10 / Server 2008 R2 / Server 2012 R2
CPU Core i7 2600K, 3.4 GHz
RAM 16 GB Dual Channels

Hard Disk 1 GB

Graphic Card Please see the GPU Decoding Specifications below.

Direct X 9.0c

LAN Card Gigabit Ethernet x 2

Hardware Internal or External GV ‐USB Dongle

Note:
1. We do not recommend installing GV ‐ Center V2 (Pro) and GV ‐Control Center modules on the same PC. Running
GV ‐ Center V2 (Pro) and GV ‐Control Center on the same PC may result in CPU overload or system failure.
2. To display a megapixel IP channel across monitors, make sure the external graphic cards on a server are of the same
brand, model and driver version. The capacity of graphic cards must be equivalent to NVIDIA GTS 450 or higher to
ensure maximum efficiency.
3. When you find CPU usage is high or live view is unsmooth (dropping frames), you may need to increase the CPU
thread and memory or decrease the number of connected cameras to improve the system performance.
4. For the GV ‐Control Center to support up to 8 Matrix views with 768 cameras, the minimum CPU and memory
requirements are Core i7 ‐3770 and 16 GB dual channels respectively.



Software License
Free License N/A

Maximum License Unlimited number of hosts

Increment for Each
License
N/A

Optional Combinations
1. Control Center
2. Control Center + Video Wall (1 to 200 license)
3. Control Center + Vital Sign Monitor
4. Control Center + Vital Sign Monitor + Video Wall (1 to 200 license)

Dongle Type Internal or external

Note:
1. It is recommended to use the internal GV ‐ USB Dongle to have Hardware Watchdog which restarts the PC when
Windows crashes or freezes.
2. The Maximum License is a paid service.


GPU Decoding Specifications
A higher total frame rate can be achieved if your CPU or external VGA supports GPU decoding.
On ‐board VGA : GPU decoding is only supported when using the following Intel chipsets:
For H.264 Video Compression
• 2
nd
Generation Intel Core i3 / i5 / i7 Desktop Processors (Sandy Bridge) ‐ only support 1 MP to 2 MP videos
• 3
rd
Generation Intel Core i3 / i5 / i7 Desktop Processors (Ivy Bridge)
• 4
th
Generation Intel Core i3 / i5 / i7 Desktop Processors (Haswell / Haswell Refresh)
• 6
th
Generation Intel Core i3 / i5 / i7 Desktop Processors (Skylake)
• 7
th
Generation Intel Core i3 / i5 / i7 Desktop Processors (Kaby lake)

For H.265 Video Compression
• 6
th
Generation Intel Core i3 / i5 / i7 Desktop Processors (Skylake)
• 7
th
Generation Intel Core i3 / i5 / i7 Desktop Processors (Kaby lake)
External VGA : GPU decoding is only supported when using NVIDIA graphics cards with compute capability 3.0 or above
and memory 2 GB or above. To look up the commute capability of the NVIDIA graphics cards, refer to:
https://developer.nvidia.com/cuda‐ gpus
Note: NVIDIA graphic cards do not support H.265 GPU decoding.


GV-Control Center December 7, 2017
- 5 -

On ‐board VGA + external VGA : To have both the on ‐board VGA and external VGA perform GPU decoding, the VGAs must
follow their respective specifications listed above.
Note:
1. If you have both on ‐ board and external VGAs installed, the on ‐board VGA must be connected to a monitor for H.264
/ H.265 GPU decoding.
2. You can install multiple external graphics cards if needed.
3. CUDA compute capability 5.0 or higher is required to ensure optimal performance.

Supported GeoVision IP Devices and Software
z GV ‐DVR/NVR V8.5 or later
z GV ‐VMS V14.1 or later
z GV ‐ASManager V4.3 or later
z GV ‐SNVR0400F /1600 fir mware V1.1 or later; GV ‐ S NVR0411 firmware V2.0 or later
z GV ‐VS11 / 12 / 14 / 2400 / 2420 / 2800 / 2820 fir mware V1.01 or later
z GV ‐VS2401 / VS21600 fir mware V1.00 or later

Options
Optional Devices
Description
Internal USB Dongle
The USB dongle can provide the Hardware Watchdog function to the GV ‐Control
Center by restarting the computer when Windows crashes. You need to connect the
dongle internally on the motherboard.

GV ‐ IO Box 4E
GV ‐ IO Box 4E provides 4 inputs and 4 relay outputs, and supports both DC and AC output
voltages.

GV ‐ IO Box (8 Ports)
GV ‐ IO Box 8 Ports provides 8 inputs and 8 relay outputs, and supports both DC and AC
output voltages. You can connect through network by using its Ethernet module.

GV ‐ IO Box (16 Ports)
GV ‐ IO Box 16 Ports provides 16 inputs and 16 relay outputs, and supports both DC and AC
output voltages. You can connect through network by using its Ethernet module.

GV ‐Joystick V2
GV ‐Joystick V2 allows you to easily control PTZ cameras. It can be either plugged into the
GV ‐Control Center for independent use or connected to GV ‐Keyboard.

GV ‐Keyboard V3 for
GV ‐Control Center
GV ‐Keyboard V3 is used to program and operate GV ‐Control Center and PTZ cameras.
Through RS ‐485 configuration, it can control up to 36 GV ‐Control Center. In addition, you
can connect PTZ cameras directly to the keyboard for PTZ control.
