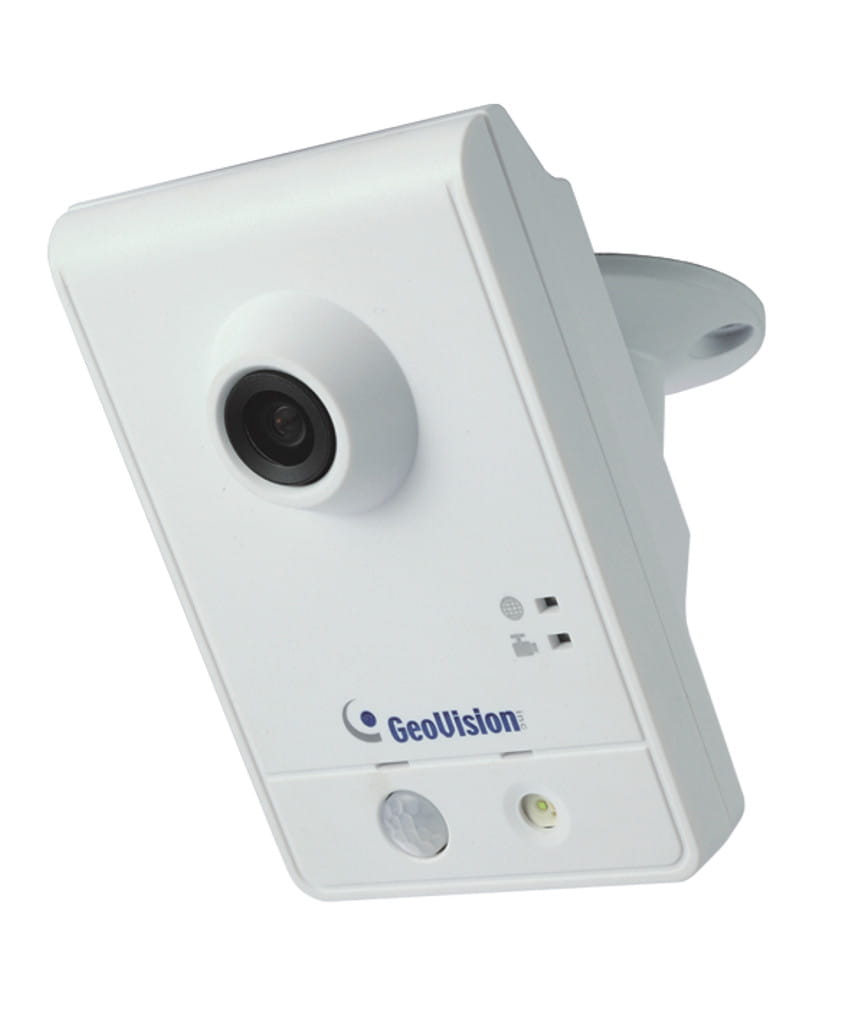

GV-CA120

Dostępność: 0
Cena: 673,56 zł 673.56 (147,22 €)
bez 23.00% VAT i kosztów dostawy
ilość szt.
dodaj do przechowalni
Producent: GEOVISION
Kod produktu: 84-CA12000-100D

Opis

Kamera IP typu cube, oświetlacz 5m, 1.3M-30 kl./s, H.264, WDR, PoE, SDXC, 3.35mm, czujnik ruchu PIR...

Gwarancja: 36 mies.

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

GV-CA120 1.3MP H.264 WDR Advanced Cube IP Camera


* 1/2.5” progressive scan CMOS
* Dual streams from H.264 and MJPEG
* Up to 30 fps at 1280 x 1024
* Passive infrared (PIR) sensor for detecting movement and activating the alarm
LED
* Two ‐way audio
* Built ‐ in micro SD card slot (SD/SDHC) for local storage
* Recording assigned by GV ‐Edge Recording Manager (Windows , Mac ver sion)
* Wide Dynamic Range (WDR)
* 2D noise reduction
* Defog
* Motion detection
* Tampering alarm
* Text overlay
* Privacy mask
* IP address filtering
* DC 5V / PoE (IEEE 802.3af)
* Megapixel lens
* Smart device access
* 31 languages on Web interface
* ONVIF (Profile S) conformant
* More storage option ‐ NAS
* No Memory Card Slot & local storage function for Argentina.


Active Tampering Alarm
Tampered Focus Change Camera Shift



Dimensions



GV-CA120 February 12, 2018
- 1 -

Specifications
Camera
Image Sensor 1/2.5” progressive scan CMOS

Picture Elements 1280 (H) x 1024 (V)

Color 0.15 Lux

B/W 0.10 Lux

Minimum
Illumination
LED ON 0 Lux

Shutter Speed Automatic, Manual (1/5 ~ 1/8000 sec)

White Balance Automatic, Manual (2800 ~ 8500K)

Gain Control Automatic

S/N Ratio 45 dB

Lens

Megapixel Yes

Day/Night Yes (electronic)

Lens Type Fixed

Focal Length 3.35 mm

Maximum Aperture F/2.4

Mount M12 mm

Image Format 1/3”

Horizontal FOV 67°

Focus

Zoom
Operation
Iris
Fixed
Operation

Video Compression H.264, MJPEG

Video Streaming Dual streams from H.264 and MJPEG

Frame Rate
30 fps at 1280 x 1024 (60/50 Hz)
* The frame rate and performance may vary depending on the number of connections
and data bitrates (different scenes).

Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker ‐less, Image
Orientation, Shutter Speed, Backlight Compensation, WDR, Defog, Denoise, Metering

Audio Compression G.711, AAC (optional)

Audio Support Two ‐way audio

Video Resolution

4:3 1280 x 960, 640 x 480, 320 x 240

16:9 1280 x 720, 640 x 360, 448 x 252

Main Stream
5:4 1280 x 1024 (Default), 640 x 512, 320 x 256

4:3 640 x 480, 320 x 240

16:9 640 x 360, 448 x 252

Sub Stream
5:4 640 x 512, 320 x 256 (Default)

Network

Interface 10/100 Ethernet

Ethernet Protocol
HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP,
SNMP, QoS (DSCP), ONVIF (Profile S)

Mechanical

Temperature Detector No

Power DC Jack (DC 5V, 3A) / PoE

Ethernet RJ ‐ 45

Audio Built ‐ in speaker & microphone

Connectors
Local Storage
Micro SD card slot (SD/SDHC, SD version 2.0 only, Class 10)
*SDXC and UHS ‐ I card types are not supported.

LED Indicator 4 LEDs: Status x 3, LAN / WiFi

PIR Sensor Built ‐ in

White Illumination LED Yes

Max. PIR Sensor / White Illumination
LED Distance
5 m (16.4 ft)

General

Environment Temperature 0°C ~ 50°C (32°F ~ 122°F)

Humidity 10% to 90% (no condensation)

GV-CA120 February 12, 2018
- 2 -

Power Source 5V DC, PoE (IEEE 802.3af)

Max. Power Consumption 7 W

General

Dimensions 65.8 x 99.8 x 39 mm (2.59” x 3.92” x 1.54”)

Weight 100 g (0.2 lb)

Regulatory CE, FCC, RCM, RoHS compliant

Power over Ethernet

PoE Standard PoE (IEEE 802.3af Power over Ethernet / PD)

PoE Power Supply Type End ‐Span

PoE Power Output Per Port 48V DC, 350 mA, Max. 15.4 watts

Web Interface

Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Camera live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Tampering Alarm,
Text Overlay, Digital PTZ

Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek
/ Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian
/ Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian /
Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

Applications

Network Storage GV ‐ DVR / NVR / VMS, GV ‐Backup Center, GV ‐Recording Server

Smart Device Access GV ‐ Eye for iOS and Android

Live Viewing IE, mobile phone

CMS Server support GV ‐Control Center, GV ‐Center V2, GV ‐ Vital Sign Monitor

Note:
1. Mind the following when using an inserted memory card for recording:
* Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical
shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan. No
guarantee is provided for such causes.
* The stored data can be lost if the memory card is not accessed for a long period of time. Back up your data periodically if
you seldom access the memory card.
* Memory cards are expendable and their durability varies according to the conditions of the installed site and how they are
used. Back up your data regularly and replace the memory card annually.
* To avoid power outage, it is highly suggested to apply a battery backup (UPS).
* For better performance, it is highly suggested to use Micro SD card of MLC NAND flash, Class 10.
* Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently
undetected by the camera.
2. Specifications are subject to change without notice.


Packing List
1. Advanced Cube Camera
2. Supporting Rack
3. Screw x 3
4. Screw Anchor x 3
5. Power Adapter
6. Download Guide
7. Warranty Card
Note: The power adapter can be excluded upon request.

GV-CA120 February 12, 2018
- 3 -

Accessories
Model No. Name Details
GV ‐PA191 PoE Adapter


Dimensions (H x W x D): 43 x 69 x 40 mm (1.69” x 2.72”
x 1.57”)
Weight: 130 g (0.29 lb)

GV ‐PoE Switch
The GV ‐PoE Switch is designed to provide power along with network connection for

IP devices. The GV ‐PoE Switch is available in various models with different numbers

and types of ports.

Power Adapter Contact our sales representatives for the countries and areas supported.


GV-CA120 February 12, 2018
- 4 -

Dane techniczne

Rozmiar przetwornika 1/2.5
Zasilanie PoE PoE 802.3af 15.4W
Zasilanie DC 5VDC
Rozdzielczość wizyjna 1MPIX
Typ kamery Cube, Kostka, Biurkowa
Oświetlacz światła białego ± 10 m
Zakres dynamiki (WDR) DWDR
Typ obiektywu Stałoogniskowy
Stała ogniskowa ± 3.8 mm
Wbudowany głośnik Tak
Slot na karty Tak
