GV-BX2802

Kamera IP typu box, filtr IR, 2.0M-30 kl./s, H.265, WDR PRO, PoE, SDXC, BNC, RS-485, auto-iris DC, super-czuła 0.002lx, NDAA...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

GV-BX2802 August 24, 2022
- 1 -

GV-BX2802 AI 2MP H.265 Super Low Lux WDR Pro Box IP Camera




• 1/2.8” progressive scan CMOS
• Min. illumination at 0.0028 lux
• Triple streams from H.265, H.264, and MJPEG
• Up to 30 fps at 1920 x 1080
• Day and Night function (with removable IR-cut filter)
• Wide Dynamic Range Pro (WDR Pro)
• Wide temperature tolerance -30°C ~ 60°C (-22°F ~ 140°F)
• Built-in microphone
• Two-way audio
• Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10)
for local storage
• AC 24 V / DC 12V / PoE (IEEE 802.3af)
• AI analytics (Line Crossing, Region Entrance, Region Exiting,
Target Counting, Region Intrusion, Crowd Density, Face
Detection)
• Defog
• 3D noise reduction
• Motion detection
• Text overlay
• Privacy mask
• 14 languages supported
• ONVIF (Profile G, S, T) conformant


Introduction
GV‐BX2802 is a 2 MP network camera equipped with an automatic IR-cut filter for day and night surveillance. Fixed / Iris lens are
optional for the camera for a more comprehensive performance depending on different needs. GV‐BX2802 supports H.265 / H.264
video codec to achieve better compression ratio while maintaining high picture quality at reduced network bandwidths. The camera is
equipped with a Super Low Lux CMOS image sensor which allows the camera to provide a color live view in near darkness.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with
GeoVision Video Management Software (GV-VMS), it supports AI perimeter protection, real-time alert, playback and more.



Deep Learning Function

Face Detection


AI Perimeter Protection People Counting
(Intrusion, Crossing Line
Entering Area, Leaving Area)


Note: The AI function integration of the camera to GV-VMS is coming soon.




GV-BX2802 August 24, 2022
- 2 -
Dimensions


Specifications
Camera
Image Sensor 1/2.8” progressive scan CMOS
Picture Elements 1920 (H) x 1080 (V)
Minimum
Illumination
Color 0.0028 Lux (F1.2, AGC ON)
B/W 0.002 Lux (F1.2, AGC ON)
IR On 0 Lux
Shutter Speed Automatic, Manual (1 ~ 1/100000 sec)
White Balance Automatic, Manual
Gain Control Automatic, Manual
S/N Ratio 52 dB
WDR Pro Yes
Dynamic Range 120 dB
Day/Night Yes (with removable IR-cut filter)
Mount CS Mount
Iris DC Iris
Operation
Video Compression H.265, H.265+, H.264, H.264+, MJPEG
Video Streaming Triple streams
Video Resolution
Main Stream 1920 x 1080 (Default), 1280 x 720
Sub Stream 1280 x 720 (Default), 704 x 480, 352 x 240
Third Stream 704 x 480, 480 x 240, 352 x 240 (Default)
Frame Rate
30 fps at 1920 x 1080, 30 fps at 1280 x 720, 30 fps at 704 x 480, 30 fps at 352 x 240, 30 fps
at 480 x 240 (60 / 50 Hz) (H.265 / H.265+ / H.264 / H.264+)
20 fps at 1280 x 720, 30 fps at 704 x 480, 30 fps at 352 x 240, 30 fps at 480 x 240 (60 / 50
Hz) (MJPEG)
* The frame rate and performance may vary depending on the number of connections
and data bitrates (different scenes).
Video Analytics
Motion Detection, Video Exception Detection (Scene Change, Video Blur and Video Cast
Detection), Object Abandoned/Missing Detection, Heat Map
Smart Alarm
Motion Detection, Sensor Alarm, SD Card Error, SD Card Full, IP Address Conflict, Cable
Disconnection
Image Setting
Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction, Image
Orientation (Flip, Mirror, 0°, 90°, 180°, 270°‐including Corridor format).
Audio Compression G.711
Audio Support Two‐way Audio (external speaker required)
Digital I/O
Input 2 Inputs, dry contact, NO / NC
Output 2 Relay Outputs (1A 30V DC / 0.3A 125V AC)
Network
Interface 10/100 Ethernet


GV-BX2802 August 24, 2022
- 3 -
Protocol
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTMP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTP
POST, 802.1x, UPnP, HTTPs, QoS, ONVIF
Deep Learning Function
AI Analytics
-Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Target Counting: Human
& Vehicle classification
-Crowd Density, Face Detection
Mechanical
Connectors
Power 2-pin terminal block (DC 12 V, 1.25 A), PoE
Ethernet RJ-45
Audio
1 In (built‐in or external microphone)
1 Out (stereo phone jack, 3.5 mm / 0.14’’)
Digital I/O 8‐pin terminal block pitch 2.54 mm (0.1”)
RS-485 2-pin terminal block for PTZ camera
TV-Out BNC connector
Local Storage
Micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10)
*UHS-II card type is not supported.
General
Operating Temperature -30 ~ 60°C (-22 ~ 140°F)
Humidity 0 ~ 95% (no condensation)
Power Source 24V AC / 12V DC / PoE (IEEE802.3af)
Max. Power Consumption 11 W
Dimensions 160.8 x 79 x 64 mm (6.33 x 3.11 x 2.52”)
Weight 0.65 kg (1.43 lb)
Regulatory CE, FCC, RoHS compliant
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Live View, Playback, Video Recording, Image Quality, Bandwidth Control, Image Snapshot,
Two‐way Audio, Digital Zoom, Text Overlay, Image Masking
Language
Czech, English, German, Hungarian, Italian, Persian, Polish, Romanian, Russian, Spanish,
Traditional Chinese, Turkish, Portuguese, Japanese
Software Applications
Software Supported GV-VMS (V17.4.5 / V18.3.1, patch files required)
Live Viewing Web Browser (IE, Edge, Chrome, Firefox, Safari), Mobile APP
Note: Specifications are subject to change without notice.

Packing List

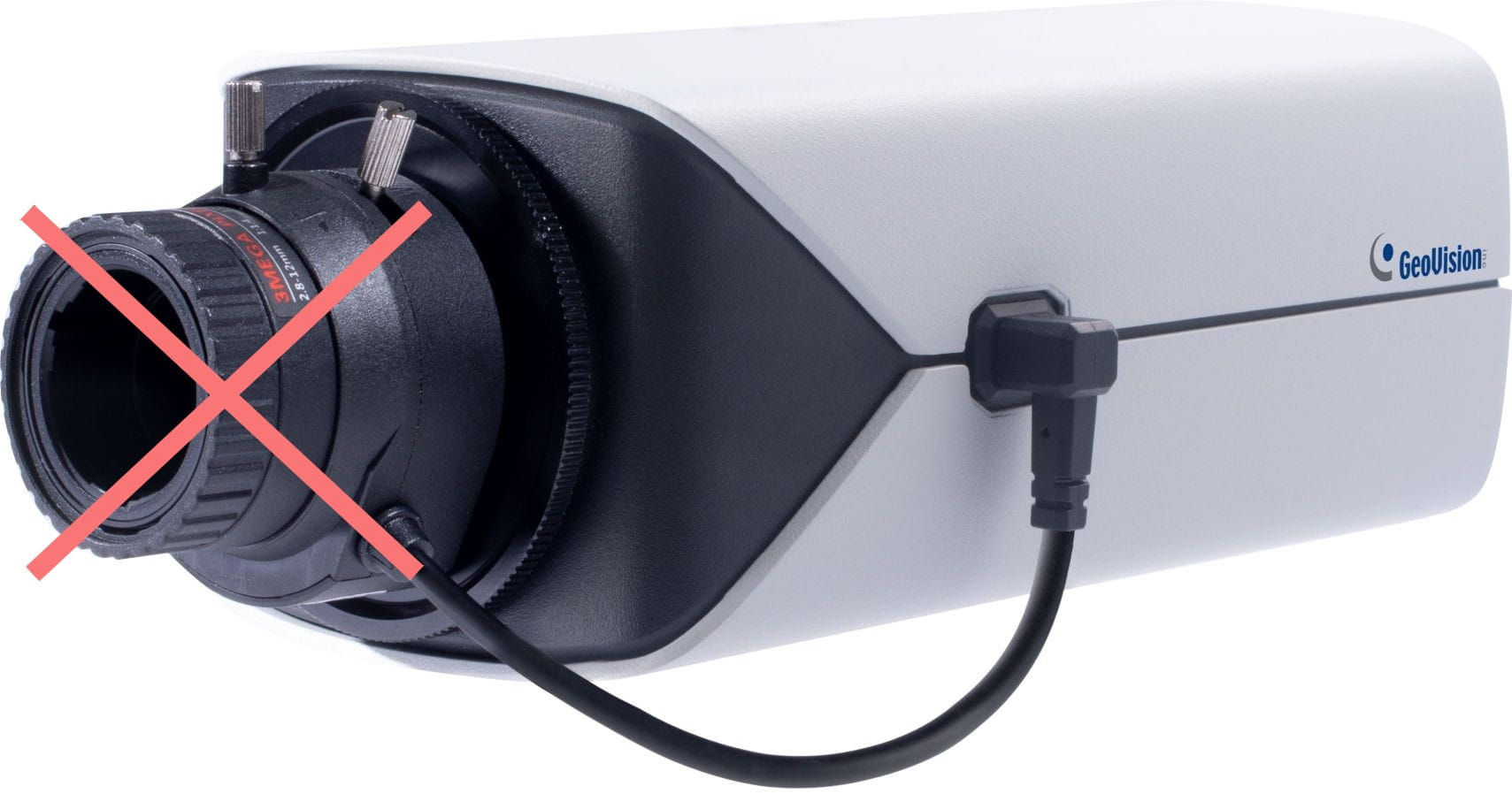

1. GV-BX2802 Box IP Camera (No Lens)
2. 2-Pin Terminal Block
3. Download Guide

Note: Users need to purchase camera lens separately.


GV-BX2802 August 24, 2022
- 4 -

Accessories
Model No. Details
Fixed 2.8 mm Lens Horizontal FOV: 82°
Maximum Aperture: F/2.0
Image Format: 1/2.7"
Dimension: Ø30 x 18.2 mm (Ø1.18" x 0.71")
DC-Iris 2.8 mm – 12 mm
Lens
Horizontal FOV: 126° ~ 55°
Maximum Aperture: F/1.8
Image Format: 1/2.7"
Dimension: Ø34 x 50.2 mm (Ø1.33" x 1.98")
GV-PA191 GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide
power to the IP device through a single Ethernet cable.
GV-POE Switch GV-POE Switch is designed to provide power along with network
connection for IP devices. The GV-POE Switch is available in various
models with different numbers and types of ports.
GV-Relay V2 GV-Relay V2 is designed to expand the voltage load of GV IP devices. It
provides 4 relay outputs, and each can be set as normally open (NO) or
normally closed (NC) independently as per your requirement.
Power Adapter Contact our sales representatives for the countries and areas
supported.
