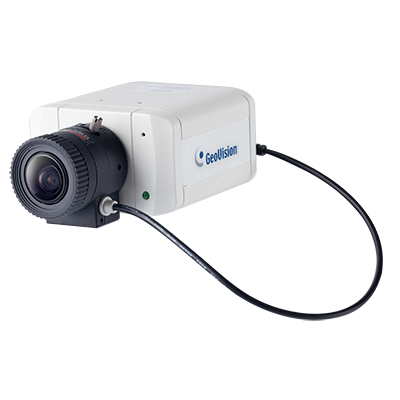

GV-BX2700-FD

Dostępność: 6-10
Cena: 1 841,15 zł 1841.15 (398,71 €)
bez 23.00% VAT i kosztów dostawy
ilość szt.
dodaj do przechowalni
Producent: GEOVISION
Kod produktu: 84-BX2700V-3D010

Opis

Kamera IP typu box, filtr IR, 2.0M-30 kl./s, H.265, WDR PRO, PoE, SDXC, USB, BNC, P-iris, 3~10.5mm, super-czuła 0.005lx, wykrywanie do 16 twarzy...

Gwarancja: 36 mies.

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

GV ‐BX2700 ‐ FD Starlight 2MP H.265 Super Low Lux WDR Pro Face Detection Box IP Camera




• 1/2.8’’ progressive scan super low lux CMOS
• Min. illumination at 0.004 lux
• Tripe streams from H.265, H.264 and MJPEG
• Up to 30 fps at 1920 x 1080
• Megapixel varifocal lens
• P ‐ Iris for auto iris adjustment
• Day and Night function (with removable IR ‐cut filter)
• Wide Dynamic Range Pro (WDR Pro)
• DC 12V / PoE (IEEE 802.3af)
• Two ‐ way audio
• Built ‐ in / external microphone
• Built ‐ in micro SD card slot (SD/SDHC/SDXC/UHS ‐ I) for local storage
• One sensor input and alarm output
• TV ‐ out support
• Mini USB slot for WiFi adapter or USB hard drive
• Face Detection
• 3D noise reduction
• Smart streaming
• Defog
• Privacy mask
• IP address filtering
• Recording assigned by GV ‐Edge Recording Manager (Windows ,
Mac version)
• Supports iPhone, iPad, Android & 3GPP
• 31 languages on Web interface
• ONVIF (Profile S) conformant
• TAICS IoT Cyber Security certified

* No Memory card slot & local storage function for Argentina.
* Smart streaming requires GV ‐DVR / NVR V8.7.0, GV ‐ VMS V16.10.3 or later
software versions.
* Face detection requires GV ‐VMS 18.1 or later.

Introduction
GV ‐BX2700 ‐ FD is specifically designed for face detection. The camera can support H.265 video codec to achieve better compression
ratio while maintaining high picture quality at reduced network bandwidths. It is equipped with a Super Low Lux CMOS image sensor
which allows the camera to provide a color live view in near darkness. It features a mini USB port which supports wireless connection
through a GV ‐WiFi Adapter (optional) or external storage using a USB hard drive.

Active Tampering Alarm
Tampered Focus Change Camera Shift




GV-BX2700-FD April 29, 2019
- 1 -

Dimensions


Specifications
Camera
Image Sensor 1/2.8" progressive scan super low lux CMOS

Picture Elements 1920 (H) x 1080 (V)

Color 0.005 Lux

B/W 0.004 Lux

Minimum
Illumination
IR ON 0 Lux

Shutter Speed Automatic, Manual (1/30 ~ 1/16,000 sec)

White Balance Automatic, Manual (2800 ~ 8500K)

Gain Control Automatic

S/N Ratio 56 dB

WDR Pro Yes

Dynamic Range 130 dB

Lens

Megapixel Yes

Day/Night Yes (with removable IR ‐ cut filter)

Lens Type Varifocal

Focal Length 3 ~ 10.5 mm

Maximum Aperture F/1.4

Mount CS Mount

Image Format 1/2.7"

Horizontal FOV 100° ~ 35°

Focus Manual (w/lock)

Zoom Manual (w/lock)

Operation
Iris P ‐ Iris

Operation

Video Compression H.265, H.264, MJPEG

Video Streaming
Stream 1 from H.265 or H.264
Stream 2 from H.265, H.264 or MJPEG
Stream 3 from H.265, H.264 or MJPEG

Frame Rate
50 Hz: 25 fps at 1920 x 1080
60 Hz: 30 fps at 1920 x 1080
* The frame rate and performance may vary depending on the number of connections
and data bitrates (different scenes).

Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker‐ less,
Image Orientation, Shutter Speed, Backlight Compensation, D/N Sensitivity, WDR,
Defog, Low Lux Enhancement, Denoise, Metering

Audio Compression G.711, AAC (Optional)

Audio Support Two ‐ way Audio (external speaker required)

Sensor Input 1 input (dry contact)

Alarm Output 1 digital output (200 mA 5V DC)

Face Detection

Environment 600 lux

Tilt (Up/Down) ± 30 〫
Detectable face
angle
Swing (Left/Right) ± 60 〫

Max. number of faces Up to 16

GV-BX2700-FD April 29, 2019
- 2 -

Min. face photo pixel requirement 100 x 100
Video Resolution
4:3 1280 x 960, 640 x 480
16:9 1920 x 1080 (Default), 1280 x 720, 640 x 360
Main Stream
5:4 1280 x 1024, 640 x 512
4:3 1024 x 768, 640 x 480, 320 x 240
16:9 1280 x 720, 640 x 360 (Default), 448 x 256
Sub Stream
5:4 1280 x 1024, 640 x 512, 320 x 256
4:3 640 x 480, 320 x 240
16:9 640 x 360 (Default), 448 x 256
Third Stream
(Closed by
Default)
5:4 640 x 512, 320 x 256
Network
Interface 10/100 Ethernet
Protocol
DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF (Profile S), QoS (DSCP), RTSP, SNMP,
SMTP, TCP, UDP,UPnP, 3GPP/ISMA
Wireless LAN IEEE 802.11 b/g/n
Antenna Type External
Security WEP, WPA‐PSK(TKIP), WPA‐ PSK(AES), WPA2 ‐ PSK(TKIP), WPA2 ‐ PSK(AES)
Security Feature
‐ No default ID and Password
‐ 802.1x authentication
‐ HTTPS with a SSL certificate stored in the camera
‐ 256 ‐ bit AES encryption (requires firmware V1.14 or later working with GV ‐VMS
V18.1 or later)
Mechanical
Temperature Detector Yes
Power 2 ‐ pin terminal block (DC 12V, 1.25A), PoE
Ethernet Ethernet (10/100 Base ‐ T), RJ ‐ 45 cable
Audio
1 In (built ‐ in or external microphone)
1 Out (stereo phone jack, 3.5 mm / 0.14’’)
Digital I/O 3 ‐ pin terminal block, pitch 2.5 mm (0.1’’)
Auto Iris Yes (with varifocal lens)
Local Storage
Micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10)
*UHS ‐ II card type is not supported.
TV ‐ Out BNC connector
Connectors
Mini USB GV ‐ WiFi Adapter or USB hard drive
LED Indicator 2 LEDs: Power, Status
General
Start‐ up
Environment
Temperature
Operation
0 °C ~ 50 °C (32 °F ~ 122 °F)
Humidity 10% to 90% (no condensation)
Power Source 12V DC / PoE (IEEE 802.3af)
Max. Power Consumption 12V DC: 4.2 W PoE: 4.9 W
Dimensions (without lens) 75.5 x 75 x 54 mm (2.97’’ x 2.95’’ x 2.13’’)
Weight 350 g (0.77 lb)
Regulatory CE, FCC, RCM, LVD, RoHS, TAICS (IoT Cyber Security) compliant
Power over Ethernet
PoE Standard PoE (IEEE 802.3af Power over Ethernet / PD)
PoE Power Supply Type End‐Span and Mid ‐Span
PoE Power Output Per Port 48V DC, 350 mA, Max. 15.4 watts
Web Interface
Installation Management Web‐ based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay,
Digital PTZ
Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German /
Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian
/ Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese /
Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

GV-BX2700-FD April 29, 2019
- 3 -


Applications
Software Supported
GV ‐DVR / NVR (V8.7.6 + Patch V8.7.6.2), GV ‐ VMS (V17.1.0.100 + Patch V17.1.0.17),
GV ‐Edge Recording Manager Win Version (V1.4.0.0), GV ‐Control Center (V3.5.1),
GV ‐Recording Server (V1.4.2), GV ‐Redundant / Failover Server (V1.1.0.0 + Patch
V1.1.0.006)
Smart Device Access GV ‐Eye for iOS and Android
Live Viewing Browser (IE, Chrome, Firefox, Safari), Mobile app

Note:
1. It is required to apply patch files to some of the supported software.
2. The signal range and data throughput may vary depending on the network conditions and environmental factors.
3. Mind the following limitations and requirements for the mini USB port:
• The USB hard drive must be of 2.5’’ or 3.5’’, version 2.0 or above
• The USB hard drive’s storage capacity must not exceed 2TB
• USB flash drives and USB hubs are not supported
• External power supply is required for the USB hard drive
• To connect a GV ‐ WiFi Adapter, make sure it is connected before the camera is powered on.
4. Mind the following when using a memory card for recording:
• Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical
shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan. No
guarantee is provided for such causes.
• The stored data can be lost if the memory card is not accessed for a long period of time. Back up your data periodically if you
seldom access the memory card.
• Memory cards are expendable and their durability varies according to the conditions of the installed site and how they are
used. Back up your data regularly and replace the memory card annually.
• To avoid power outage, it is highly suggested to apply a battery backup (UPS).
• For better performance, it is highly suggested to use Micro SD card of MLC NAND flash, Class 10.
• Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently
undetected by the camera.
5. Specifications are subject to change without notice.


Packing List
1. H.265 Box Camera
2. Terminal Block (2‐ Pin and 3 ‐ Pin)
3. Six Lens Rings
4. Video Out Wire
5. Camera Holder
6. Holder Screw x 2
7. Download Guide
8. Warranty Card

Accessories
Model No. Name Details
GV ‐Housing102
(not supported by
GV ‐BX2700 ‐8F)


Housing Box (with heater and fan)
Dimensions: 406 x 145 x 109 mm (16 x 5.7 x 4.3")
Weight: 4.69 kg ( 10.34 lb) (including Supporting Tube)
Start‐ up Temperature: ‐30°C ~ 50°C ( ‐ 22°F ~ 122°F)
Operation Temperature: ‐40°C ~ 50°C ( ‐40°F ~ 122°F)
Heater: 15°C (59°F) On / 25°C (77°F) Off
Fan: 35°C (95°F) On / 25°C (77°F) Off
Power board: 24V AC or 12V DC input
GV ‐ Housing103
(not supported by
GV ‐BX2700 ‐8F)


Housing Box (with IR)


Dimensions: 404 x 128 x 257 mm (15.91 x 5.04 x 10.12")
Weight: 7 kg (15.43 lb) (including Supporting Tube)
Start‐ up Temperature: ‐20°C ~ 50°C ( ‐4°F ~ 122°F)
Operation Temperature: ­30°C ~ 50°C ( ‐22°F ~ 122°F)
IR: 6 IR LEDs with up to 60 m (196.85ft) IR effective distance
Power: 12V DC, 1A input

GV-BX2700-FD April 29, 2019
- 4 -


Model No. Name Details
GV ‐Mount300 ‐ 1 Convex Corner Adapter Kit


Dimensions: 238.6 x 395.2 x 210 mm (9.4’’ x 15.5” x 8.2”)
Weight: 4.27 kg (9.41 lb)
GV ‐Mount310 ‐ 1 Concave Corner Adapter Kit


Dimensions: 111.2 x 369.9 x 210 mm (4.37’’ x 14.5” x 8.2”)
Weight: 2.96 kg (6.53 lb)
GV ‐Mount400 ‐ 1 Pole Mount Bracket Kit (Ø 4" ~ 6")


Bracket: 68.4 x 240 x 163 mm (2.69” x 9.44’’ x 6.41”)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4" ~ 6"
GV ‐Mount410 ‐ 1 Pole Mount Bracket Kit (Ø 6" ~ 7.5")


Bracket: 68.4 x 240 x 163 mm (2.69” x 9.44’’ x 6.41”)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6" ~ 7.5"
Supporting Rack


Dimensions: Ø 58 x 120 mm (2.28” x 4.72”)
Weight: 0.1 kg (103 g)
GV ‐PA191 PoE Adapter


Weight: 130 g / 0.29 lb
Dimensions (H x W x D): 43 x 69 x 40 mm / 1.69” x 2.72” x 1.57”
GV ‐ POE Switch The GV ‐ POE Switch is designed to provide power along with network
connection for IP devices. The GV ‐ POE Switch is available in various
models with different numbers and types of ports.
GV ‐Relay V2
The GV ‐Relay V2 is designed to expand the voltage load of GV IP
devices. It provides 4 relay outputs, and each can be set as normally
open (NO) or normally closed (NC) independently as per your
requirement.

GV-BX2700-FD April 29, 2019
- 5 -


Model No. Name Details
GV ‐WiFi Adaptor V2


Weight: 0.01 kg (0.02 lb)
Dimensions: 15 x 15 x 155 mm (0.59 x 0.59 x 6.10”)
Supplied with Mini USB to standard USB adapter
Power Adapter Contact our sales representatives for the countries and areas supported.
Note: GV ‐Housing103 only works with GV ‐Mount300 ‐ 1, GV ‐Mount310 ‐ 1, GV ‐Mount400 ‐ 1, GV ‐Mount410 ‐ 1.
GV-BX2700-FD April 29, 2019
- 6 -

Dane techniczne

Wejścia alarmowe 1
Wyjścia alarmowe 1
Rozmiar przetwornika 1/2.8
Zasilanie PoE PoE 802.3af 15.4W
Zasilanie DC 12VDC
Rozdzielczość wizyjna 2MPIX
Typ kamery Box, Kompaktowa
Zakres dynamiki (WDR) WDR 130dB
Typ obiektywu Zmiennoogniskowy
Zmienna ogniskowa (od) ± 2.8 mm
Zmienna ogniskowa (do) ± 10 mm
Slot na karty Tak
Wbudowany mikrofon Tak
do góry
Sklep jest w trybie podglądu
Pokaż pełną wersję strony
Sklep internetowy Shoper.pl
