GV-BX2600-FD

Dostępność: 11-50
Cena: 2 360,49 zł 2360.49 (511,17 €)
bez 23.00% VAT i kosztów dostawy
ilość szt.
dodaj do przechowalni
Producent: GEOVISION
Kod produktu: 84-BX2600V-3D010

Opis

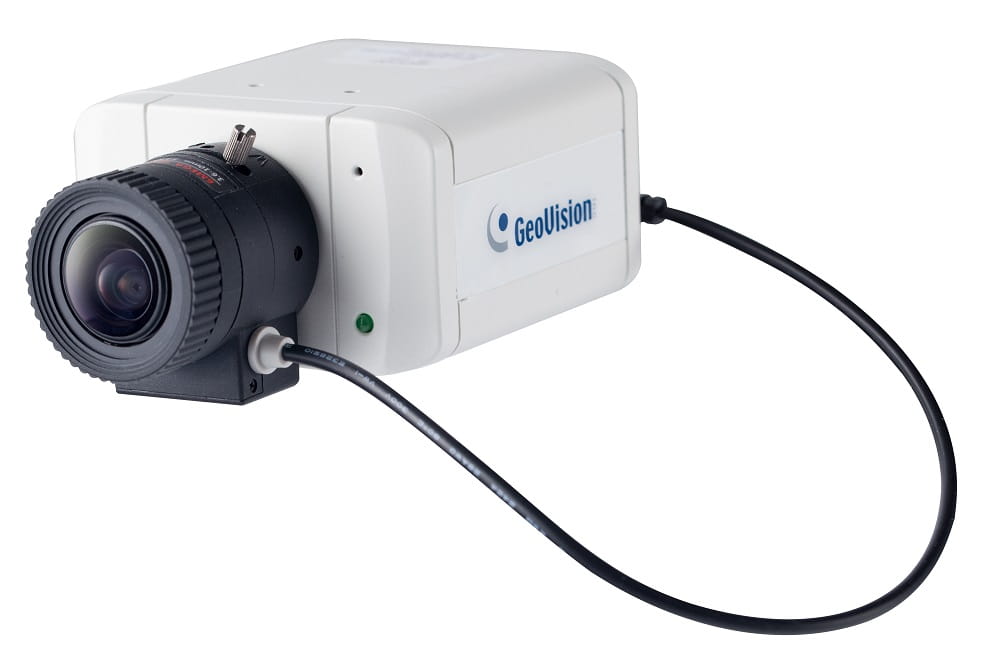

Kamera IP typu box, filtr IR, 2.0M-30 kl./s, H.265, WDR PRO, PoE, SDXC, USB, BNC, P-iris, 3~10.5mm, super-czuła 0.005lx, wykrywanie do 32 twarzy...

Gwarancja: 36 mies.

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

GV ‐BX2600 ‐ FD Starlight 2MP H.265 Super Low Lux WDR Pro Face Detection Box IP Camera



* 1/2.8’’ progressive scan super low lux CMOS
* Min. illumination at 0.004 lux
* Tripe streams from H.265, H.264 and MJPEG
* Up to 30 fps at 1920 x 1080
* Megapixel varifocal lens
* P ‐ Iris for auto iris adjustment
* Day and Night function (with removable IR ‐cut filter )
* Wide Dynamic Range Pro (WDR Pro)
* DC 12 V / PoE (IEEE 802.3af)
* Two ‐way audio
* Built ‐ in / external microphone
* Built ‐ in micro SD card slot (SD/SDHC/SDXC/UHS ‐ I) for local storage
* One sensor input and alarm output
* TV ‐ out support
* Mini USB slot for WiFi adapter or USB hard drive
* Face Detection
* 3D noise reduction
* Smart streaming
* Defog
* Privacy mask
* IP address filtering
* Recording assigned by GV ‐Edge Recording Manager (Windows ,
Mac ver sion)
* Supports iPhone, iPad, Android & 3GPP
* 31 languages on Web interface
* ONVIF (Profile S, T) conformant

* No Memory card slot & local storage function for Argentina.
* Smart streaming requires GV ‐DVR / NVR V8.7.0, GV ‐VMS V16.10.3 or later
software versions.
* Face detection requires GV ‐VMS 18.1 or later.

Introduction
GV ‐BX2600 ‐ FD is specifically designed for face detection. The camera supports H.265 video codec to achieve better compression
ratio while maintaining high picture quality at reduced network bandwidths. It is equipped with super low lux CMOS image sensor,
which allows the camera to provide a color live view in near darkne ss. It features a mini USB port for wireless connection through a
GV ‐WiFi Adapter (optional) or external storage using a USB hard drive.

Active Tampering Alarm
Tampered Focus Change Camera Shift




GV-BX2600-FD December 12, 2019
- 1 -

Dimensions



Specifications
Camera
Image Sensor 1/2.8" progressive scan super low lux CMOS

Picture Elements 1920 (H) x 1080 (V)

Color 0.005 Lux

B/W 0.004 Lux

Minimum
Illumination
IR ON 0 Lux

Shutter Speed Automatic, Manual (1/30 ~ 1/16,000 s)

White Balance Automatic, Manual (2800 ~ 8500 K)

Gain Control Automatic

S/N Ratio 56 dB

WDR Pro Yes

Dynamic Range 130 dB

Lens

Megapixel Yes

Day/Night Yes (with removable IR ‐cut filter)

Lens Type Varifocal

Focal Length 3 ~ 10.5 mm

Maximum Aperture F/1.4

Mount CS Mount

Image Format 1/2.7"

Horizontal FOV 100° ~ 35°

Focus Manual (w/lock)

Zoom Manual (w/lock)

Operation
Iris P ‐ Iris

Operation

Video Compression H.265, H.264, MJPEG

Video Streaming
Stream 1 from H.265 or H.264
Stream 2 from H.265, H.264 or MJPEG
Stream 3 from H.265, H.264 or MJPEG

Frame Rate
50 Hz: 25 fps at 1920 x 1080
60 Hz: 30 fps at 1920 x 1080
* The frame rate and performance may vary depending on the number of connections
and data bitrates (different scenes).

Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker ‐less,
Image Orientation, Shutter Speed, Backlight Compensation, D/N Sensitivity, WDR,
Defog, Low Lux Enhancement, Denoise, Metering

Audio Compression G.711

Audio Support Two ‐way Audio (external speaker required)

Sensor Input 1 input (dry contact)

Alarm Output 1 digital output (200 mA 5 V DC)

Face Detection

Environment 600 lux

Tilt (Up/Down) ± 30〫
Detectable face
angle
Swing (Left/Right) ± 60〫

Max. number of faces Up to 32

Min. face image pixel requirement 100 x 100

GV-BX2600-FD December 12, 2019
- 2 -

Video Resolution
4:3 1280 x 960, 640 x 480

16:9 1920 x 1080 (Default), 1280 x 720, 640 x 360

Main Stream
5:4 1280 x 1024, 640 x 512

4:3 1024 x 768, 640 x 480, 320 x 240

16:9 1280 x 720, 640 x 360 (Default), 448 x 256

Sub Stream
5:4 1280 x 1024, 640 x 512, 320 x 256

4:3 640 x 480, 320 x 240

16:9 640 x 360 (Default), 448 x 256

Third Stream
(Closed by
Default)
5:4 640 x 512, 320 x 256

Network

Interface 10/100 Ethernet

Protocol
DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, Multicast, NTP, ONVIF
(Profile S, T), QoS (DSCP), RTCP, RTSP, SNMP, SMTP, SSL, TCP/IP, UDP, UPnP,
3GPP/ISMA

Wireless LAN IEEE 802.11 b/g/n

Antenna Type External

Security WEP, WPA ‐PSK(TKIP), WPA ‐PSK(AES), WPA2 ‐PSK(TKIP), WPA2 ‐PSK(AES)

Security Feature
‐ No default ID and Password
‐ 802.1x authentication
‐ HTTPS with SSL certificate stored within the camera
‐ 256 ‐bit AES encryption (requires working with GV ‐VMS V18.1 or later)

Mechanical

Temperature Detector Yes

Power 2 ‐pin terminal block (DC 12 V, 1.25 A), PoE

Ethernet Ethernet (10/100 Base ‐ T), RJ ‐ 45 cable

Audio
1 In (built ‐ in or external microphone)
1 Out (stereo phone jack, 3.5 mm / 0.14’’)

Digital I/O 3 ‐pin terminal block, pitch 2.5 mm (0.1’’)

Auto Iris Yes (with varifocal lens)

Local Storage
Micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10)
*UHS‐ II card type is not supported.

TV ‐ Out BNC connector

Connectors
Mini USB GV ‐ WiFi Adapter or USB hard drive

LED Indicator 2 LEDs: Power, Status

General

Start ‐ up

Environment
Temperature
Operation
0 °C ~ 50 °C (32 °F ~ 122 °F)
Humidity 10% ~ 90% (no condensation)

Power Source 12 V DC / PoE (IEEE 802.3af)

Max. Power Consumption 6 W

Dimensions (without lens) 75.5 x 75 x 54 mm (2.97’’ x 2.95’’ x 2.13’’)

Weight 320 g (0.7 lb)

Regulatory CE, FCC, LVD, RoHS compliant

Power over Ethernet

PoE Standard PoE (IEEE 802.3af Power over Ethernet / PD)

PoE Power Supply Type End‐Span and Mid ‐Span

PoE Power Output Per Port 48 V DC, 320 mA, Max. 15.4 W

Web Interface

Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web browser or GV ‐ IP Device Utility

Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay,
Digital PTZ

Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German /
Greek / Hebrew /Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian
/ Persian / Polish / Portuguese /Romanian / Russian / Serbian / Simplified Chinese /
Slovakian / Slovenian / Spanish / Swedish / Thai /Traditional Chinese / Turkish

GV-BX2600-FD December 12, 2019
- 3 -

Applications
Software Supported
GV ‐ DVR / NVR (V8.8.0), GV ‐VMS (V17.2.1), GV ‐Edge Recording Manager Win Version
(V1.4.0), GV ‐Control Center (V3.6.0), GV ‐Recording Server (V1.4.2), GV ‐Redundant /
Failover Server (V1.1.0.0)
Smart Device Access GV ‐ Eye for iOS and Android
Live Viewing Browser (IE, Chrome, Firefox, Safari), Mobile app

Note:
1. It is required to apply patch files to some or all of the supported software.
2. The signal range and data throughput may vary depending on the network conditions and environmental factors.
3. Mind the following limitations and requirements for the mini USB port:
* The USB hard drive mu st be of 2.5’’ or 3.5’’, version 2.0 or above
* The USB hard drive’s storage capacity must not exceed 2TB
* USB flash drives and USB hubs are not supported
* External power supply is required for the USB hard drive
* To connect a GV ‐ WiFi Adapter, make sure it is connected before the camera is powered on.
4. Mind the following when using a memory card for recording:
* Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical
shock, power interruption, memory card detachment or whe n the memory card reaches the end of its lifespan. No
guarantee is provided for such causes.
* The stored data can be lost if the memory card is not accessed for a long period of time. Back up your data periodically if you
seldom access the memory card.
* Memory cards are expendable and their durability varies according to the conditions of the installed site and how they are
used. Back up your data regularly and replace the memory card annually.
* To avoid power outage, it is highly recommended to apply a battery backup (UPS).
* For better performance, it is hi ghly recommended to use Micro SD card of MLC NAND flash, Class 10.
* Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently
undetected by the camera.
5. Specifications are subject to change without notice.


Packing List
1. H.265 Box Camera
2. Terminal Block (2 ‐ Pin and 3 ‐Pin)
3. Six Lens Rings
4. Video Out Wire
5. Camera Holder
6. Holder Screw x 2
7. Download Guide
8. Warranty Card

Accessories
Model No. Name Details
GV ‐Housing102


Housing Box (with heater and fan)
Dimensions: 406 x 145 x 109 mm (16 x 5.7 x 4.3")
Weight: 4.69 kg (10.34 lb) (including Supporting Tube)
Start‐ up Temperature: ‐ 30 °C ~ 50 °C ( ‐ 22 °F ~ 122 °F)
Operation Temperature: ‐ 40 °C ~ 50 °C ( ‐ 40 °F ~ 122 °F)
Heater: 15°C (59 °F) On / 25 °C (77 °F) Off
Fan: 35 °C (95 °F) On / 25 °C (77 °F) Off
Power board: 24 V AC or 12 V DC input
GV ‐Housing103


Housing Box (with IR)


Dimensions: 404 x 128 x 257 mm (15.91 x 5.04 x 10.12")
Weight: 7 kg (15.43 lb) (including Supporting Tube)
Start‐ up Temperature: ‐ 20 °C ~ 50 °C ( ‐ 4 °F ~ 122 °F)
Operation Temperature: ­ 30 °C ~ 50 °C ( ‐ 22 °F ~ 122 °F)
IR: 6 IR LEDs wit h up to 60 m (196.85 ft) IR effective distance
Power: 12 V DC, 1A input

GV-BX2600-FD December 12, 2019
- 4 -



Model No. Name Details
GV ‐Mount300 ‐ 1 Convex Corner Adapter Kit


Dimensions: 238.6 x 395.2 x 210 mm (9.4’’ x 15.5” x 8.2”)
Weight: 4.27 kg (9.41 lb)
GV ‐Mount310 ‐ 1 Concave Corner Adapter Kit


Dimensions: 111.2 x 369.9 x 210 mm (4.37’’ x 14.5” x 8.2”)
Weight: 2.96 kg (6.53 lb)
GV ‐Mount400 ‐ 1 Pole Mount Bracket Kit (Ø 4" ~ 6")


Bracket: 68.4 x 240 x 163 mm (2.69” x 9.44’’ x 6.41”)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4" ~ 6"
GV ‐Mount410 ‐ 1 Pole Mount Bracket Kit (Ø 6" ~ 7.5")


Bracket: 68.4 x 240 x 163 mm (2.69” x 9.44’’ x 6.41”)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6" ~ 7.5"
Supporting Rack


Dimensions: Ø 58 x 120 mm (2.28” x 4.72”)
Weight: 0.1 kg (103 g)
GV ‐PA191 PoE Adapter


Weight: 130 g / 0.29 lb
Dimensions: 43 x 69 x 40 mm (1.69” x 2.72” x 1.57”)
GV ‐ POE Switch GV ‐POE Switch is designed to provide power along with network
connection for IP devices. The GV ‐ POE Switch is available in various
models with different numbers and types of ports.
GV ‐Relay V2 GV ‐ Relay V2 is designed to expand the voltage load of GV IP devices.
It provides 4 relay outputs, and each can be set as normally open
(NO) or normally closed (NC) independently as needed.

GV-BX2600-FD December 12, 2019
- 5 -


Model No. Name Details
GV ‐WiFi Adaptor V2


Weight: 0.01 kg (0.02 lb)
Dimensions: 15 x 15 x 155 mm (0.59 x 0.59 x 6.10”)
Supplied with Mini USB to standard USB adapter
Power Adapter Contact our sales representatives for the countries and areas supported.
Note: GV ‐Housing103 only works with GV ‐Mount300 ‐ 1, GV ‐Mount310 ‐ 1, GV ‐Mount400 ‐ 1, GV ‐Mount410 ‐ 1.
GV-BX2600-FD December 12, 2019
- 6 -

Dane techniczne

Wejścia alarmowe 1
Wyjścia alarmowe 1
Rozmiar przetwornika 1/2.8
Zasilanie PoE PoE 802.3af 15.4W
Zasilanie DC 12VDC
Rozdzielczość wizyjna 2MPIX
Typ kamery Box, Kompaktowa
Zakres dynamiki (WDR) WDR 130dB
Typ obiektywu Zmiennoogniskowy
Zmienna ogniskowa (od) ± 2.8 mm
Zmienna ogniskowa (do) ± 10 mm
Slot na karty Tak
Wbudowany mikrofon Tak
do góry
Sklep jest w trybie podglądu
Pokaż pełną wersję strony
Sklep internetowy Shoper.pl
