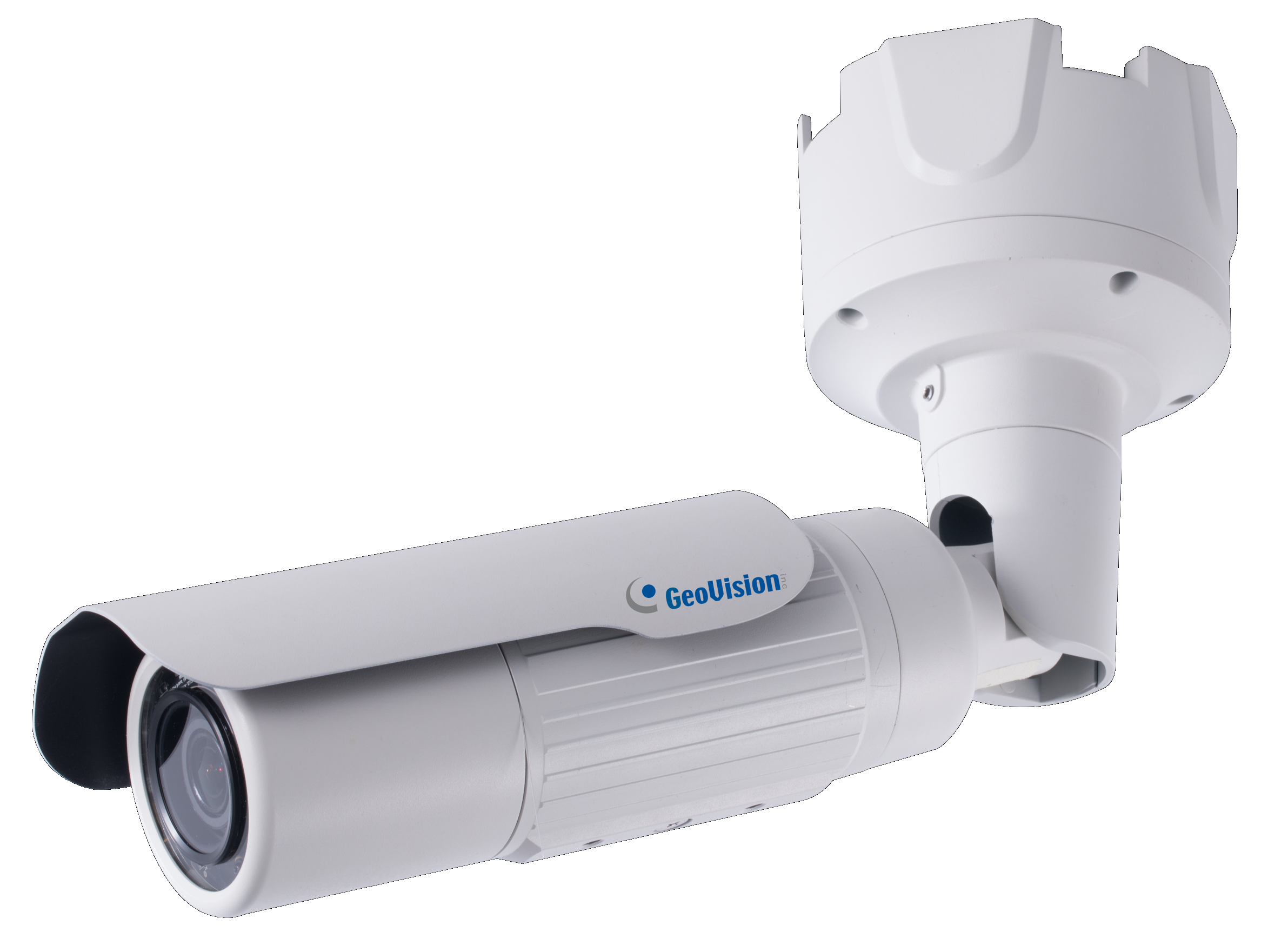

GV-BL4702

Dostępność: 0
Cena: 2 166,37 zł 2166.37 (500,95 €)
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: GEOVISION
Kod produktu: 84-BL4702V-0010

Opis

Kamera IP typu bullet, IP67 wandaloodporna IK10, oświetlacz 50m, 4.0M-20 kl./s, H.265, WDR PRO, PoE, SDXC, 2.8~12mm P-iris, super-czuła 0.02lx...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: GV-TBL4700

Kod produktu zamiennego: 84-TBL4700-0010

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

GV-BL4702 October 4, 2018
- 1 -
GV-BL4702 4MP H.265 Super Low Lux WDR Pro IR Bullet IP Camera



* 1/3” progressive scan super low lux CMOS
* Min. illumination at 0.02 lux
* Triple streams from H.265, H.264, and MJPEG
* Up to 20 fps at 2592 x 1520, 24 fps at 2560 x 1440,
30 fps at 2048 x 1520
* Intelligent IR
* IR distance up to 50 m (16 4.04 ft)
* Removable IR ‐cut filter for Day/Night function
* Vandal resistance (IK10 for metal casing)
* Ingress protection (IP67)
* Tolerant to extreme temperatures ( ‐30°C ~ 60°C/ ‐22°F ~ 140°F)
* One sensor input and alarm output
* Built ‐ in micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Cla ss 10) for
local storage
* Two ‐way audio
* Wide Dynamic Range Pro (WDR Pro)
* 3D noise reduction
* Defog
* Motion detection
* Tampering alarm
* Privacy mask
* IP address filtering
* DC 12V / AC 24V / PoE (IEEE 802.3af)
* Supports iPhone, iPad, Android & 3GPP
* 31 languages on Web interface
* ONVIF (Profile S) conformant
* No Memory Card Slot & local storage function for Argentina.

Introduction
GV ‐BL4702 Series is specifically designed for outdoors. It adheres to the IP67 standard and has full protection against dust and jets of
water. The camera can support H.265 video codec to achieve better compression ratio while maintaining high quality pictures at
reduced network bandwidths. GV ‐BL4702 Series is capable of p roviding a color live view not only in near darkness but also under
contrasting light intensities with its super low lux CMOS image sensor and WDR pro. It is also equipped with a P ‐Iris, which allows for
precise control of exposure, producing images with better clarity and contrast.

Active Tampering Alarm
Tampered Focus Change Camera Shift




GV-BL4702 October 4, 2018
- 2 -
Dimensions



Specifications
Camera
Image Sensor 1/3” progressive scan super low lux CMOS

Picture Elements 2592(H) x 1520 (V)

Color 0.03 Lux

B/W 0.02 Lux

Minimum
Illumination
IR ON 0 Lux

Shutter Speed Automatic, Manual (1/5 ~ 1/16000 sec)

White Balance Automatic, Manual (2800K ~ 8500K)

Gain Control Automatic

S/N Ratio 50 dB

WDR Pro Yes

Dynamic Range Up to 120 dB

Lens

Megapixel Yes

Day/Night Yes (with removable IR ‐cut filter)

Lens Type Varifocal lens

Focal Length 2.8 ~ 12 mm

Maximum Aperture F/1.7

Mount Ø 14 mm

Horizontal FOV 102° ~ 38°

Image Format 1/2.7”

Focus Manual (with lock)

Zoom Manual (with lock)

Operation
Iris P ‐ Iris

IR LED Quantity 5 IR LEDs

Max. IR Distance 50 m (164.04 ft)

Operation

Video Compression H.265, H.264, MJPEG

Video Streaming
Stream 1 from H.265 or H.264
Stream 2 from H.265, H.264 or MJPEG
Stream 3 from H.265, H.264 or MJPEG

Frame Rate
50 Hz: 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 25 fps at 2048 x 1520
60 Hz: 20 fps at 2592 x 1520, 24 fps at 2560 x 1440, 30 fps at 2048 x 1520
* The frame rate and the performance may vary de pending on the number of connections
and data bitrates (different scenes).

Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker ‐less, Image
Orientation, Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR Pro, Defog, Low
Lux Enhancement, Denoise, Metering

Audio Compression G.711, AAC (optional)

Audio Support Two ‐way Audio (external microphone and speaker required)

Sensor Input 1 Input (Dry Contact)

Alarm Output 1 Digital Output (200mA 5V DC)




GV-BL4702 October 4, 2018
- 3 -

Video Resolution
4 : 3 2048 x 1520, 1600 x 1200, 1280 x 960, 640 x 480

16 : 9 2592 x 1520, 2560 x 1440 (Default), 2304 x 1296, 1920 x 1080, 1280 x 720, 640 x 360

Main Stream
5 : 4 1280 x 1024, 640 x 512

4 : 3 1024 x 768, 640 x 480, 320 x 240

16 : 9 1280 x 720, 640 x 360 (Default) , 448 x 256

Sub Stream
5 : 4 1280 x 1024, 640 x 512, 320 x 256

4 : 3 640 x 480, 320 x 240

16 : 9 640 x 360, 448 x 256

Third Stream
(Closed by
Default)
5 : 4 640 x 512, 320 x 256

Network

Interface 10/100 Ethernet

Protocol
DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, Multicast, NTP, ONVIF (Profile S),
QoS (DSCP), RTP, RTCP, RTSP, SNMP, SMTP, SSL, TCP/IP, UDP, UPnP, 3GPP/ISMA

Security Feature
‐ No default ID and Password
‐ 802.1x authentication
‐ HTTPS with a SSL certificate stored in the camera
‐ 256 ‐bit AES encryption (requires firmware V1.14 or later working with GV ‐ VMS V18.1 or
later)

Mechanical

Temperature Detector Yes

Pan 0° ~ 360°

Tilt 90° ~ 180°

Camera Angle
Adjustment
Rotate 0° ~ 360°

Power 2 ‐pin terminal block, PoE

Ethernet Ethernet (10/100 Base ‐ T), RJ ‐ 45 Cable

Audio
1 In (microphone jack, 3.5 mm / 0.14”)
1 Out (stereo phone jack, 3.5 mm / 0.14”)

Digital I/O 3 ‐pin terminal block, pitch 2.5 mm (0.1")

Connectors
Local Storage
Micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10)
* UHS ‐ II card type is not supported.

LED Indicator 2 LEDs: Power, Status

General

Start ‐ up ‐20°C ~ 60°C ( ‐ 4°F ~ 140°F)
Environment
Temperature
Operation ‐30°C ~ 60°C ( ‐22°F ~ 140°F)

Humidity 10% to 90% (no condensation)

Power Source 12V DC / 24V AC / PoE (IEEE 802.3af)

Max. Power Consumption 12.3 W

Dimensions Ø121.8 x 406 mm (4.79” x 15.98”)

Weight 2.14 kg (4.72 lb)

Ingress Protection IP67

Vandal Resistance IK10 for metal casing

Regulatory CE, FCC, RCM, RoHS compliant

Power over Ethernet

PoE Standard PoE (IEEE 802.3af Power over Ethernet / PD)

PoE Power Supply Type End ‐Span, Mid ‐Span

PoE Power Output Per Port 48V DC, 350mA. Max. 15.4 watts

Web Interface

Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay, Digital
PTZ

Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek /
Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian /
Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian /
Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish


GV-BL4702 October 4, 2018
- 4 -

Application
Software Supported
GV ‐ DVR / NVR (V8.7.4.0), GV ‐ VMS (V16.11.0.0), GV ‐Control Center (V3.4.0.0), GV ‐Edge
Recording Manager (V1.3.0.0), GV ‐Center V2 (V16.11.0.0), GV ‐Recording Server (V1.3.0.0),
GV ‐Redundant / Failover Server (V1.1.0.0)

Network Storage GV ‐ DVR / NVR / VMS, GV ‐Recording Server

Smart Device Access GV ‐ Eye for iOS and Android

Live Viewing Browser (IE, Chrome, Firefox, Safari), Mobile App

CMS Server support GV ‐Control Center, GV ‐Center V2, GV ‐ Vital Sign Monitor

Note:
1. Mind the following when using an inserted memory card for recording:
* Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical
shock, power interruption, memory card detachment or when the memory card reaches the end of its l ifespan. No
guarantee is provided for such causes.
* To avoid power outage, it is highly suggested to apply a battery backup (UPS).
* For better performance, it is highly suggested to use Micro SD card of MLC NAND flash, Class 10.
* Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently
undetected by the camera.
2. Specifications are subject to change without prior notice.
Packing List
1. H.265 Bullet Camera
2. Stand Kit (Conduit Converter, PG21 Conduit Connector,
RJ ‐ 45 Connector, M3 Screw x 2, Cable Tie)
3. Sun ‐Shield Cover Kit (Sun ‐Shield Cover, Philips Head
Screws x 2, Plastic Screw Spacers x 2, Hexagon Screws x 2)
4. Mounting Kit (M4 Screw x 3, Nut x 3, Plate x 3)
5. Screw Anchor x 3
6. Screw for Mounting Kit x 3
7. Hex Wrench
8. 4 mm Wrench
9. 2.5 mm Wrench
10. Silica Gel Bag x 2
11. Ruler
12. Installation Sticker
13. Download Guide
14. Warranty Card


Accessories
Model No. Name Name
Details

GV ‐Mount300 ‐ 1 Convex Corner Adapter Kit

Dimensions: 238.6 x 395.2 x 210 mm

(9.4’’ x 15.5” x 8.2”)

Weight: 4.27 kg (9.41 lb)

GV ‐Mount310 ‐ 1 Concave Corner Adapter Kit

Dimensions: 111.2 x 369.9 x 210 mm

(4.37’’ x 14.5” x 8.2”)

Weight: 2.96 kg (6.53 lb)

GV ‐Mount400 ‐ 1 Pole Mount Bracket Kit
(Ø 4" ~ 6")



Dimensions:

Bracket: 68.4 x 240 x 163 mm

(2.69” x 9.44’’ x 6.41”)

Weight: 1.70 kg (3.75 lb)

Steel Strap Diameter: Ø 4" ~ 6"

GV ‐Mount410 ‐ 1 Pole Mount Bracket Kit
(Ø 6" ~ 7.5")



Dimensions:

Bracket: 68.4 x 240 x 163 mm

(2.69” x 9.44’’ x 6.41”)

Weight: 1.70 kg (3.75 lb)

Steel Strap Diameter: Ø 6" ~ 7.5"


GV-BL4702 October 4, 2018
- 5 -

Model No. Name Name
Details
I/O Cable I/O Cable



The I/O cable is a multi ‐connector providing I/O,

DC 12V power, and audio connectivity for the

camera.

Length: 106.8 cm (3.5 ft)

GV ‐PA191 PoE
Adapter
Power over Ethernet (PoE)
Adapter



The GV ‐PA191 is a Power over Ethernet (PoE)

adapter designed to provide power to the IP

device through a single Ethernet cable.

GV ‐Relay V2 GV ‐Relay V2



The GV ‐Relay V2 is designed to expand the

voltage load of GV IP devices. It provides 4 relay

outputs, and each can be set as normally open

(NO) or normally closed (NC) independently as

per your requirement.

GV ‐ POE Switch
The GV ‐ POE Switch is designed to provide power along with network
connection for IP devices. The GV ‐ POE Switch is available in various models
with different numbers and types of ports.

Power Adapter Contact our sales representatives for the countries and areas supported.
