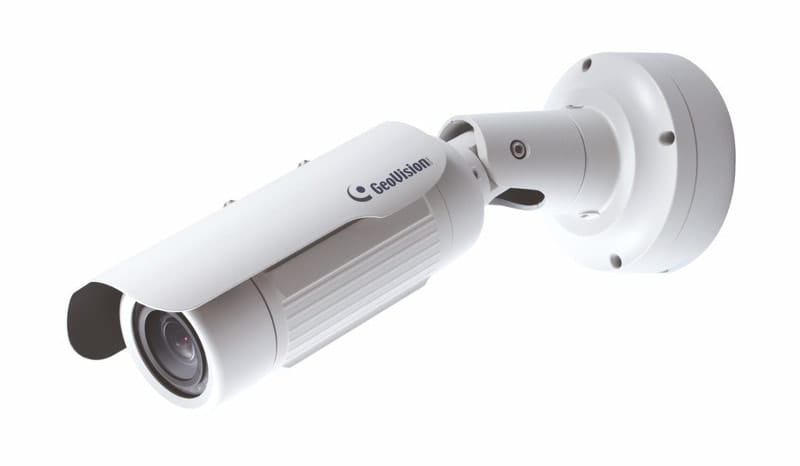

GV-BL1501

Kamera IP typu bullet, IP67 wandaloodporna IK10, oświetlacz 70m, 1.3M-30 kl./s, H.264, WDR, PoE, SDXC, 3~9mm P-iris, super-czuła 0.01lx...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

GV-BL1501 1.3MP H.264 Super Low Lux WDR IR Bullet IP Camera



* 1/3” progressive scan super low lux CMOS
* Min. illumination at 0.01 lux
* Dual streams from H.264 and MJPEG
* Up to 30 fps at 1280 x 1024
* Intelligent IR
* IR distance up to 70 m (230 ft)
* P ‐ Iris for auto iris adjustment
* Vandal r esistance (IK10 for metal casing)
* Ingress protection (IP67)
* Tolerant to extreme temperatures ( ‐30°C ~ 50°C/ ‐22°F ~ 122°F)
* One alarm input and sensor output
* Built ‐ in micro SD card slot (SD/SDHC) for local storage
* Recording assigned by GV ‐Edge Recording Manager (Windows ,
Mac ver sion)
* 2 ‐way audio
* Wide Dynamic Range (WDR)
* 3D noise reduction
* Defog
* Motion detection
* Tampering alarm
* Privacy mask
* IP address filtering
* DC 12V / AC 24V / PoE (IEEE 802.3af)
* Removable IR ‐cut filter for Day/Night function
* Supports iPhone, iPad, Androi d & 3GPP
* 31 languages on Web interface
* ONVIF (Profile S) conformant
* More storage option –NAS
* No Memory Card Slot & local storage function for Argentina.

Introduction
GV ‐BL1501 is an outdoor Bullet Camera which is able to provide a color live view in near darkness using its super low lux image sensor.
The camera is also equipped with a P ‐Iris, which allows for precise control of exposure, producing images with better clarity and
contrast.

Active Tampering Alarm
Tampered Focus Change Camera Shift



GV-BL1501 February 27, 2018
- 1 -

Dimensions

287.9 mm (11.33")
340.4 mm (13.4")



Specifications
Camera
Image Sensor 1/3” progressive scan super low lux CMOS

Picture Elements 1280 (H) x 1024 (V)

Color
B/W
0.01 Lux

Minimum
Illumination
IR ON 0 Lux

Shutter Speed Automatic, Manual (1/5 ~ 1/8000 sec.)

White Balance Automatic, Manual (2800K ~ 8500K)

Gain Control Automatic

S/N Ratio 55 dB

WDR Yes

Lens

Megapixel Yes

Focal Length 3 ~ 9 mm

Day/Night Yes (with removable IR ‐cut filter)

Lens Type Varifocal

Maximum Aperture F/1.2

Mount Ø 14 mm

Image Format 1/2.7”

Horizontal FOV 90° ~ 32°

Focus Manual (w/lock)

Zoom Manual (w/lock)

Operation
Iris P ‐ Iris

Max. Torque (Focus/ Zoom Screws) 0.049 N.m

IR LED Quantity 16 IR LEDs

Max. IR Distance 70 m (230 ft)

Operation

Video Compression H.264, MJPEG

Video Stream Dual streams from H.264 and MJPEG

Frame Rate
30 fps at 1280 x 1024 (60/50 Hz)
*The frame rate and the performance may vary depending on the number of connections
and data bitrates (different scenes).

Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker ‐less, Image
Orientation, Backlight Compensation, Shutter Speed, D/N Sensitivity, WDR, Defog, Super
Low Lux, Denoise, Metering

Audio Compression G.711, AAC (optional)

Audio Support Two ‐way audio

Sensor Input 1 Input (dry contact)

Alarm Output 1 Digital output (200 mA 5V DC)

Video Resolution

4 : 3 1280 x 960, 640 x 480, 320 x 240

16 : 9 1280 x 720, 640 x 360, 448 x 252

Main Stream
5 : 4 1280 x 1024 (Default), 640 x 512, 320 x 256

4 : 3 640 x 480, 320 x 240

16 : 9 640 x 360, 448 x 252

Sub Stream
5 : 4 640 x 512, 320 x 256 (Default)

GV-BL1501 February 27, 2018
- 2 -

Network
Interface 10/100 Ethernet

Protocol
DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF (Profile S), QoS (DSCP), RTSP, SNMP, SMTP,
TCP, UDP, UPnP, 3GPP/ISMA

Mechanical

Temperature Detector Yes

Pan 0° ~ 360°

Tilt 90° ~ 180°

Camera Angle
Adjustment
Rotate 0° ~ 360°

Power 2 ‐pin terminal block (DC 12V, 1.25A), PoE

Ethernet RJ ‐ 45

Audio
1 In (3.5 mm / 0.14” phone jack for microphone)
1 Out (3.5 mm / 0.14” Stereo phone jack for speaker)

Connectors
Digital I/O 3 ‐pin terminal block, pitch 2.5 mm / 0.1”

Connectors Local Storage
Micro SD card slot (SD/SDHC, SD version 2.0 only, Class 10)
*SDXC and UHS ‐ I card types are not supported.

General

Environment Temperature ‐30°C ~ 50 °C ( ‐ 22 °F ~ 122 °F)

Humidity 10% to 90% (no condensation)

Power Source 12V DC / 24V AC / PoE (IEEE 802.3af)

Max. Power Consumption 7.68 W

Dimensions 340.4 x 87.75 x 120 mm (13.4” x 3.45” x 4.72”)

Weight 1.91 kg (4.21 lb)

Ingress Protection IP67

Vandal Resistance IK10 for metal casing

Regulatory CE, FCC, RCM, RoHS compliant

Power over Ethernet

PoE Standard PoE (IEEE 802.3af Power over Ethernet / PD)

PoE Power Supply Type End ‐Span

PoE Power Output Per Port 48V DC, 350 mA, Max. 15.4 watts

Web Interface

Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Digital I/O control, Audio, Picture in Picture, Picture and Picture, Privacy Mask,
Visual Automation, Tampering Alarm, Text Overlay, Digital PTZ

Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek /
Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian /
Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian /
Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

Application

Network Storage GV ‐DVR/NVR/VMS, GV ‐Recording Server

Smart Device Access GV ‐ Eye for iOS and Android

Live Viewing IE, mobile phone

CMS Server support GV ‐Control Center, GV ‐Center V2, GV ‐ Vital Sign Monitor

Note:
1. Mind the following when using an inserted memory card for recording:
* Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical
shock, power interruption, memory card detachment or when the memory card reaches the end of its l ifespan. No
guarantee is provided for such causes.
* The stored data can be lost if the memory card is not accessed for a long period of time. Back up your data periodically if
you seldom access the memory card.
* Memory cards are expendable and their durability varies according to the conditions of the installed site and how they are
used. Back up your data regularly and replace the memory card annually.
* To avoid power outage, it is highly suggested to apply a battery backup (UPS).
* For better performance, it is highly suggested to use Micro SD card of MLC NAND flash, Class 10.
* Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently
undetected by the camera.
2. Specifications are subject to change without prior notice.

GV-BL1501 February 27, 2018
- 3 -

Packing List
1. Bullet Camera
2. Self Tapping Screw x 3
3. Plastic Screw Anchor x 3
4. Torx Wrench x 3
5. Sun ‐Shield Cover Kit (1 Sun ‐Shield Cover, 2 Philips
Head Screws, 2 Plastic Screw Spacers and 2
Hexagon Screws included)
6. Silica Gel Bag x 2
7. 2 ‐ Pin Te rminal Block
8. 3 ‐ Pin Terminal Block
9. Power Adapter
10. Installation Sticker
11. Ruler
12. Stand Kit (Conduit Converter, PG21 Conduit Connector, RJ ‐ 45
Connector, M3 Screw x 2, Cable Tie)
13. Mounting Kit (M4 Screw x 3, Nut x 3, Plate x 3)
14. Download Guide
15. Warranty Ca rd
Note: The power adapter can be excluded upon request.

Accessories
Model No. Name
Details

GV ‐Mount300 Convex Corner
Adapter Kit



Dimensions: 238.6 x 409.5 mm (9.4’’ x
16.1”)
Weight: 4.27 kg (9.41 lb)

GV ‐Mount310 Concave Corner
Adapter Kit



Dimensions: 123.3 x 393.1 mm (4.9’’ x
15.5”)
Weight: 2.96 kg (6.53 lb)

GV ‐Mount400 Pole Mount Bracket
Kit
(Ø 4" ~ 6")



Dimensions
Bracket: 241 x 161 mm (9.5’’ x 6.3”)
Weight: 1.70 kg ( 3.75 lb)
Steel Strap Diameter: Ø 4" ~ 6"

GV ‐Mount410 Pole Mount Bracket
Kit
(Ø 6" ~ 7.5")



Dimensions
Bracket: 241 x 161 mm (9.5’’ x 6.3”)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6" ~ 7.5"

GV ‐PA191 PoE
Adapter
Power over Ethernet
(PoE) Adapter



The GV ‐PA191 is a Power over Ethernet
(PoE) adapter designed to provide
power to the IP device through a single
Ethernet cable.

GV ‐Relay V2 GV ‐Relay V2



The GV ‐Relay V2 is designed to expand
the voltage load of GV IP devices. It
provides 4 relay outputs, and each can
be set as normally open (NO) or
normally closed (NC) independently as
per your requirement.

Power Adapter Contact our sales representatives for the countries and areas supported.
GV ‐PoE Switch The GV ‐PoE Switch is designed to provide power along with network connection for IP devices. The GV ‐POE
Switch is available in various models with different numbers and types of ports.
