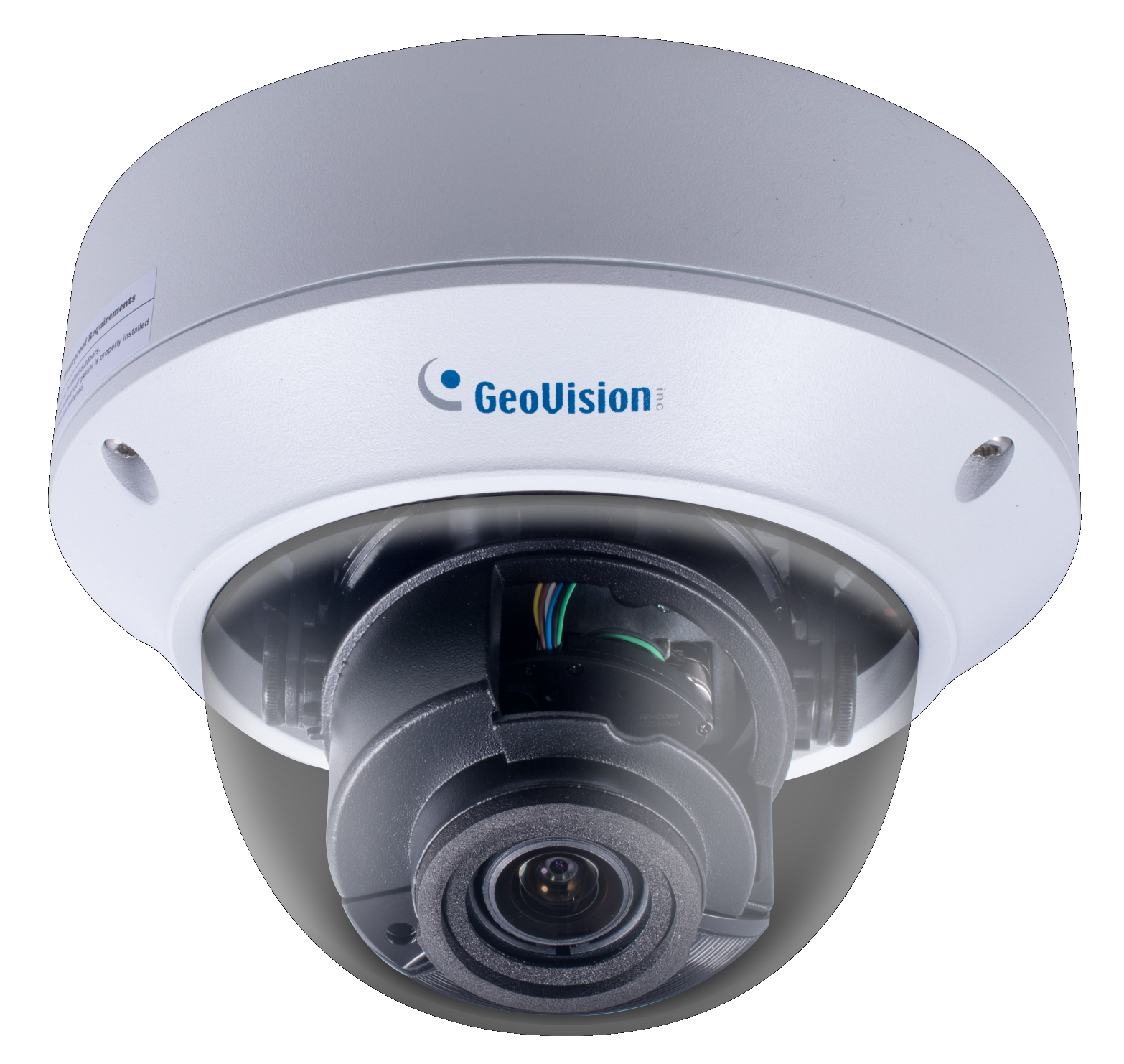

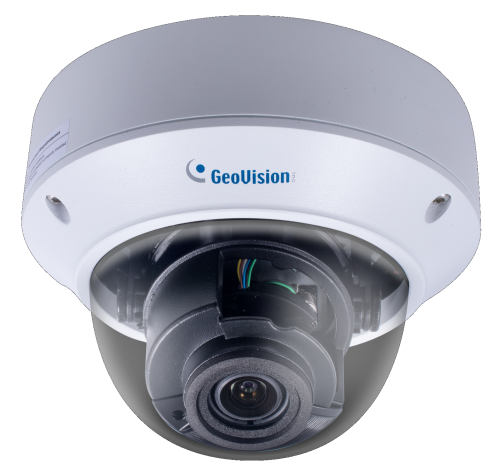

GV-AVD8710

Kamera IP kopułkowa IP67 wandaloodporna IK10, oświetlacz 30m, 8.0M-15 kl./s, 5.0M-30 kl./s, H.265, WDR PRO, PoE, SDXC, BNC, 2.8~12mm P-iris, 3-axis, super-czuła 0.003lx, moto-zoom 4x...

Gwarancja: 24 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

GV-AVD8710 8MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Vandal Proof IP
Dome



• 1/2” progressive scan super low lux CMOS
• Min. illumination at 0.003 lux
• Triple streams from H.265, H.264 and MJPEG
• Up to 15 fps at 3840 x 2160,
30 fps at 2944 x 1656 / 2592 x 1944 / 2560 x 1440
• Motorized varifocal lens for remote focus / zoom adjustment
• Intelligent IR
• IR distance up to 30 m (98.4 ft)
• Day and Night function (with removable IR ‐cut filter)
• Vandal resistance (IK10 for metal casing)
• Ingress protection (IP67)
• 3 ‐axis mechanism (pan / tilt / rotate)
• DC 12V / PoE (IEEE 802.3af)
• Built ‐ in micro SD card slot (SD / SDHC / SDXC / UHS ‐ I) for local
storage
• Two ‐ way audio
• Wide Dynamic Range Pro (WDR Pro)
• Defog
• 3D noise reduction
• Motion detection
• Tampering Alarm
• Text overlay
• Privacy mask
• ONVIF (Profile S) conformant


Introduction
The Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and IP67 ingress protection. GV ‐AVD8710
supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network
bandwidths. The camera is equipped with an automatic IR ‐ cut filter and IR LEDs for day and night surveillance. Adjustable in 3 axis
(pan, tilt and rotate), it offers an entry ‐ level surveillance solution with all the essential features and excellent image quality. The
camera is capable of providing a color live view not only in near darkness but also under contrasting light intensities with its super
low lux CMOS image sensor and WDR pro.

Active Tampering Alarm
Tampered Focus Change Camera Shift




GV-AVD8710 July 25, 2018
- 1 -

Dimensions



Specifications
Camera
Image Sensor 1/2” progressive scan super low lux CMOS
Picture Elements 3840 (H) x 2160 (V)
Color 0.003 Lux
Minimum
Illumination
IR On 0 Lux
Shutter Speed Auto, Manual (1/6 ~ 1/100000 sec)
White Balance Auto, Manual
Gain Control Auto, Manual
S/N Ratio 52 dB
WDR Pro Yes
Dynamic Range Up to 120 dB
Lens
Megapixel 8 MP
Day/Night Yes (with removable IR ‐ cut filter)
Focal Length 2.8 ~ 12 mm
Lens Type Motorized varifocal lens
Maximum Aperture F/1.5
Mount Ø14 mm
Horizontal FOV 114.8°~47.3°
Focus Auto / Manual
Zoom 4.3x Optical Zoom
Operation
Iris Fixed
IR LED Quantity 2 IR LEDs
Max. IR Distance 30 m (98.4 ft)
Operation
Video Compression H.265, H.264, MJPEG
Video Streaming Triple streams
Frame Rate
15 fps at 3840 x 2160, 30 fps at 2944 x 1656 / 2592 x 1944 / 2560 x 1440 (60 / 50 Hz)
* The frame rate and the performance may vary depending on the number of connections
and data bitrates (different scenes).
Audio Compression G.711
Audio Support Two ‐ way Audio

GV-AVD8710 July 25, 2018
- 2 -


Video Resolution
Main Stream3840 x 2160 (Default), 2944 x 1656, 2592 x 1944, 2560 x 1440, 1920 x 1080
Sub Stream 1920 x 1080, 1280 x 720, 720 x 576 (Default), 704 x 288, 640 x 360, 352 x 288
Video Resolution
Third Stream
(Closed by
Default)
720 x 576, 704 x 288, 640 x 360, 352 x 288
Network
Interface 10/100 Ethernet
Ethernet Protocol
DynDNS, DHCP, FTP, HTTP, HTTPS, IPv4, ICMP, L2TP, NTP, PPPoE, RTP, RTSP, SMTP, SIP,
TCP/IP, UDP, ONVIF (Profile S)
Mechanical
Pan 0° ~ 360°
Tilt 0° ~ 80°
Camera Angle
Adjustment
Rotate 0° ~ 360°
Power DC Jack (DV 12V, 1.25A) , PoE
Ethernet RJ ‐ 45
Audio
1 in (Audio In Wire); 1 out (Audio Out Wire)
*The Audio In port only supports microphones with power supply
Digital I/O 4 ‐ pin terminal block pitch 3.5 mm (0.14”)
Local Storage
Micro SD card slot (SD / SDHC / SDXC / UHS ‐ I, Class 10)
* UHS ‐ II card type is not supported.
Connectors
TV ‐ Out BNC connector
General
Environment Temperature ‐40°C ~ 60°C ( ‐22°F ~ 140°F)

Humidity 0% to 95% (no condensation)
Power Source 12V DC / PoE (IEEE 802.3af)
Max. Power Consumption 8 W
Dimension Ø148 x 111.3 mm (Ø5.8” x 4.4”)
Weight 0.75 kg (1.7 lb)
Ingress Protection IP67
Vandal Resistance IK10
Web Interface
Installation Management Web‐ based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Live View, Video Recording, Change Video Quality, Bandwidth Control,
Image Snapshot, Text Overlay, Image Masking
Language
Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian,
Spanish
Applications
Network Storage
GV ­DVR / NVR (V8.7.4.0), GV ­ VMS (V17.1), GV ­Control Center (V3.5.0.0),
GV ‐Edge Recording Manager (V1.3.0.0), GV ‐Recording Server / Video Gateway (V1.4.0.0),
GV ­Redundant / Failover Server (V1.1.0.0)
Smart Device Access GV ‐Eye for iOS and Android
Live Viewing Browser (IE, Firefox, Safari), Mobile App

Note:
1. It is required to apply patch files to all the supported software.
2. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
3. Specifications are subject to change without notice.

Packing List
1. IR Vandal Vandal Proof Dome
2. Waterproof Rubber Set
3. Screw Kit
4. Drill Template Paster
5. Torx Wrench
6. Download Guide
7. Warranty Card
Note: Power adapters can be purchased upon request.


GV-AVD8710 July 25, 2018
- 3 -

Accessories
Model No. Name Details

GV ‐Mount211 ‐ 2 Wall Mount Bracket


Dimensions: 253 x125 x 125 mm (10” x 4.9” x
4.9”)
Weight: 0.92 kg (2.02 lb)

GV ‐Mount212 ‐ 2 Wall Box Mount


Dimensions: Ø145 x 40 mm (5.7” x 1.6”)
Weight: 0.24 kg (0.5lb)

GV ‐PA191

Power over Ethernet
(PoE) Adapter


The GV ‐PA191 is a Power over Ethernet (PoE)
adapter designed to provide power to the IP
device through a single Ethernet cable.

GV ‐ POE Switch
The GV ‐ POE Switch is designed to provide power along with network connection for

IP devices. The GV ‐ POE Switch is available in various models with different numbers

and types of ports.

Power Adapter Contact our sales representatives for the countries and areas supported.


GV-AVD8710 July 25, 2018
- 4 -
