Przełącznik/switch niezarządzalny 10-portowy, 8xRJ45 100Mb PoE 15.4W lub 4xRJ45 100Mb PoE+ 30W, max budżet PoE 120W, uchwyty RACK...
Gwarancja: 24 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
GV-APOE0810 June 16, 2020
- 1 -

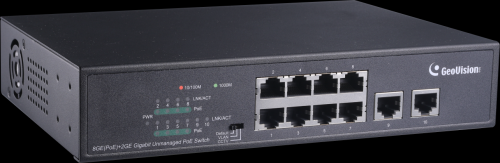

GV-APOE0810 10-Port 10/100/1000M Unmanaged PoE Switch with 8-Port PoE
10‐ port 10/100/1000BaseT(X), 8 ‐ port with Power over
Ethernet
IEEE 802.3at Compliant
(8 Ports at Full 15.4 W / 4 Ports at Full 30 W)
Max. 125 W power consumption
VLAN mode for network partition and enhanced
performance
PoE connection for network cables up to 250 m (820 ft) at
10 Mbps transfer rate
11" Metal Case
Up to 8 GV ‐ IP Camera support
Introduction
GV ‐APOE0810 is a 10 ‐ port 10/100/1000 Mbps unmanaged PoE Switch with 8 PSE/PoE ports and 2 uplink ports. The switch supports
IEEE 802.3at Power over Ethernet standard, up to 32 W per port, for up to 8 GV ‐ IP devices and a maximum power consumption of 125
W. In addition to not requiring special network cables for connecting your powered devices (PD), such as IP cameras, it also allows
power supply over cables of up to 250 m (820 ft) in length, at 10 Mbps. The switch is designed for small or medium network
environment to strengthen its network connection and effic iency. It also provides the option to isolate each of the PoE ports for an
enhanced forwarding rate of time.
Dimensions
GV-APOE0810 June 16, 2020
- 2 -
Specifications
Ethernet
Layer Supported L2
Ports
8 x PoE+ ports
Number of Ports 10 x Gigabit RJ ‐45ports:
2 x uplink ports
Performance
MAC Address 8 K
Buffer Memory 2 M bits
Transmission Method Store and Forward
Transmission Media
10/100BaseT(X) Cat. 5 UTP/STP
1000BaseT Cat. 5e, 6 UTP/STP
Packet Forwarding Rate 13.4 Mpps
Backplane Capacity 20 Gbps
Mechanical Characteristics
LED Indicators
Per Port: Link/Act
PoE Act/Status
Power
Electrical Characteristics
Input 100 ~ 240 V/AC, 50 ~ 60 Hz
PoE Power
Output
IEEE 802.3at Compliant Voltage, Per Port Max. 32 watts
(8 Ports at Full 15.4 W / 4 Ports at Full 30 W)
PoE Power Supply Type End ‐Span (1, 2+, 3, 6 ‐ )
Max. Power Consumption 125 W
PoE Budget 120 W
General
Dimensions (H x W x D) 44 x 220 x 150 mm (1.73” x 8.66” x 5.91”)
Weight 1.24 kg (2.73 lb)
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature ‐40°C ~ 70°C ( ‐40°F ~ 158°F)
Humidity 10 to 90% RH (non ‐condensing)
Standards and Regulatory
Standards
IEEE‐ 802.3at PoE+ / PSE
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.ab 1000BaseT
IEEE 802.3x Flow Control
Regulatory CE, FCC Class A, RoHS compliant
Note: Specifications are subject to change without notice.
Packing List
1. GV ‐APOE0810
2. AC Power Cord
3. Rubber Feet x 4
4. Rack Mount Kit
5. Screws x 8
GV-APOE0810 June 16, 2020
- 3 -
Front View
Rear View
