GV-APOE0400

Przełącznik/switch niezarządzalny 6-portowy, 4xRJ45 100Mb PoE 15.4W lub 2xRJ45 100Mb PoE+ 30W, max budżet PoE 60W...

Gwarancja: 24 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

GV-APOE0400 June 16, 2020
- 1 -
GV-APOE0400 6-Port 10/100 Mbps Unmanaged PoE Switch with 4-Port PoE


 6 ‐ port 10/100BaseTX, 4 ‐ port with Power over Ethernet
 IEEE 802.3at Compliant
(4 Ports at Full 15.4 W / 2 Ports at Full 30 W)
 Max. 65 W power consumption
 PoE connection for network cables up to 250 m (820 ft) at
10 Mbps transfer rate
 6" Metal Case of Palm Size
 Up to 4 GV ‐ IP Camera support

Introduction
GV ‐APOE0400 is a 6 ‐ port 10/100 Mbps unmanaged PoE Switch with 4 PSE/PoE ports and 2 uplink ports. The switch supports IEEE
802.3at Power over Ethernet standard, with up to 32 W per port and a maximum power consumption of 65 W. In addition to not
requiring special network cables fo r connecting your powered devices (PD), such as IP cameras, it also allows power supply over cables
of up to 250 m (820 ft) in length, at 10 Mbps. The switch is designed for small network environment to strengthen its network
connection and efficiency.

Dimensions










GV-APOE0400 June 16, 2020
- 2 -
Specifications
Ethernet
Layer Supported L2

Ports

4 x PoE+ ports

Number of Ports 6 x 10/100 RJ ‐ 45 ports:
2 x uplink ports

Performance

MAC Address 2 K

Buffer Memory 768 K bits

Transmission Method Store and Forward

Transmission Media
10BaseT Cat. 5 UTP/STP
100BaseTX Cat. 5 UTP/STP

Packet Forwarding Rate 0.89 Mpps

Backplane Capacity 1.2 Gbps

Mechanical Characteristics

LED Indicators
Per Port: Link/Act
PoE Act/Status
Power

Electrical Characteristics

Input 100 ~ 240 V/AC, 50 ~ 60 Hz

PoE Power
Output
IEEE 802.3at Compliant Voltage, Per Port Max. 32 watts
(4 Ports at Full 15.4 W / 2 Ports at Full 30 W)

PoE Power Supply Type End ‐Span (1, 2+, 3, 6 ‐ )

Max. Power Consumption 65 W

PoE Budget 60 W

General

Dimensions (H x W x D) 32 x 168 x 94 mm (1.26" x 6.61" x 3.70")

Weight 0.5 kg (1.10 lb)

Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)

Storage Temperature ‐20°C ~ 90°C ( ‐ 4°F ~ 194°F)

Humidity 10 to 90% RH (non ‐condensing)

Standards and Regulatory

Standards
IEEE‐ 802.3at PoE+ / PSE
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3x Flow Control

Regulatory CE, FCC Class A, RoHS compliant

Note: Specifications are subject to change without notice.


Packing List
1. GV ‐APOE0400
2. AC Power Cord
3. Rubber Feet x 4



GV-APOE0400 June 16, 2020
- 3 -

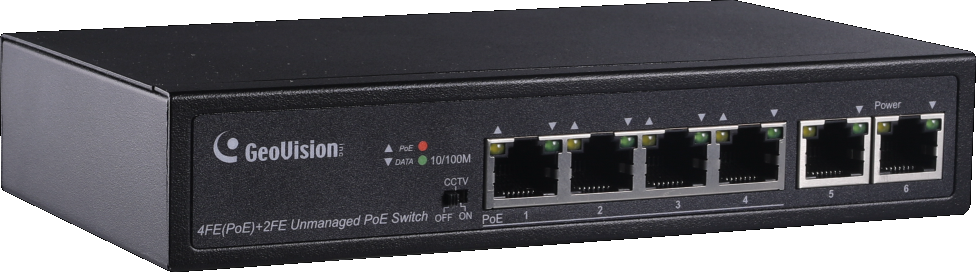

Front View




Rear View
