GV-AI Server(VA)/2

Dostępność: 0
Cena: 4 788,58 zł 4788.58 (1 023,31 €)
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: GEOVISION
Kod produktu: 55-SR00000-0002

Opis

Klucz licencyjny z oprogramowaniem do automatycznej analizy ruchu i zdarzeń w sklepach na 2 dowolnych kamerach IP...

Gwarancja: 36 mies.

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

GV-AI Server February 22, 2021
-1-
GV-AI Server




INTRODUCTION
GV ‐ AI Server is a video analytic software designed to provide various VA features at a retail store for up to 4 channels of IP cameras. It is
able to identify and compile customer statistics, such as age, gender and customer behavior for sales maximization, as well as
automatically notify managers or security personnel of inventory shortages or upon detecting suspicious persons.


KEY FEATURES
* Support for up to 4 channels of IP cameras
* Realtime face recognition and tracking
* Average recognition speed of within 1 second per face when the recognition targets are moving toward the cameras
* Face profiling by age and gender
* Product Attention with heatmap display for monitoring product interest by foot traffic
* Short Inventory monitoring and alert
* Queue Management for monitoring the cashier checkout time and the number of persons waiting in line
* Suspect & Loitering Detection
* Human Counter for counting the number of people that enter and exit at the vicinity.
* Support for GV ‐ 3D People Counter for collecting people flow data In / Out / Stay
* Automatic compilation of statistical graphs for each type of VA event

GV-AI Server February 22, 2021
-2-
* Exportable daily / weekly / monthly / yearly average hourly or daily visitor count
* Query by VA events
* Integration of GV ‐VMS for video recording and playing back face recognition events
* Master and Slave feature for interconnecting multiple GV ‐ AI Servers with a centralized Face Database

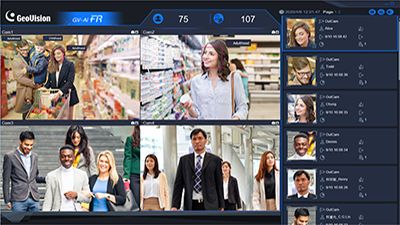

Live Monitoring & Welcome
When a person enters the premises, the corresponding face attributes result, along with a predefined image, can be displayed on the
connected Welcome screens, playing an advertisement, for greeting and/or commercial purposes.

Dashboard & Average Hourly / Daily Face Count
The Dashboard and Hourly /Daily Face Count features of GV ‐ AI Server respectively display the distribution of age and gender of visitor
face events within a day and an average hourly / daily visitor face count for a selected day, week, month or year.



Visitor Face Attributes & Face Recognition
The Face Attributes / Face Recognition features can capture and store the faces of the visitors detected, along with their attributes, and
can be enrolled into or compared with the face database of GV ‐ AI Server.

Suspect & Loitering Detection
The Suspect & Loitering Detection feature can monitor for, capture and play back suspicious persons and/or loitering activities at the
vicinity.

Human Counter
The Human Counter feature can count the number of persons detected entering and exiting at the vicinity.

Product Attention & Short Inventory Alert
The Product Attention and Short Inventory Alert features allow for merchandising adjustment and sales optimization by monitoring
and counting the numbers of persons dwelling at different product regions with a heatmap display, and also notifying store managers of
inventory shortages.

Queue Management
The Queue Management feature can monitor the cashier checkout time and the number of persons waiting in line, and notify store
personnel whenever either of the two exceeds the limits set.

GV-AI Server February 22, 2021
-3-
LICENSE
GV ‐ AI Server is a paid software that requires a GV ‐Dongle license, which is available in increments of 1 channel, from 1 – 4 channels.
Free License
N/A
Maximum License
4 Channels
Increment of License
1 Channel
License Type

1. Face Recognition (FR) only

2. Video Analytics (VA) only: includes Face Attributes, Product Attention, Short Inventory

Alert, Queue Management, Suspect & Loitering Detection, Human Counter

3. FR + VA features
Dongle Type
Internal / External
Note: GV ‐USB Dongle comes in internal and external dongles. Internal dongle is recommended for its Hardware Watchdog function,
which automatically restarts the PC when Windows crashes or freezes.


MINIMUM SYSTEM REQUIREMENTS
Below are the minimum PC requirements for connecting and performing face recognition with up to 4 channels of IP cameras.

1 – 4 Channels
OS 64‐bit
Windows 10
CPU
8
th
‐Generation Intel Core i7 / i9 or above
Memory
16 GB (8 GB x 2) DDR4 RAM
Remote Access
Microsoft Internet Explorer 11 or later
Note:
1. For video analytics, the utilization of the graphics processor of 8
th
‐ gen Intel Core i7 / i9 or above is required, which only works
when a monitor is connected to its PC.
2. Only Intel Core processors are compatible with GV ‐ AI Server; other brands of CPU do not work with GV ‐ AI Server.
3. For remote access through a browser, Internet Explorer mus t be used, as some functions will be nonfunctional through non ‐ IE
browsers.
4. GV ‐ AI Server does not support virtual machine installation.


SPECIFICATIONS
Video Input Up to 4 channels

Video Codec H.264, H.265

Video Resolution Up to 12 Megapixels per channel

IP Camera Supported
GV ‐ Face Detection Cameras (GV ‐BX2600 ‐ FD / 2700 / 2700 ‐ FD / 4700 / 4700 ‐ FD / 8700 ‐FD,
GV ‐MD8710 ‐ FD), GV ‐Fisheye Cameras, IP cameras via ONVIF or RTSP, USB webcams

Networking LAN, WAN, Internet

Functions
Face Attributes, Face Recognition, Product Attention, Short Inventory Alert, Queue
Management, Suspect & Loitering Detection, Human Counter

Face Recognition
Speed
Within 1 second per face when the recognition targets are moving toward the cameras

No. of Face Profiles 100,000

No. of Face Groups Unlimited

Video
Analysis
No. of GV ‐ AI Server
Interconnectable
11 (1 Master + 10 Slaves, sharing 1 Face Database managed by the Master)

VA Event Trigger I/O Box Output, LINE Notification, Push Notifications from Mobile App

Software Integration GV ‐ VMS V18.1 or later (video surveillance)

Mobile App
GV ‐Assistant app
GV ‐Welcome for Android TV boxes / mobile devices (for Welcome screen display)

Language English

Note: All specifications are subject to change without notice.


GV-AI Server February 22, 2021
-4-
OPTIONS
Optional Devices
Description
GV ‐ 3D People Counter V2

GV ‐ 3D People Counter V2 allows for counting the numbers of persons entering, exiting and

staying at the premises with high precision.

GV ‐ IO Box (Ethernet) Series

GV ‐ IO Box series (4E / 8E / 16E) provide 4 / 8 / 16 inputs and relay outputs and support Ethernet

module, with 4E additionally supporting PoE connection.
