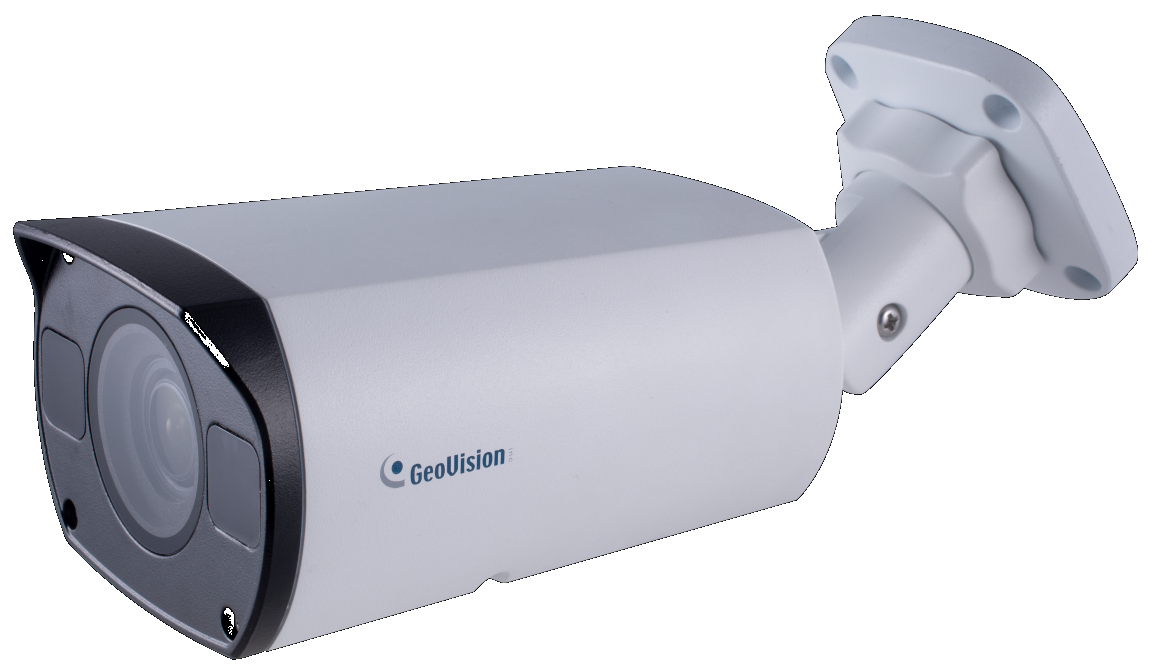

GV-ABL4711

Kamera IP typu mini-bullet, IP67 wandaloodporna IK10, oświetlacz 50m, 4.0M-30 kl./s, H.265, WDR PRO, PoE, SDXC, 2.8~12mm P-iris, czuła 0.003lx, moto-zoom 4x...

Gwarancja: 24 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: GV-TBL4810

Kod produktu zamiennego: 84-TBL480W-0010

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

GV-ABL4711 February 18, 2021
- 1 -
GV-ABL4711 4MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Bullet IP Camera



• 1/3" progressive scan super low lux CMOS sensor
• Min. illumination at 0.003 lux
• Triple streams from H.265, H.264 or MJPEG
• Up to 30 fps at 2688 x 1520
• Motorized varifocal lens for remote focus / zoom adjustment
• Intelligent IR
• IR distance up to 50 m (165 ft)
• Day and night function (with removable IR-cut filter)
• Vandal Resistance (IK10 for metal casing)
• Ingress protection (IP67)
• Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10)
for local storage
• Two-way audio
• DC 12V / PoE (IEEE 802.3af)
• Wide Dynamic Range Pro (WDR Pro)
• Defog
• 3D noise reduction
• Motion detection
• Text overlay
• Privacy mask
• Tampering Alarm
• 12 languages supported
• ONVIF (Profile G, S, T) conformant

Introduction
The Bullet IP Camera is an outdoor, network camera equipped with an automatic IR-cut filter and IR LEDs for day and night
surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at
reduced network bandwidths. GV-ABL4711 adheres to IK10 and IP67 standards, and can be powered through PoE.

Active Tampering Alarm
Tampered Focus Change Camera Shift






GV-ABL4711 February 18, 2021
- 2 -
Dimensions



Specifications
Camera
Image Sensor 1/3" progressive scan super low lux CMOS
Picture Elements 2688 (H) x 1520 (V)
Minimum
Illumination
Color 0.003 Lux (F1.6, AGC ON)
IR On 0 Lux
Shutter Speed Auto / Manual (1/6 ~ 1/100000 sec)
White Balance Auto / Manual
Gain Control Auto / Manual
S/N Ratio 52 dB
WDR Pro Yes
Dynamic Range Up to 120 dB
Lens
Megapixel 4 MP
Day / Night Yes (with removable IR-cut filter)
Lens Type Motorized varifocal lens
Focal Length 2.8 ~ 12 mm
Maximum Aperture F/1.6
Mount Ø14 mm
Horizontal FOV 31 ~ 98°
Operation
Focus Auto / Manual
Zoom 4.3x Optical Zoom
Iris Fixed
IR LED Quantity 3 IR LEDs
Max. IR Distance 50 m (165 ft)
Operation
Video Compression H.265, H.264, MJPEG
Video Streaming Triple streams
Video
Resolution
Main Stream 2688 x 1520, 2560 x 1440 (Default), 2304 x 1296, 1920 x 1080
Sub Stream 1280 x 720, 704 x 576, 704 x 288, 340 x 480, 640 x 360 (Default), 352 x 288
Third Stream
(Closed by Default)
640 x 360, 352 x 288
Frame Rate
30 fps at 2688 x 1520, 30 fps at 2560 x 1440, 30 fps at 2304 x1296 (60 / 50 Hz)
* The frame rate and performance may vary depending on the number of
connections and data bitrates (different scenes).
Video Analytics Motion Detection, Tampering Alarm, Intrusion, Human Body Detection
Image Setting
Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction, Image
Orientation, Exposure Mode, Shutter Speed, Gain Control, Slow Shutter, Backlight
Compensation (BLC), Metering Control, D/N Sensitivity, WDR, Smart Illumination,
White Balance, Defog
Audio Compression G.711


GV-ABL4711 February 18, 2021
- 3 -
Audio Support Two‐way Audio (external microphone and speaker required)
Digital I/O
Input 1 Input, dry contact, NO / NC
Output 1 Relay Output (1A 30V DC / 0.3A 125V AC)
Network
Interface 10/100 Ethernet
Protocol
ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE,
QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T)
Mechanical
Camera Angle
Adjustment
Pan 0 ~ 360°
Tilt 0 ~ 120°
Rotate 0 ~ 360°
Connectors
Power DC Jack, PoE
Ethernet RJ-45
Audio
1 in (Audio In Wire); 1 out (Audio Out Wire)
*The Audio In port only supports microphones with power supply
Digital I/O 4-pin terminal block pitch 3.5 mm (0.14”)
Local Storage
Micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10)
* UHS-II card type is not supported.
General
Operating Temperature -30 ~ 60°C (-22 ~ 140°F)
Humidity 0 ~ 95% (no condensation)
Power Source 12 V DC / PoE (IEEE802.3af)
Max. Power Consumption 9.5 W
Dimensions 244 x 96 x74 mm (9.6” x 3.8” x 2.9”)
Weight 1.0 kg (2.2 lb)
Ingress Protection IP67
Vandal Resistance IK10 for metal casing
Regulatory FCC, CE, RoHS compliant
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Text Overlay, Image Masking
Language
Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese,
Russian, Spanish, Traditional Chinese
Applications
Software Supported
GV-VMS (V17.3.0 / V18.1.1), GV-DVR / NVR (V8.8), GV-Control Center (V3.7.0),
GV-Recording Server / Video Gateway (V1.4.2), GV-Edge Recording Manager Win
version (V1.4.0), GV-Redundant / Failover Server (V1.1.0.0)
*It is required to apply patch files to all the supported software.
Smart Device Access GV-Eye for iOS and Android
Live Viewing
Internet Explorer, Non-IE browser (Chrome, Edge, Firefox, Safari), Mobile App
*The non-IE browsers only support displaying live view with H.264.
Note:
1. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
2. Specifications are subject to change without notice.

Packing List
1. Bullet IP Camera
2. Waterproof Rubber Set
3. Screw Kit
4. Drill Template Paster
5. Download Guide
6. Warranty Card








GV-ABL4711 February 18, 2021
- 4 -
Accessories
Model No. Name Details
GV-Mount300-2 Convex Corner Mount


Dimensions: 137 x 233 x 160 mm (5.4” x 9.17”
x 6.3”)
Weight: 1.65 kg (3.64 lb)
GV-Mount310-2 Concave Corner Mount


Dimensions: 111.2 x 369.9 x 210 mm (2.6” x
11.4” x 6.6”)
Weight: 1.65 kg (3.64 lb)
GV-Mount503 Wall Mount Bracket


Dimensions: 125 x 125 x 55 mm (4.9 x4.9
x2.2”)
Weight: 0.74 kg (1.63 lb)
GV-Mount420
(must be used with
GV-Mount503)
Pole Mount Bracket



Dimensions: Ø 120 x 120 x 53.4 mm (Ø 4.7 x
4.7 x 2.1”)
Weight: 0.45 kg (0.99 lb)
Steel Strap Diameter: Ø 67 ~ 127 mm (Ø 2.6” ~
5”)
GV-PA191 Power over Ethernet (PoE)
Adapter


GV-PA191 is a Power over Ethernet (PoE)
adapter designed to provide power to the IP
device through a single Ethernet cable.
GV-POE Switch GV-POE Switch is designed to provide power along with network connection
for IP devices. The GV-POE Switch is available in various models with different
numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.
