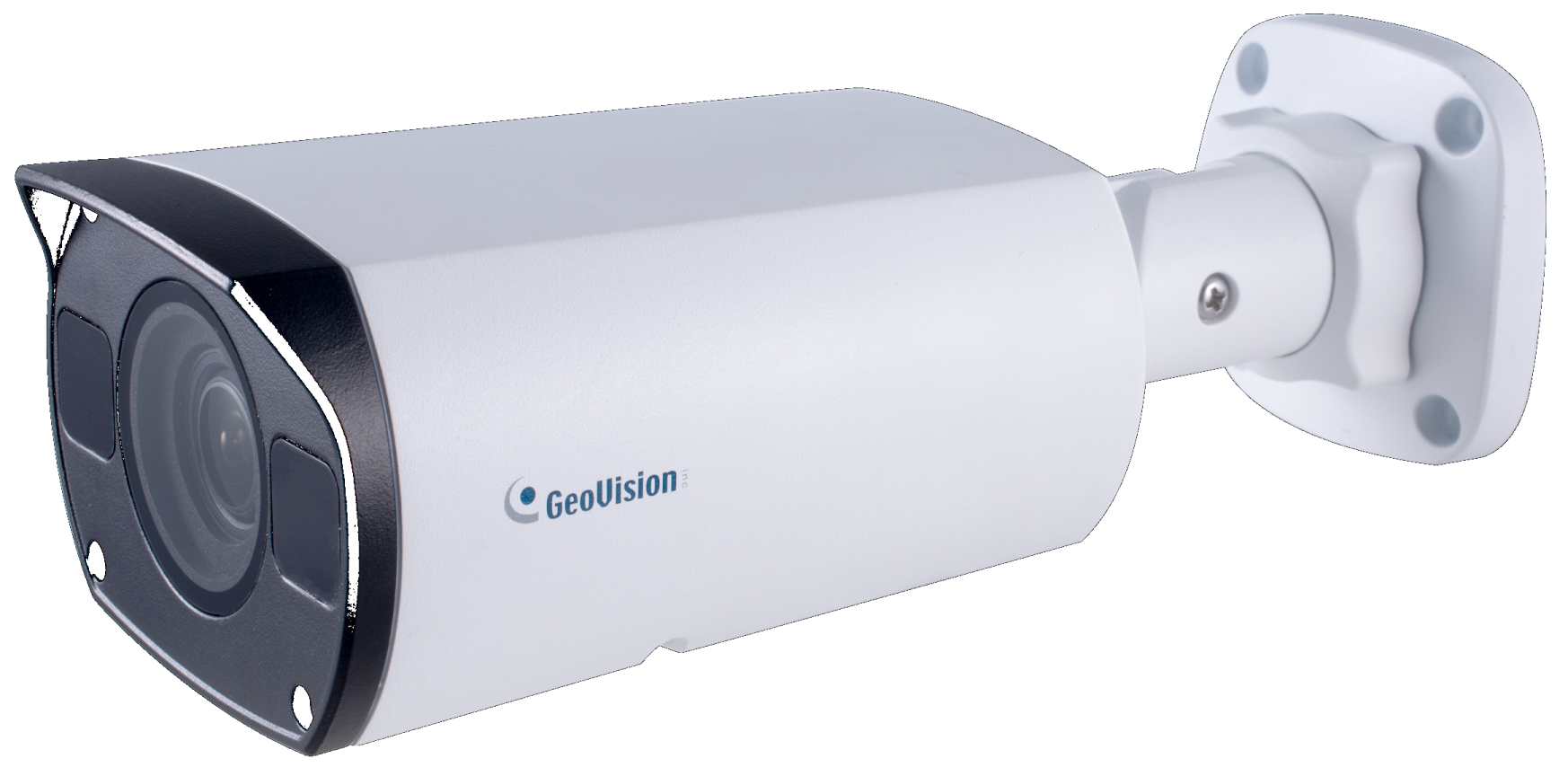

GV-ABL2702

Kamera IP typu mini-bullet, IP67 wandaloodporna IK10, oświetlacz 50m, 2.0M-30 kl./s, H.265, WDR PRO, PoE, SDXC, 2.8~12mm P-iris, czuła 0.002lx...

Gwarancja: 24 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: GV-TBL4700

Kod produktu zamiennego: 84-TBL4700-0010

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

GV-ABL2701 July 23, 2018
- 1 -
GV-ABL2702 2MP H.265 Low Lux WDR Pro IR Bullet IP Camera



* 1/2.9" progressive scan low lux CMOS sensor
* Min. illumination at 0.002 lux
* Triple streams from H.265, H.264 or MJPEG
* Up to 30 fps at 1920 x 1080
* Intelligent IR
* IR distance up to 50 m (164 ft)
* Day and night function (with removable IR ‐ cu t filter)
* Ingress protection (IP67)
* Vandal Resistant (IK10)
* Built ‐ in micro SD card slot (SD / SDHC / SDXC / UHS ‐ I, Class 10)
for local storage
* Two ‐way audio
* DC 12V / PoE (IEEE 802.3af)
* Wide Dynamic Range Pro (WDR Pro)
* Defog
* 3D noi se reduction
* Motion detection
* Tampering Alarm
* Text overlay
* Privacy mask
* ONVIF (Profile S) conformant


Introduction

The Bullet IP Camera is an outdoor, fixed, network camera equipped with an automatic IR ‐cut filter and 3 IR LEDs for day and night
surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at
reduced network bandwidths. With Wide Dynamic Range Pro (WDR Pro), it can process scenes with contrasting intensities of light
and produce clear image. The camera adheres to IK10 and IP67 standards and can be powered through PoE.

Active Tampering Alarm
Tampered Focus Change Camera Shift




GV-ABL2701 July 23, 2018
- 2 -
Dimensions




Specifications
Camera
Image Sensor 1/2.9" progressive scan low lux CMOS

Picture Elements 1920 (H) x 1080 (V)

Color 0.002 Lux

Minimum
Illumination
IR ON 0 Lux

Shutter Speed Auto / Manual (1/6 ~ 1/100000 sec)

White Balance Auto / Manual

Gain Control Auto / Manual

S/N Ratio 52 dB

WDR Pro Yes

Dynamic Range Up to 120 dB

Lens

Megapixel Yes

Day / Night Yes (with removable IR ‐cut filter)

Lens Type Varifocal lens

Focal Length 2.8 ~ 12 mm

Maximum Aperture F/1.4

Mount Ø14 mm

Horizontal FOV 92° ~ 34°

Focus Manual (with lock)

Zoom Manual (with lock)

Operation
Iris Fixed

IR LED Quantity 3 IR LED

Max. IR Distance 50 m (164 ft)




GV-ABL2701 July 23, 2018
- 3 -
Operation
Video Compression H.265, H.264, MJPEG

Video Streaming Triple streams

Main Stream 1920 x 1080 (Default)

Sub Stream 1280 x 720, 720 x 576 (Default), 704 x 288,352 x 288

Video Resolution
Third Stream
(Closed by Default)
720 x 576, 704 x 288, 352 x 288

Frame Rate
30 fps at 1920 x 1080 (60 / 50 Hz)
* The frame rate and performance may vary depending on the number of
connections and data bitrates (different scenes).

Image Setting
Brightness, Contrast, Saturation, Sharpness, 3D Noise reduction, Image Orientation,
Exposure Mode, Shutter Speed, Gain Control, Slow Shutter, Backlight Compensation
(BLC), Metering Control, D/N Sensitivity, WDR, Smart Illumination, White Balance,
Defog

Video Analytics Motion Detection, Tampering Alarm

Audio Compression G.711

Audio Support Two ‐way Audio

Sensor Input 1 Input

Alarm Output 1 Digital Output

Network

Interface 10/100 Ethernet

Protocol
ARP, DHCP, DNS, DDNS, DynDNS, FTP, HTTP, HTTPS, IPv4, IPv6, ICMP, IGMP, L2TP,
NTP, PPPoE, RTP, RTSP, RTCP, SMTP, SIP, TCP/IP, UDP, UPnP, 802.1x, ONVIF (Profile S)

Mechanical

Power DC Jack (DC 12V, 1A), PoE (IEEE802.3af)

Ethernet RJ ‐ 45 connector

Audio
1 in (Audio In Wire); 1 out (Audio Out Wire)
*The Audio In port only support microphones with power supply.

Digital I/O 4 ‐pin terminal block pitch 3.5 mm (0.14”)

Connectors
Local Storage
Micro SD card slot (SD / SDHC / SDXC / UHS ‐ I, Class 10)
*UHS‐ II card type is not supported.

General

Operating Temperature ‐35°C ~ 60°C ( ‐22°F ~ 140°F)

Humidity 0% to 95% (no condensation)

Power Source 12 V DC / PoE (IEEE802.3af)

Max. Power Consumption 9 W

Dimensions 253.4 x 86 x 71.1 mm (9.98” x 3.4” x 2.8”)

Weight 0.58 kg (1.28 lb)

Ingress Protection IP67

Vandal Resistance IK10

Regulatory FCC, UL, CE, RoHS compliant

Web Interface

Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Defog, Tampering Alarm, Text Overlay, Image Masking

Language
Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese,
Russian, Spanish
Applications
Software Supported
GV ‐ DVR / NVR (V8.7.4.0), GV ‐ VMS (V17.1), GV ‐Control Center (V3.5.0.0),
GV ‐Edge Recording Manager (V1.3.0.0), GV ‐Recording Server / Video Gateway
(V1.4.0.0), GV ‐Redundant / Failover Server (V1.1.0.0)

Smart Device Access GV ‐ Eye for iOS and Android

Live Viewing Browser (IE, Firefox, Safari), Mobile App

Note:
1. It is required to apply patch files to all the supported software.
2. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
3. Specifications are subject to change without notice.

GV-ABL2701 July 23, 2018
- 4 -
Packing List
1. IR Bullet IP Camera
2. Waterproof Rubber Set
3. Screw Kit
4. Drill Template Paster
5. Download Guide
6. Warranty Card
Accessories
Model No. Name
Details

GV ‐Mount503 Wall Mount Bracket




Dimensions: 125 x 125 x 55 mm (4.9” x4.9”
x2.2”)
Weight: 0.74 kg (1.63 lb)

GV ‐PA191 Power over Ethernet
(PoE) Adapter



The GV ‐PA191 is a Power over Ethernet (PoE)
adapter designed to provide power to the IP
device through a single Ethernet cable.

GV ‐ POE Switch The GV ‐ POE Switch is designed to provide power along with network connection for IP

devices. The GV ‐POE Switch is available in various models with different numbers and

types of ports.

Power Adapter
Contact our sales representatives for the countries and areas supported.
