GV-800/4

Dostępność: 11-50
Cena: 1 191,07 zł 1191.07 (275,42 €)
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: GEOVISION
Kod produktu: 55-G8BEX-040

Opis

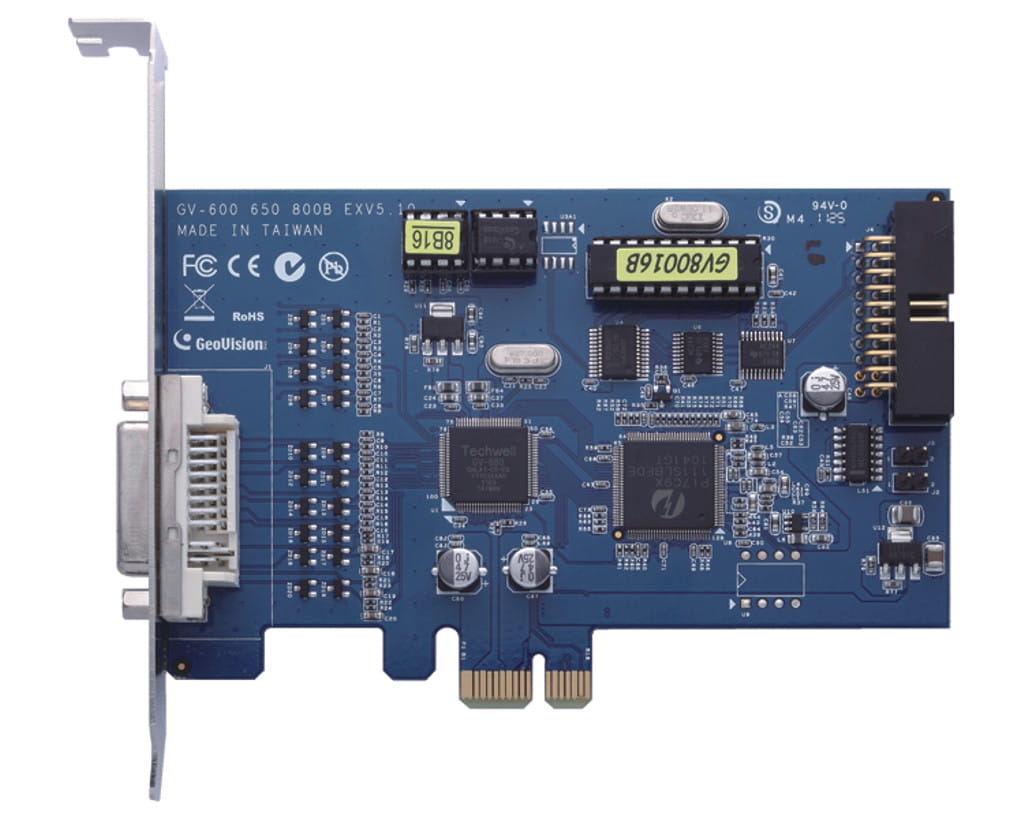

Karta PCI-Ex z oprogramowaniem umożliwiającym nadzór wizyjny 4 kamer analogowych (D1-50 kl./s, H.264) i 28 kamer IP firmy GeoVision...

Gwarancja: 36 mies.

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

GV-800B October 14, 2016
-1-




GV ‐ 800B Card provides up to 16 video channels and 4 audio channels, recording up to 120 / 100 fps (NTSC / PAL) in total with H.264
software compression.
Specifications
GV ‐ 800B
GV ‐ 800B X 2
Interface
PCI ‐ E (x1)
PCI ‐ E (x1) x 2,
PCI x 1 + PCI ‐ E (x1) x 1
Input Type DVI
Video Input 4, 8, 16 Cams 8, 12, 16, 20, 24, 32 Cams
Audio Input 4 Channels 8 Channels
NTSC
4 ‐ port: 120 fps
16‐ port: 120 fps
4+4 port: 240 fps
16+16 port: 240 fps
CIF
PAL
4 ‐ port: 100 fps
16‐ port: 100 fps
4+4 port: 200 fps
16+16 port: 200 fps
NTSC
4 ‐ port: 120 fps
16‐ port: 60 fps
4+4 port: 240 fps
16+16 port: 120 fps
Recording
Rate
D1
PAL
4 ‐ port: 100 fps
16‐ port: 50 fps
4+4 port: 200 fps
16+16 port: 100 fps
NTSC
4 ‐ port: 120 fps
16‐ port: 120 fps
4+4 port: 240 fps
16+16 port: 240 fps
CIF
PAL
4 ‐ port: 100 fps
16‐ port: 100 fps
4+4 port: 200 fps
16+16 port: 200 fps
NTSC
4 ‐ port: 120 fps
16‐ port: 60 fps
4+4 port: 240 fps
16+16 port: 120 fps
Display Rate
D1
PAL
4 ‐ port: 100 fps
16‐ port: 50 fps
4+4 port: 200 fps
16+16 port: 100 fps
NTSC 704x480, 704x480 De ‐interlace, 640x480, 640x480 De ‐interlace, 352x240, 320x240
Video
Resolution
PAL 704x576, 704x576 De ‐interlace, 640x480, 640x480 De ‐interlace, 352x288, 320x240
Video Compression Format Geo MPEG4, Geo H264
Audio Format 16 kHz / 16‐bit, 32 kHz / 16‐bit)
GV ‐NET/IO Card Support Yes
Dimensions (W x H) PCI ‐ E 120 x 82 mm / 4.7 x 3.2 in
Installation Guide GV ‐ 800B
Note:
1. GV ‐ 800B is currently not compatible with VIA series and ATI series chipset motherboards.
2. 8 ‐ port has the same recording rate and display rate as 16‐port.
3. Specifications are subject to change without notice.

GV-800B October 14, 2016
-2-


Minimum System Requirements For One Card, CIF Resolution
32‐bit Windows 7 / 8 / 8.1 / 10 / Server 2008
OS Supported
64‐bit Windows 7 / 8 / 8.1 / 10 / Server 2008 R2 / Server 2012
CPU Pentium 4, 3.0 GHz with Hyper ‐Threading
RAM 2 x 1 GB Dual Channels
HDD 80 GB
Graphics Card AGP or PCI ‐Express, 800 x 600 (1280 x 1024 recommended), 32‐bit color
DirectX 9.0c
Minimum System Requirements For Two Cards, CIF Resolution
32‐bit Windows 7 / 8 / 8.1 / 10 / Server 2008
OS Supported
64‐bit Windows 7 / 8 / 8.1 / 10 / Server 2008 R2 / Server 2012
CPU Pentium 4, 3.0 GHz Dual Core
RAM 2 x 1 GB Dual Channels
HDD 160 GB
Graphics Card AGP or PCI ‐Express, 800 x 600 (1280 x 1024 recommended), 32‐bit color
DirectX 9.0c

Packing List
1. GV ‐ 800B Card x 1
2. 1 ‐ 16 Cams with 4 ‐ Port Audio DVI ‐Type Cable x 1 / 1 ‐ 8 Cams with 4 ‐ Port Audio DVI ‐Type Cable x 1 / 1 ‐ 4 Cams with 4 ‐Port Audio
DVI ‐Type Cable x 1
3. Hardware Watchdog Jumper Wire x 1
4. Software DVD x 1

Note: The 1 ‐ 16 Cams with 4 ‐Port Audio DVI ‐Type cable is supplied with GV ‐ 800B card with 16 video inputs, the 1 ‐ 8 Cams with 4 ‐Port
Audio DVI ‐Type cable is supplied with GV ‐800B card with 8 video inputs, while the 1 ‐ 4 Ca ms with 4 ‐Port Audio DVI ‐Type cable is
supplied with GV ‐800B card with 4 video inputs.

Accessories
4 cam video cable 8 cam video cable 16 cam video cable
