GV-1240/16

Dostępność: 0
Cena: 3 664,85 zł 3664.85 (847,46 €)
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: GEOVISION
Kod produktu: 55-1240B-160

Opis

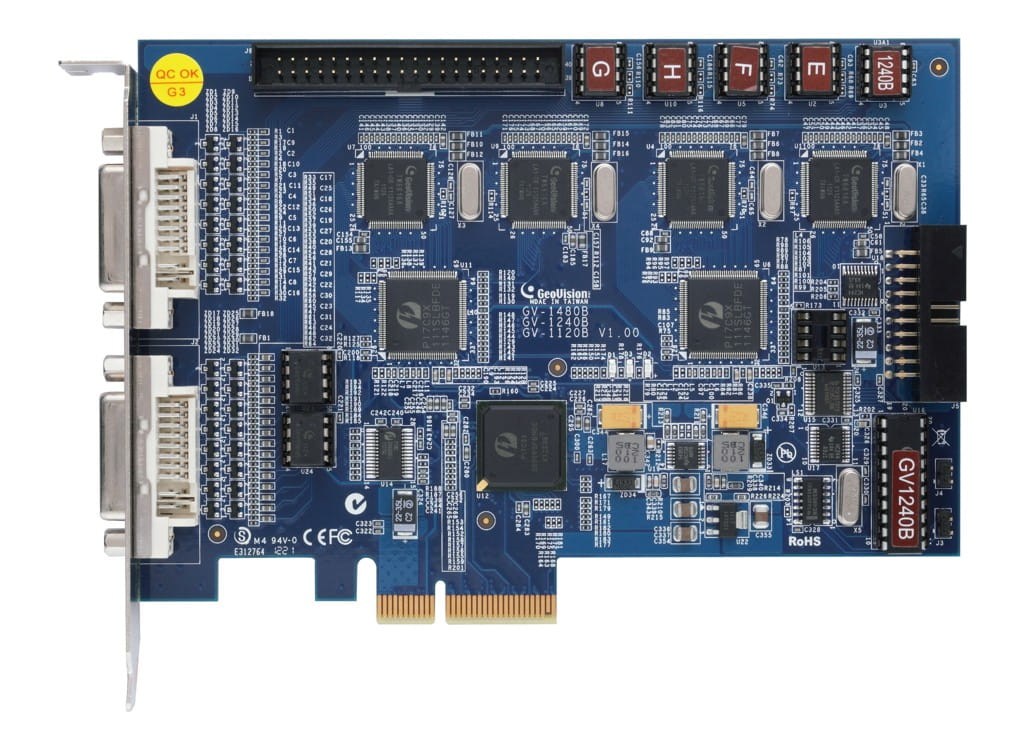

Karta PCI-Ex z oprogramowaniem umożliwiającym nadzór wizyjny 16 kamer analogowych (D1-200 kl./s, H.264) i 16 kamer IP firmy GeoVision...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

GV-1240B October 14, 2016
-1-





Specifications
GV ‐1240B
GV ‐1240B x 2
Interface PCI ‐ E (x4)
PCI ‐ E (x4) x 2
Input Type
DVI
Video Input 16 Cams 32 Cams
Audio Input 16 Channels 32 Channels
NTSC 240 fps
480 fps
CIF
PAL 200 fps
400 fps
NTSC 240 fps
480 fps
Recording Rate
D1
PAL 200 fps
400 fps
NTSC 480 fps
960 fps
CIF
PAL 400 fps
800 fps
NTSC 480 fps
960 fps
Display Rate
D1
PAL 400 fps
800 fps
NTSC
704x480, 704x480 De ­interlace,
640x480, 640x480 De ­interlace, 352x240, 320x240
Video Resolution
PAL
704x576, 704x576 De ­interlace,
640x480, 640x480 De ­interlace, 352x288, 320x240

Video Compression Format Geo MPEG4, Geo H264

Audio Format 16 kHz / 16‐bit, 32 kHz / 16‐bit

GV ‐ Multi Quad Card Support Yes

GV ‐ Loop Through Card Support Yes

GV ‐NET/IO Card Support Yes

Dimensions (W x H) 156 x 111 mm / 6.14 x 4.37 in

Installation Guide GV ‐ 1240 B

Note:
1. GV ‐1240B does not support the TV ‐ Out function.
2. GV ‐1240B is currently not compatible with VIA series and ATI series chipset motherboards.
3. Specifications are subject to change without notice.



GV-1240B October 14, 2016
-2-

Minimum System Requirements For One Card, CIF Resolution
32‐bit Windows 7 / 8 / 8.1 / 10 / Server 2008
OS Supported
64‐bit Windows 7 / 8 / 8.1 / 10 / Server 2008 R2 / Server 2012
CPU Pentium 4, 3.0 GHz, Dual Core
RAM 2 x 1 GB Dual Channels
HDD 120 GB
Graphics Card
AGP or PCI ‐Express, 800 x 600 (1280 x 1024 recommended),
32‐bit color
DirectX 9.0c
Minimum System Requirements For Two Cards, CIF Resolution
32‐bit Windows 7 / 8 / 8.1 / 10 / Server 2008
OS Supported
64‐bit Windows 7 / 8 / 8.1 / 10 / Server 2008 R2 / Server 2012
CPU Core 2 Duo, 3.0 GHz
RAM 2 x 1 GB Dual Channels
HDD 250 GB
Graphics Card
AGP or PCI ‐Express, 800 x 600 (1280 x 1024 recommended),
32‐bit color
DirectX 9.0c


Packing List
1. GV ‐1240B Card x 1
2. 1 ‐ 16 DVI ‐Type Video Cable x 1
3. 1 ‐ 16 DVI ‐Type Audio Cable x 1
4. Hardware Watchdog Jumper Wire x 1
5. Software DVD x 1
