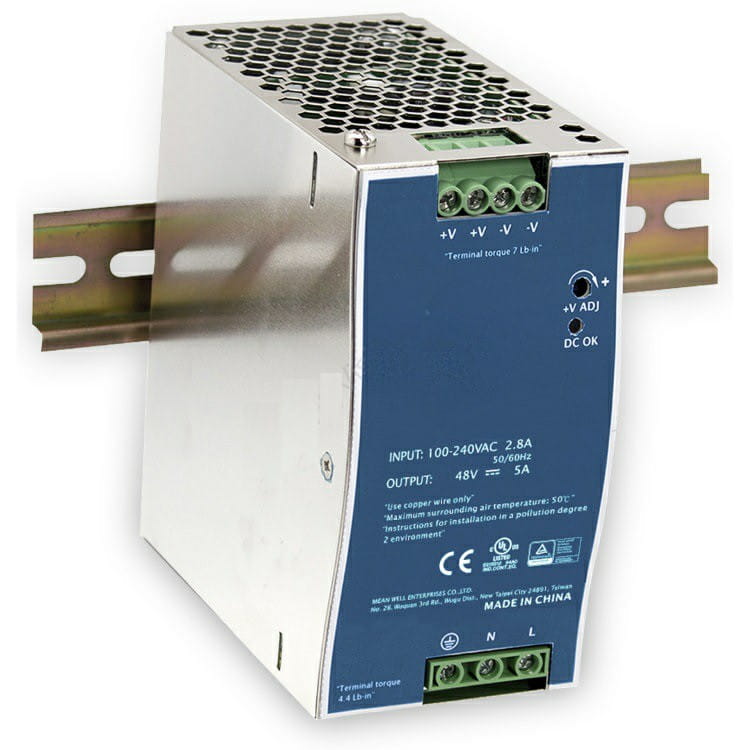

EDP-240-48
Opis
Zasilacz przemysłowy na szynę DIN, sprawność do 92%, zabezpieczenie przepięciowe/przeciążeniowe/zwarciowe, wyjście zasilania 48V/5A, wejście zasilania 110 ~ 230VAC...
Gwarancja: 36 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
EDP-240-48
PRODUCTSPECIFICATION
PoweraSafeandGreenworld
ExcellentCreativeUnited
TEL4006659997/0551-62731110
FAX+86-551-65324417*0
AddressNo.88PiheroadP.OBOX
9023-20,HefeiChina
Webhttp://www.ecupowersupply.com
Emailsales@ecu.com.cn
Features:
Smallsize124*62*119
Highreliability
UseTS-35/7.5orTS-35/15foreasyinstallation
andmaintenance
90%efficiency,lowloss
Built-inactivePFC
ComplywithRoHs6
Application:
Industrialcontrol
Cleanenergy
Trackandtraffic
ProductionandManufacturing
Itisveryharshonthesizeanduseenvironment
Systemwithhighrequirementsforlifeand
reliability
Rev:A01Catalog
BasicParameter_____________________________________________1
InputCharacteristics_________________________________________1
OutputCharacteristics________________________________________1
EnvironmentCharacteristics____________________________________1
ProtectionFunction___________________________________________2
SignalsFunction_____________________________________________2
ElectricalSafety_____________________________________________2
ElectromagneticCompatibility__________________________________3
Reliability__________________________________________________4
MechanicalInstallation________________________________________4
Appendix(Productassembly/Deratingcurve/Dintrackmounting)_______5
Specifications
-1-
BasicParameter
ItemUNITSpecificationNotes
OutputVoltageVdc48
AdjustablerangeV48~53
RatedcurrentA0~5
PeakCurrentA//
RatedpowerW240
Ripple&noisemVp-p150
DCoutputripple&noisetestconditions
1)Oscilloscopeshouldbelimitedat20MHZbandwidth;
2)Connect0.1UFceramiccapacitorsand47UFelectrolyticcapacitorsinparallelattheendofthewire;
3)Connecttheloadandpowersupplywitha300mmtwistedpair
4)Testingisdoneontheloadport;
InputCharacteristics
ItemUNITMINRatedMaxNotes
InputVoltageVac90230264Refertooutputderatingcurve.
Vdc127310370
InputFrequencyHz47~63
InputCurrentA//1.5230VacFullload
3.0115Vac,FullLoad.
InrushCurrentA//20110Vac,FullLoad.coldstart.
35220Vac,FullLoad.coldstart.
PowerFactor/0.98//110Vac,FullLoad.
0.95220Vac,FullLoad.
No-loadlossW4230Vac,NoLoad
InputFuseT5A/250Vac
OutputCharacteristics
ItemUnitMinTypMaxNotes
PeakPowerW//
Efficiency%9192/230Vac/50Hz,FullLoad.
LoadRegulation%/+/-1/230VacFull~minload
LineRegulation%/+/-1/100Vac~264VacFullload
SetupTimes//2115Vac&230VacFullLoad
RiseTimems//200Theoutputvoltagesshallrisefrom10%to90%oftheiroutputvoltage.
Holdtimems20//115Vac,FullLoad
Overshoot&undershoot
Response%+/-5Poweron/off
Loaddynamicresponse%//+/-5Settlingtime20msR/s0.1A/usload50%~100%fullload
CapacitiveLoadsuF5000
EnvironmentCharacteristics
ITEMUNITMINRatedMAXNotes
Temperature℃
-252570OperationTemperature；50~70℃Refertoderatingcurve.
-402585StorageTemperature
Humidity℃5%RH90%OperationHumidity
Specifications
-2-
5%RH95%StorageHumidity
Vibration/IEC60068-2-6,SineWave:10-500Hz，2G，displacementof0.35mm;60minperaxisforallX,Y,Zdirections
Impact/IEC60068-2-27,HalfSineWave:30Gforadurationof18ms,3timesperdirection,6timesintotal
Altitudem2000mderatedabove,15%load/Km
CoolingModeAirCooling
IPlevelIP20
ProtectionFunction
ItemRequirementNotes
ShortCircuitProtectionNodamageshutdownO/PvoltageRecoversautomaticallyafterfaultconditionisremoved
OvercurrentProtection110%~150%@IoRecoversautomaticallyafterfaultconditionisremoved
OvervoltageProtection120~150%@VoResetmustbeneedwhenovervoltagetogetright.
OverTemperatureProtection105℃±5℃,ShutdownO/Pvoltage.recoversautomaticallyaftertemperaturegoesdown
ShortCircuitProtectiontimeisaboveof60s
SignalsFunction
ItemRequirement
PaneldisplayGreenLEDlightsforpoweron.
ElectricalSafety
ItemTestMethodTestConditions
Withstandvoltage
I/P-O/P3000Vac.60S,≤10mA
I/P-FG1500Vac.60S,≤10mA
O/P-FG500Vac.60S,≤15mA
WithstandResistance
I/P-O/P500VDC.≧5MΩ
I/P-FG500VDC.≧5MΩ
O/P-FG500VDC.≧5MΩ
LeakageCurrent
L、N-Case3.5mAMax
L、N-PE3.5mAMax
PEResistancePE-Case<0.1Ohm
Designstandards
UL508
EN60950-1
UL1310Class2/
EN60335-1/
EN61347-1/
IEC60601-1/
1)CriteriaA:Normalperformancewithinthespecificationlimits
2)CriteriaB:Temporarydegradationorlossoffunctionwhichisself-recoverable
3)Asymmetrical:Commonmode(Linetoearth)
4)Symmetrical:Differentialmode(Linetoline)
5)”/”：Non-conformance
Specifications
-3-
ElectromagneticCompatibility
ItemTestMethodTestConditions
ElectrostaticDischargeIEC61000-4-2
GB17626-2
Level4CriteriaB)；
AirDischarge:±8kV；ContactDischarge:±4kV
RadiatedFieldIEC61000-4-3
GB17626-3
Level3CriteriaA)；
80-1000MHz,3V/M,80%modulation(1kHz)；
ElectricalFastTransient/BurstIEC61000-4-4
GB17626-4
Level4CriteriaB)
±1kV
SurgeIEC61000-4-5
GB17626-5
Level4CriteriaB)；
CommonMode3):2kV；DifferentialMode4):1kV
ConductedIEC61000-4-6
GB17626-6
Level3CriteriaA)
0.15-80MHz,3Vrms，80%modulation(1kHz)
PowerFrequencyMagneticFieldsIEC61000-4-8
GB17626-8/
ImpulsemagneticfieldimmunitytestIEC61000-4-9
GB17626-9/
Dampedoscillatorymagneticfieldimmunity
test
IEC61000-4-10
GB17626-10/
VoltageDipsandInterruptionsIEC61000-4-11
GB17626-11
VoltageDips
>95%reduction,0.5periodCriteriaB
VoltageDips
>30%reduction,25periodCriteriaC
Voltageinterruptions
>95%reduction,250periodCriteriaC
LowEnergyPulseTest(RingWave)IEC61000-4-12
GB17626-12/
HarmonicCurrentEmissionIEC/EN61000-3-2
GB17625-1ClassA
ImmunityGenericStandards
EN55024,GB17618
/5)EN55014-2
/5)EN60601-1-2
/5)EN61547
/5)EN61000-6-1,EN50082-1,GB/T17799-1
EN61000-6-2,EN55082-2,GB/T17799-2
CE&RE
GB9254,CISPR32,EN55032：ClassB
/5)GB4824,CISPR11,EN55011：ClassB
/5)GB17743，EN55015，CISPR15：ClassB
GB4343-1,CISPR14，EN55014-1：ClassB
EN61000-6-3，FCCTitle47,EN55011：ClassB
VoltageFluctuationandFlickerIEC/EN61000-3-3，GB17625.2
ComponentPowerSupplyforGeneralEN61204-3
1)CriteriaA:Normalperformancewithinthespecificationlimits
2)CriteriaB:Temporarydegradationorlossoffunctionwhichisself-recoverable
3)Asymmetrical:Commonmode(Linetoearth)
4)Symmetrical:Differentialmode(Linetoline)
5)”/”：Non-conformance
6)Powershouldbeconsideredpartoftheelementwithinthesystem,tobecombinedwiththeterminaldeviceEMCacknowledgment;
Specifications
-4-
Reliability
ItemDataTestConditions
Burn-in100%230Vac，40℃±5℃，4hours
MTBF
500000HMin230Vac，25℃，MILHDBK217F
/230Vac，40℃，MILHDBK217F
Warrantyperiod3years40℃，230Vac，80%Load
DesignServicelife/Thiscalculatedbasedontheactualconditionsofuse
MechanicalInstallation
ItemDataNote
Size124*119*62
Weight0.81
Installationmountedon35mmDINrailsTS-35/7.5或TS-35/15
EN60715
InputTerminal
Pitch=7.62mm,3pin
0.5N.M
AWG26...10
1PIN---FG
2PIN---N
3PIN---L
OutputTerminal
Pitch=5.0mm,4pin
0.5N.M
AWG26...12
1PIN---V-
2PIN---V-
3PIN---V+
4PIN---V+
Specifications
-5-
Appendix(Productassembly/Deratingcurve/Dintrackmounting)
1.Productassembly:
2.Deratingcurve：
Introductions:
A:Productmodelandcharacteristicsintheschematicareforreferenceonly.
B:Unit:mm
C:Toleranceunmarkedhere,generally±0.3mm.
Specifications
-6-
3.Dintrackmounting：
