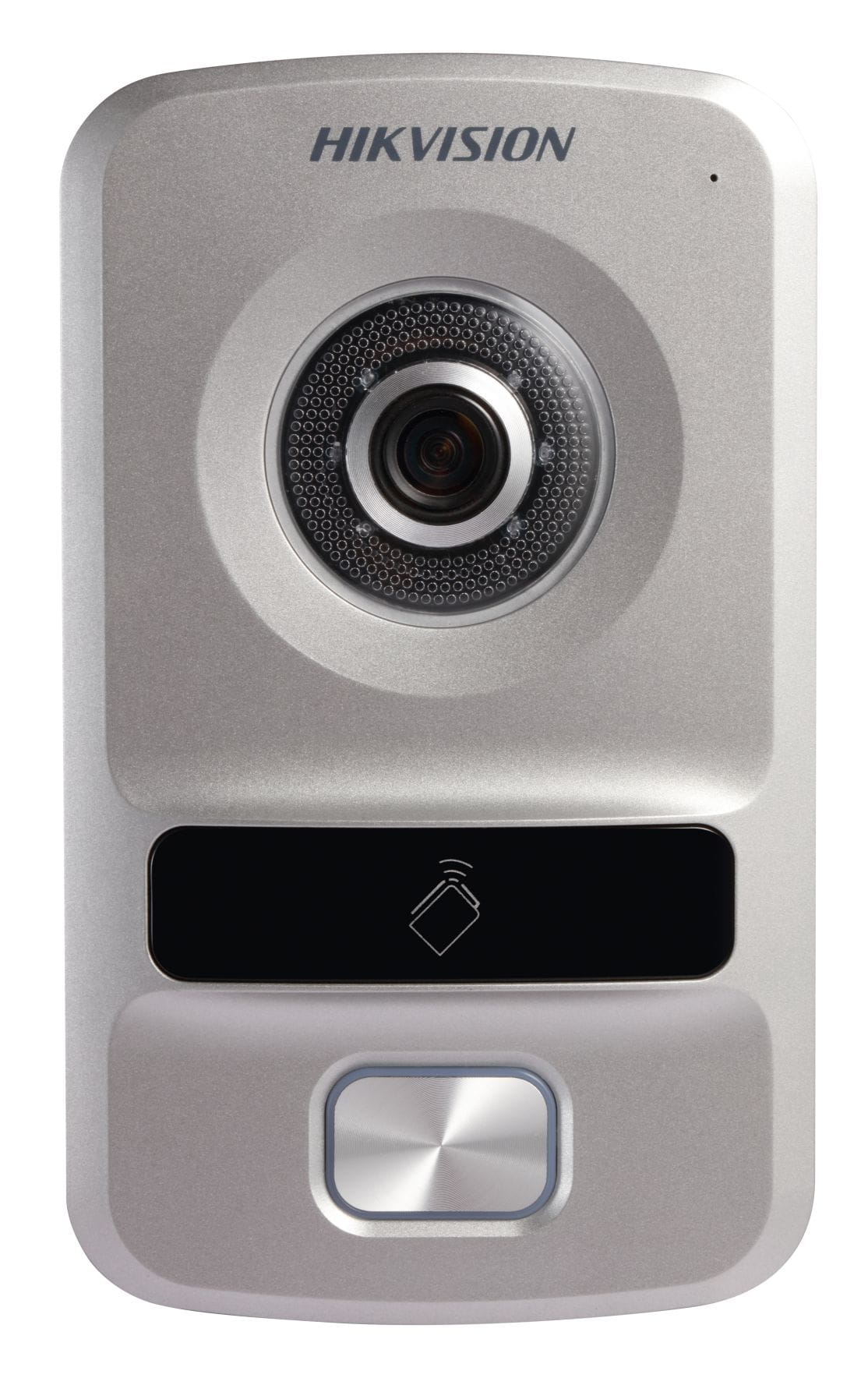

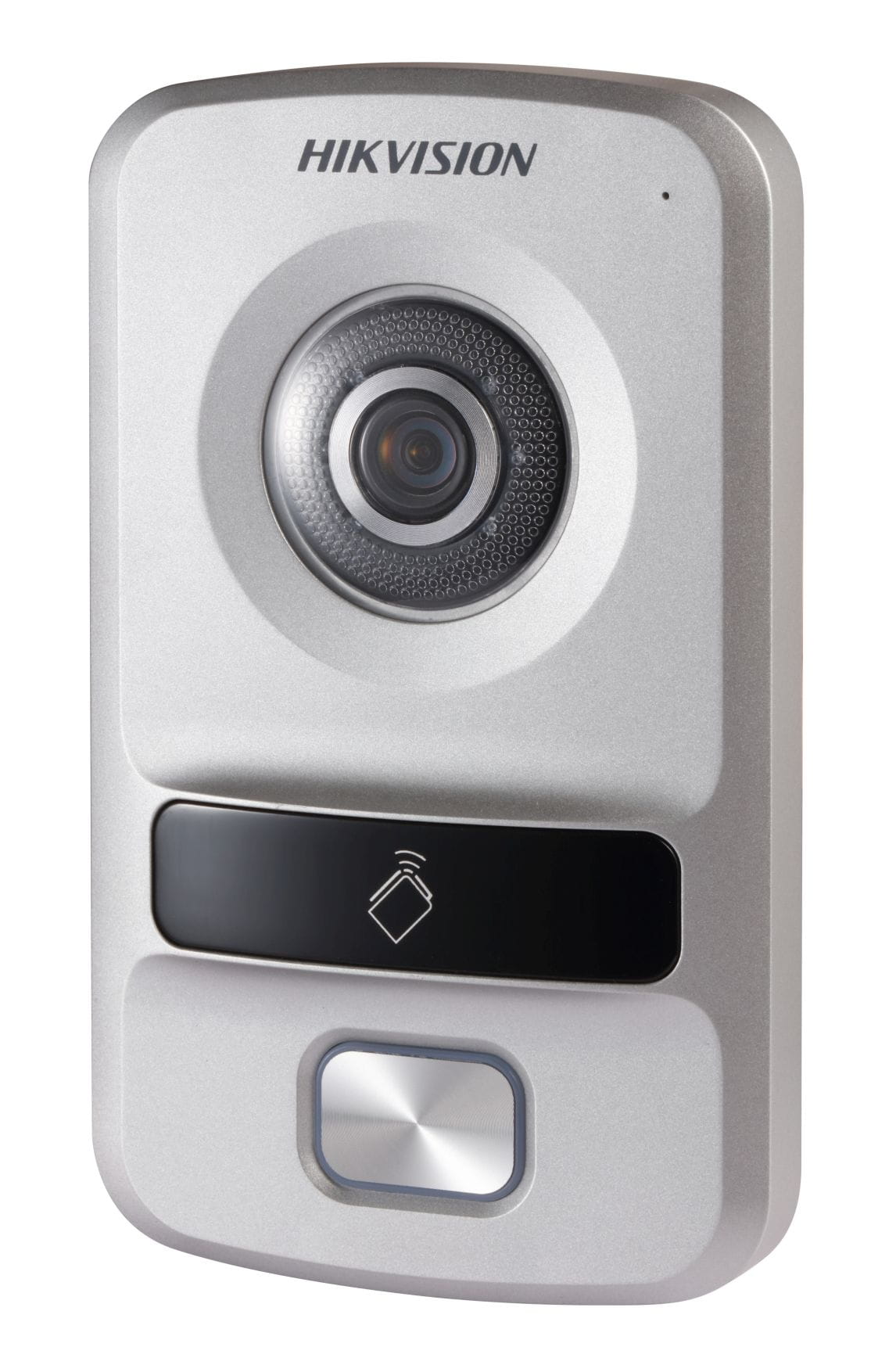

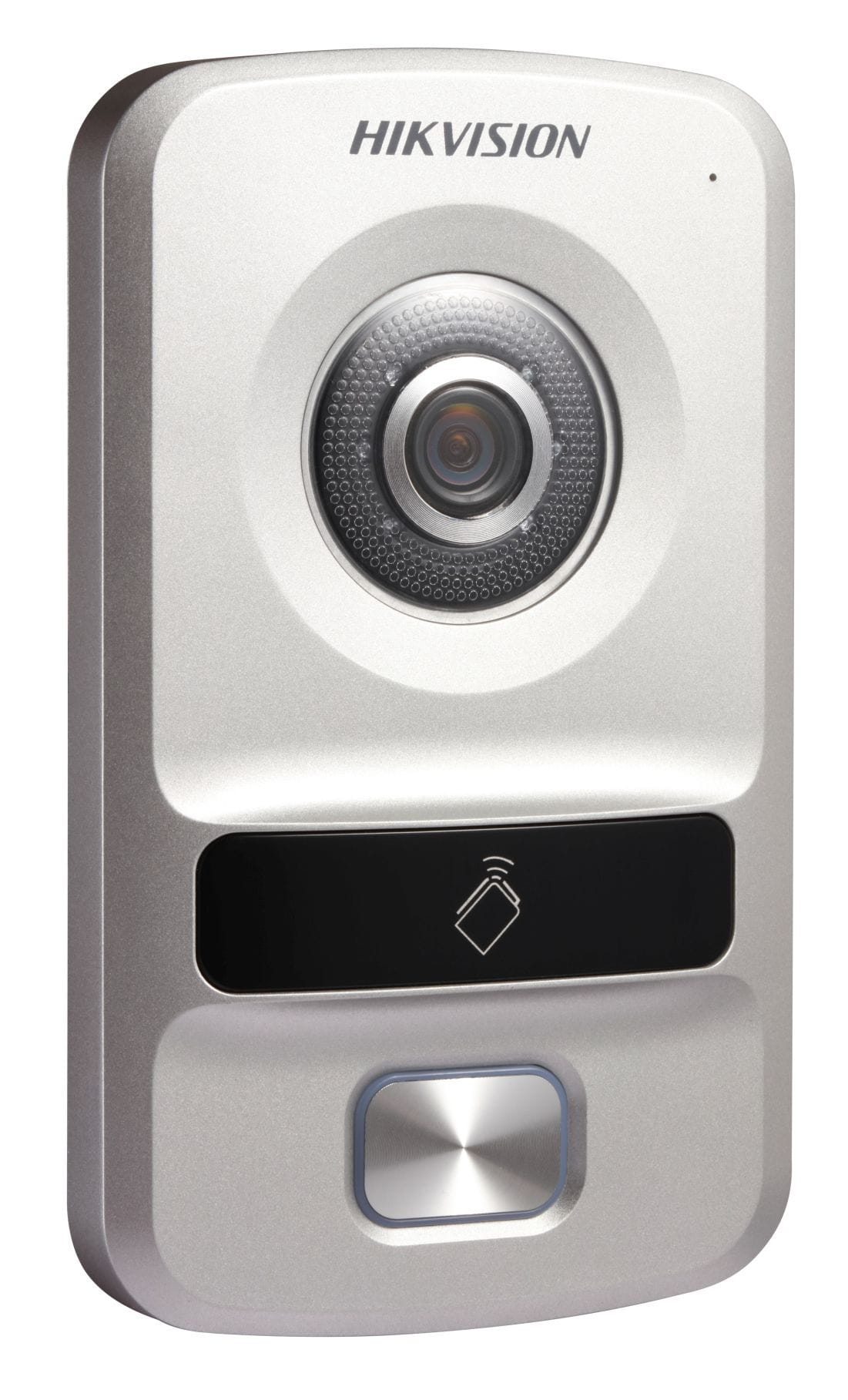

DS-KV8102-IP

Stacja bramowa "Villa" 1.3 MP, Wykonana z plastiku, Rozdzielczość kamery: HD720P, 25kl/s(P), 10M/100M adaptacyjny Ethernet, RS-485, 4 wejścia alarmowe, 1 wyjście alarmowe, IP65, 12 VDC, możliwość podłączenia 1 stacji wewnętrznej, doświetlenie IR...

Gwarancja: 24 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: DS-KV6113-PE1

Kod produktu zamiennego: 305301814

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-KV8102-IP
DS-KV8102-VP



 Video intercom function
 HD video surveillance (Max. resolution: 1280x720@25fps, WDR, 120° wide angle)
 Self-adaptive light supplement
 Access control function
 Activating card via local station function (This function will be invalid if the card has been
activated via iVMS-4200)
 Auto-uploading captured pictures to FTP or iVMS-4200 Client while unlocking the door
 Door magnetic alarm and tamper-proof alarm function
 Noise suppression and echo cancellation
 Remote upgrade, batch setting functions


Plastic Villa Door Station

MAIN FEATURES

DS-KV8102-IP/VP

MODEL


Spec of DS-KV8102-IP/VP Villa Door Station www.hikvision.com
2








Model
Parameters
DS-KV8102-IP DS-KV8102-VP
System
Parameters
Processor High-Performance Embedded SOC Processor
Operation System Embedded Linux OS
Video
Parameters
Camera CMOS Low Illumination 1.3 MP HD Colorful Camera
Video
Compression
Standards
H.264
Resolution 1280 x 720
Video Frame 25 fps
Audio
Parameters
Audio Input Built-in Omnidirectional Microphone
Audio Output Built-in Loudspeaker
Audio
Compression
Standard
G.711 U
Audio
Compression Rate
64 Kbps
Audio Quality Noise Suppression and Echo Cancellation
Access Control
Parameters
Internal Card
Reader Built-in Card Reader
Door Button Door Button for opening the Door
NO/NC Supporting NO/NC Status Settings
Door Magnetic
Detection
Detecting Door Magnetic Status
Light
Supplement
Light Supplement
Mode
IR Supplement Visible Light Supplement

TYPICAL APPLICATOIN

SPECIFICATION
Resident 2
Resident 1
Resident 2
Resident 1
Indoor Stations
Network Cable
Door Station
Connect to the LAN
of Community via
Optical Fiber
Optical Fiber
2F
1F
-1F/G
Main Door Station
Video/Audio
Distributor
Switch



Spec of DS-KV8102-IP/VP Villa Door Station www.hikvision.com
3

Model
Parameters
DS-KV8102-IP DS-KV8102-VP
Network
Parameters
Ethernet 10M/100M Self-Adaptive Ethernet
Network Protocol TCP/IP, SNMP, SIP, RTSP
Alarm
Parameters
Alarm Input Door Magnetic Alarm; Tampering Alarm
Device
Interfaces
Internet Interface 1 RJ45 10M/100M Self-Adaptive Ethernet Interface
RS485 1 RS485 Half-duplex Port
I/O Input 4
I/O Output 1
Other
Parameters
Material Plastic
Power Supply Power Over Network Cable (DS-KAD606,
DS-KAD612)/12 VDC
Consumption ≤10 W
Working
Temperature
-40° C to +70° C (-40° F to 158° F)
Working Humidity 10% - 90%
IP Protection Level IP65
Dimension 164 mm x 97 mm x 40.6 mm (6.46 x 3.82x 1.60")
Certification FCC, CE
