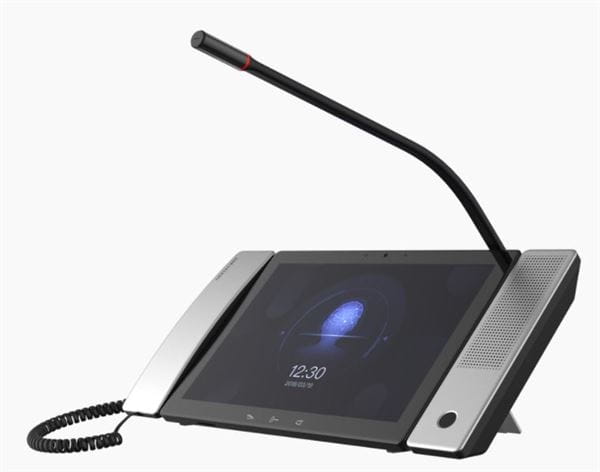

DS-KM9503

Stacja portierska do systemów wideointerkomowych, słuchawka, ekran dotykowy, matryca LCD IPS 10,1", rozdzielczość 1024x800, obsługa do 128 kamer IP, obsługa do 10000 urządzeń wideointerkomowych, obsługa więcej niż 2 głośników i mikrofonów, zasilanie PoE lub 12VDC....

Gwarancja: 24 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-KM9503
Video Intercom Android Main Station




Key Feature
* 10.1-inch IPS touch screen with resolution: 1280 x
800
* Up to 128 network cameras can be added to the device
* Built-in SIP private server, up to 10000 video intercom
devices can be added
* Supports more than 2 speakers and microphones:
Connects to external earphone (3.5mm), external goose
neck microphone
* Displays operation pages via HDMI
* Power supply: standard PoE & 12 VDC
* Video intercom and access control functions

Specification
System parameters
Operating
system
Android 7.1
ROM 8 GB
RAM 2 GB
CPU Embedded processor
Display parameters
Screen size 10.1-inch
Operation
method
Capacitive touch screen
Type IPS
Resolution 1280 x 800
Video parameters
Supplement
light
/
Video
compression
standard
H.264
FOV
Horizontal: 64.1°, Vertical: 48.1°, Diagonal:
80.2°
WDR /
Resolution 2 MP
Audio parameters
Audio input
Built-in omnidirectional microphone,
external speaker, external goose neck
microphone, external earphone (3.5 mm)
Audio
compression
standard
G.711U, G.711A
Audio output
Built-in loudspeaker, external speaker,
external voice box or earphone (3.5 mm)
Audio
compression
bitrate
64 Kbps
Audio quality Noise suppression and echo cancellation
Volume
adjustment
Adjustable via software
Capacity
Linked network
camera capacity
128
SIP access 10000





Network parameters
Communication
protocol
TCP/IP, SIP, RTSP
Wired network 2 10/100/1000 M self-adaptive Ethernet
Wi-Fi /
3G/4G /
Zigbee /
Device interfaces
Alarm input 2
Network
interface
2
TAMPER 0
RS-485 1
USB 3
SD card Max to 128 G
Lock control 2 Relay output
General
Button 3 touch buttons
Installation Table mounting & Wall mounting
Indicator 3
Weight
Without package: 1.285 kg
With package: 2.305 kg
Protective level /
Working
temperature
-10 °C to 50 °C( 14 °F to 122 °F)
Working
humidity
10% to 90%
Dimensions
292 mm x 166 mm x 31 mm (11.5"
x 6.5" x 1.2")
Battery /
Power supply
Standard PoE (LAN1)
12 VDC
Application
environment
Indoor
Power
consumption
≤ 12 W
Available Model
DS-KM9503

Physical Interface


No. Description No. Description
1 Phone 11 Speaker
Button
2 Phone
Indicator(Re
served)
12 Goose Neck
Microphone
Interface
3 Power
Indicator
13 SD Card Slot
4 Alarm
Indicator
14 Earphone
Interface
5 Information
Indicator
15 HDMI
6 Microphone 16 USB
Interface
7 Camera 17 Power
Interface
8 Screen 18 Terminals
9 Answer/Han
g Up Button
19 Network
Interface
10 Unlock
Button

Note: USB3 is used to debugging only. It cannot connect to USB
flash drive.
Dimension
