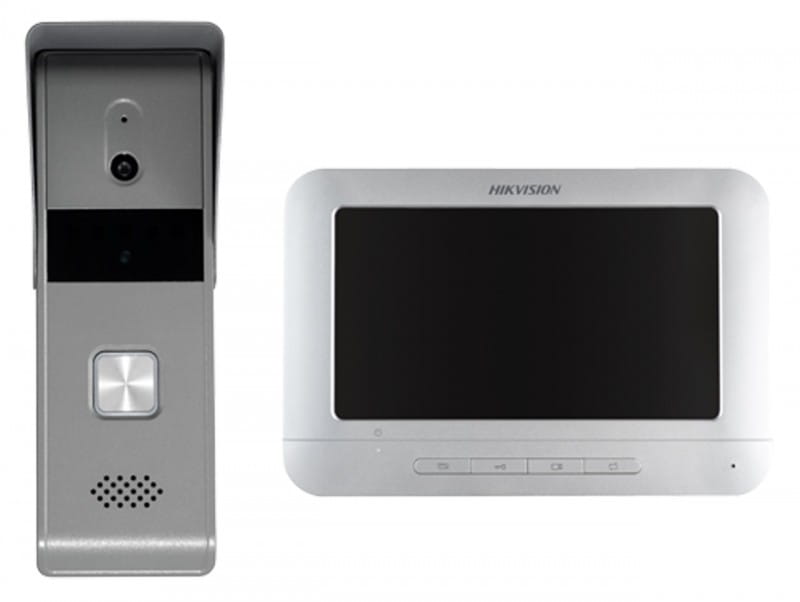

DS-KIS203T

Zestaw wideodomofonu analogowego 4-przewodowego, monitor bezsłuchawkowy, możliwość rozbudowy o drugą stację bramową, kamera pinhole 2MPix 1920x1080 @ 25fps, doświetlenie IR, sterowanie 1 zamkiem, jeden przycisk wywołania, aluminiowa obudowa stacji bramowej....

Gwarancja: 24 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-KIS203T
Four-Wire Analog Bundle



Key Feature
* Water Proof Analog Kit for villa or house, only one call
button
* Kit including DS-KB2421T-IM and DS-KH2220, 5-meter
4-wire cable, and other accessories
* European power supply adaptor included (please mark
for other standards when you order)

Specification
Door station
Resolution 1920 x 1080
Lens 1/2.7" CMOS
FOV Horizontal: 66.2°，Vertical: 37.2°
Door station
Audio input Built-in omnidirectional microphone
Audio output Built-in loudspeaker
Door station
I/O output 1 relay output
Four-wire
1-ch video input, 1-ch audio input/output,
1-ch power supply, 1-ch grounding
Door station
Power supply 12 VDC
Power
consumption
Max. 5W
Working
temperature
-10° C to + 55° C (14° F to 131° F)
Working
humidity
10% to 90%
Dimensions 128 mm x 42 mm x 24.8 mm
Indoor station
Operation
method
Physical button
Type 7-inch colorful TFT LCD
Resolution 800 x 480
Indoor station
Audio input Built-in omnidirectional microphone
Audio output Built-in loudspeaker
Audio quality Noise suppression and echo cancellation
Indoor station
Power supply 12 VDC
Power
consumption
≤5 W
Working
temperature
-10° C to + 55° C (14° F to 131° F)
Working
humidity
10% to 90%
Dimensions (W
x H x D)
195.8 mm x 132.8 mm x 18.39 mm
(7.7" x 5.2" x0.7")
Available Model
DS-KIS203T

Dimension
