DS-KH9310-WTE1(B)

Stacja wewnętrzna interkomu kolorowy ekran dotykowy 7 cali Standard PoE System Android Połączenie ze wszystkimi urządzeniami Hik-Connect Nowy interfejs użytkownika Programowanie i integracja innych firm...

Gwarancja: 24 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

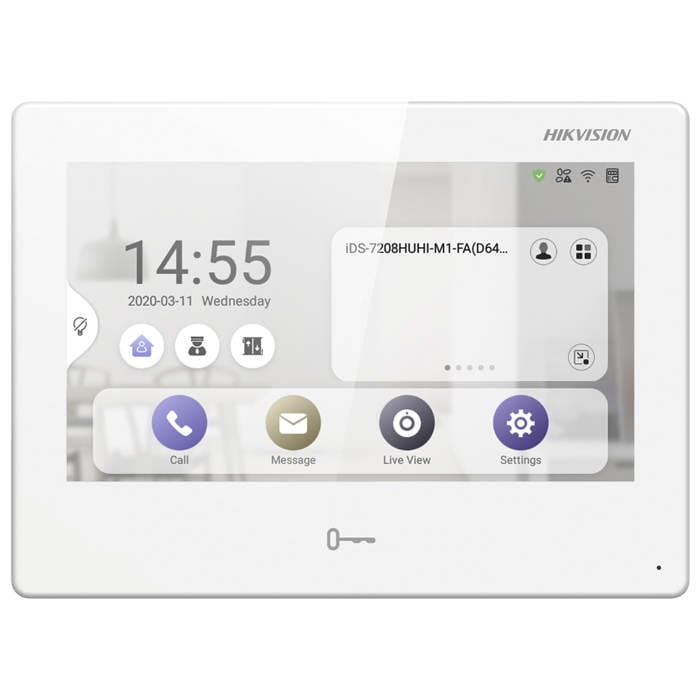

DS-KH9310-WTE1
Video Intercom Network Indoor Station



Key Feature
* 7-inch colorful touch screen with resolution 1024 x 600
* UI V2.0: User friendly design
* Plug & play
* Standard PoE
* Receives video call and unlocks via the client software or the
mobile client remotely
* Supports link to hikvision devices to bulid a management
center



Specification
System parameters
Memory 1 GB
Flash 4 GB Emmc
Display parameters
Display screen 7-inch colorful TFT touch screen
Display
resolution
1024 x 600
Operation
method
Capacitive touch screen
Brightness Adjustable
Audio parameters
Audio input Built-in omnidirectional microphone
Audio output Built-in loudspeaker
Audio
compression
standard
G.711 U, G.711 A
Audio quality Noise suppression and echo cancellation
Network parameters
Wired network 10/100 Mbps self-adaptive
Wireless
network
Wi-Fi 802.11 b/g/n
Network
protocol
TCP/IP, SIP, RTSP
Interfaces
Network port RJ45
RS-485 1
Alarm in 8
Button 1
TAMPER 1
Alarm out 2 relay
Debugging port 1
Micro USB For debug only
General
Power supply 12 VDC & standard PoE, IEEE 802.3af
Power
consumption
≤ 8 W
Working
temperature
-10 °C to 50 °C (14 °F to 122 °F)
Working
humidity
10% to 90%
Dimensions
187 mm x 137 mm x 25.7 mm (7.36" x
5.39" x 1.01")
Weight
419.3 g (without package)
694 g (with package)
Available Model
DS-KH9310-WTE1









Dimension

Appearance and Interfaces


No. Description No. Description
1 Display Screen 6 RS-485/Relay
Interface
2 Microphone 7 Debugging Port
3 Unlock Button 8 Micro USB Interface
4 Power Terminal 9 Loudspeaker
5 Alarm Terminal 10 TAMPER
