DS-KH8520-WTE1

Stacja wewnętrzna interkomu 2 generacji, kolorowy ekran dotykowy 10 cali, rozdzielczość 1024x600. Wbudowany głośnik i mikrofon. 8 wejść, 2 wyjścia. Wbudowana pamięć 128MB. Obsługa karty microSD do 32GB. Możliwość podglądu kamer stacji bramowych oraz kamer IP. Komunikacja Ethernet 10/100Mbps, Wi-Fi 802.11b/g/n. Zasilanie 12VDC/1A lub PoE (IEEE 802.3af). Wymiary: 254mmx166mmx14.7mm...

Gwarancja: 24 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-KH8520-WTE1

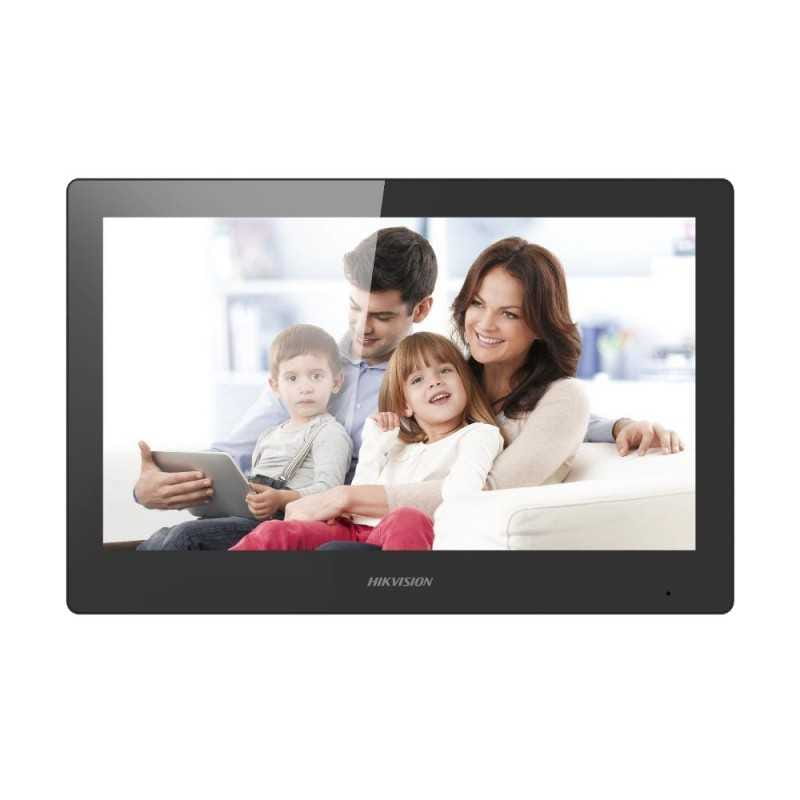

Video Intercom Indoor Station with 10-Inch Touch Screen



Key Feature
• New UI V2.0: User friendly design
• 10-inch colorful touch screen with resolution 1024 x 600
• Standard PoE
• Stores messages and capture pictures in the TF card
• Remote unlocking via the client software or the mobile client
• Views live videos of door stations and linked cameras
• Supports wireless network
Typical Application


Specification

ModelDS-KH8520-WTE1

System
Memory128 MB
Flash32 MB
Operation systemEmbedded Linux operation system

Display
Display screen10.1-inch colorful TFT LCD
Display resloution1024 x 600
Operation methodCapacitive touch screen

Audio
Audio inputBuilt-in omnidirectional microphone
Audio outputBuilt-in loudspeaker
Audio compression standardG.711 U
Audio compression rate64 Kbps

Audio quality
Noise suppression and echo
cancellation

Network
Wired network10/100 Mbps self-adaptive network
Wireless networkWi-Fi 802.11b/g/n
Network protocolTCP/IP、SIP 、RTSP
Network interface1 RJ-45 10/100 Mbps self-adaptive
Alarm input8-ch alarm inputs
Relay output2
TF cardMax to 32 G, SD 2.0 or lower version
RS-4851

General
Power supply
IEEE802.3af, standard PoE
12 VDC/1 A
Power consumption≤ 6 W
Working temperature-10 °C to 55 °C (14 °F to 131 °F)
Working humidity10% to 90%

Dimensions (W x H x D)
254 mm x 166 mm x 14.7 mm (10.0" x
6.5" x 0.58")

Available Model
DS-KH8520-WTE1
