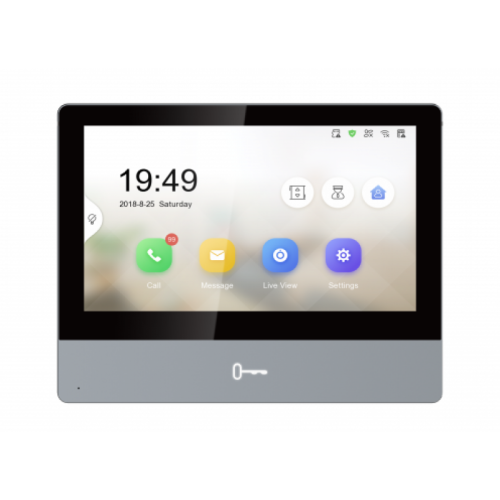

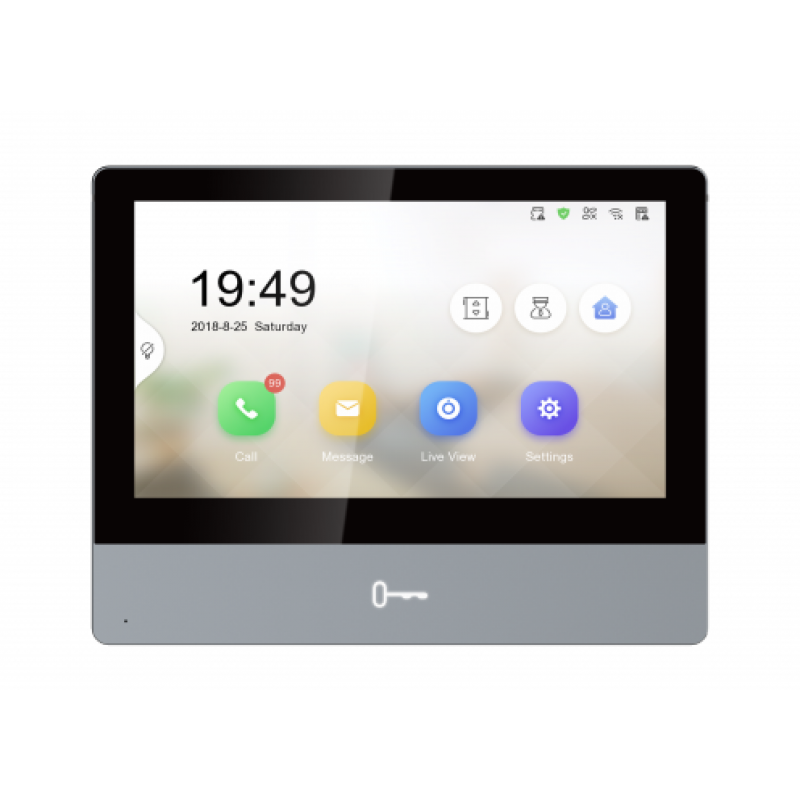

DS-KH8350-TE1

Stacja wewnętrzna, kolorowy, dotykowy ekran pojemnościowy LCD TFT 7“, rozdzielczość ekranu 1024 x 600, przyciski dotykowe, umożliwia komunikację interkomową, możliwość zdalnego odblokowywania drzwi, możliwość monitorowania stacji bramowej, wbudowany glośnik i mikrofon. 8-kanałowe wejście alarmowe, wyjście 2xalarmowe. Ethernet 10/100Mbps, Wi-Fi 802.11b/g/n, wbudowany slot na karte TF do 32 Gb. Montaż natynkowy. Zasilanie 12VDC/PoE. Pobór mocy 7W. Wymiary 180mm x 140 mm x22.4mm. Zdobywca nagrody Reddot 2017....

Gwarancja: 24 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-KH8350-TE1
Video Intercom Network Indoor Station





Key Feature
* Premium tempered glass
* Aerospace-grade aluminum
* New UI V2.0: User friendly design
* 7-inch colorful touch screen with resolution 1024 x 600
* 8.6 mm Ultra-slim design
* Reddot award 2017 winner
* Standard PoE
* Support capture while video calling
* Remote unlocking via the client software or the mobile client
* Views live videos of door stations and linked cameras
Typical Application



Approval
CE-EMC
a. EN 55032:2015
b. EN 61000-3-2:2014
c. EN 61000-3-3:2013
d. EN 50130-4:2011 +A1:2014
CE-LVD
EN 60950-1:2006 + A11:2009 + A1:2010 +
A12:2011 + A2:2013
CB
IEC 60950-1:2005 (Second Edition) + Am 1:2009
+ Am 2:2013
FCC-SDOC 47 CFR Part 15, Subpart B
C-
TICK(EMC)
AS/NZS CISPR 32:2015
UL
UL 60950-1 & CAN/CSA C22.2 No. 60950-1-07,
Information Technology Equipment – Safety –
Part 1: General Requirements
IC(EMC) ICES-003:Issue 6
ROHS 2011/65/EU
REACH Regulation (EC) No 1907/2006
WEEE 2012/19/EU




Specification
System parameters
Memory 128 MB
Flash 32 MB
Operation
system
Embedded Linux operation system
Display parameters
Display screen 7-inch colorful TFT screen
Display
resolution
1024 x 600
Operation
method
Capacitive touch screen
Audio parameters
Audio input Built-in omnidirectional microphone
Audio output Built-in loudspeaker
Audio
compression
standard
G.711 U
Audio
compression
rate
64 Kbps
Audio quality Noise suppression and echo cancellation
Network parameters
Wired network 10/100 Mbps self-adaptive
Network
protocol
TCP/IP, SIP, RTSP
Network
interface
1 RJ-45 10/100 Mbps self-adaptive
Alarm input 8-ch alarm inputs
I/O output 2
TF card Max to 32 G, SD 2.0 or lower version
RS485 Supported
General
Power supply
IEEE802.3af, standard PoE
12 VDC/1 A
Power supply
via detector
12 V, 200 mA
Power
consumption
≤ 7 W
Working
temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working
humidity
10% to 90%
Dimensions
180 mm x 140 mm x 22.4 mm (7.09" x
5.51" x 0.88")
Weight
786 g (with packaging)
600 g (without packaging)
Certification
FCC, IC, CE, C-TICK, ROHS, REACH, WEEE,
UL,
CB, RCM
Available Model
DS-KH8350-TE1
Dimension

Appearance and Interfaces


Accessory
Installation

Surface Mounting
