DS-KH8340-TCE2 (Black)

Stacja wewnętrzna, Wielkość ekranu 7“, Typ ekranu LCD dotykowy, umożliwia komunikację interkomową w systemie 2 żyłowym, możliwość zdalnego odblokowywania drzwi, możliwość monitorowania stacji bramowej....

Gwarancja: 24 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

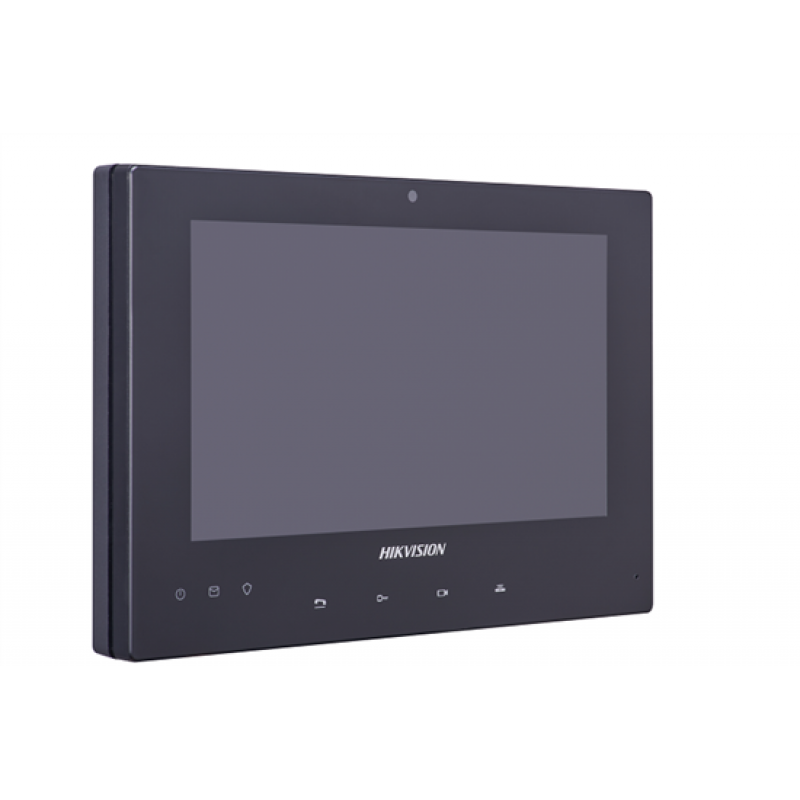

DS-KH8340-TCE2
Two-Wire Indoor Station with 7-inch Touch Screen





DS-KH8340-TCE2 is a two-wire indoor station with 7-inch
touch screen. It possesses good appearance, flattened UI
design, and easy operation.
• Hands-free audiovisual communication with the door
station and the master station in the intercom system
• Supports monitoring door stations and external cameras
• Supports auto-answering and do not disturb mode
• Noise suppression and echo cancellation
• Supports 8-ch zone alarm input
• Supports panic call
• Remote unlocking via the client or the app
• Community notice supported
• Convenient installation and easy operation

Available Model
DS-KH8340-TCE2
DS-KH8340-TCE2 Specifications

ModelDS-KH8340-TCE2
System
parameter
ProcessorHigh-Performance Embedded SOC Processor

Display
parameters
Display screen7-inch Colorful TFT LCD
Display resolution1024 x 600
Operation methodCapacitive Touch Screen, Touch Button


ModelDS-KH8340-TCE2
Operation interfaceFlattened UI Operation Interface
Video
parameter
Video compression
standard
H.264

Audio
parameters
Audio inputBuilt-in Omnidirectional Microphone
Audio outputBuilt-in Loudspeaker
Audio qualityNoise Suppression and Echo Cancellation

Device
interfaces
Network interfaceTwo-Wire Interface
RS-485 interface1, Half-duplex Interface
Alarm output1

General
Power supplyPowered by DS-KAD709
Power consumptionMax. 10 W
Working temperature-10 ° C to +55 ° C (14 ° F to 131 ° F)
Working humidity10% to 90%
InstallationWall Mounting
Dimension196 mm x 133 mm x 25.75 mm (7.72" x 5.24" x 1.01")

Typical Application


Appearance and Interfaces

No.DescriptionNo.Description
1Power Supply Indicator8LCD Display Screen
2Information Indicator9Microphone
3Alarm Indicator10Two-Wire Interfaces
4Call Accept/Decline Key11Terminals
5Unlock Key12Serial Port
6Live View Key13TF Card Slot
7Management Center Key14Loudspeaker

20180129
UD09012B
