DS-KH2220
Opis
Stacja wewnętrzna, Wielkość ekranu 7“, Typ ekranu LCD, umożliwia komunikację interkomową, możliwość podłączenia trzech stacji wewnętrznych kaskadowo, możliwość zdalnego odblokowywania drzwi, możliwość monitorowania stacji bramowej oraz zewnętrznych kamer analogowych...
Gwarancja: 24 mies.
Uwaga! Produkt wycofany z produkcji!
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:

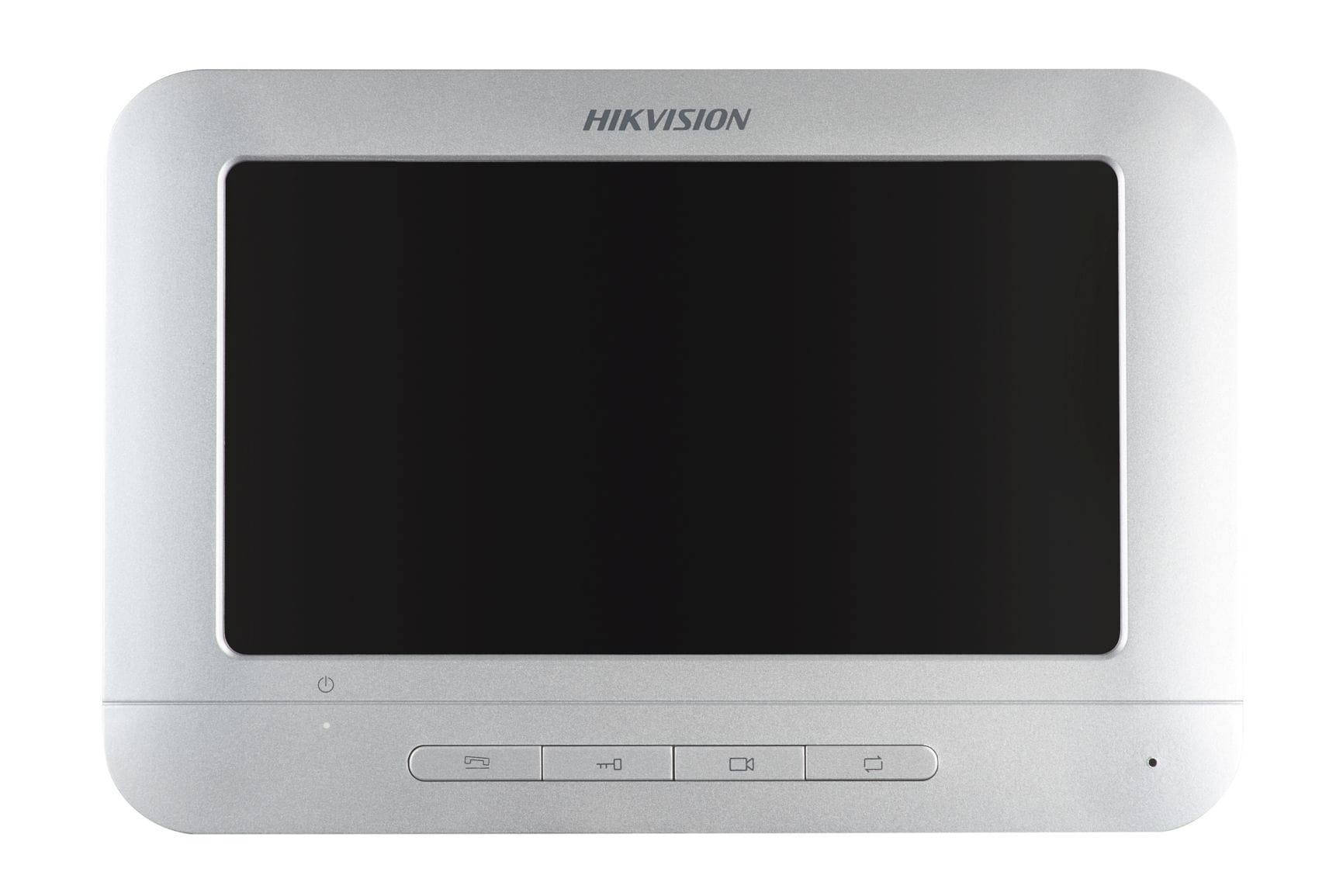

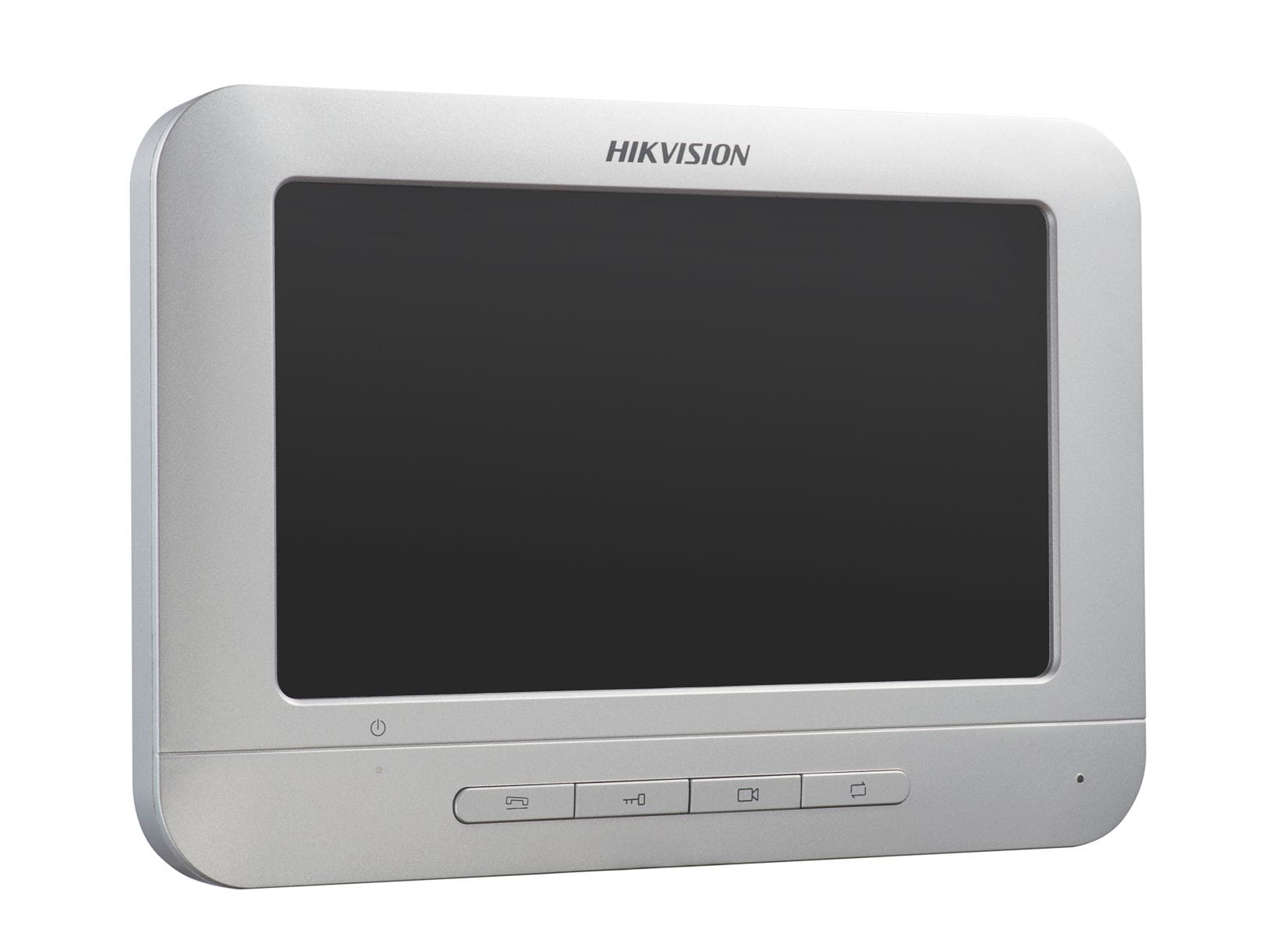

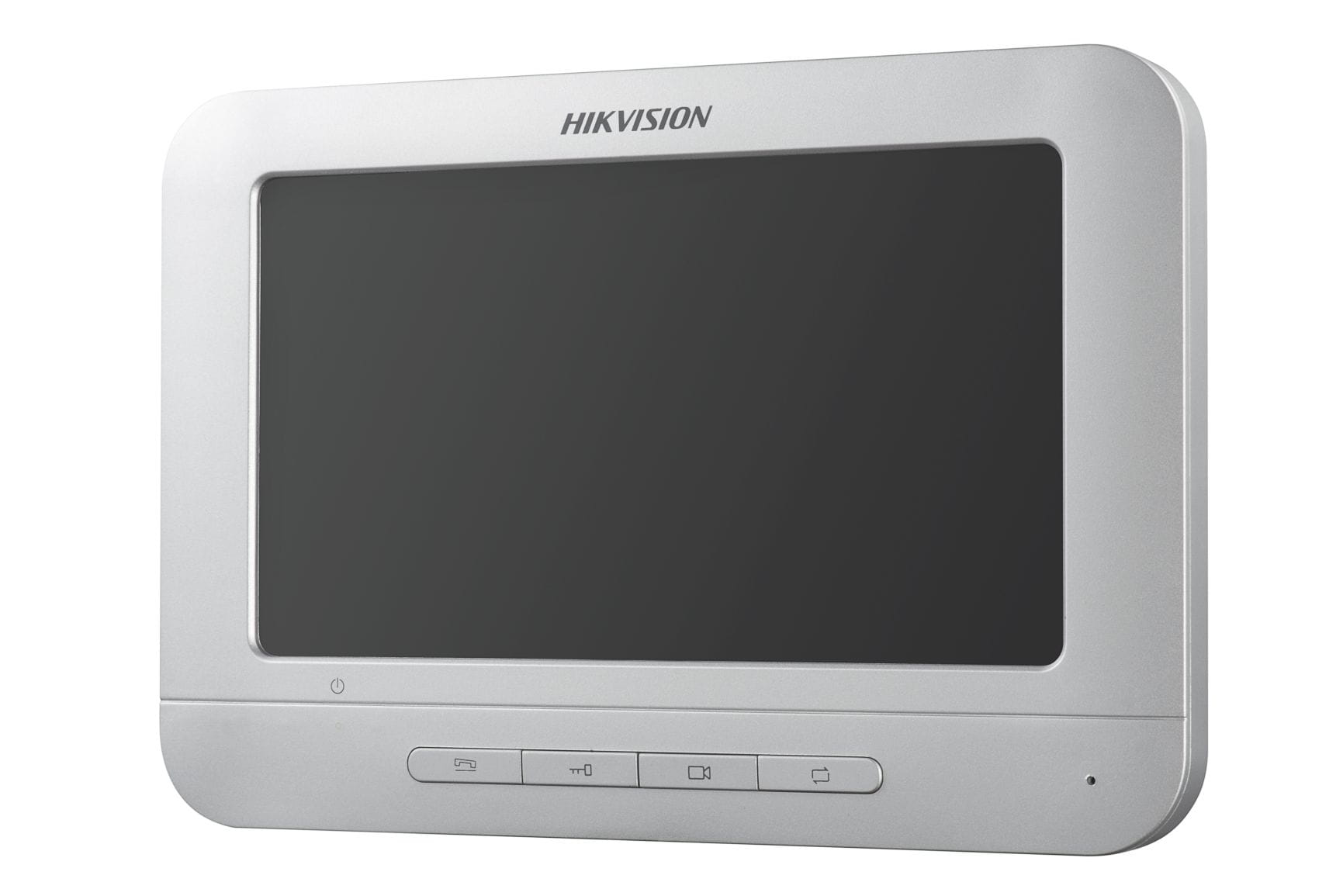

DS-KH2220
Video Intercom Indoor Station
Key Features
Hands-free video intercom communication
Supports three indoor stations in the intercom system
Supports monitoring the door station and the external
analog camera
Remote unlocking
Wall mounting supported
Convenient installation with/without the junction box
Typical Application
Door Station
Indoor Station 2
Indoor Station 3
Indoor Station 1
Analog Camera 3
Analog Camera 2
Analog Camera 1
Lock
Four-Core Cable
Block to BNC Cable
Electric Lock
Connection Cable
Model DS-KH2220
Display
parameters
Display screen 7-Inch Colorful TFT LCD
Display
resolution
800 x 480
Operation
method
Physical Button
Audio
parameters
Audio input Built-in Omnidirectional Microphone
Audio output Built-in Loudspeaker
Audio quality Noise Suppression and Echo Cancellation
Device
interfaces
Four-wire
interface
4 Four-Wire Interfaces
1-ch Video Input, 1-ch Audio Input/Output, 1-ch Power
Supply, 1-ch Grounding
General
Power supply 12 VDC
Power
consumption
≤5 W
Working
temperature
-10° C to + 55° C (14° F to 131° F)
Working
humidity
10% to 90%
Dimensions
(L x W x H)
195.8 mm x 132.8 mm x 18.39 mm (7.7" x 5.2" x0.7")
Specifications
Index Description Index Description
1 Power Supply Indicator 6 LCD Display Screen
2 Call Accept/Decline Key 7 Microphone
3 Unlock Key 8 Terminals and Interfaces
4 Live View Key 9 Loudspeaker
5 Switch Key 10 Volume Control Knob
Physical Interfaces
0100001070123
Available Model
DS-KH2220
