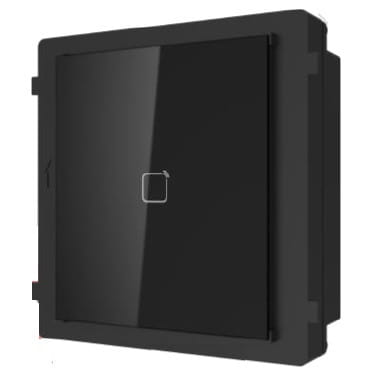

DS-KD-M
Opis
Moduł czytnika kart Mifare 13,56MHz do modułowej stacji bramowej interkomów 2 generacji. Zasilany z modułu głównego. Wymiary: 98.5mmx100mmx33.7mm. IP65....
Gwarancja: 24 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DS-KD-M/E
Card Reader Module
Key Feature
DS-KD-M (13.56 MHz)
DS-KD-E (125 KHz)
Supports unlock the door via swiping cards
Supports issuing cards
Backlight compensation
Easy to and extend
Available Model
Model DS-KD-M DS-KD-E
System
parameters
Processor Embedded MCU Processor
Internal card reader Built-in Card Reader
Interfaces Module-connecting 2(1 Input, 1 Output)
General
Card type Mifare Card EM Card
DIP switch 8
Power input 12 VDC(Powered by the other module)
Power output 12 VDC(Powered for the other module)
Power consumption ≤2 W
Working temperature -40° C to +60° C(-40° F to 140° F)
Working humidity 10% to 95%
IP protection level IP65
Installation Flush Mounting, Surface Mounting
Dimensions
(L x W x H)
98.5 mm x 100 mm x 33.7 mm (3.87" x 3.95" x 1.33")
No. Description
1 Card Reading Area
2 Module-connecting Interface(output)
3 Module-connecting Interface(input)
4 Debug Port
Appearance and Interface
Specification
Typical Application
20190128
