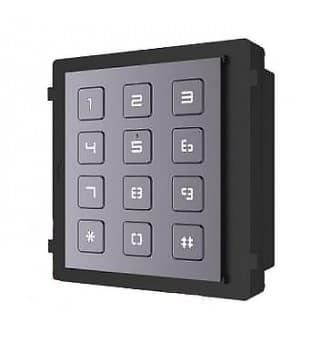

DS-KD-KP
Opis
Moduł klawiatury numerycznej do modułowej stacji bramowej interkomów 2 generacji. 12 podświetlanych przycisków, możliwość wyboru numeru i wywołania lokalu oraz otwarcia zamka kodem. Zasilany z modułu głównego. Wymiary: 98.5mmx100mmx34.2mm. IP65. IK7....
Gwarancja: 24 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DS-KD-KP
Keypad Module
Key Feature
DS-KD-KP
Supports unlock the door via entering password
Supports call the resident via entering room No.
Backlight compensation
Easy to and extend
Available Model
Model DS-KD-KP
System
parameters
Processor Embedded MCU Processor
Operation method Physical Button
Interfaces
Module-connecting 2(1 Input, 1 Output)
Debug 1
General
Physical button 12
DIP Switch 8
Power Input 12 VDC(Powered by the other module)
Power Output 12 VDC(Powered for the other module)
Power consumption ≤2 W
Working temperature -40° C to +60° C(-40° F to 140° F)
Working humidity 10% to 95%
Protection level IP65, IK7
Installation Flush Mounting, Surface Mounting
Dimensions
(L x W x H)
98.5 mm x 100 mm x 34.2 mm (3.87" x 3.95" x 1.33")
No. Description
1 Button
2 Module-connecting Interface(output)
3 Module-connecting Interface(input)
4 Debug Port
Appearance and Interface
Specification
Typical Application
20190121
