DS-KD-IN
Opis

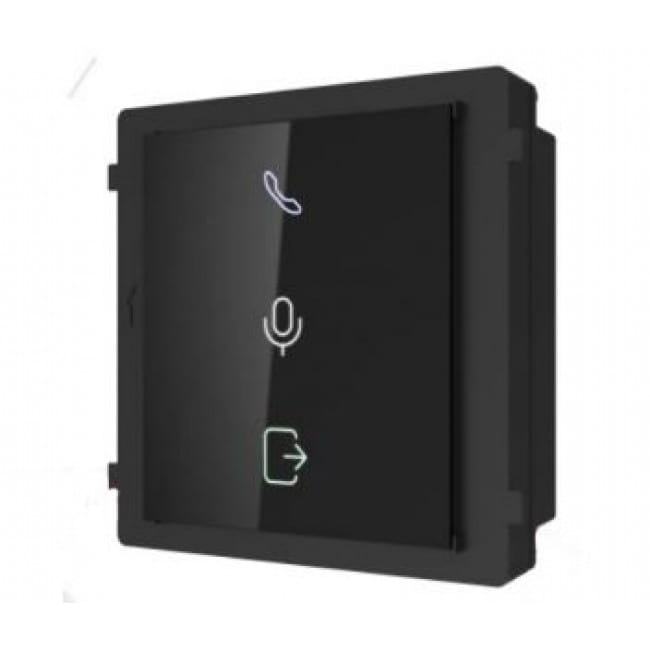

Moduł wskaźnika do modułowej stacji bramowej interkomów 2 generacji. Za pomocą podświetlanych ikon informuje o stausie stacji bramowej: wywoływanie, otwarcie drzwi, rozmowa. Zasilany z modułu głównego. Wymiary: 98.5mmx100mmx33.7mm. IP65....
Gwarancja: 24 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DS-KD-IN
Indicator Module
Key Feature
DS-KD-IN
Indicates the device status: calling, opening door and two-way audio
Backlight compensation
Easy to and extend
Available Model
Model DS-KD-IN
System
parameter
Processor Embedded MCU Processor
Interfaces
Module-connecting 2(1 Input, 1 Output)
Debug 1
General
DIP switch 8
Power input 12 VDC(Powered by the other module)
Power output 12 VDC(Powered for the other module)
Power consumption ≤2W
Working temperature -40° C to +60° C(-40° F to 140° F)
Working humidity 10% to 95%
IP protection level IP65
Installation Flush Mounting, Surface Mounting
Dimensions
(L x W x H)
98.5 mm x 100 mm x 33.7 mm (3.87" x 3.95" x 1.33")
No. Description
1 Calling Indicator
2 Two-way Audio Indicator
3 Unlock Indicator
4 Module-connecting Interface(output)
5 Module-connecting Interface(input)
6 Debug Port
Appearance and Interface
Specification
Typical Application
20190107
