DS-KD-DIS

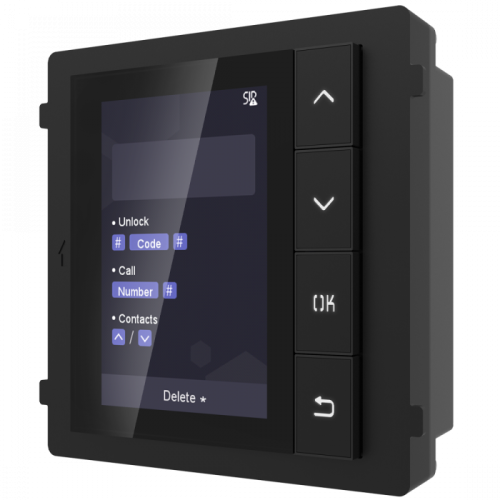

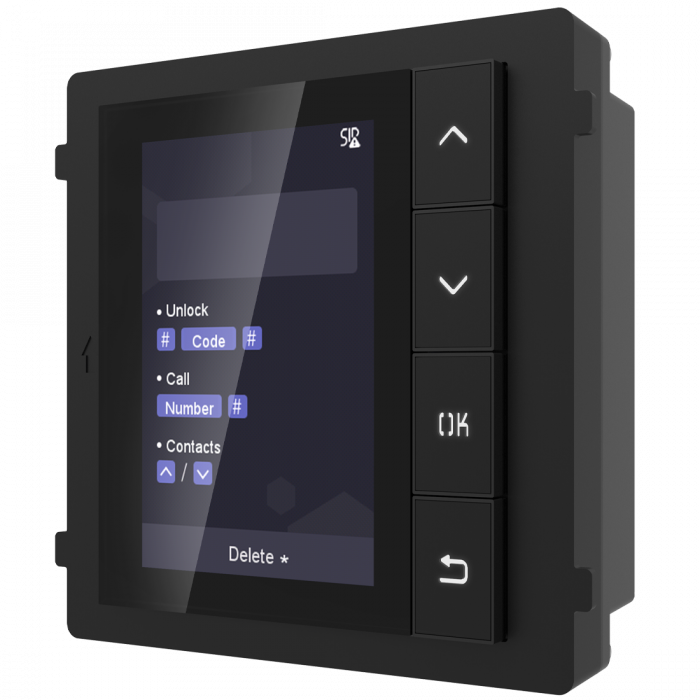

Moduł wyświetlacza, LCD 3,5", rozdzielczość 320*480, 4 przyciski z podświetleniem, wyświetlacz zegarowy, odblokowanie kodem PIN, wyświetlanie listy kontaktów, połączenie modułu przez port RS-485, stopien ochrony IP65, montaż podtynkowy, montaż natynkowy, wymiary 98,21x100,21x33,7 mm, zasilanie przez inny moduł (wejście zasilania: 12VDC, wyjście zasilania: 12VDC)....

Gwarancja: 24 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-KD-DIS
Video Intercom Display Module



Key Feature
* 3.5-inch LCD screen with resolution: 320 x 480p
* 4 physical buttons with backlight
* Up to 500 contacts can be added to the device
* Dials number and calls indoor station with keypad module
* Unlocks door by PIN code with keypad module
* Multiple languages
Typical Application


Approval
CE-EMC
a. EN 55032:2015
b. EN 61000-3-2:2014
c. EN 61000-3-3:2013
d. EN 50130-4:2011 +A1:2014
CE-LVD
EN 60950-1:2006 + A11:2009 + A1:2010 +
A12:2011 + A2:2013
CB
IEC 60950-1:2005 (Second Edition) + Am
1:2009 + Am 2:2013
C-TICK(EMC) AS/NZS CISPR 32:2015
ROHS 2011/65/EU
REACH Regulation (EC) No 1907/2006
WEEE 2012/19/EU



Specification
System parameters
Processor Embedded MCU Processor
Storage 64 MB
Flash 8 MB
Display parameters
Screen 3.5-inch TFT LCD screen
Resolution 320 x 480p
Backlight Supported
Operation method Physical buttons
Interfaces
Module-connecting 2 (1 input, 1 output)
Power input 12VDC( From the other module)
Power output 12VDC( For the other module)
Physical buttons 4( Up, Down, OK, Back)
Debugging port 1
General
Power
consumption
≤ 3 W
Working
temperature
-20° C to +60° C(-4° F to 140° F)
Working humidity 10% to 95%
IP protection level IP65
Installation Flush mounting, surface mounting
Dimension
98.5 mm x 100 mm x 34.2 mm (3.87" x
3.95" x 1.33")
Note: Listed resolutions are only selectable options. It does not
mean that all streams can work at their maximum resolution at the
same time.
Available Model
DS-KD-DIS
Appearance and Interfaces


No. Description No. Description
1 Screen 5 Back Button
2 Up Button 6 Module-connecting
Interface (output)
3 Down Button 7 Module-connecting
Interface (input)
4 OK Button 8 Debug Port

Dimension



Accessory
Optional




DS-KD-ACF1/Plastic DS-KD-ACF2/Plastic




DS-KD-ACF3/Plastic DS-KD-ACW1




DS-KD-ACW2 DS-KD-ACW3
