DS-KAD709
Opis
Dystrybutor centralny dedykowany dla Interkomowych systemów 2 żyłowych. 1 intefrejs RJ45, 9 interfejsów po system 2 żyłowy....
Gwarancja: 24 mies.
Uwaga! Produkt wycofany z produkcji!
Produkt zamienny: DS-KAD706
Kod produktu zamiennego: 305301460
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DS-KAD709
Two-Wire Controller
Key Features
Supports 100-meter transmission (18 AG/17 WAG)
Supports 30-meter transmission (20 WAG)
Supports providing power supply for 1 door station and 1 indoor stations
simultaneously
Typical Application
Indoor Station 1
Indoor Station2
Indoor Station3
Indoor Station4Door Station
Controller
Draft
Model DS-KAD609-E
General
Power supply 24 VDC
Power consumption 60 W
Interface
1 RJ-45 Interface
8 Two-Wire Interfaces
Working
temperature -10° C to +55° C (14° F to 131° F)
Working humidity 10% to 90%
Installation Wall Mounting
Dimensions 110.2*107.6*66（mm）
Index Description Index Description
1 Reset Button 4 1 RJ-45 Interface
2 Power Indicator 5 Power Supply Interface
3 9 Two-Wire Interface
Specifications

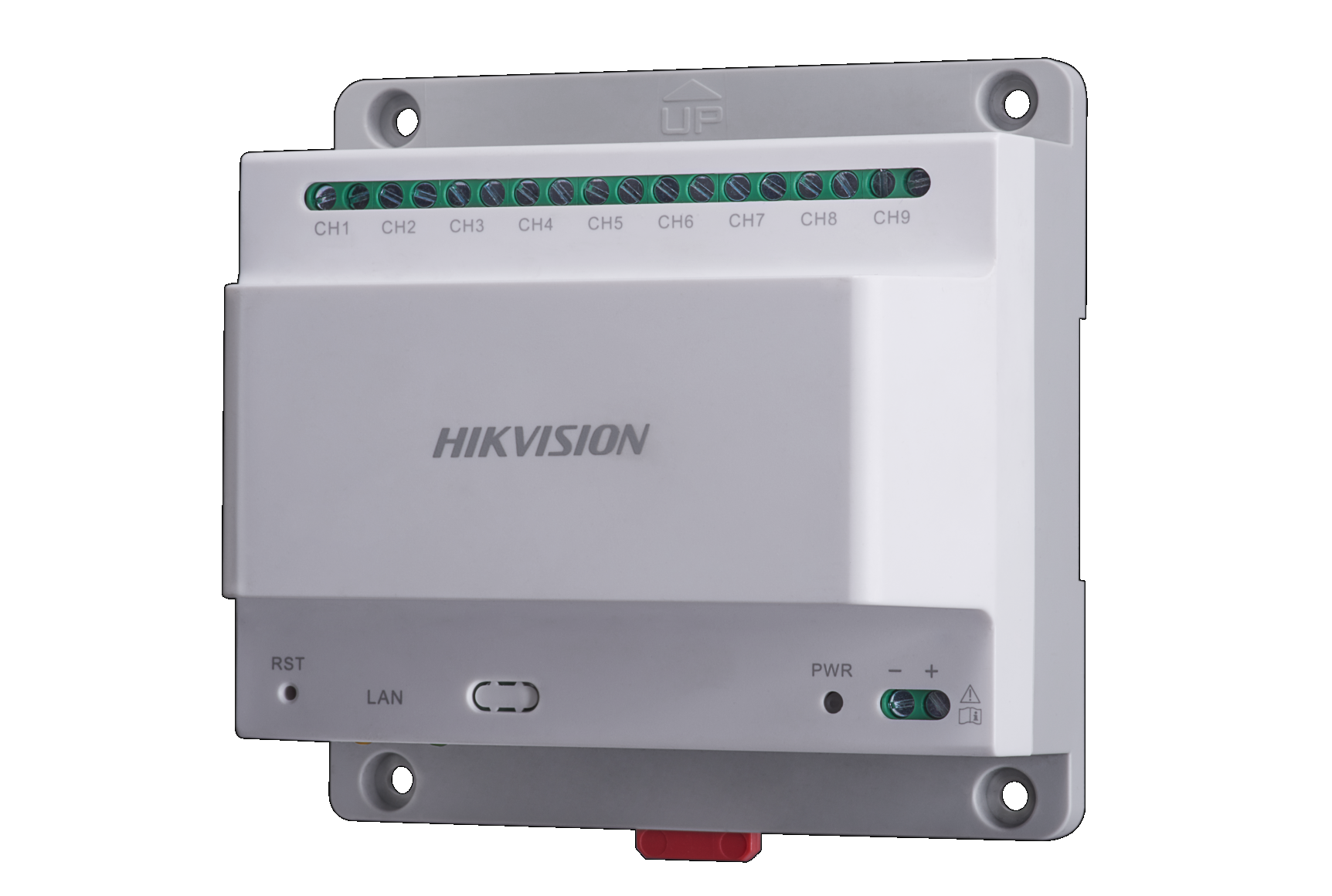

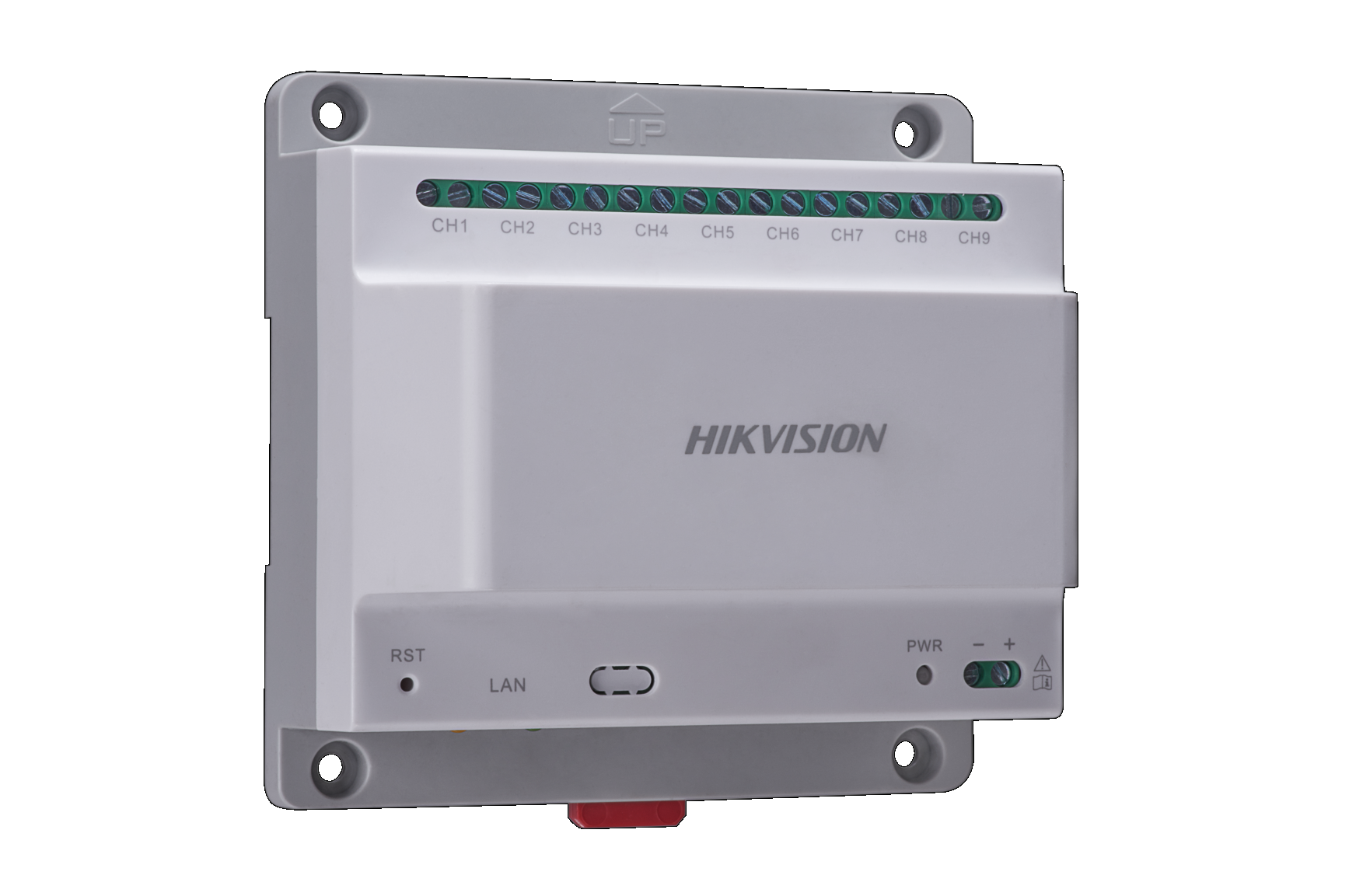

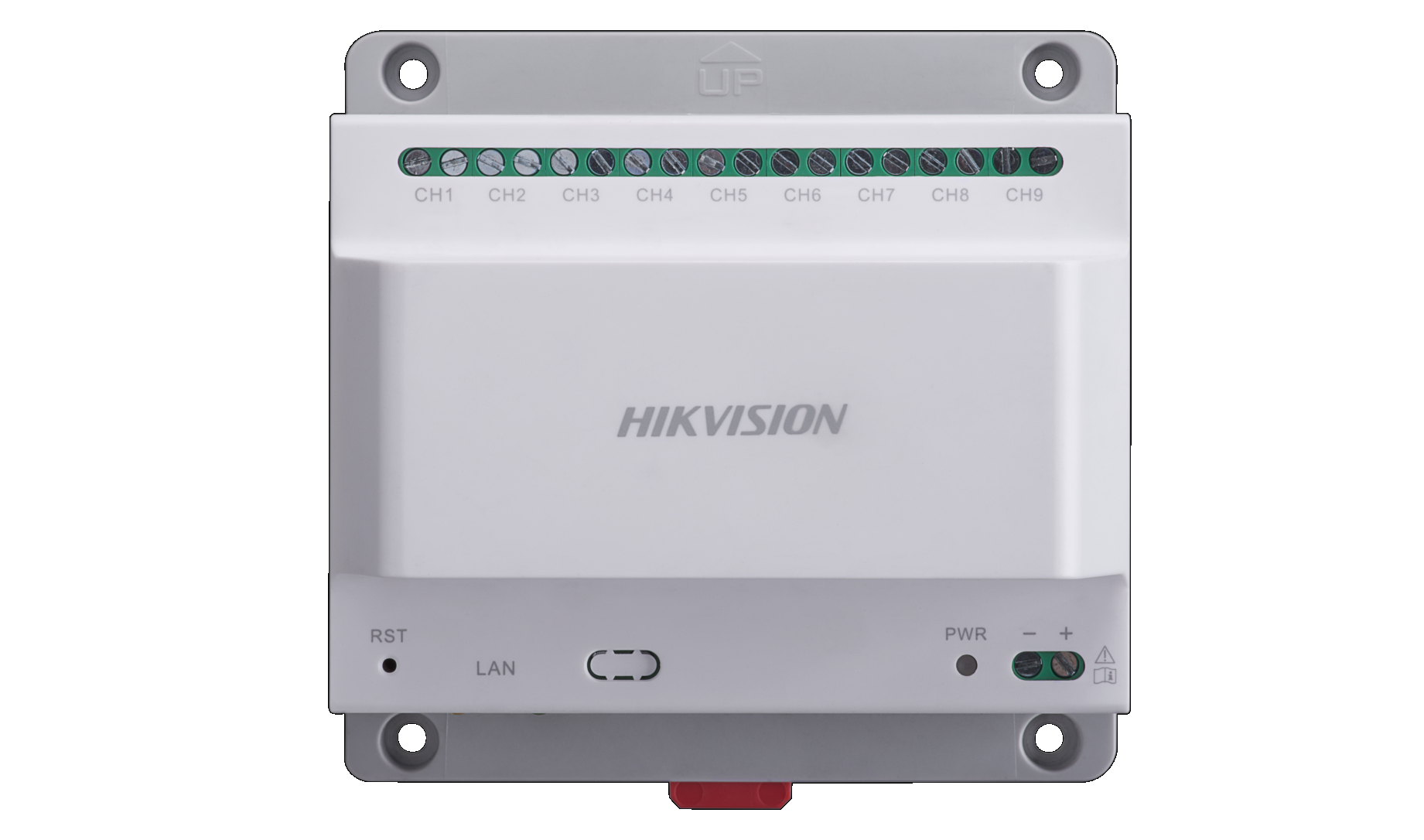

Appearance
Draft
0100001070511
