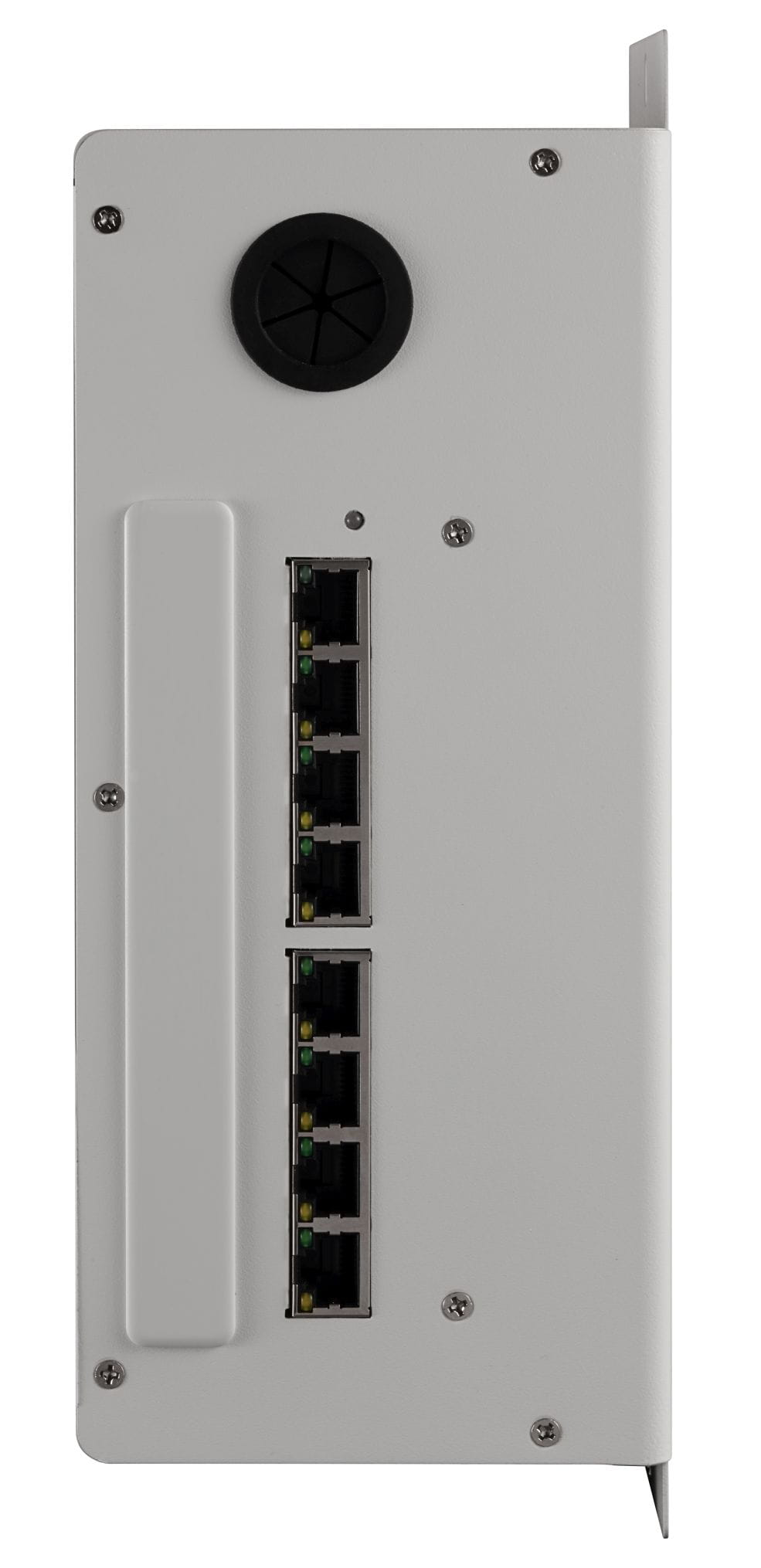

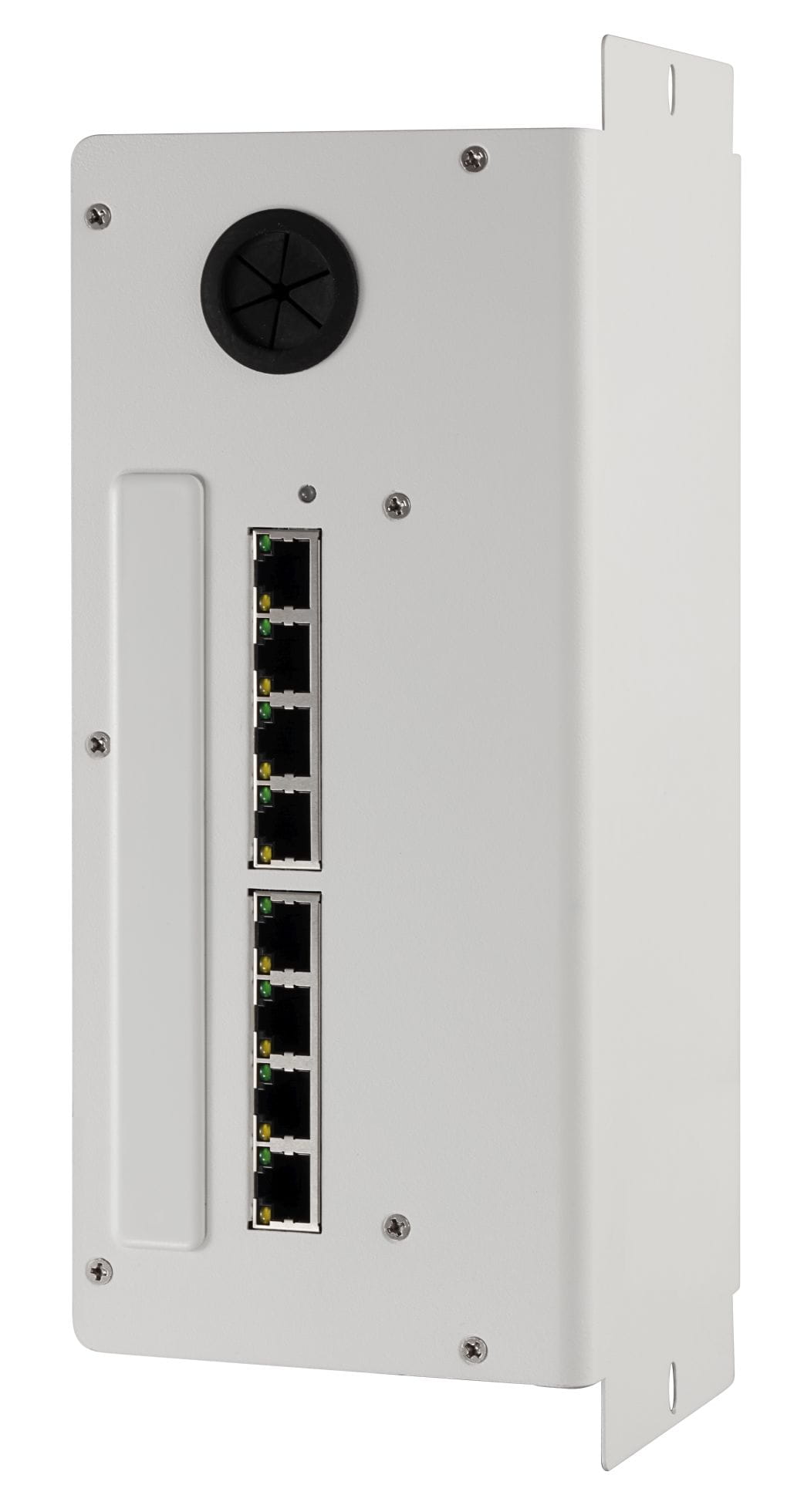

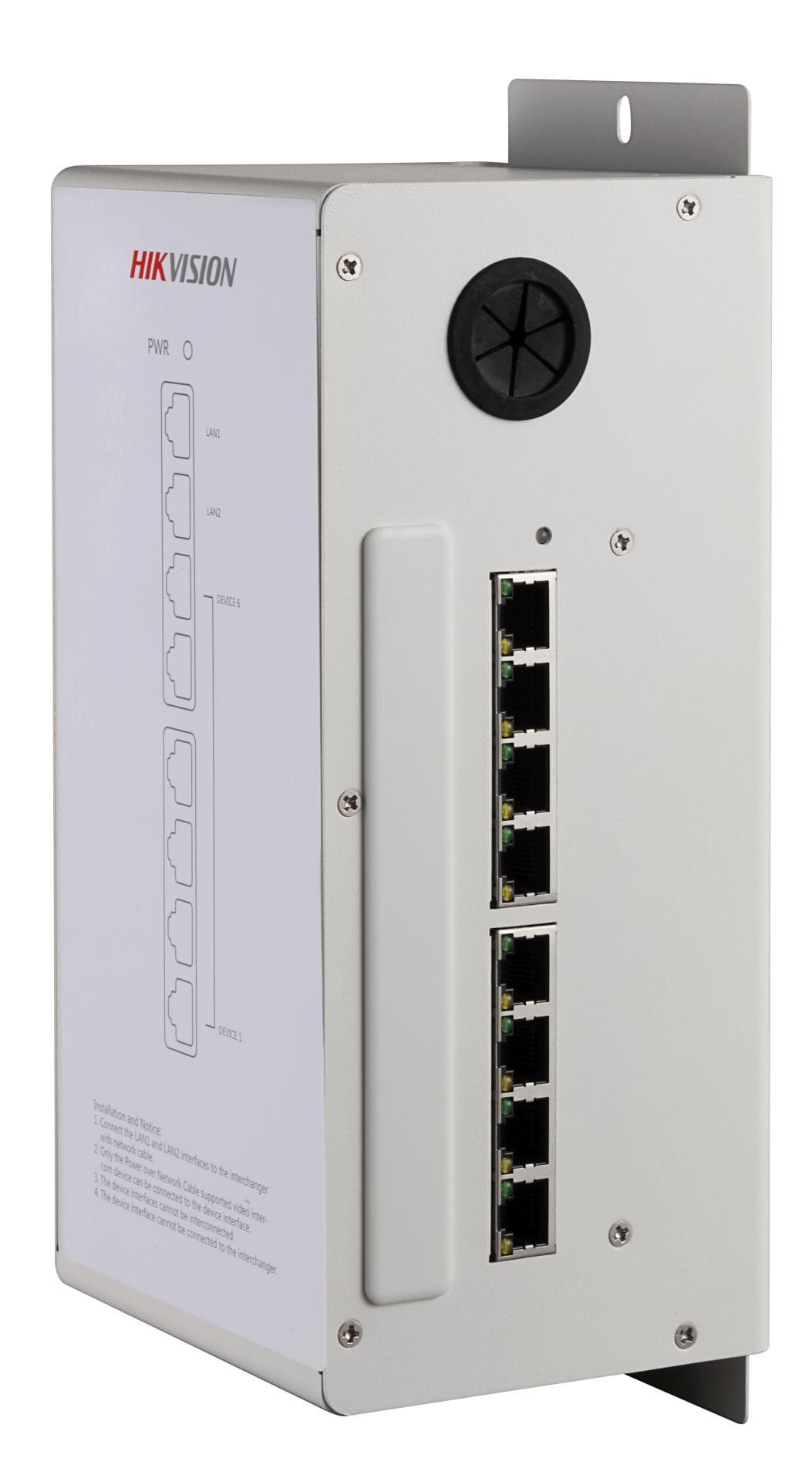

DS-KAD606
Opis
Switch, 8 portów x 100Mbps (6 portów POE, 2 interfejsy kaskadowe LAN), przeznaczony do stacji wewnętrznej i stacji bramowej "villa"...
Gwarancja: 24 mies.
Uwaga! Produkt wycofany z produkcji!
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DS-KAD606 is an integrated Video/Audio distributor
supporting network cable power supply. It has a
built-in voltage-stabilized power and eight 10/100M
LAN interfaces, six of which support powering
through network cables. It is suitable for internet
connection of all-digital video intercom in residence
communities.
DS-KAD606
Built-in 24V DC voltage-stabilized switching mode power supply
Eight RJ45 interfaces, including six adaptive 10/100M LAN interfaces supporting network cable
powering and two adaptive 10/100M cascading LAN interfaces
IEEE802.3, IEEE802.3u, IEEE802.3x
Storing and forwarding function
VLAN technique
Over 1000,000h mean time between failure
Operating temperature range: from -30° C to 70° C
Suitable for wall mounting
Video/Audio Distributor
MAIN FEATURES
DS-KAD606
AVAILABLE MODELS
Spec of DS-KAD606 Video/Audio Distributor www.hikvision.com
2
Model
Parameters
DS-KAD606
Network
Parameters
Interface Number Eight 10/100M Interfaces
Interface Type
RJ45, Full/Half-Duplex, MDI/MDI-X
Self-Adaptive
Standard IEEE802.3, IEEE802.3u, IEEE802.3x
Processing Type Storing and Forwarding
Flow Control
IEEE802.3x(Full-Duplex),
Back Pressure(Half-Duplex)
Priority queue Four
MAC Address List 8K
Internal Buffer 1 Mbit
Other Parameters
Power Supply AC 220 V
Power Dissipation <3 W
Operating
Temperature
-30° C to 70° C (-22° F to 158° F)
Operating Humidity 5 to 95%, No Condensation
Size 275.2 mm (L) x 92 mm (W) x 102.2 mm (H)
Certification FCC, CE
TYPICAL APPLICATOIN
SPECIFICATION
Resident 2
Resident 2Resident 1
Resident 2
Resident 1
Resident 2
Resident 1
Resident 1
Indoor Stations
Network Cable
Door Station
Connect to the LAN
of Community via
Optical Fiber
Optical Fiber
4F
3F
2F
1F
-1F/G
Main Door Station
Video/Audio
Distributor
Switch
Video/Audio
Distributor
