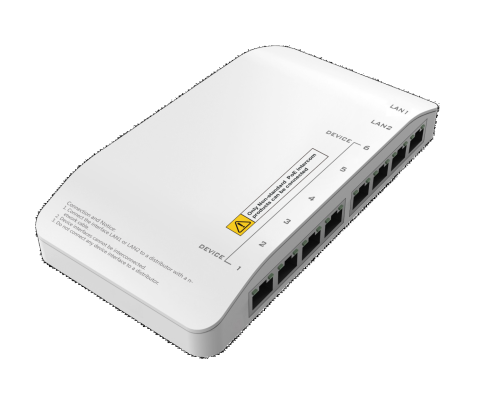

DS-KAD606-P

Switch 8 interfejsów RJ-45,posiada 6 adaptacyjnych interfejsów 10/100 Mbps LAN oraz 2 adaptacyjne interfejsy kaskadowe 10/100 Mbps LAN, gniazdo interfejsu adaptacyjnego 10/100 Mbps LAN do podłączenia zasilania 24 VDC, przeznaczony do stacji wewnętrznej i stacji bramowej "villa"...

Gwarancja: 24 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-KAD606-P
Video/Audio Distributor

Key Features
 8 RJ-45 interfaces, including 6 adaptive 10/100 Mbps LAN interfaces
supporting network cable powering and 2 adaptive 10/100 Mbps cascading LAN
interfaces
 6 adaptive 10/100 Mbps LAN interfaces supports providing 24 VDC for video
intercom devices
 IEEE802.3, IEEE802.3u, IEEE802.3x
 Storing and forwarding function
 Over 1000,000 h mean time between failure
Note:
24V DC power adapter is included in the package.
Typical Application
Client Software
Center Master Station
(Master Station)
Network Cable
Optical Fiber
Door Station
Resident 2


IPC
Master Station
in Guard's Room
Outer Door Station
Resident 2


RS-485
Resident 1
Resident 1
Video/Audio
Distributor


Card
Reader

Card
Reader

1F


Resident 2
Resident 1

Resident 2
Resident 1

Building
2F
3F
4F
Video/Audio
Distributor
LAN












Model DS-KAD606-P
Network
parameters
Interface number Eight 10/100 Mbps Interfaces
Interface type RJ-45, Full/Half-Duplex, MDI/MDI-X Self-Adaptive
Standard IEEE802.3, IEEE802.3u, IEEE802.3x
Processing type Storing and Forwarding
Flow control IEEE802.3x (Full-Duplex), Back Pressure (Half-Duplex)
Priority queue Four
Max. VLAN 64
VLAN ID No. VID1 to VID4094
MAC address list 8K
Internal buffer 1 Mbit
General
Power supply 24 VDC (24V DC Power Adapter included)
Power
consumption
≤8 W
Working
temperature
-10° C to 55° C (14° F to 131° F)
Working humidity 10% to 90%, No Condensation
Dimensions
(L x W x H)
176 mm x 91 mm x 32 mm (69.3" x 35.8" x 12.6")
Specifications





Index Description
1 8 RJ-45 Interfaces
2 Power Indicator
3 24 VDC, Power Socket
Physical Interfaces

0100001061213
Available Model
DS-KAD606-P

12
3
A1A6A2A3A4A5A7A8

Notes:
 Interfaces (A1, A2, A3, A4, A5, and A6)
are 6 adaptive 10/100 Mbps LAN
interfaces supporting network cable
powering.
 Interfaces (A7 and A8) are 2 adaptive
10/100 Mbps cascading LAN interfaces.
