DS-KAB03-V
Opis
Obudowa ochronna wykonana ze stali nierdzewnej, Obudowa stosowana do montażu stacji bramowej (DS-KV8102-IP/VP), brak izolacji...
Gwarancja: 24 mies.
Uwaga! Produkt wycofany z produkcji!
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DS-KAB03-V

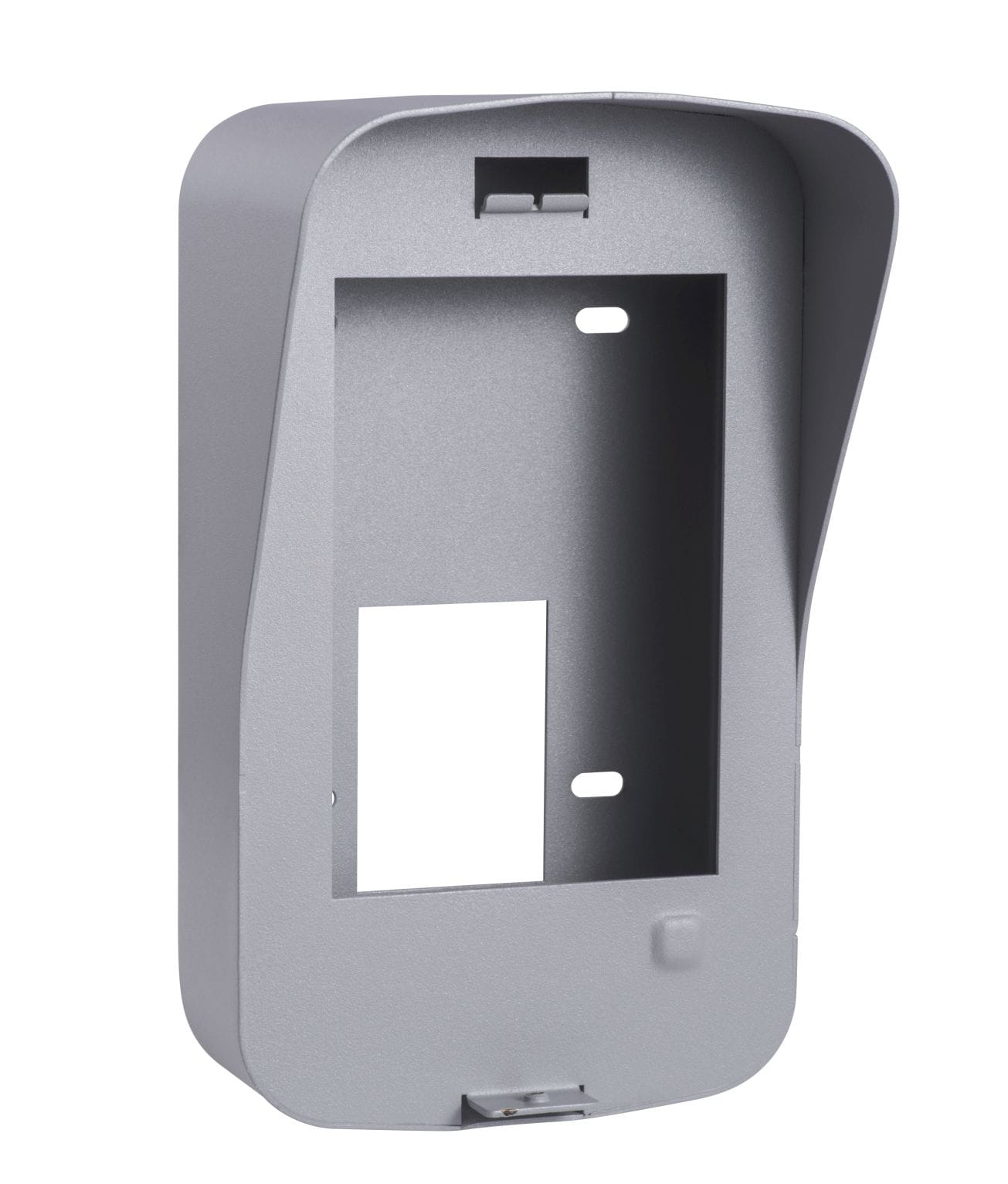

Protective Shield
Features and Notes
Stainless steel material
Convenient design available for the wall mounting of
the villa door station (DS-KV8102-IP/VP)
No insulation
Available Model
DS-KAB03-V
Specifications
Parameter Model DS-KAB03-V
Material Stainless Steel
Working temperature -40° C to +70° C (-40° F to 158° F)
Working humidity 10% to 90%
Dimension (L x W x H) 172.3 mm x 100 mm x 71 mm (6.78" x 3.94" x 2.8")
Dimension

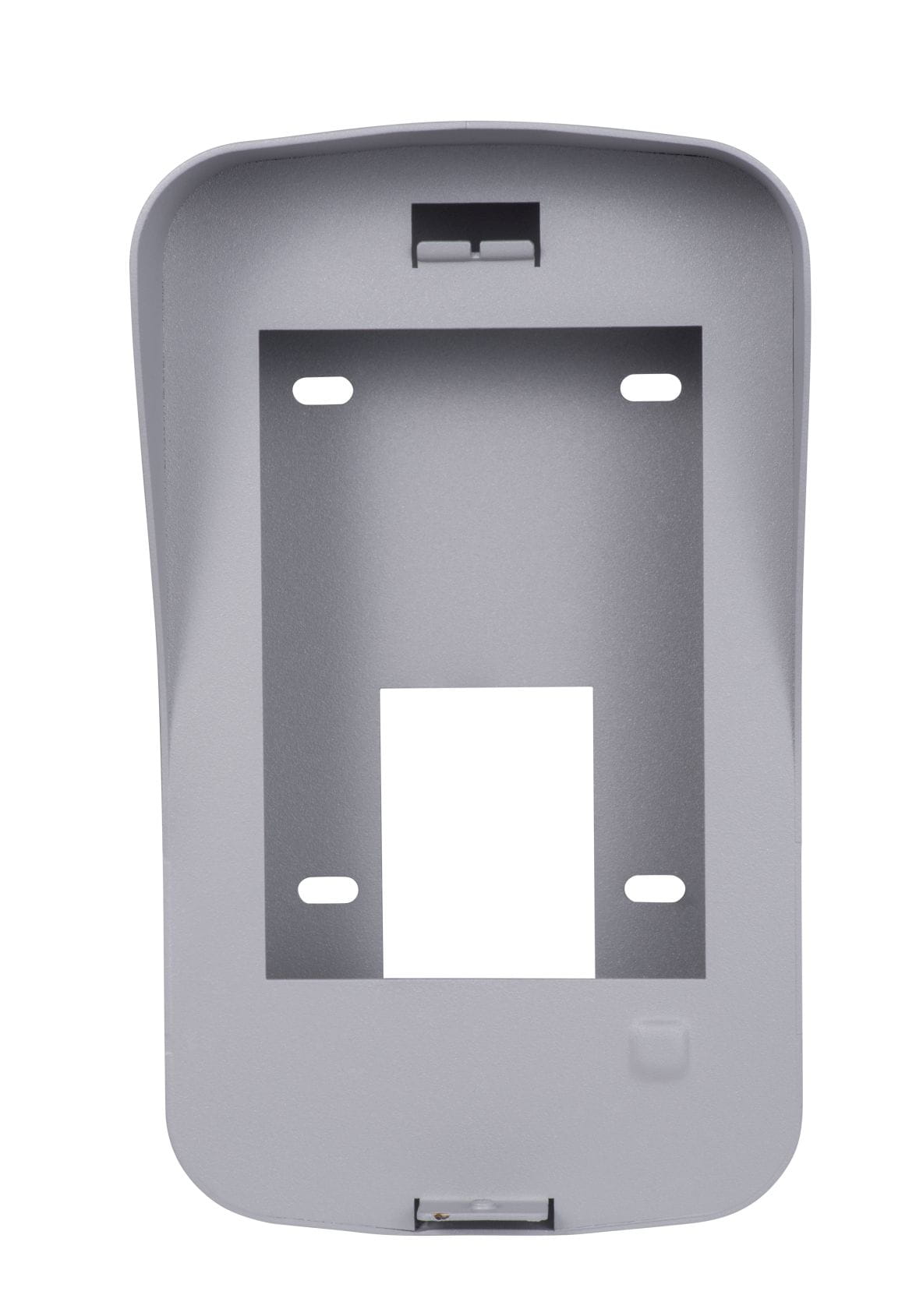

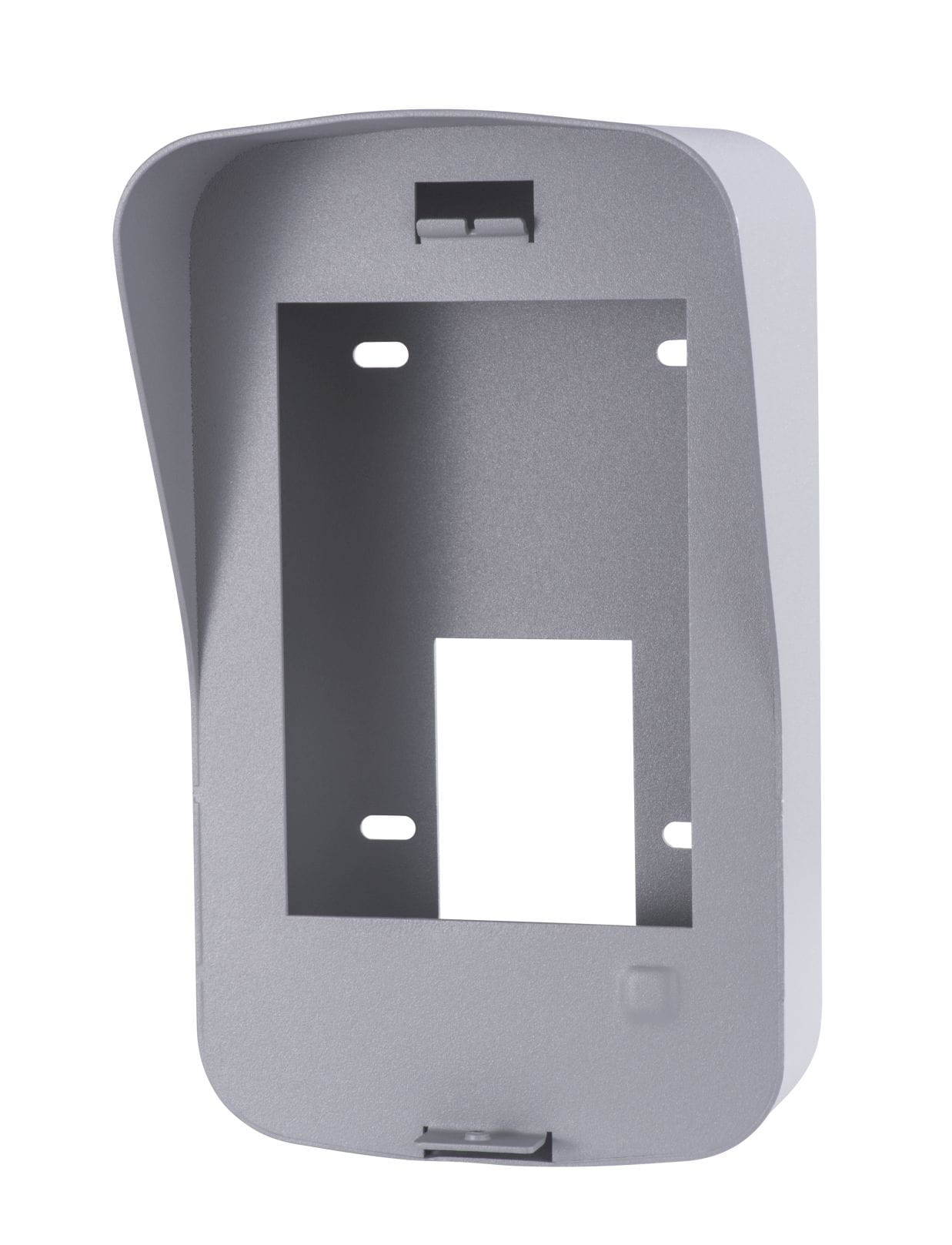

Front View Slide View Rear View
Installation
20161221
